Product Description

sonoscape S3

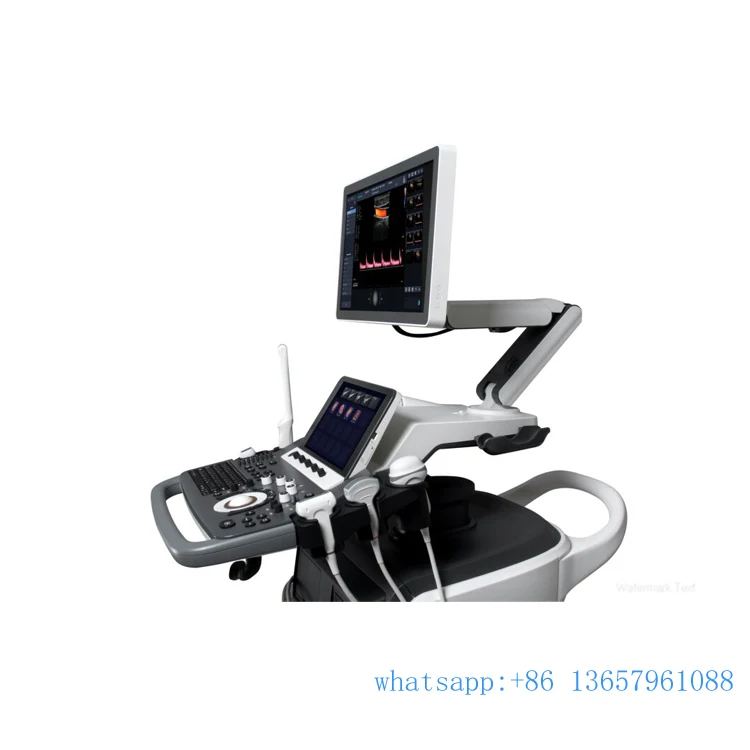

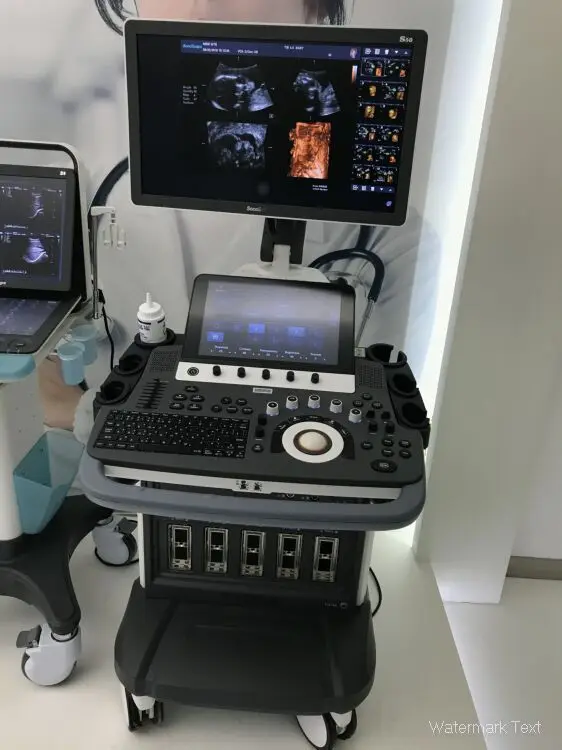

Adhering to its great image quality, SonoScape’s newly released S50 carries a comprehensive, upgraded platform, to become an
epoch-making ultrasound system. It is equipped with powerful single crystal transducers, remarkable 4D functions and intelligent
workflow, which greatly helps to meet a wide variety of general imaging needs. Outfitted with extraordinary software and hardware,
S50 is a good balanced design, internally and externally. The quick response touch screen, mode switching and storage operations
deliver a new standard with clarity and flexibility.

SonoScape’s S50 is equipped with a wide band single crystal probe for abdominal and cardiac scanning, which can greatly improve
signal to noise ratio, and acquire stunning images with better resolution and richer imaging detail. Compared with a conventional
transducer, a single crystal probe has significantly improved acoustic energy conversion capacity, which means the probe has
better performance as well as a longer working life.

Contact with me:+86 13657961088 Rainbow

Specs and Details Images

No.	Item	Specified	S50 Offered
1	General Requirement
◆	Released at least 1 years	released at least at 2015 year
◆	Operation System	Linux Platform
◆	Size	maximum: L×W×H(mm): 987×586×1320
	Multiple Beam Processing	required
	Applications	have a wide range of applications includes: abdominal, OB/Gyn, cardiology, urology, small parts, vascular, orthopedic, anesthesia and MSK.
◆	Monitor	no less than 21.5 inch, 1920×1080 high resolution LED monitor, widescreen,anti-flickering, can be vertically and horizontally swiveled
◆	Touch screen	required, no less than 12.1 inch, and select the Probe with the probe name and icon, and show different presets with the body Anotomy icon
﹡	Touch screen control	The position of the parameters can be controled and adjusted in the touch screen

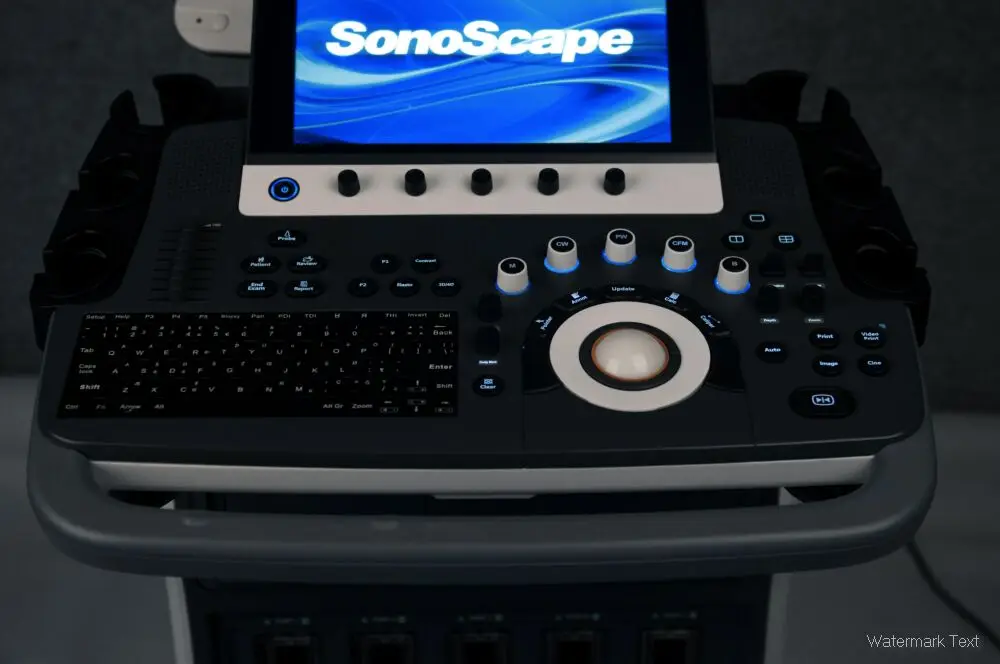

﹡	Keyboard	PC Keyboard on the control panel, with at least 2 user-defined keys
	A/D bit control	at least 14 A/D bit
◆	GPU	required
﹡	Digital channel	at least 36864 digital channel
	Operation Mode	B
				Dual B
				Quad B
				Pluse inversion Harmonic Imaging ( PHI )
				Trapezoid Imaging
				Real-time Panoramic Imaging(B mode )
				Real-time Panoramic Imaging(Color mode and DPI mode)
				Panoramic support in Linear and convex. Velocity indicator and image rotate.
				M
				Color M
				Anatomic M (at least 3 sample lines)
				Color Doppler
				Directional PDI
				TDI
				Power Doppler Imaging
				PW with HPRF, CW
				Dual-Live
				Duplex: B and Doppler/M, can be defined in new preset
				Triplex: B, Color Flow, and PW/CW Doppler,can be defined in new preset
				3D/4D Imaging with S-Live function(light source at least 8 position)
				Scr-Zoom
				Compound Imaging (0,1,2)
				u-scan
				Needle enhancement ( Vis-needle )
				Contrast Imaging
				C-xlasto( elastography imaging)
﹡	Transducer Sockets	at least 5 transducer sockets, 4 active transdcuer connectors, which can support all transducers. Should have a special transdcuer connector for pencil probe.
◆	Transducers	1.can supply with more than 9 transducer choices, covering linear, convex, endocavity, phased array and 4D transducers. Convex, Linear, probe should be high element probes which is no less than 128 elements(Convex), 256 elements(Linear). 2.can supply with single cystal probe, covering convex and phased array transducers.
	Scanning Methods	Electronic Convex Secter Electronic Linear Secter Electronic Phased Array Sector
	ECG	support ECG function
﹡	Clipboard Function	Capture and reviewthe archived images, support output the images and viedo to USB and DVD in scanning interface
	Image Optimization 1	Images can be optimized by one button in B mode
	Image Optimization 2	Images can be optimized by one button in PW/CW mode
◆	Image Optimization 3	Images can be optimized by one button in Color mode (Automatically dectect the Color flow with ROI)
	Screen Saver	users can choose 0-99minutes
	TGC	8 segments control
	Zoom	The zoom value can be shown.The minimum zoom ratio can low to 0.8. The max zoom ratio can up to 10. Support PIP.
	Auto foucs	support B mode and color mode
	Biposy	support 2 needle guide line and 1 gun guide line
﹡	Warranty	spare parts should be provided with system for 18 months
2	Scanning Parameters
	B Mode
◆	Focus	focus number can up to 12 points, and the intra-focus distance can be adjustable
	TGC	8 slider controls
	Dynamic Range	at least 20-280dB(Probe dependent) can be adjusted by 20dB/step.
	Gain	1~255, adjustable
﹡	Depth	40.0cm Maximum
	Chroma	Maximum 13 selectable
	Frequency	5 bands
	Persistence	0-60
	Grayscale curve	7 types
	Adaptive image fusion	15 types
﹡	Line Density	can choose the lower line density for higher frame rate, and the maximum frame rate can up to 1493 f/s, and line density can be adjusted by 3 levels: low/med/high
◆	u-scan	Speckle Reduction Imaging,adjustable
	Compound Imaging	required
	Live Panoramic imaging	required
	Trapezoidal imaging	is availiable for linear array transducer
	Biopsy guide function	required,and the biopsy line adjustable.
	Imaging width and position	adjustable
	Tissue acousitc	at least 1400-1700m/s selectable
	Image Optimization by one button	required
	B-steer	required,at least the Linear probe
	Color Flow Mode/TDI
◆	Live Panoramic imaging	Required
◆	Frame Rate	Minimum 211 f/s
	Pulse Repetition Frequency	0.5~12KHz
	Auto focus	Required
	Steer Angle	up to 20 degrees
	Wall filter	25-750
	Baseline	±15 steps, adjustable
	Persistence:	at least 0-80
	Image orientation	left/right, up/down
	Flow Invert	required
	Color /Direction energy	at least 14 kinds,selectable
	Line density	can be adjusted by 3 levels:low/medium/high
	B and Color Flow Simultaneous Realtime Display	required
◆	Color Flow	available in the frozen mode
◆	Flow velocity	available in the frozen mode
◆	Real Time Flow Volume Analysis	required
	M Mode
	Sweep Speed	adjustable, at least 6 levels
	Video Inversion Function	required
	Chroma	at least 5 types
	Display Format	at least 6 types
◆	Steer M	3 lines and Frame rate can be displayed
	Spectral Doppler
	PRF	PW : 1~16KHz CW: 1-48KHz
	Maximum Velocity Range	PW: 0.0004~18 m/s CW: 0.0013~63 m/s
	Baseline	17 steps
	Frequency	5 bands
﹡	Angle Correction	0~72 degree, 2 degree per step or less
	Auto Angle Correction	Auto 60 degree of Angle correction by one botton
	Sample Volume in PW Doppler	0.7~21 mm, adjustable
	Sweep Speed	adjustable, at least 4 levels
	Chroma	5 types
	Triplex	required
	Video Inversion Function	required
	Spectrum Inversion	required
﹡	Real Time Auto-Trace	required
	Wall Filter	25-750, adjustable
◆	One-key Auto Optimization	At least can adjust the baseline, PRF,and correct angle
	Steer angle	0,±16, ±20
	Display Format	6
	Deflection Angle	5 levels, adjustable
	3D/4D Mode
	Functions	include Trace Cut, Undo Cut,Clip Plane, Multi-slice, Cine Review
	Display Mode	Dual, Quad, Full 4D, 3D
	Adjust Slice	X Rotation, Y Rotation, Z Rotation
	Opacity Threshold	0-255
◆	Render Mode	Surface, Grad.light , Skeleton, S-live ,S-depth, Transp.Min, X-Ray,(At lease has 7 types of Render Mode) can render in real time
	Auto Rotate	0°,45°, 90°, 180° , 270°and 360°, selectable
	Zoom In/Ou	adjustable
	3D Chroma	0-14 adjustable
	Color Map	1-13 adjustabe
	Transparency	0-100 adjustable
	Contrast	0-100 adjustable
	Brightness	0-100 adjustable
	Smoothness	0-30 adjustable
	Multi-Slice	required, Slice number: 12, 22, 34, 33, 44, 55
	Slice Spacing	0.5-2.0, adjustable
	Measurement	Distance, Area, Volume
◆	AVC foilicle	Left Ovary, Right Ovary
	Storage	3D Image/Cine/Volume Storage
	Cutting Line Curvature and position	adjustable
	Image Quality of 4D	Low/Medium/High, selectable
	Rescan	required
	4D Gain	adjustable
	Frame Rate	40 f/s
	Print	required
3	Transducer
﹡	Transducer Warranty	transducers are manufactured by supplier, and the warranty should last 18 months
﹡	Transducer Frequency	broadband (1.0~17MHz) with multiple 5 frequencies range in B Mode/Color Mode/PIH Mode/PW mode/CW/Mode
◆	Transducer Elements	at least 192, and can optional 256
﹡	Linear Transducer	frequency range: 3~17MHz
◆	Convex Transducer	frequency range: 1~15MH , support single cystal convex transducer
◆	Endocavity transducer	frequency range: 3~15MHz scanning angle: 200°
◆	Temperature-detection Technology	the temperature of endocavity transducer can be displayed
◆	Phased Array	frequency range: 1~7MHz , support single cystal phased array transducer
	Biopsy Guide	Required
4	Image Storage
	Cine Loop	available for all mode
﹡	Cine Loop Memory	1000 frames in B mode, 8000 frames in Contrast mode
	Image Format	JPG, BMP, TIF
	Clipboard function	is avilibale in frozen B mode
	Clip Format	WMV, AVI
	One Key Save	required
	Doppler cine playback	speed is adjustable, sound can be played back
	Print&Store Region	Full Screen, Image&Result Area, US Image
	Image Share Service	required
	Store To UsbDisk	required
	Storage Capability	Hard Disk can up to 500G/1T
	Report Tables	Abdominal, OB/Gyn, Cardiology, Urology, Small Parts, Vascular,IMT
	Report Format	TXT, PDF
◆	Report Templet	at least 6 images can be displayed in report
5	Measurements
	Measurement Packages	Abdominal, OB/Gyn, Cardiology, Urology, Small Parts, Vascular, Orthopedic, and measurement packages can be chosen for Icon Driven or All Packages
	Measurement in B Mode	Distance, Angle, Ratio(Distance,Area), Area/Circumference(Ellipse,Trace),Volume(3 axis/2 Axis)
	Measurement in M Mode	Distance, Time, Slope, HR
	Measurement in PW Mode	Flow Velocity, Acceleration, Time, Heart Rate, and has automatic measurement functions
◆	Quick Measurements	Measurement can be select by one button
﹡	IMT Measurement	support IMT measurement, and the result can be displayed in report
◆	Auto NT	support Automatic NT measurement
◆	Auto EF	support Automatic EF measurement
	Obstetrics Packages
	Measurement items	28 types, including GS, CRL, BPM, HC, AC and AFI.
	Formula	users can define the formula by themselves
◆	Fetal Growth Chart	systems can display fetal growth in a graph chart according to some measurement items and their OB tables. Up to 4 charts
	Cardiac Packages
	B Mode	Single-plane Ellipse, Bi-plane Ellipse, Bullit, Simpson
	M Mode	Cube, Teichholz, Gibson
﹡	PW Mode	Real Time Automatic Measurement
6	Annotations
	Comments	no less than 130 comments in dictionary, and users also can define it by themselves
	Arrow	Orientation adjustable
﹡	Body Mark	up to 109 types,can be classified by specific exams

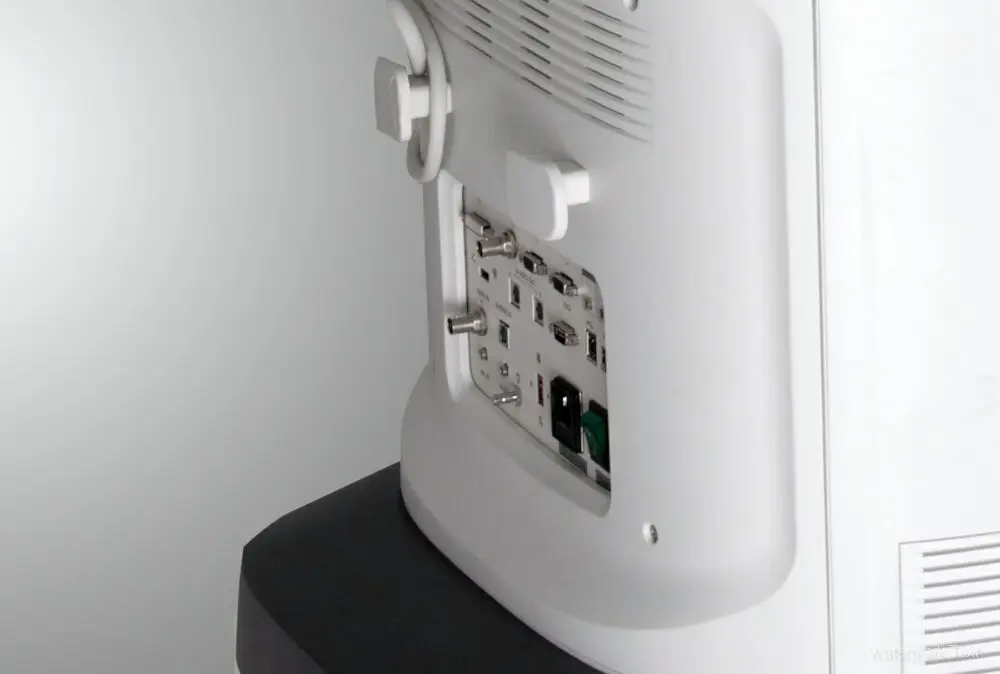

7	Input and Output
◆	DVD-R/W	Required
	Footswitch	Required
	S-video output	Required
﹡	USB Port	4 ports
	VGA/HDMI output	Required
	Printer interface	Video printer
	Ethernet port for DICOM	Required
8	Preset Function
	Preset Function	Required, can be customized
	The sequency of presets	Users can arrange the presets
	import or export presets	Required
9	Environmental Requirements
	Operating Condition	Temperature: 0℃~40℃ Relative Humidity: 30%~85% Atmospheric Pressue: 700hPa~1060hPa


	Transportation Condition	Temperature: -20℃~55℃ Relative Humidity: 20%~90% Atmospheric Pressue: 700hPa~1060hPa
	Power in	100~240V,2.7-1.1A, 50/60Hz,
10	Qualification documents
	CE certification	Required
	ISO 13485	Required

Feedback and related products

After Sales Service

After-sale service

1.Within guarantee period: Supply all-free repair and maintenance . For small problems, we can provide remote guidance and send the buyer free spare parts. For big problems that cannot be solved by buyer himself, we will recall the machine and repair it in our company. Spare parts my company provide for free.

2. Beyond warranty period, for small problems, we can also provide remote guidance, and the buyer only need to pay for the cost of the spare part and express fee. For big problems that cannot be solved by the buyer, we will recall the machine and repair it in our company. The clients are responsible for the transport and repair expenses.

Packing&Shipping

Advantage

Company Introduction

Company Presentation

Guangzhou Medsinglong Medical Equipment Co., Ltd. (MSL) located in Panyu district, Guangzhou city, which is a professional medical supplier founded in 2008 , dedicated to supplying low-priced medical equipments with strict quality and comprehensive services.

With the efforts of our procurement team, we have successfully cooperated with outstanding manufacturers who developed hundreds of models to meet the needs of different customers, such as Ultrasound machine,X ray machine,Blood analyzer,Biochemical analyzer,veterinary equipment,Radiation protection equipment, beauty machine and so on. Whether hospitals, clinics,or persons, you can always find your expected products here in Medsinglong. Until now, we have exported to 161 countries in the world, saving
approximately 50 million US Dollar of medical costs for our clients. The average annual growth rate of sales of our company is
118% in continious 5 years. We believe that customer satisfaction is the greatest success. Therefore, lowering the cost of your
medical devices is our goal. In order to accomplish the target, efforts and support from you are essential to make it happen.

Certificates

Новые поступления

Новинки товаров от производителей по оптовым ценам

Ультразвук Sonoscape s50 4d лучше чем mindray dc 70

Описание и отзывы

Характеристики

Похожие товары

Высокое качество портативный ультразвуковой аппарат Mindray DP-50 с диагностическая система ультразвука для больницы

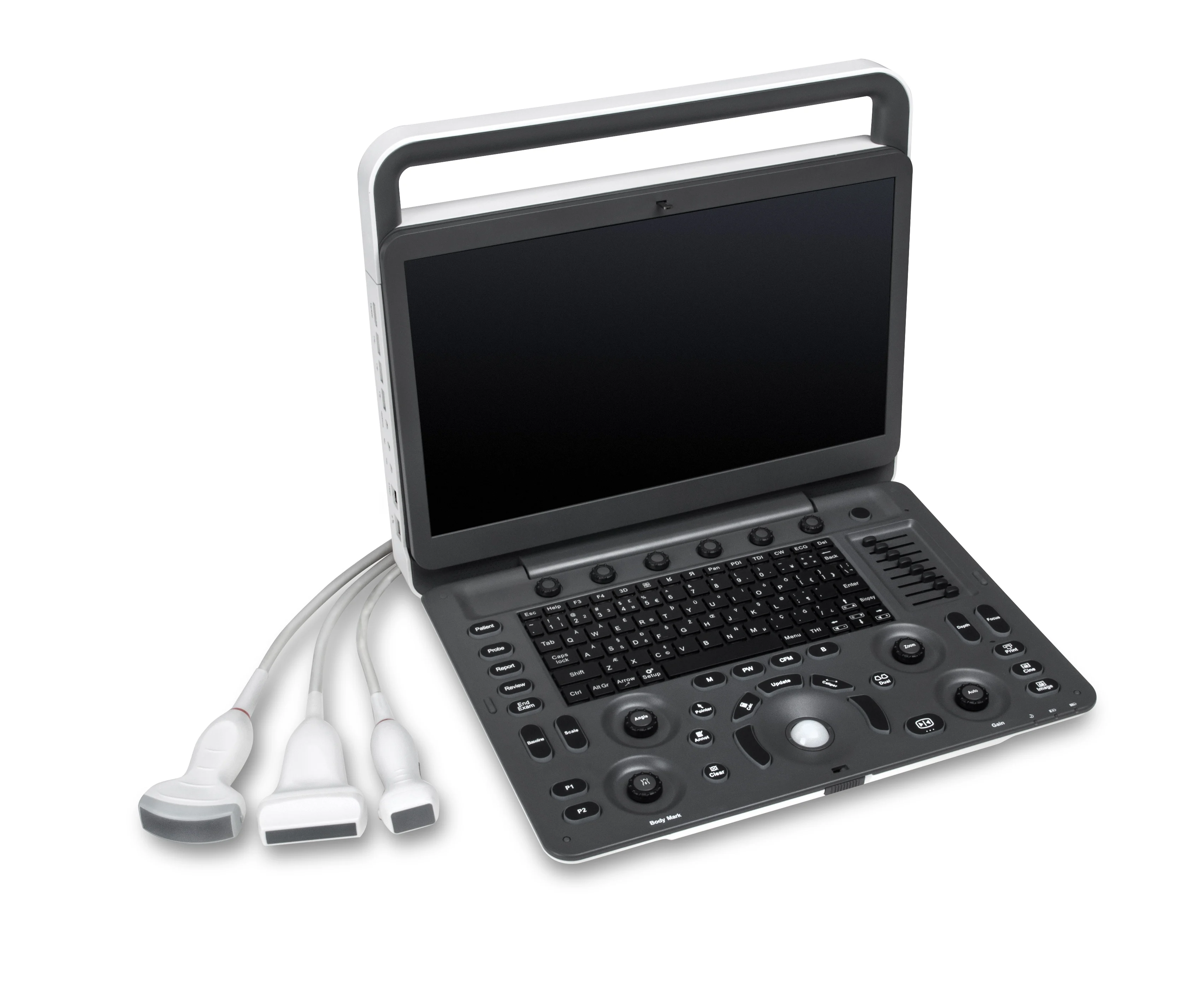

Медицинский портативный ультразвуковой аппарат Sonoscape E2 3D 4d цифровой цветной доплеровский аппарат/ультразвуковой аппарат

Набор гистероскопических инструментов по цене, Гинекологический набор от фабрики гистероскопической машины

Ветеринарный ультразвуковой сканер SonoScape E1Vet с ректальным зондом L741V

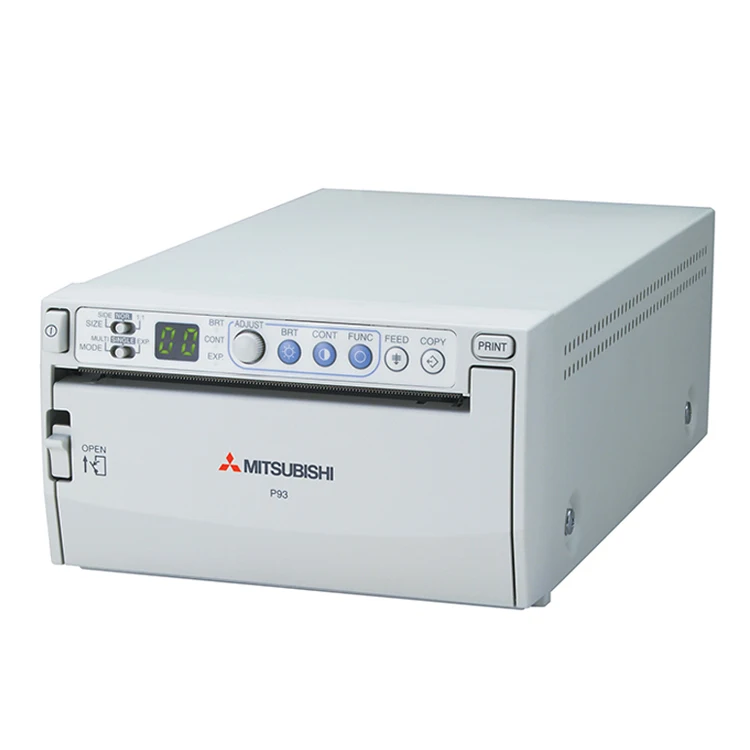

Самый дешевый ультразвуковой принтер Mitsubishi p93

Офтальмологический Профессиональный портативный непрямой офтальмоскоп

MCE-YZ11D дешевые офтальмоскоп прямой Ретиноскоп диагностический набор офтальмоскоп цены

Допплер ультразвуковой ноутбук лучший цифровой аппарат SUN 800D от

Новые поступления

Рекламный надувной самолет украшение для костюма самолета ходячие костюмы продажи

C100 % восковая ткань с принтом китайские поставщики поставляют настраиваемые печатные африканские восковые ткани

Прямые продажи с фабрики могут быть оптовые складные тележки для покупок Удобные и уличные продуктовые

Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное

Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена

Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи

Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной

Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
