Профессиональный 20CH аудио видео конвертер цифровой сенсорный экран микшерный пульт с Phantom мощность IPAD IOS и Windows системы

Сохранить в закладки:

Цена:919,71 $ - 986,04 $*
Стоимость в USD:Показать (текущая цена)


  • В избранное

Описание и отзывы

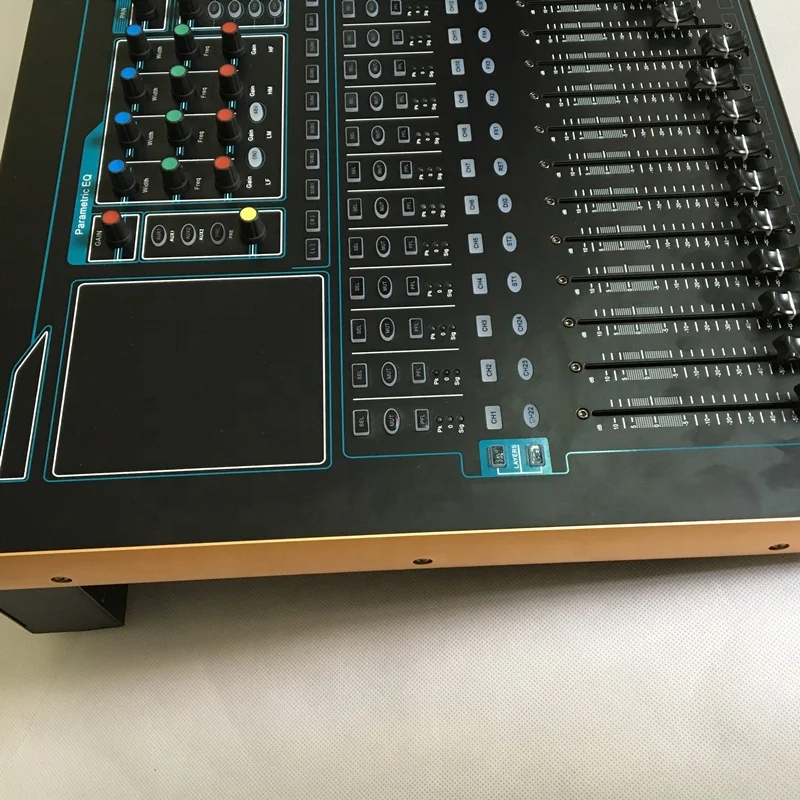

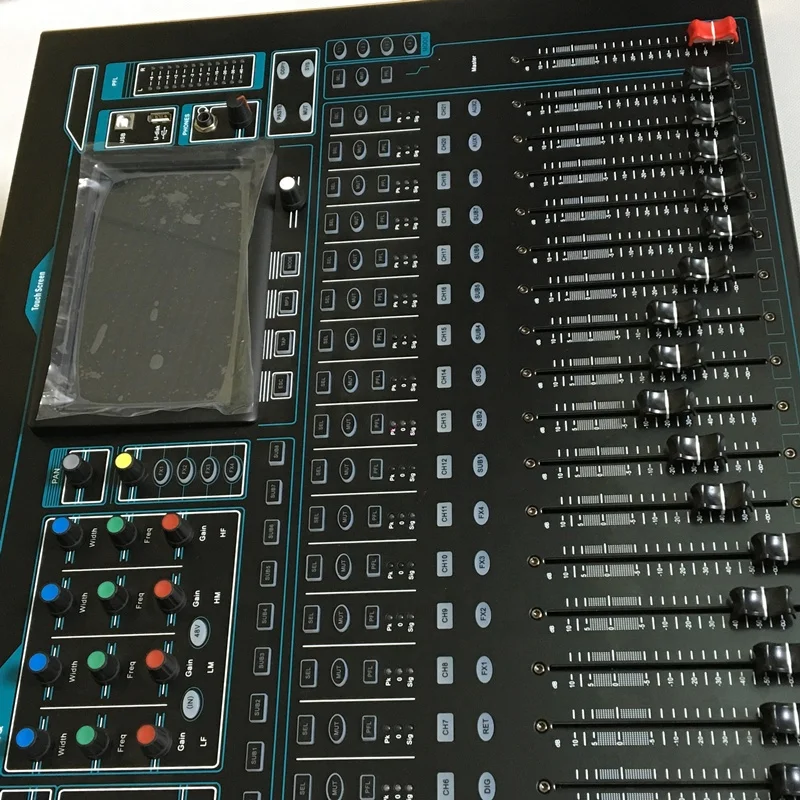

20CH Audio Digital Touch Mixer With IPAD, IOS and Windows System Control and Phantom Power


Product Description



Main Features

1 : 20 signal input (12  MIC, 2 stereo, 1 return, sound card / MP3 + fiber)
2: Input processing - Input gain adjustment (electronic gain) preamplifier, high and low pass filtering, 4-band parametric equalization, compressor, noise gate, delay, input channel pan balance adjustment
3: MIC input with digital gain adjustment
4 : +48V phantom power (MIC channel independent open and close)
5 : Built-in 3 9-segment graphic equalizers (1-16 input channels can be inserted arbitrarily)
6: Input and output EQ ON/OFF
7: Stereo return input
8: channel parameter fast copy function
9: Each channel has a multi-function menu, mute button, monitor button
10: Each channel is equipped with a 100MM electric fader, signal light, peak light (22 electric faders)
11:12 signal output (stereo main output, 8-way group output, 2 auxiliary outputs)
12: Output processing - high and low pass filtering, 15 segment parameter equalization, compressor, delay, phase
13: Auxiliary output (before the fader, after the fader)
14 : Multi-track multi-mode digital recording function
15 : double row 3 color 12 segment level indicator
16 : Built-in sound card (MP3, PC directly play music)
17 : 4 shortcut scene calling modes, 20 scenes storage
18: Storage and recall of user parameters (can be managed on the PC side)
19: Built-in 4 DSP effects
20:7 inch 800*480 HD touch color screen
21 : FX pedal switch interface
22: Fiber input and output
23: Multi-OS operating system control software (IOS system, WINDOWS system) Chinese and English switching display
24: Support wired network port adjustment (or external router wireless adjustment)
25: User-customizable layer, output mixed editing function
26: Parameter lock function
27: Size: 436*523*142MM
28: Net weight: 10.9KG


technical parameter:
Input mic/line input 1 - 12 balanced, XLR jack
Input sensitivity (XLR/TRS): -60 to +10db /-50
To +20db
Electronic gain: -32 to +10db, 0.7 step
Maximum input level (XLR/TRS): +19db/+29db
Input impedance (XLR/TRS): >5kΩ / >10 kΩ
THD+N Uniform Gain Status 0db: 0.0005%-89db
(20-20KHZ, direct output @0db 1KHZ)
THD+N medium gain +30db: 0.001-75db (20-
20KHZ, direct output @0db 1KHZ)
Output voltage: 4V MAX
Headphone output: 7V 220 Euro
Enter 4 segments of full parametric equalization: 20-20kHz,
Q value 0.3~15.0
Band 1: Optional Lshelf, PEQ
Band 2: PEQ
Band 3: PEQ
Band 4: Hshelf, PEQ can be selected
Input independent delay: up to 10ms
Output 15 segments of full parametric equalization: 20-20kHz, +/-12db,
Q value 0.3~15.0
Independent output delay: up to 30ms
Switch: ON/OFF
Threshold/rate -50dBu to 6dBu / 1:1 to infinity
Shock/release 1ms -127ms / 1ms -127ms
Pluggable? 9? 2 into 9 segment graphic equalization
63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k
Gain: +/-12dB
Fader: 100mm electric
Network: Fast Ethernet (100 Mb/s) port can be connected to a computer using a CAT5 cable for controlling console parameters via TCP/IP or connecting to a wireless router (access point) using the V32 application on the iPad For live mixing control, the Link indicator flashes to show network activity




32ch 32ch mixer (2)32ch mixer (6)32ch mixer (5)32ch mixer (4)


12ch mixer 8.jpg







Packaging & Shipping

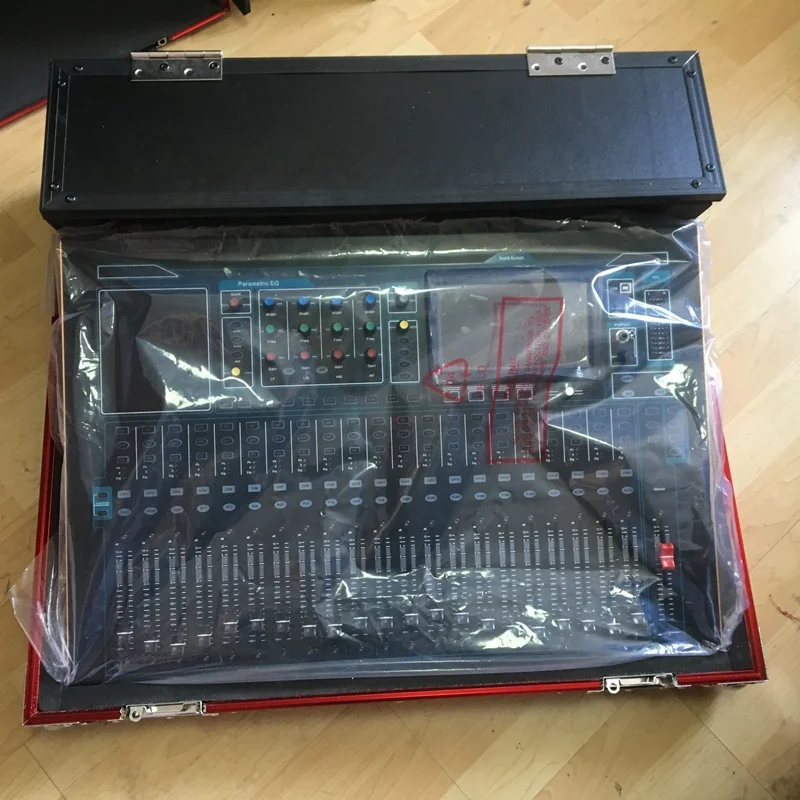

Color Box:







 Flight Case :

 flight case packingpacking

















Our Services


MOQ1 pcs
Price termFOB  /  EXW / CIF
Payment termsT/T  ,   Western union ,  Cash
PackageCarton box  /  Flight case
Delivery timeFor sample order: about 1 - 3days after payment
For big order : about 5-15days after payment
ShippingBy air ,  By sea ; By express : DHL / UPS / Fedex/EMS
OEMWe accept OEM order
Warranty2 years
After sells service
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 2 years.




Company Information

 factory ShowCE




Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:usually it will take 3 to 5 days to process checking and testing then can ship out

Q3. Do you have any MOQ limit ?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for stage light products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.

If there is problem with the product,  you need to send the picture or the video to us, let us make sure what’s problem about it,if the problem can use the part to solve ,we will offer the replacement for free Within 2 years , or we can discuss the solution including re-call according to real situation.
