Запчасти и аксессуары для мотоциклов italika DM150 гоночная катушка зажигания высокого давления

Сохранить в закладки 62440889484:


Цена:2,00 $ - 2,50 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

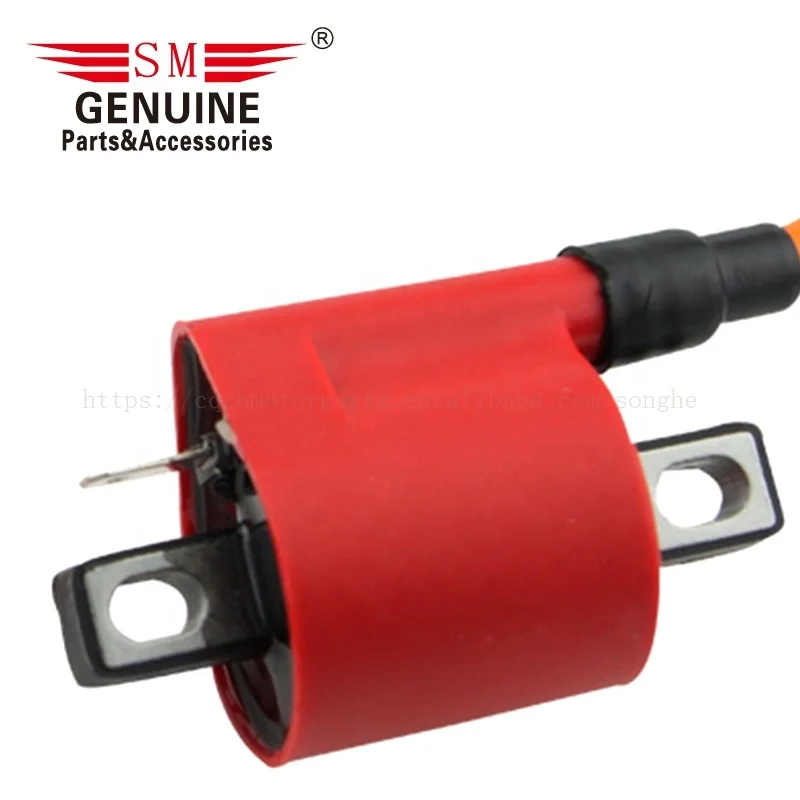

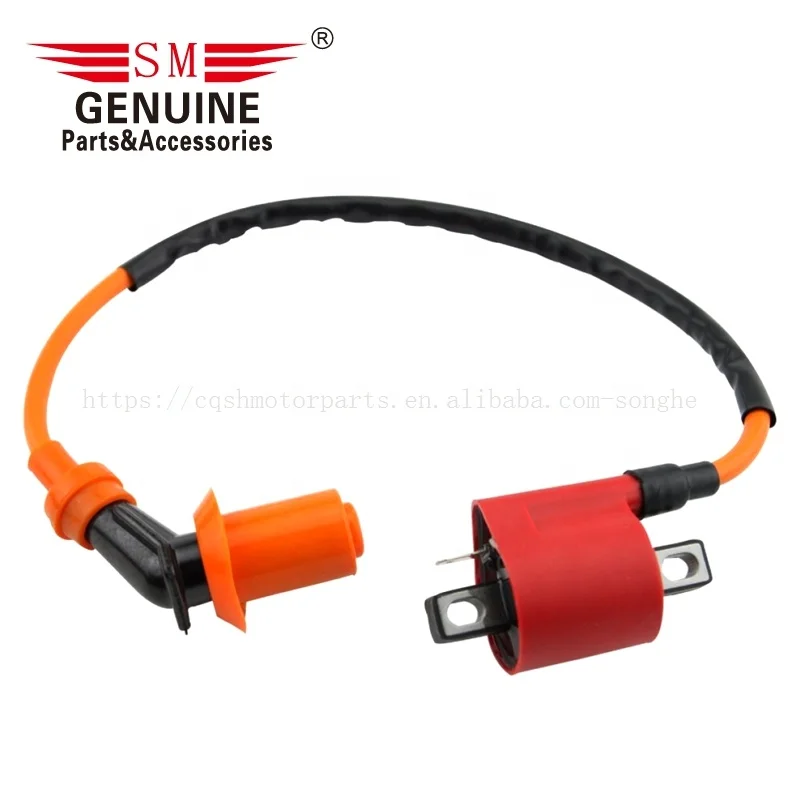

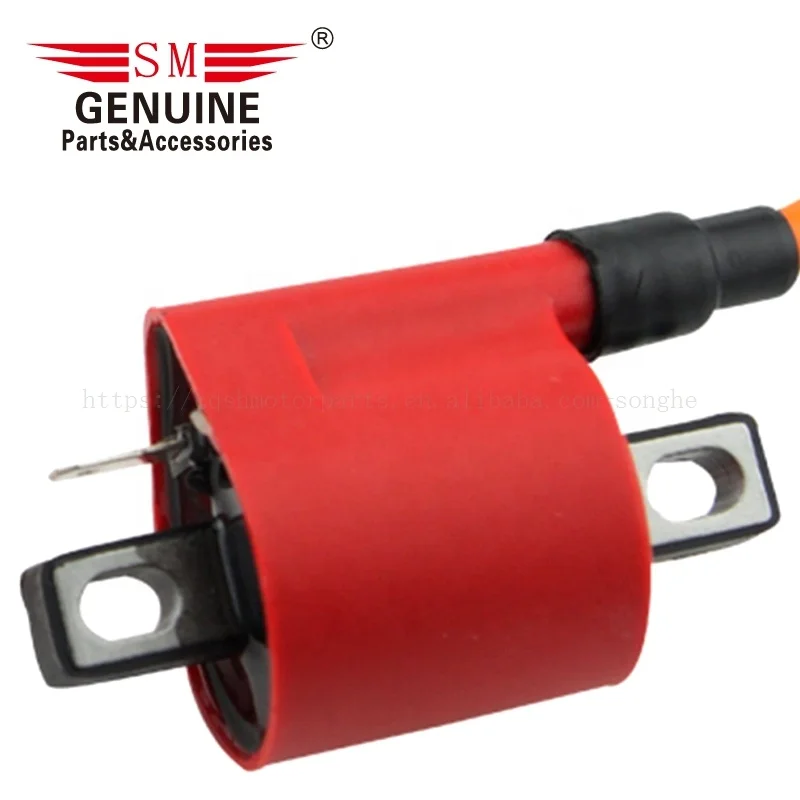

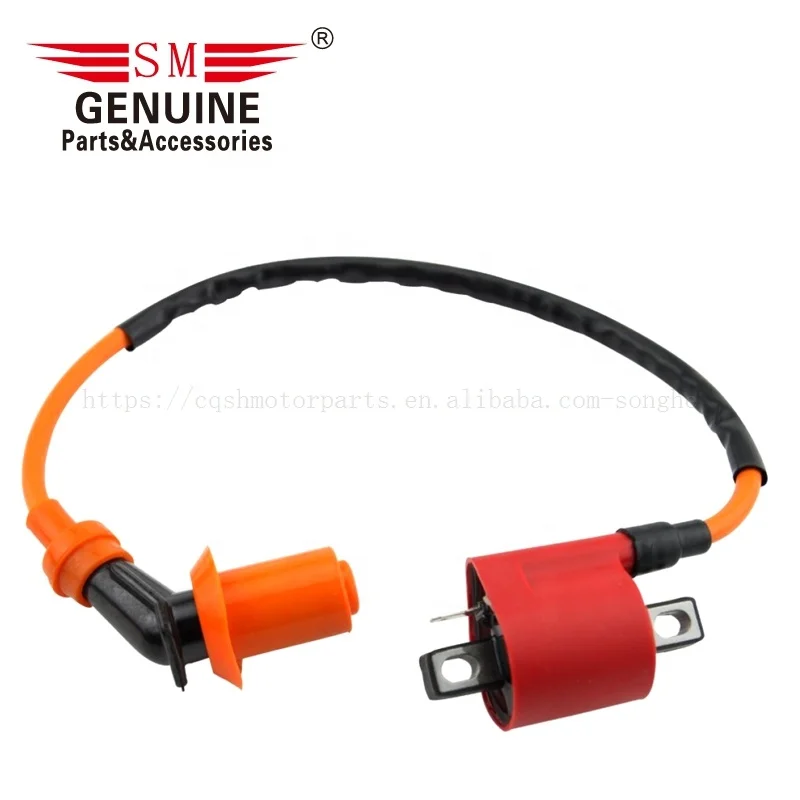

IGNITION COIL


Motorcycle parts and accessories italika DM150 racing high pressure ignition coil Bobina de encendido Ignicion


Technical requirements

Origin Chongqing, China
Manufacturer CHONGQING SONGHE SCIENCE&TECHNOLOGY CO., LTD.


1,Appearance: smooth surface, no foul, and the adhesive material; package surface bubbles, cracks and other defects;

2,Product performance:
 --Minimum continuous ignition speed: ≤ 400r/min;
 --Continuous ignition speed range: 400 ~ 11000r/min (three needles pole distance: 6mm; minimum and maximum duration of continued sparking speed not less than 20s;
 --High voltage insulation dielectric strength: three needles pole distance 12mm, speed 3000r/min, which lasted 40S no breakdown;
 --Ignition coil surface and the high-voltage fuses, high pressure outlet of the spark plug cap and the outer surface of the resistor value is not less than 1000MΩ;
 --High-voltage coil main body and the spark plug cap pull-off force: ≥ 50N;
 --Spark cap damping resistance: 5 ± 0.5KΩ;
-- Coil pressure:> 38KV;
-- The ignition coil can withstand high pressure and has good insulation performance;
 --High temperature epoxy resin vacuum packaging, vibration resistance, strong anti-interference;

3,Product meets the the motorcycle JB/T9865.1-1999 standard;
