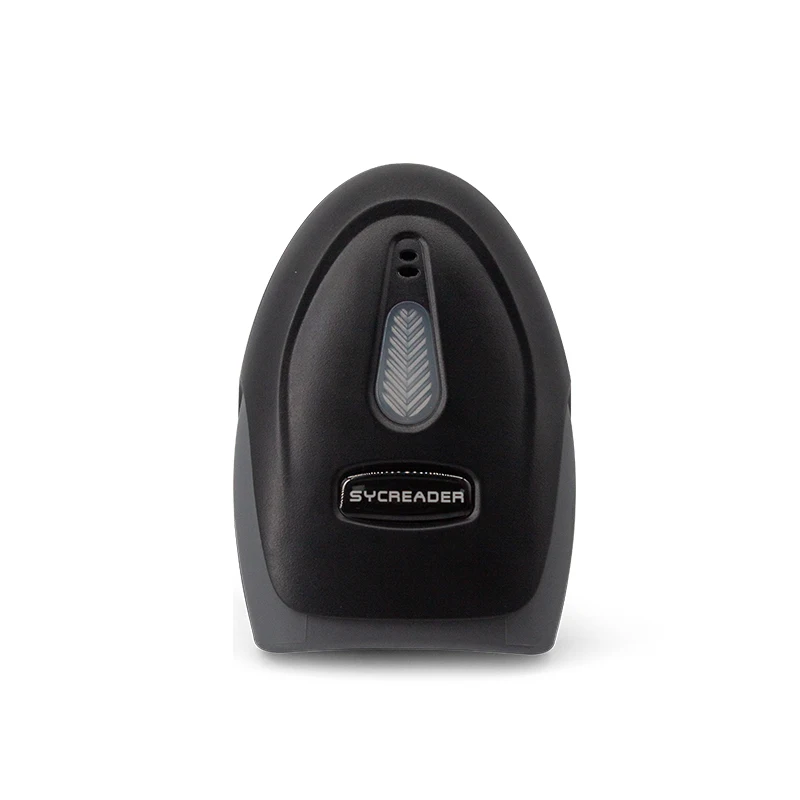

Portable Most Popular Wired with Usb for retail Qr Code scanner 2D barcode reader
18,50 $ - 22,50 $
Лист из эпоксидного ламината для шестерен зеленый цвет FR4 G10
- Категория: >>>
- Поставщик: Prior Plastic Co. Limited
Сохранить в закладки 62441143673:
Описание и отзывы
Характеристики
Product Description
Product Name | Green FR4/G10 sheet |
Material | Fiberglass + epoxy resin |
Color | green,black |
Size | As per drawings |
Thickness | 0.5mm-50mm |
Certification | ISO9001, SGS, CTI, ROHS |
Application | gasket, gears, wave solder pallet, jigs&fixtures |
Green Color FR4 G10 Epoxy Laminate Sheet for Gears
This product is a kind of laminated board formed through heat pressing after the electric industry glass fiber cloth dips into epoxy resin. It is suitable as the mechanical, electric and electronic insulation structural components which are used under room and middle temperatures with a certain mechanical performance and electric performance requirement.
We have three types of ESD fiberglass sheet. Customer can choose the most suitable type according to different applications.
1.Single side ESD: 0.5mm ESD layer on one side, the other side is non-ESD.
2.Double side ESD: 0.5mm ESD layer on two sides,the middle part is non-ESD.
3.100% full ESD: anti-static on each layer of the sheet.
1.Single side ESD: 0.5mm ESD layer on one side, the other side is non-ESD.
2.Double side ESD: 0.5mm ESD layer on two sides,the middle part is non-ESD.
3.100% full ESD: anti-static on each layer of the sheet.
Characteristics
-Excellent mechnical strength -10^6~10^9 surface resistivity
-High temperature resistant
-Good size stability
-Good ablity against acid ,alkali and solvent
-Hard and durable
-Good adhesive properties in the surface
-Waterproof
Technical Data Sheet | ||||||||
Name | FR4/G10 sheet | |||||||
Grade | A grade | |||||||
Density(g/cm3) | 2.1 | |||||||
Water absorption 24hrs(%) | 0.15 | |||||||
Max. service temperature -Short term(°C) | 280 | |||||||
Max. service temperature - Long term(°C) | 155 | |||||||
Coefficient of Thermal Expansion-LW(m/K) | 11 | |||||||
Coefficient of Thermal Expansion-CW(m/K) | 15 | |||||||
Thermal Conductivity W/(m.K) | 2.2~2.5 | |||||||
Tensile strength at yield (m.K) | ≥240 | |||||||
Flammability | V-0 | |||||||
Hardness Rockwell | 110 | |||||||
Izod impact strength(kJ/m2) | ≥33 | |||||||
Volume resistivity Ohm (Ω) * cm | 5.0x10^9~10^11 | |||||||
Surface resistivity Ohm (Ω) | 5.0x10^10~10^12 | |||||||
Electric strength(kV/mm) | ≥13.7 | |||||||
Dielectric Loss mudule(50HZ) | ≤0.04 | |||||||
Arc resistance(sec) | ＞60 | |||||||
Our Service
FR4 plastic gear
Made by CNC,high precision
Test fixture
Fabricate according to customer's drawing
Wave solder pallet
Design according to customer's requirement
Our Company
Factory
Workshop
Warehouse
Warehouse
Packing & Delivery
Packing : by cartons or by export pallets
Delivery : 3-5 working days after payment received.
Cartons
Plastic pallet
Wooden case
Our Certifications
Customer Feedback
Favorable comment from USA
Your response time is good that is why we bought material from you. And also I can get the material from Shenzhen
itself with lesser price.
Favorable comment from India
We are happy wth your prompt response on this project communication&data exchange,we thought we will require at least two Chinese manufacturers to get our pallet fast,but I hope Prior Plastic can provide us alone.
Favorable comment from Italy
We got a better offer from another Chinese company,but we prefer to buy from you because you seems more professional.
FAQ
Q: What's your MOQ?
A: For stock items, 1PC qty is also accepted
Q: What’s your lead time?
A: Generally we can arrange shipment within 3 working days after payment received. For OEM orders, the lead time is 7-10 working
days.
Q: Can I get free samples ?
A: Yes, we can offer samples for free by using customers collected courier account. For old customers, we can also bear the
shipping cost.
Q: What’s the warranty of your product ?
A: We offer 1 year warranty for our products.
Q: How will you handle customer complaint ?
A: We have four basic steps for customer complaint.
1. We will request customers to provide related pictures or videos for the actual problem.
2. Our after-sales team will study the case, and find out the reason why the quality defects happen.
3. We will have meeting to come up with a proposal, and discuss with customers if they are satisfied with the solution.
4. We will have QC meeting to learn from the case in order to avoid same problems happen again.
Похожие товары

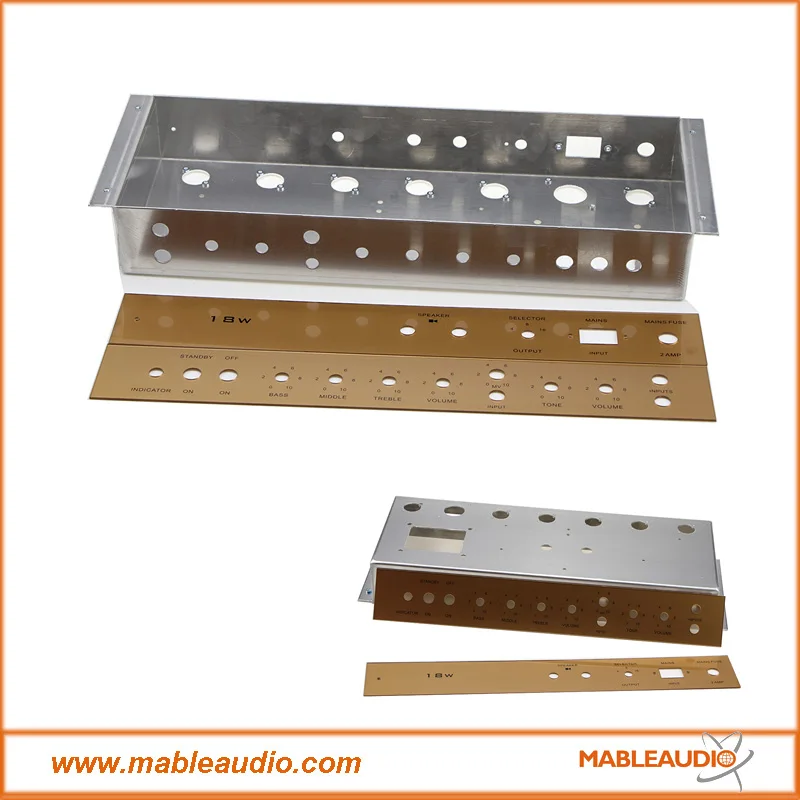

Усилитель для гитарной трубки мощностью 18 Вт, корпус и Лицевая панель маршала для самостоятельной сборки
40,00 $ - 45,00 $

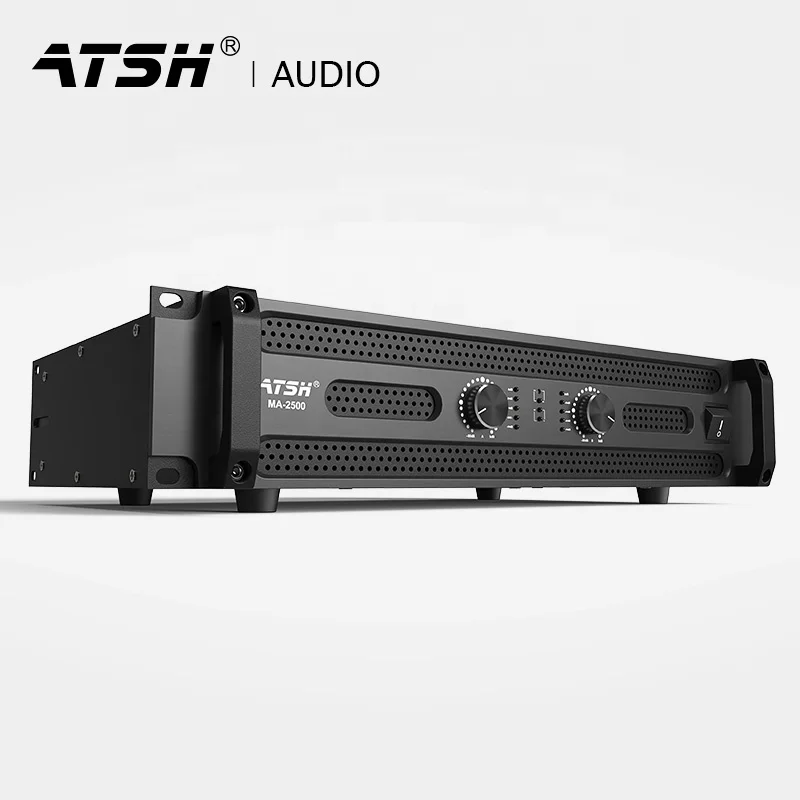

Цифровой стереоусилитель ATSH MA-2500 для караоке, профессиональный диджейский динамик, усилители высокой мощности 300 Вт/600 Вт
290,00 $
100% нейлоновый Флокированный порошок, полиамидное флокирующее волокно, электростатический флокирующий материал
7,40 $ - 8,40 $

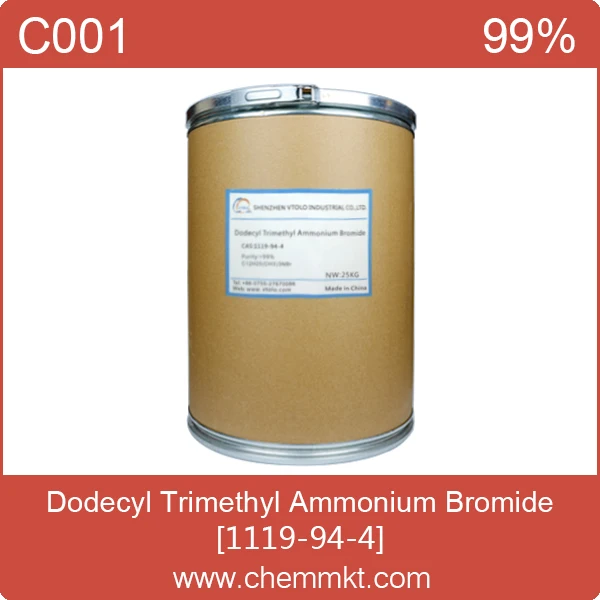

Китай поставщик Додецил триметиламмоний бромид CAS 1119-94-4

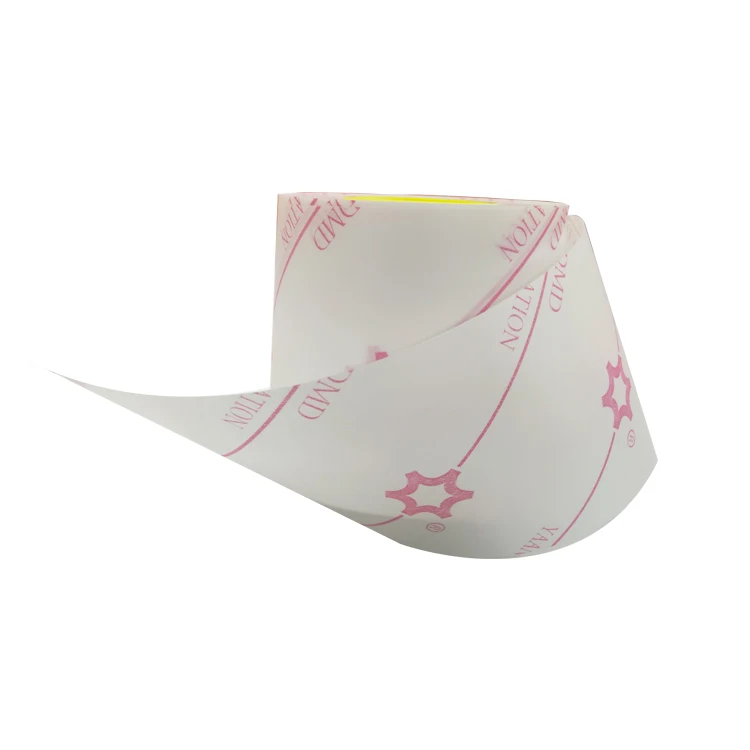

Полиэстер изоляционный материал dmd ламинат mylar изоляционная бумага dmd гибкие ламинаты 6641f dmd
L почему мой запах дыхания, хотя я чистит зубы от желудка
0,70 $ - 2,50 $

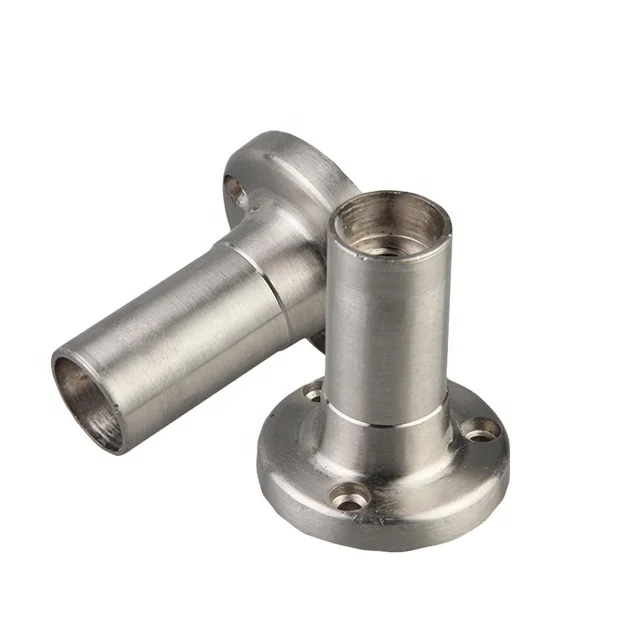

Обработка на станке с ЧПУ, запасные части, дешевый сервис обработки на станке с ЧПУ, детали из нержавеющей стали, детали для обработки нержавеющей стали
