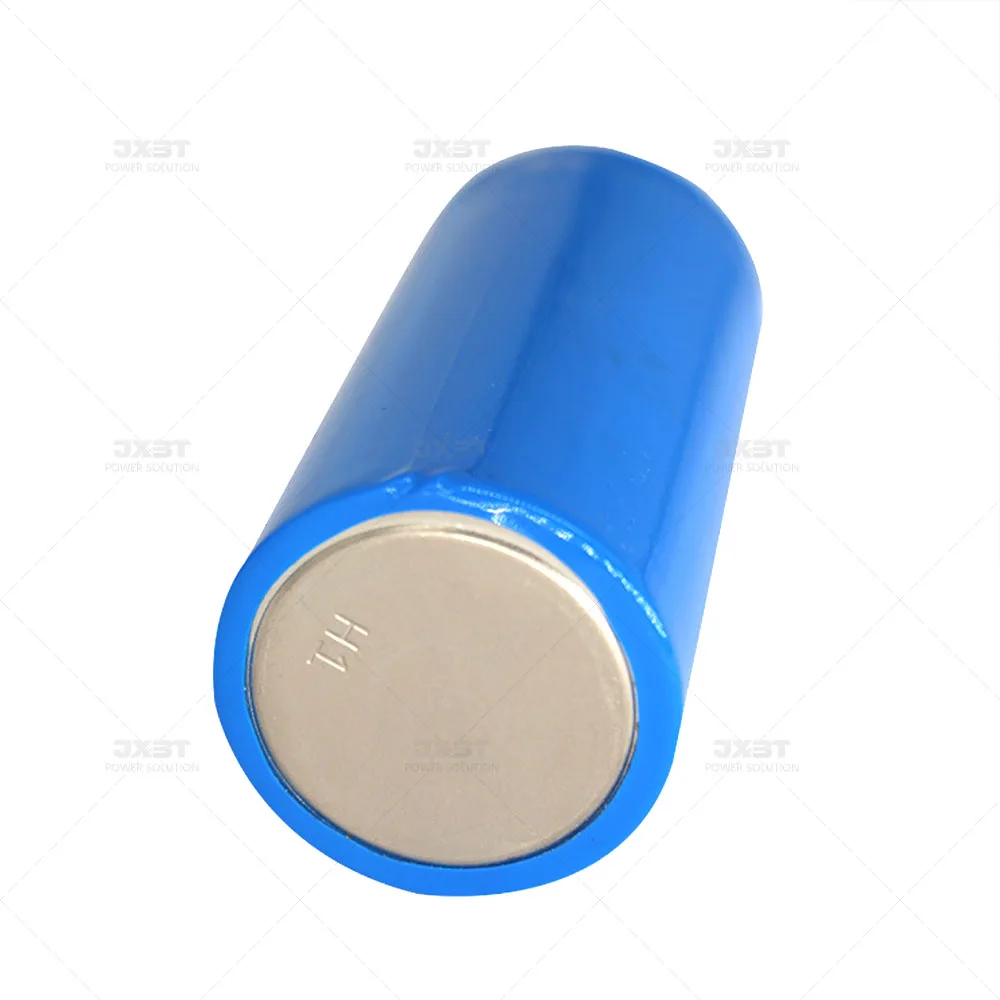

LFP battery 32700 3.2V 6000mAh LiFePO4 cell 32650
Battery Detail | ||||
No. | Items | Specifications | Note | |
1 | Voltage | Charge voltage | 3.60V | |
Maximum charge voltage | 3.65V | |||
Discharge cut-off voltage | 2.00V | |||
Normal Voltage | 3.20V | |||
2 | Current | Standard charge current | 0.5C | |
Maximum charge current | 1.0C | |||
Standard discharge current | 0.5C | |||
Maximum discharge current | 5.0C | |||
3 | Typical rated capacity | 6000mAh @ 0.5C discharge | Recofmmended cut off voltage: 2.00V | |
4 | Minimum rated capacity | 6000mAh @ 0.5C discharge | ||
5 | Weight | 141G approximately | ||
6 | Internal resistance | Less than 10 mΩ | ||

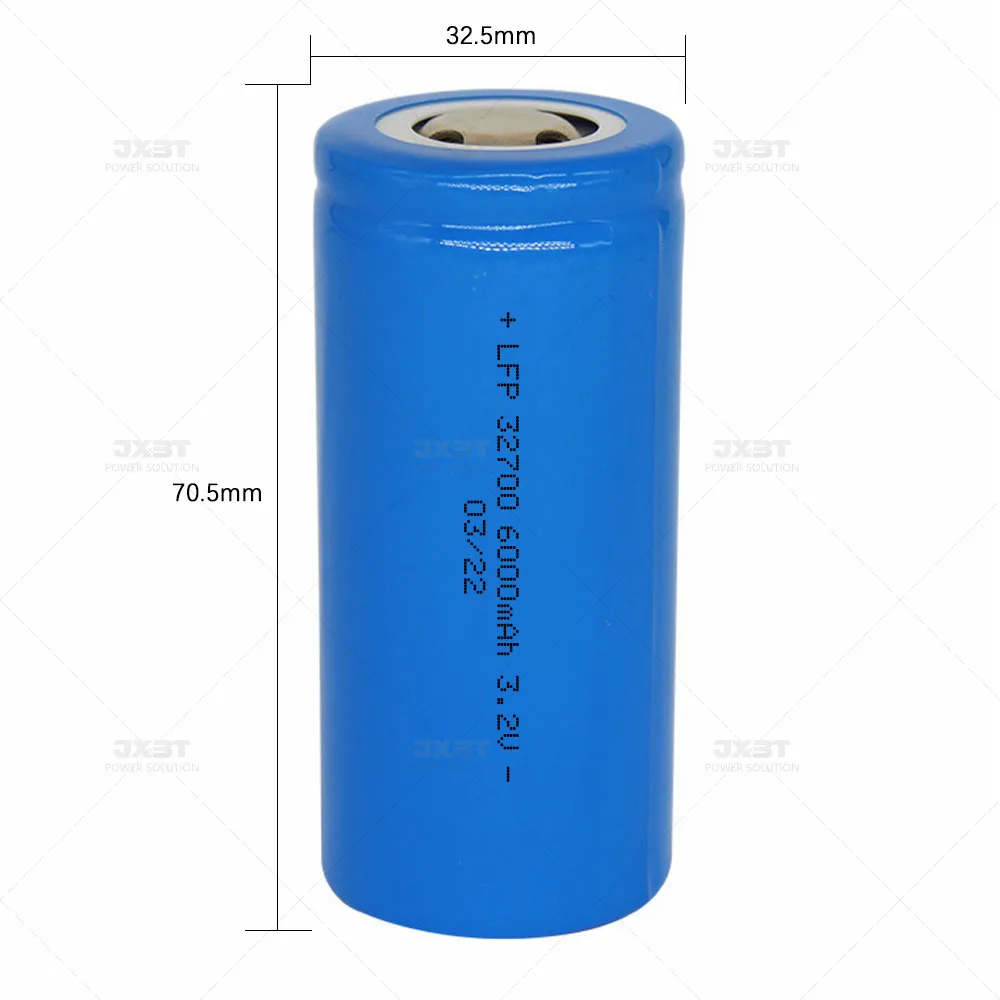

6 | Battery dimensions as following drawing: |
Cell dimensions [All unit in mm, not in scale]
Item | Description (ø×H) | Specification |
A | Cell Diameter | 32.5 mm MAX |
B | Cell Height | 70.5 mm MAX |
1 | Operating temp & Humidity range | Charge: Temp 0~60℃, humidity 85% RH | |
Cell surface temp | Charge current | ||
0℃~60℃ | ≤1.0C | ||
Discharge: Temp -10℃~60℃, humidity 85% RH | |||
-10℃~60℃ | ≤0.2C | ||
2 | Storage temp | Less than 1 month | Temp 0℃~35℃ |
Less than 3 month | Temp 0℃~35℃ | ||
Recommended | Temp 0℃~35℃ |
