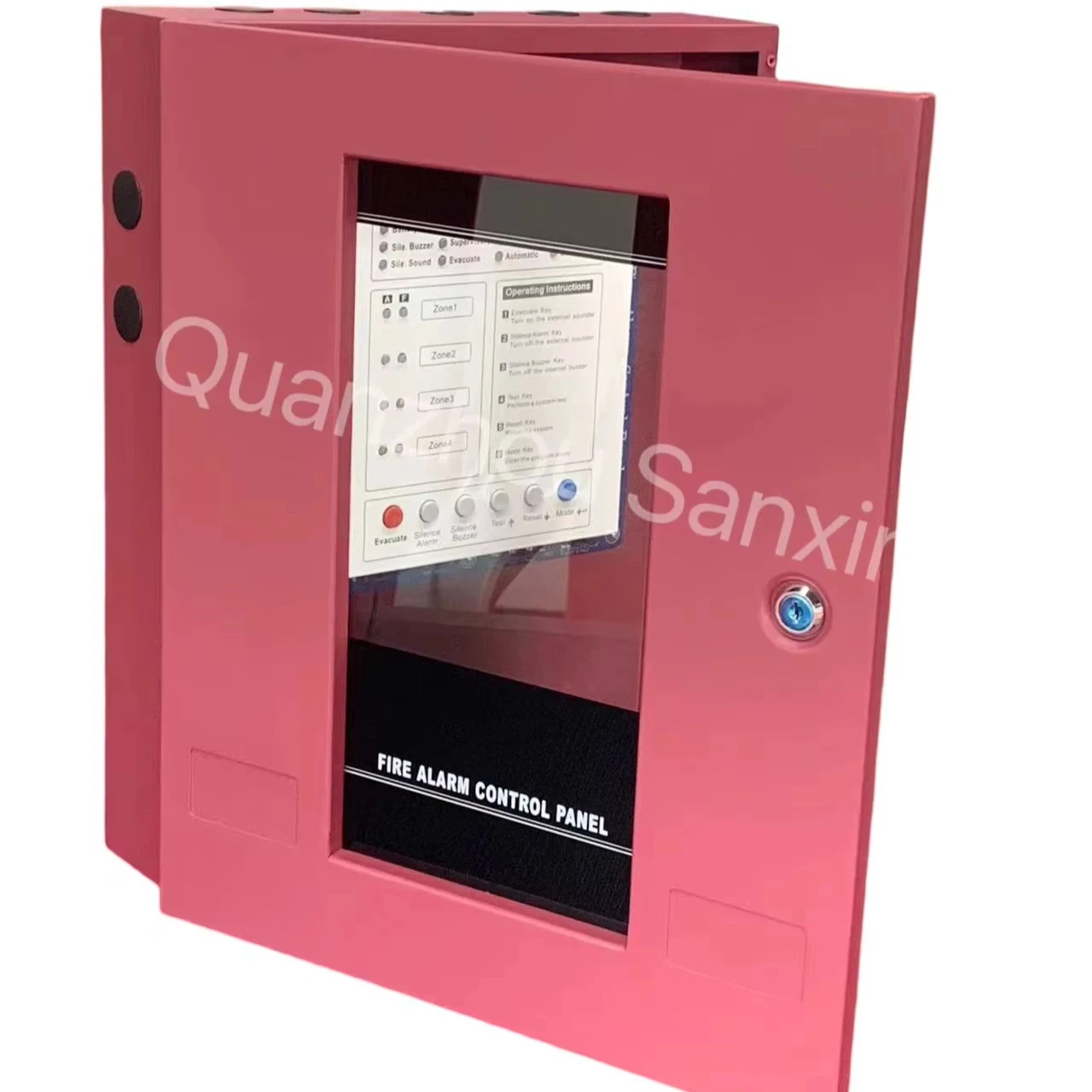

Фабричная 1-8-петлевая Беспроводная Адресуемая система обнаружения и сигнализации Графическая панель управления монитором
110,00-120,00 $
70L Red Cylinder Fm 200 Fire Suppression System Total Flooding Clean Agent Extinguishing
- Категория: >>>
- Поставщик: Guangzhou Xingjin Fire Equipment Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 62446176321:
Описание и отзывы
Характеристики
Product Description

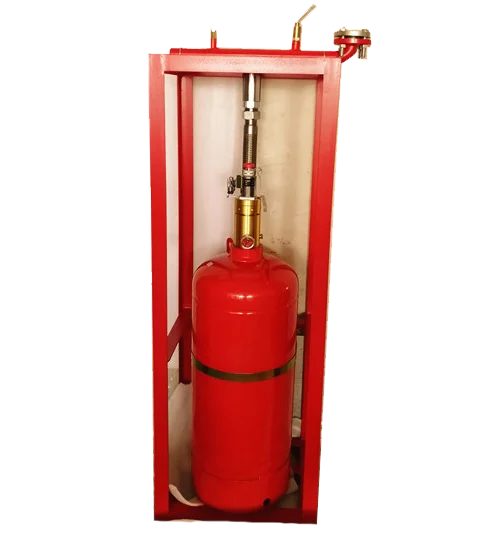

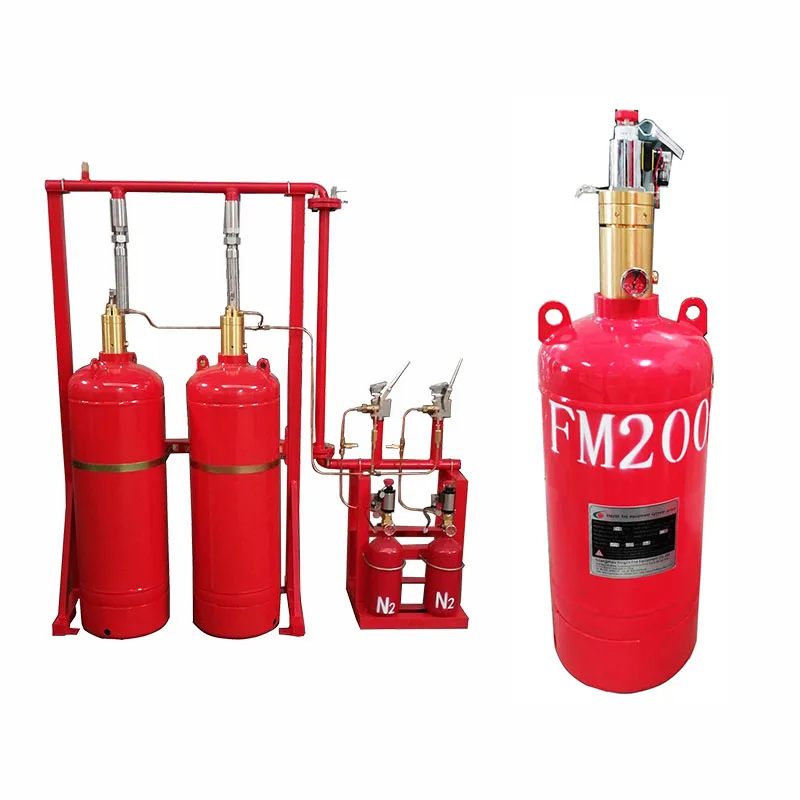

Xingjin 70L red cylinder fm 200 fire suppression system
HFC-227ea(FM200) clean agent automatic fire suppression system is widely used in China and all over the world. Its most strong point is that this system meets the world’s requirement of environmental protection. It will not hurt the ozone layer even for 1% possibility. The other strong point is that such as the clean, odorless and colorless agent, the easy installation and so on, make it the best substitute for the halon 1301 in people’s mind.
Fm 200 fire suppression system works more efficiently when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. fm 200 fire suppression system also distinguishes itself by the fast spraying time with less than 10s.
Fm 200 fire suppression system works more efficiently when it is equipped with the electric elements. Besides, this system requires a little storage room outside but next to the protected zone. It helps save places. fm 200 fire suppression system also distinguishes itself by the fast spraying time with less than 10s.
Product Paramenters
NO. | Specifications | 4.2Mpa system | 5.6Mpa system | |
1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr | |
2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 | |
3 | Filling pressure | 4.2Mpa | 5.6Mpa | |
4 | Max filling rate | 0.95kg/L | 1.08kg/L | |
5 | Discharge time | ≤10s | ||
6 | Power | DC24V/1.6A | ||
7 | Nitrogen driving device | 6.0±1.0Mpa | ||
8 | Storage surroundings | Temperature:-10~50℃ Relative humidity:≤97% | ||
9 | Proportion | ≤800m² | ||
10 | Volume | ≤3600m³ | ||
Detailed Images
Components

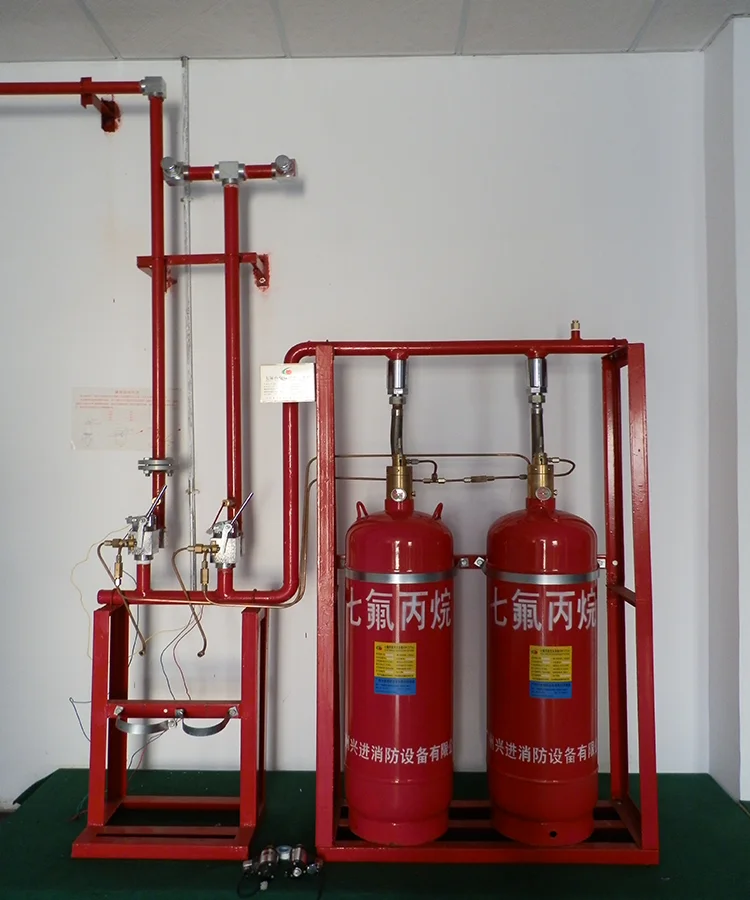

The pipe network type fm200 fire suppression system consists of actually three parts: the pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.

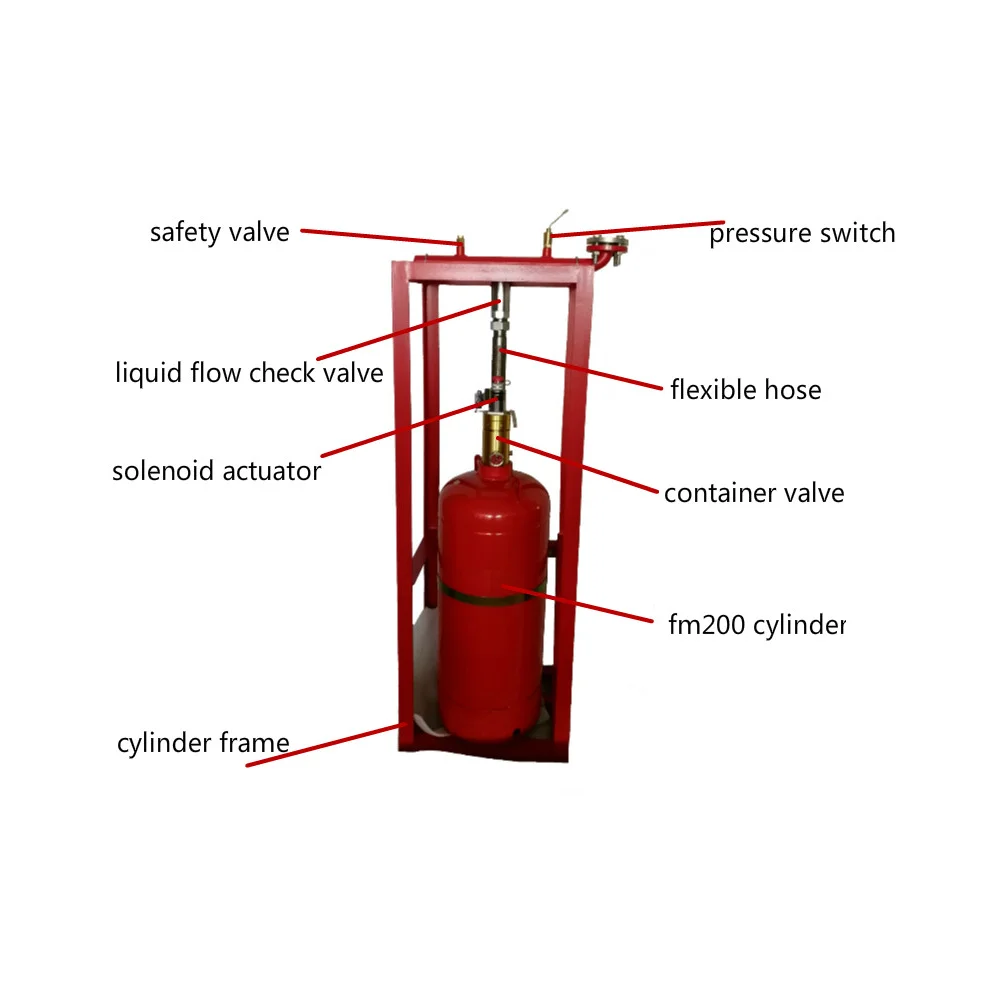

The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Related Products
Certificate
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate of China Compulsory Product Certification
(4.2Mpa System)
Certificate of China Compulsory Product Certification
(5.6Mpa System)
Packing&Shipping

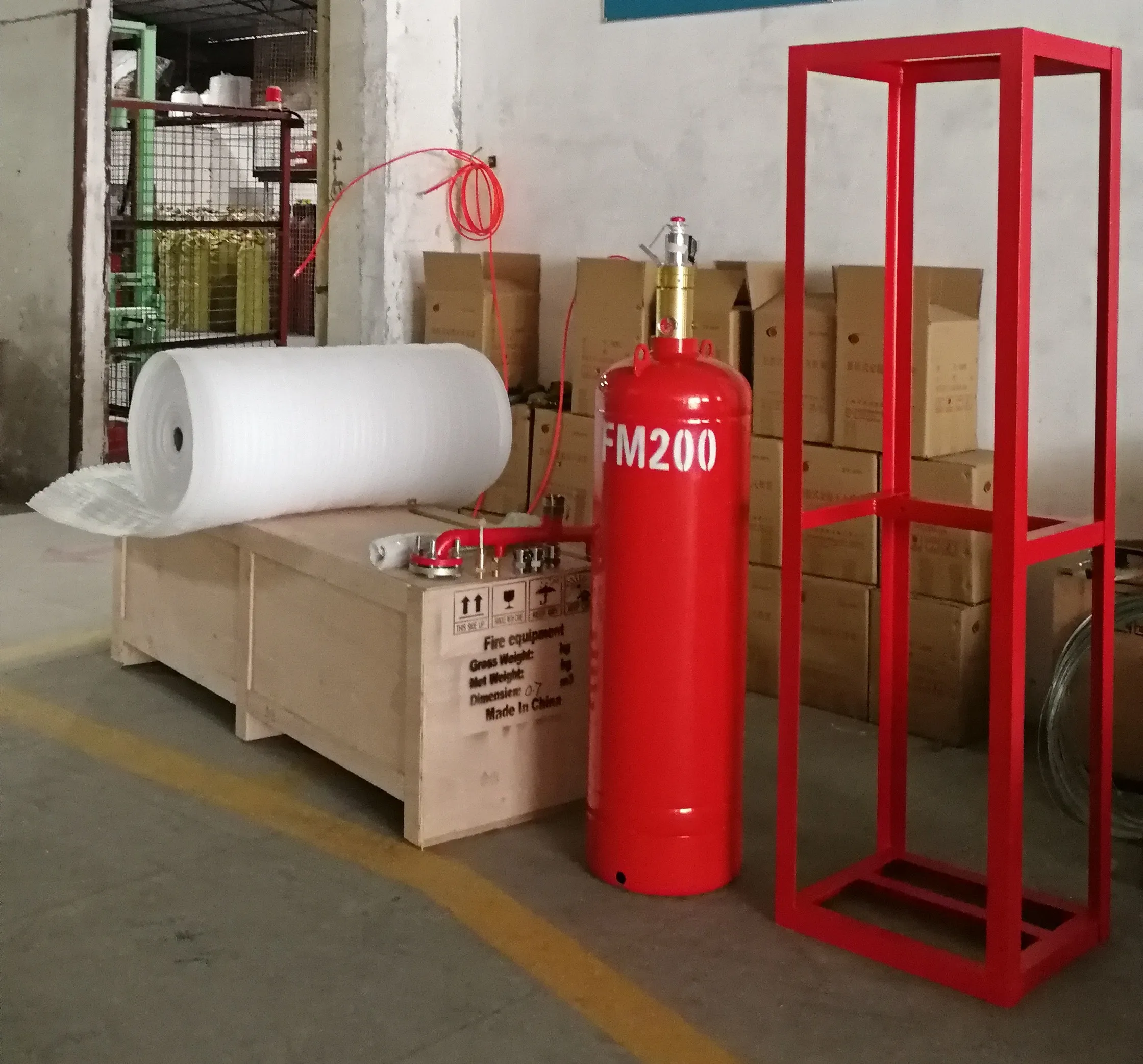

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (fm 200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm 200 products are widely used, such as the pipe network fm 200 fire suppression system, the cabinet type fm 200 fire suppression system, the automatic fm 200 fire extinguisher (ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
Похожие товары

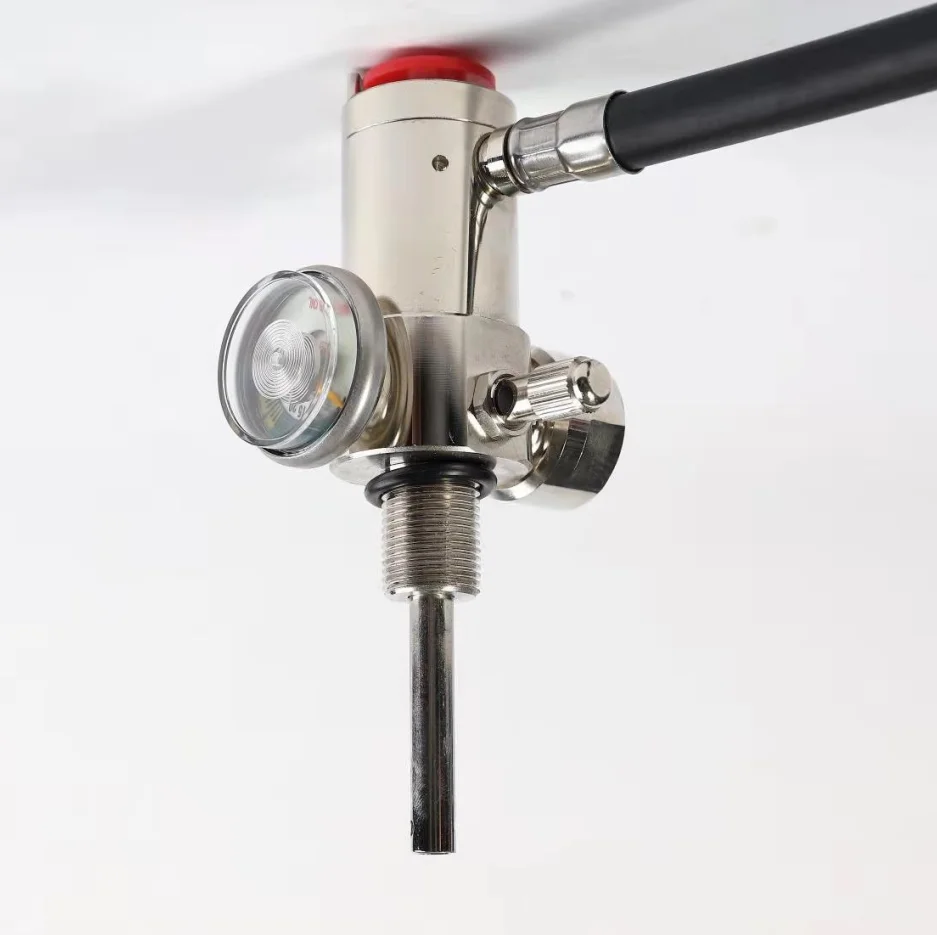

Hot Sale EEBD Fire Rescue Air Cylinder Pressure Regulator Valve With Gauge
37,00-38,00 $

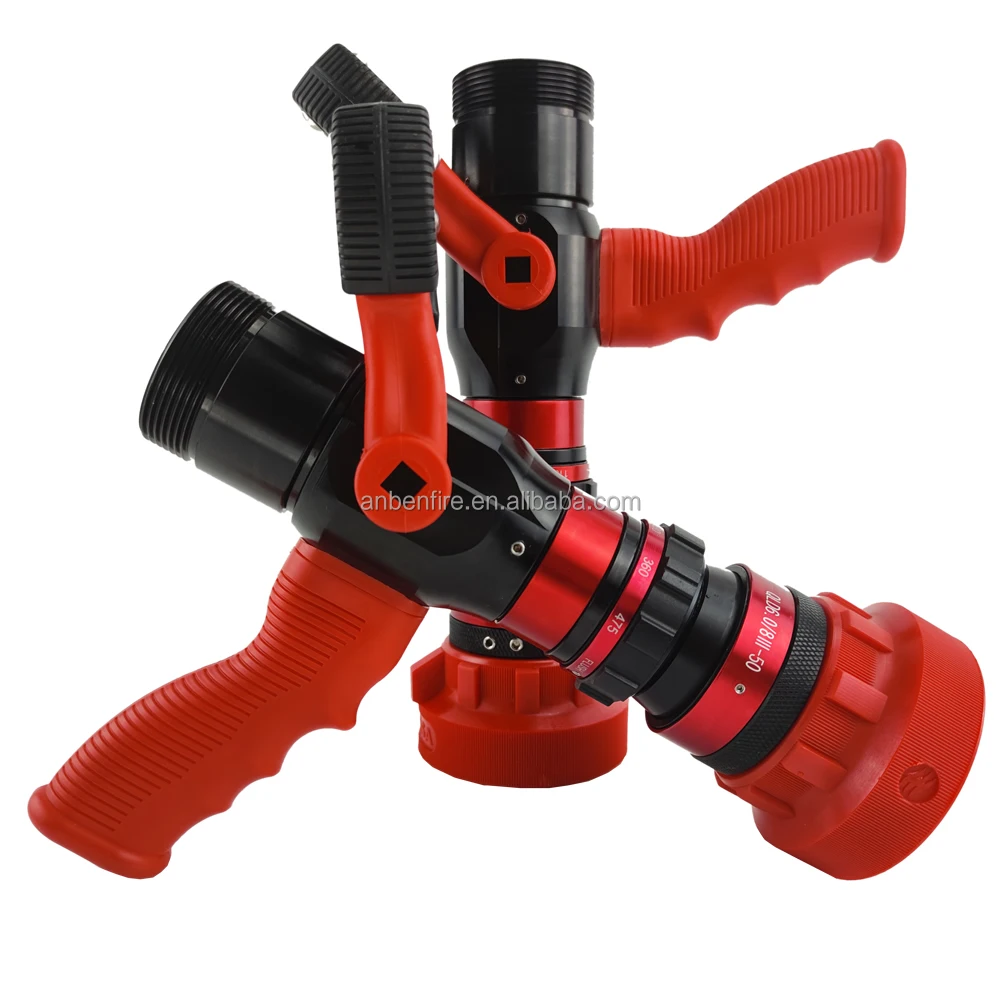

ANBEN пожарный шланг катушка сопла файтинг оборудование пожарные инструменты
95,00-115,00 $
6L SCBA стальной цилиндр высокого давления Воздушный бак для дыхательных аппаратов цилиндров
100,00 $

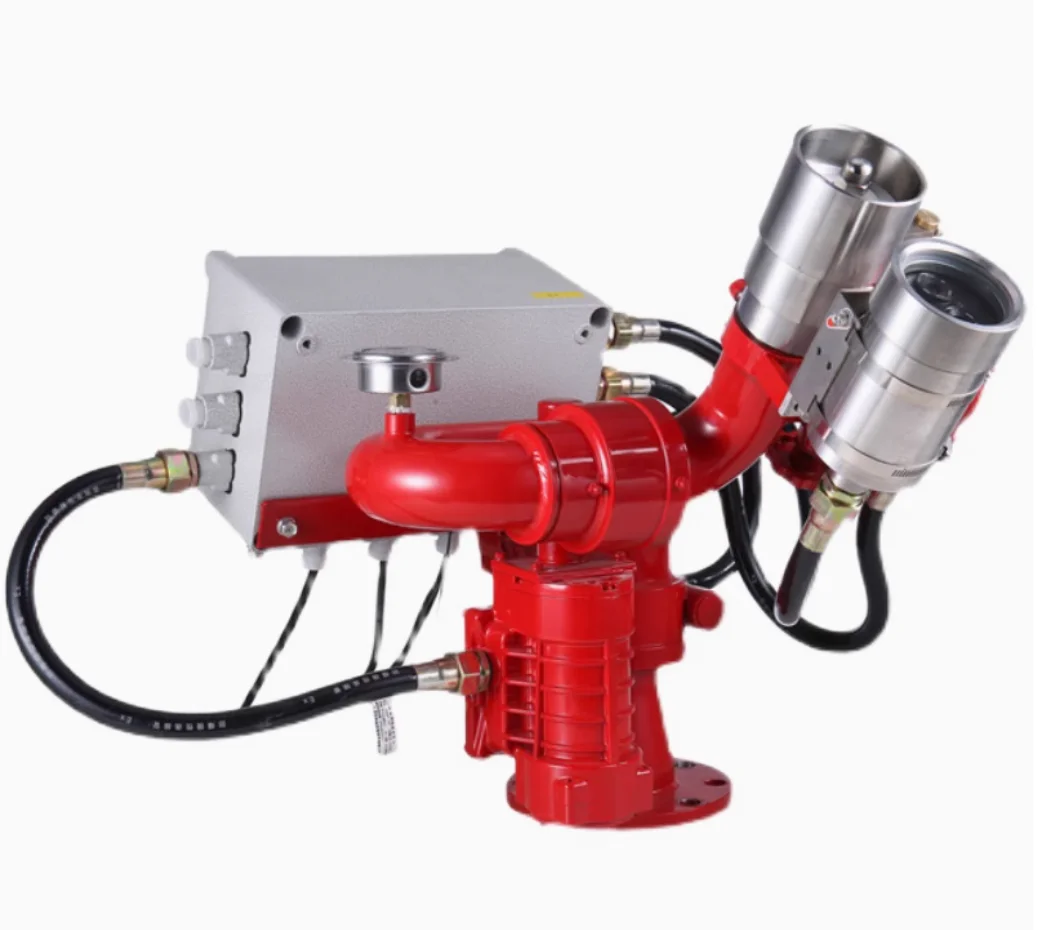

Прямая Продажа с завода большое автоматическое отслеживание позиционирования реактивный противопожарный монитор взрывобезопасный аксессуар для пожаротушения
1 225,00-1 350,00 $
Пожарный гидрант/пожарный столб/заборный впускной клапан с памперным соединением
Спасательное гидравлическое комбинированное оборудование для пожарных 6 комплектов
18 000,00-19 000,00 $

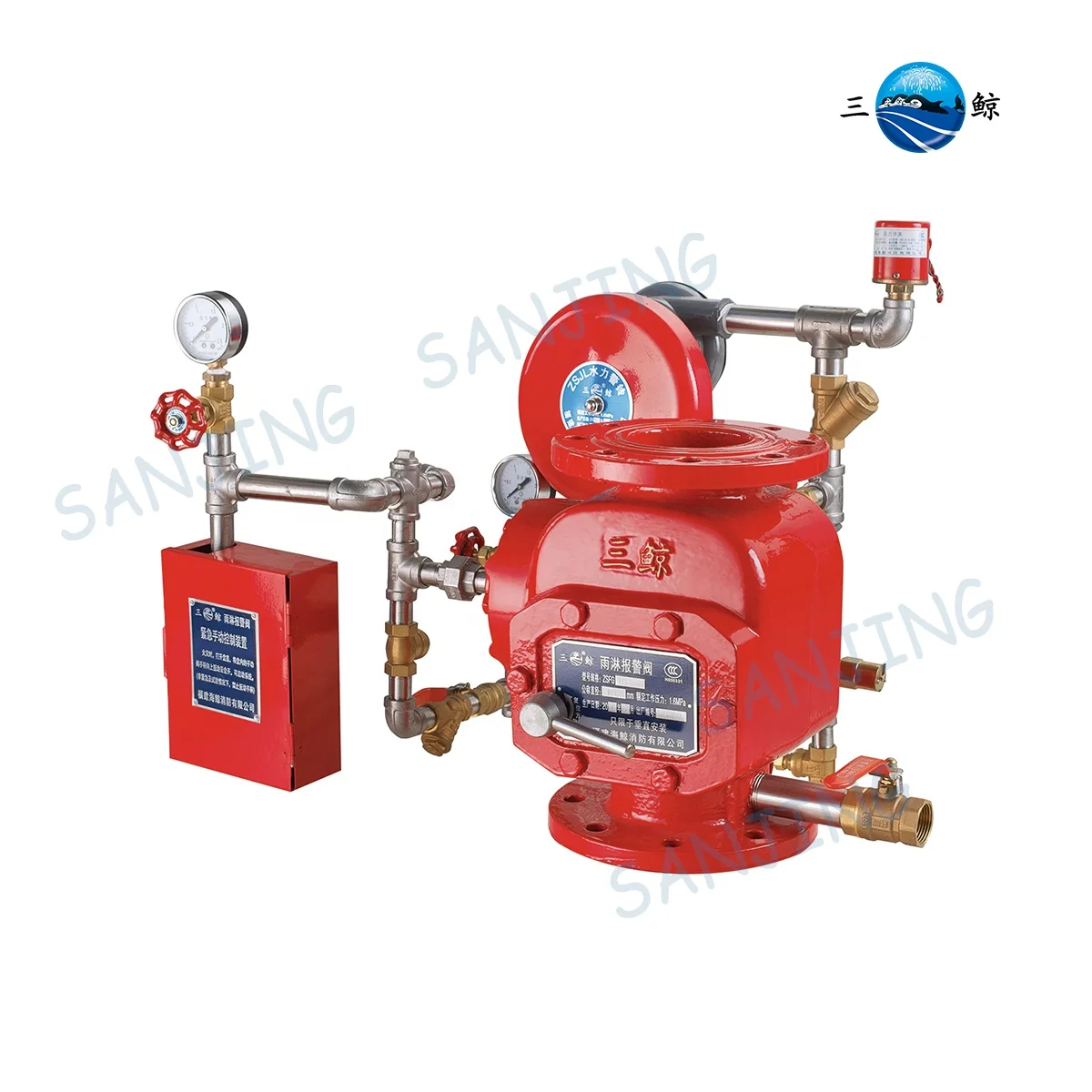

ZSFG150 Wet Alarm Hot Sale High Quality Fire System
