Product Description

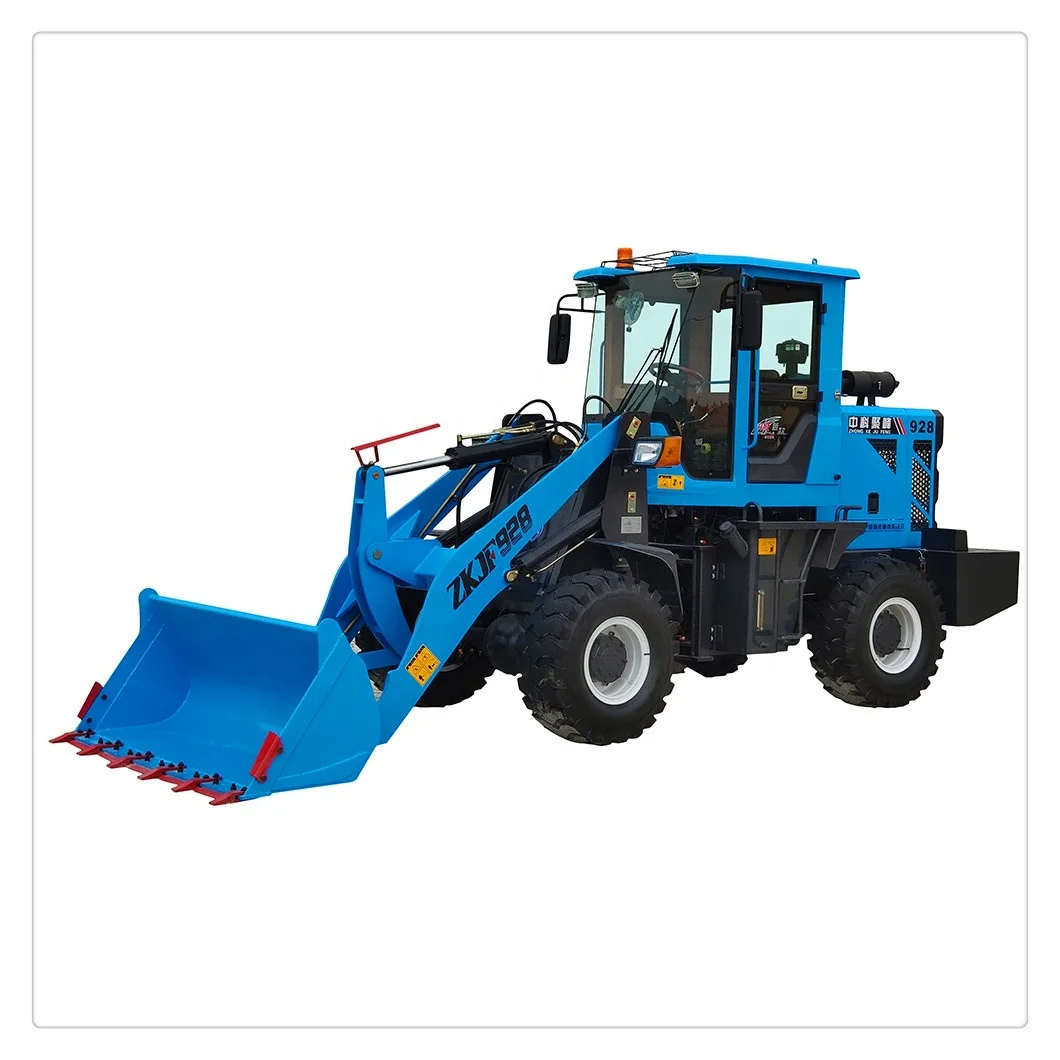

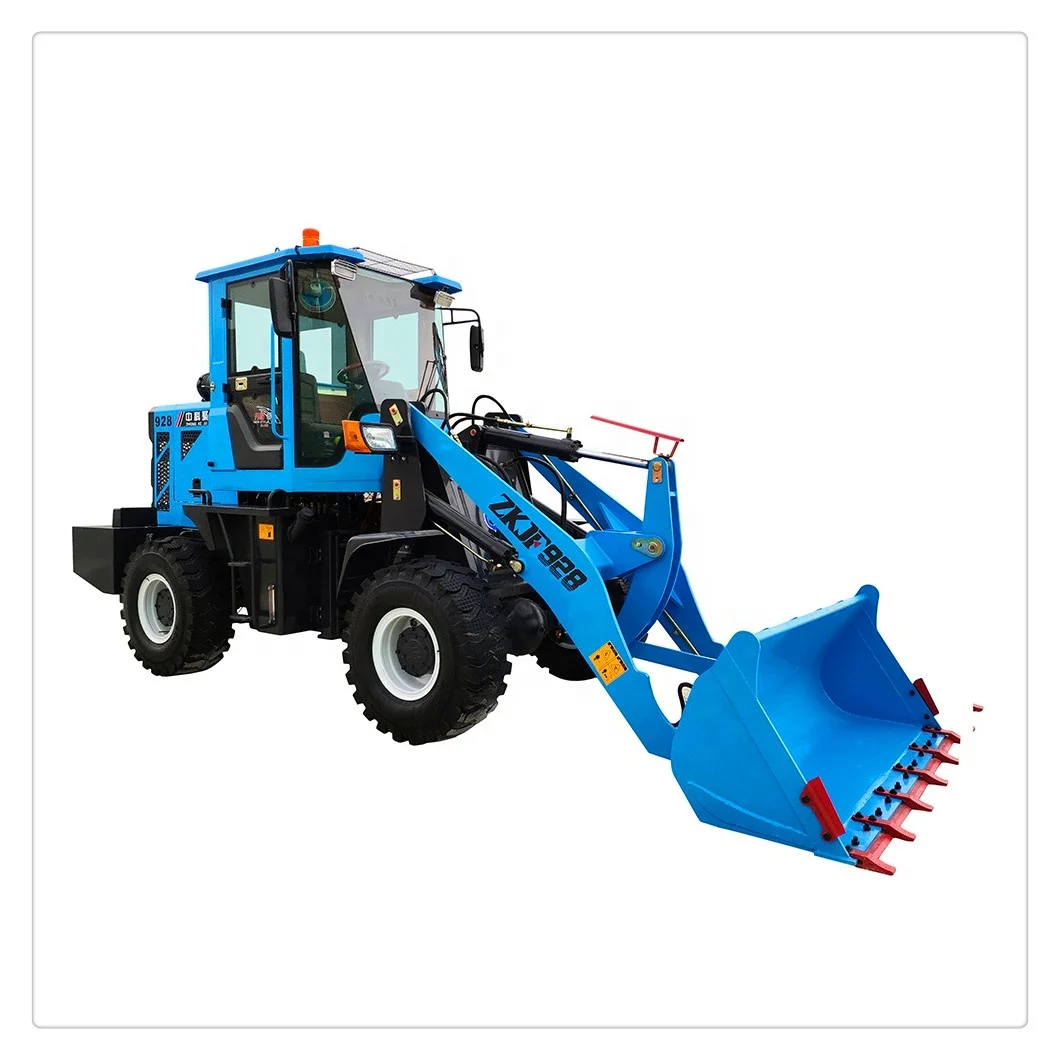

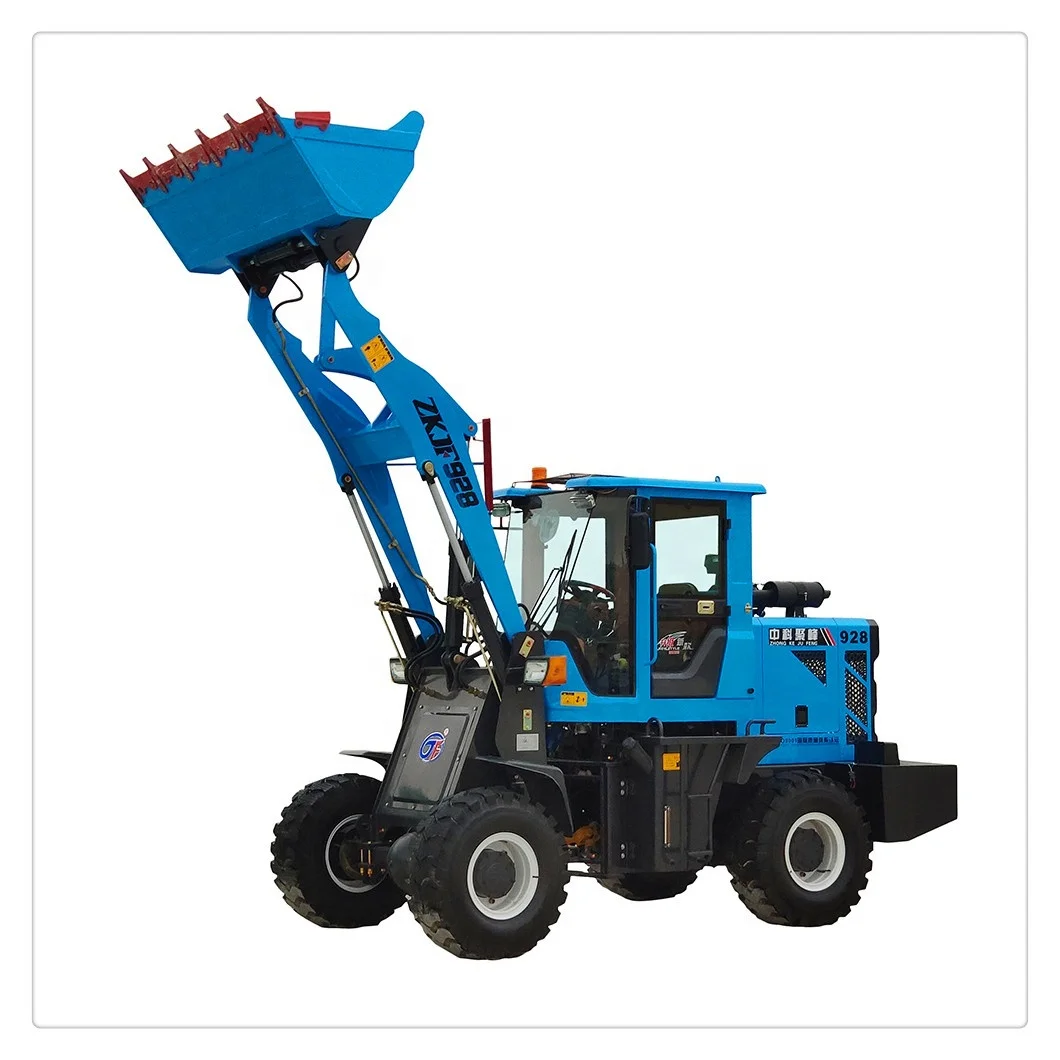

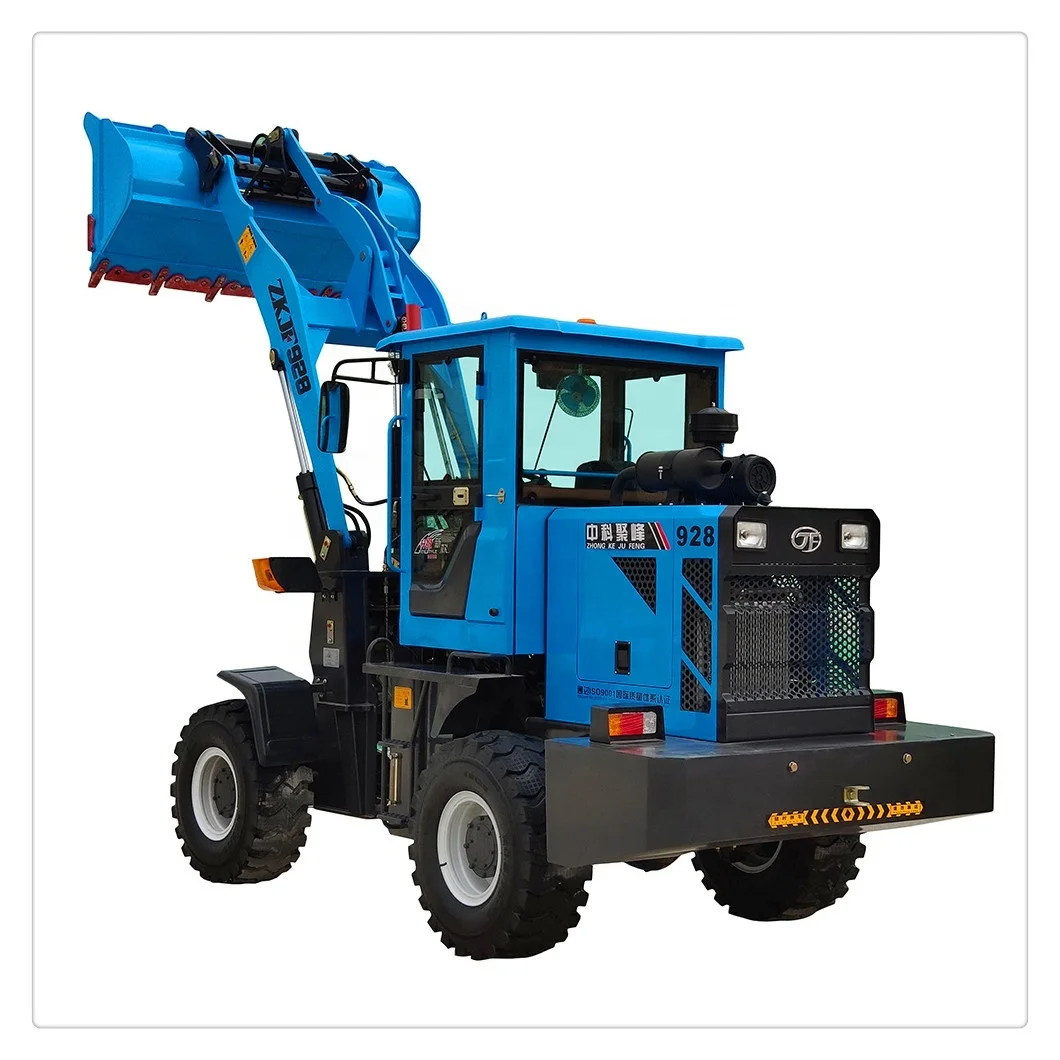

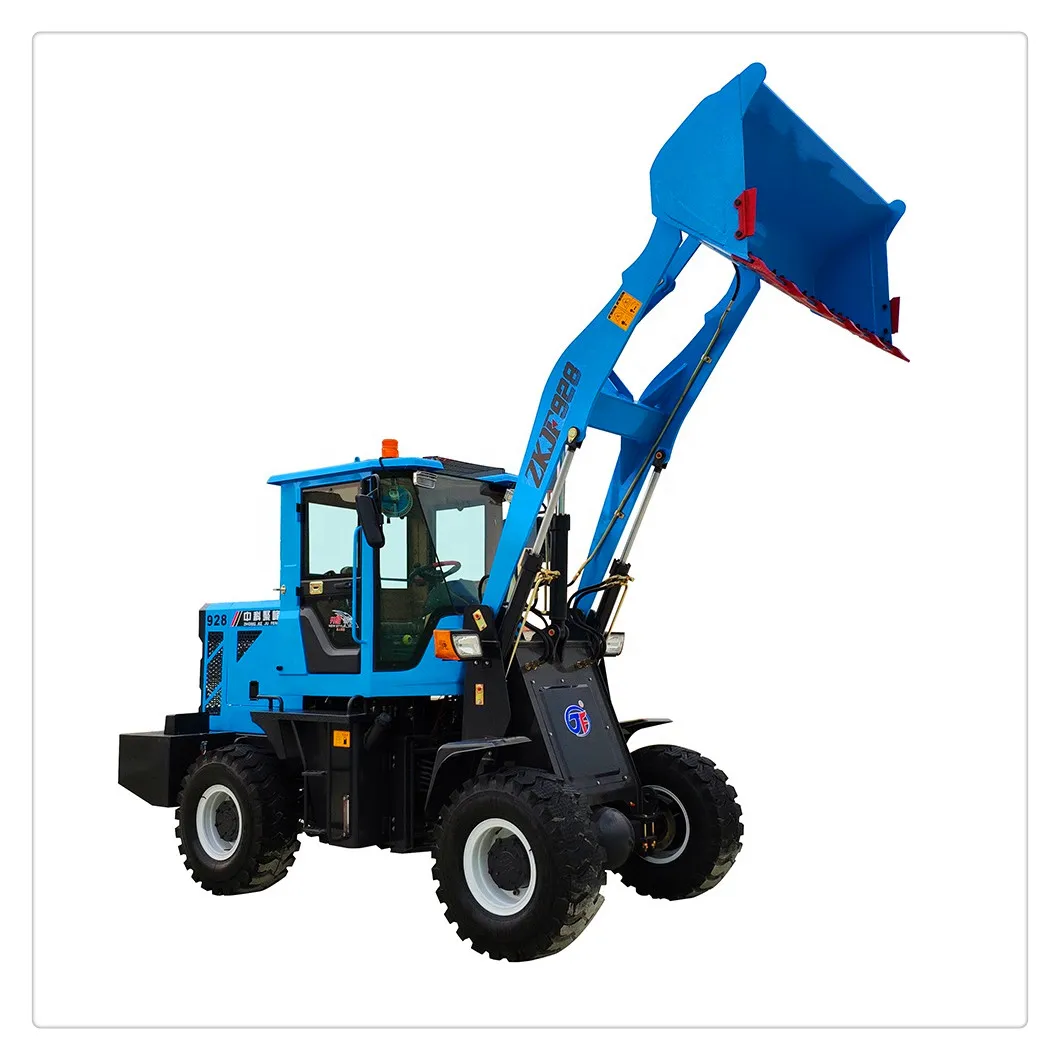

Product Application of ZKJF928 Mini Wheel Loader Price
ZKJF928 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is paticularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,interchangeability of good, reliable, well-resourced parts.
Product Application of ZKJF928 Mini Wheel Loader Price
ZKJF928 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is paticularly applied to the narrow space for the loading operation of
stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,
interchangeability of good, reliable, well-resourced parts.
SPECIFICATIONS FOR ZKJF928 Mini Wheel Loader for sale | ||||
Overall Performance | Rated Load | 1600 kg | ||
Operating Weight | 3800 kg | |||
Bucket Capacity | 0.8 m3 | |||
Bucket Width | 1800 mm | |||
Dumping Height | 3200 mm | |||
Dumping Reach | 900 mm | |||
Max. Gradeablity | 30% | |||
Dimensions | Wheelbase | 2200 mm | ||
Tread | 1530 mm | |||
Mini. Turning Radius | 4000 mm | |||
Mini. Ground Clearance | 300 mm | |||
Overall Size | 5700 x1850 x2650 mm | |||
Engine Equipped | Brand | YUNNEI | ||
Model | YN27GBZ | |||
Rated Power /Speed | 58 kW /2400 r/min | |||
Max.Torque | 230 N.m | |||
Bore x Stroke | 90 mm x105 mm | |||
Displacement | 2.7 L | |||
Type | 4-Cylinder,In-line,Turbo-charged,Water-cooled | |||
Engine Optional | CHANGFA (490) | 55 kW | ||
CUMMINS(4BT3.9-C80) | 60 kW | |||
Transmission & Drive System | Torque Converter | YJ265 (Integrated Type) | ||
Gearbox Type | Counter-shaft , Power-shift | |||
Gear Shift | 2 Forward Shift , 2 Reverse Shift (High+Low Speed) | |||
Max. Speed | 24 km/h | |||
Drive Mode | 4 x4 | |||
Axle | Small Hub Reduction Axle | |||
Hydraulic System | Displacement of Work Pump | 50 mL/r | ||
Displacement of Walk Pump | 18 mL/r | |||
Work Pressure | 16 MPa | |||
Brake & Tyre | Service Brake | Air Brake | ||
Parking Brake | Drum-type Shoe Brake, Air Released | |||
Tyre Model | 20.5/70-16 | |||
Main Features
1.Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission(CVT) according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
2.Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, traffic ability and more traction;
4.Fully enclosed glass cab with adjustable and suspension seat can provide comfortable driving and wide view. Electric Fan is standard configuration. Air-conditioner is optional.
5.Using 20.5/70-16 tyres to increase the stability of whole machine and the service life of tyre.
6.Brake system adopts air pump, air over hydraulic caliper disc brake on 4 wheels;
7.This wheel loader adopts YJ265 integral type torque converter, and the whole machine is fully hydraulic transmission;
8.This compact wheel loader can be equipped with pilot control system (joystick control )to make it easy to operate and increase the hydraulic performance of the whole machine;
9.Power system adopts YUNNEI,YN27GBZ, 58kW, Turbo-charged, Fuel-Efficient, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10.This compact wheel loader is equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
2.Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, traffic ability and more traction;
4.Fully enclosed glass cab with adjustable and suspension seat can provide comfortable driving and wide view. Electric Fan is standard configuration. Air-conditioner is optional.
5.Using 20.5/70-16 tyres to increase the stability of whole machine and the service life of tyre.
6.Brake system adopts air pump, air over hydraulic caliper disc brake on 4 wheels;
7.This wheel loader adopts YJ265 integral type torque converter, and the whole machine is fully hydraulic transmission;
8.This compact wheel loader can be equipped with pilot control system (joystick control )to make it easy to operate and increase the hydraulic performance of the whole machine;
9.Power system adopts YUNNEI,YN27GBZ, 58kW, Turbo-charged, Fuel-Efficient, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10.This compact wheel loader is equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
Main Features
China Top Brand -YUNNEI , YN27GBZ, 58kW, Turbo-charged, Water-cooled Diesel Engine.
This loader is driven by YUNNEI, 58kW, Turbo-charged, Fuel-Efficient, Water-cooled Diesel Engine, which makes this compact wheel loader have strong power and high acceleration. Engine door is connected by two sets of hydraulic pole.
Main Engine Brand Optional: CHANGFA and CUMMINS
Integral Type YJ265 Torque Converter
The torque converter adopted is a kind of integral type torque converter. The flow rate of work gear pump is 50 mL/r and flow rate of walking gear pump is 18 mL/r.
Deluxe Driver's Cab with Automatic Transmission and Hydraulic Joystick System Inside
The transmission of this wheel loader is kind of automatic transmission. And the lifting and withdrawing of bucket is controlled by Hydraulic Joystick System. It is very convenient for user to operate. The ergonomic seat has the function of flexible suspension and height adjustment.
Articulated Stucture and Air Service Brake
1.Articulated Structure make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site.
2. The Service Brake of this wheel loader adopts air brake, which is more stable and light than normal oil brake
2. The Service Brake of this wheel loader adopts air brake, which is more stable and light than normal oil brake
Small Hub Reduction Axle fitted with 20.5/70-16 Wide Pneumatic Tyre
Wide Front Bucket fitted with Quick Hitch
The Inner width of bucket is 1800 mm and it is equipped with quick hitch, which could enable our loader change other attachments such as pallet fork,wood fork and grass fork etc easily.
Packing & Delivery
FAQ
Our Company
Company Brief Introduction
Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.
We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.
In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
High Production Capacity
Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments
High Level Quality Control & Neat Assembling Workshop
Certifications
Contact Information
Contact Person: James Yang
Position: Director of Foreign Trade
Tel: +86-15098557232
Wechat: JamesJFMIX
QQ: 3269321933
Whatsapp: +8615098557232
Web Site: //en.sdzkjf.com
Contact Person: Jerry Lee
Position: Director of Foreign Trade
Tel: +86-15098557112
Wechat: LeeJFMIX
QQ: 1038640498
Whatsapp: +8613705358617
Web Site: //en.sdzkjf.com
Address: Tushan Industrial Park, Laizhou City, Shandong Province, China 261400
Похожие товары
Профессиональная женская одежда женские комплекты для тренировок из двух предметов леггинсы с высокой талией женское платье и топы
6,59 $
Вращающаяся на 360 градусов Звездная проекционная лампа ночной светодиодный светильник для детской спальни Светильник

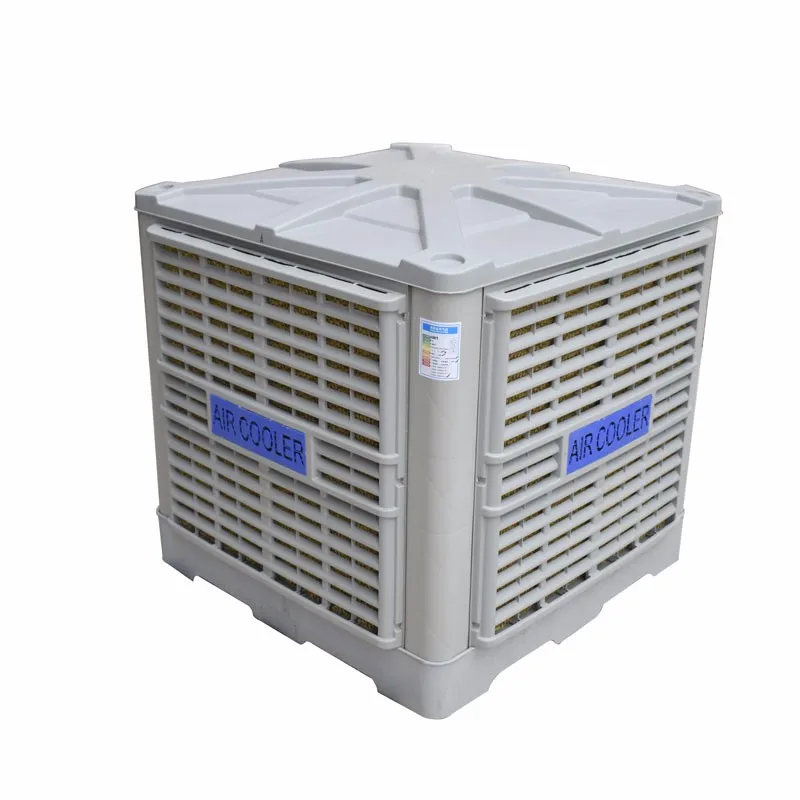

Недорогой высококачественный Испарительный воздушный охладитель без
293,02 $ - 294,00 $

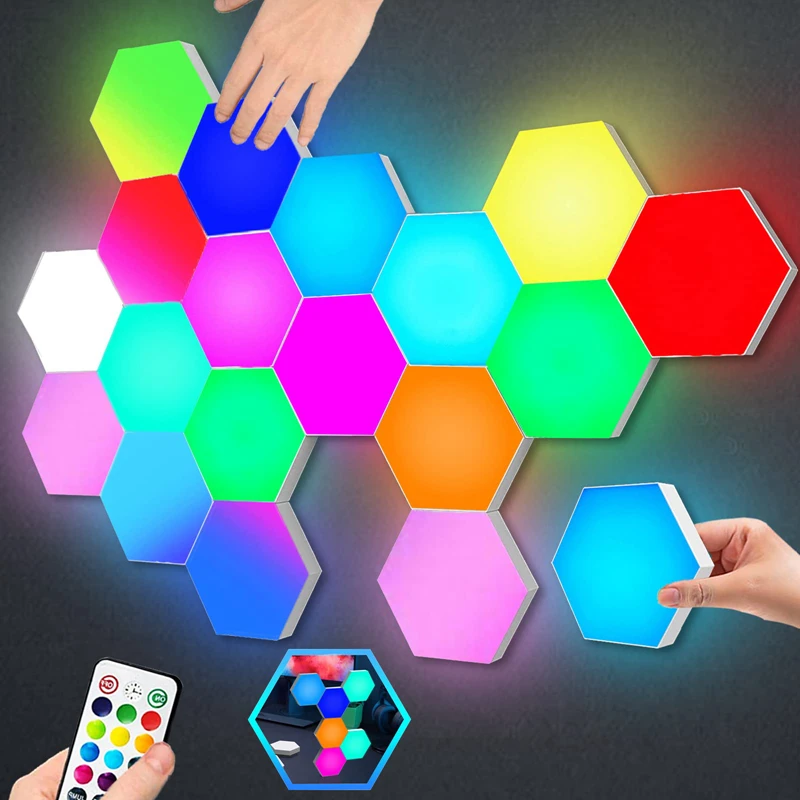

Пользовательские самодельные шестигранные светодиодные лампы, магнитный пульт дистанционного управления, настенные панели для умного дома, сенсорные игровые ночники RGB

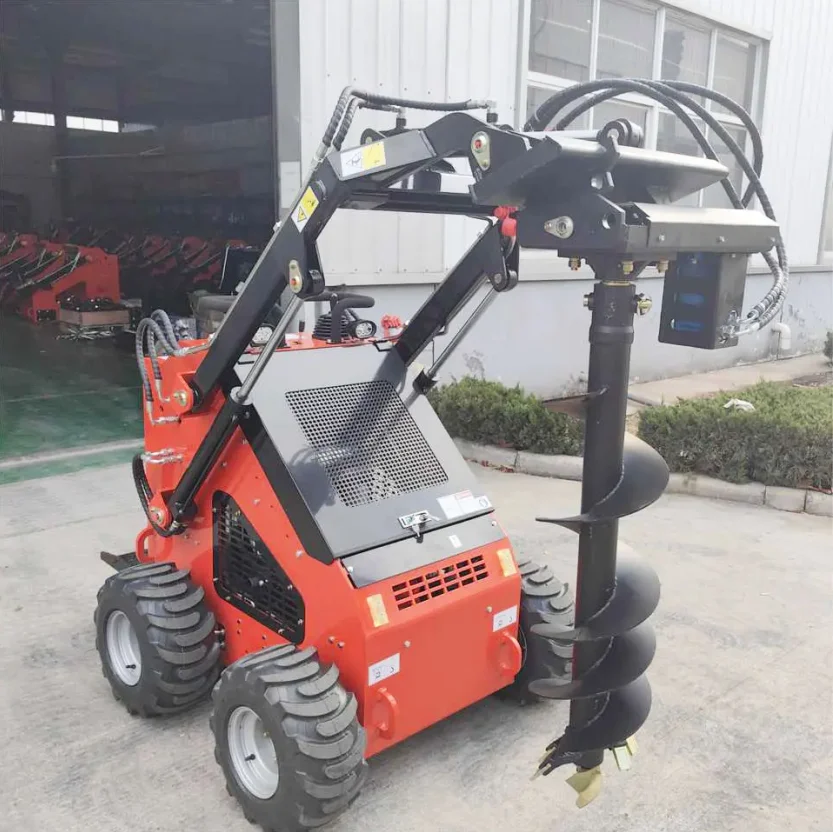

Китайский погрузчик с бортовым поворотом, 500 кг, 800 кг, 1 тонна
