Combination Drilling Milling Lathe 3 in 1 lathe mill combo machine metal lathe

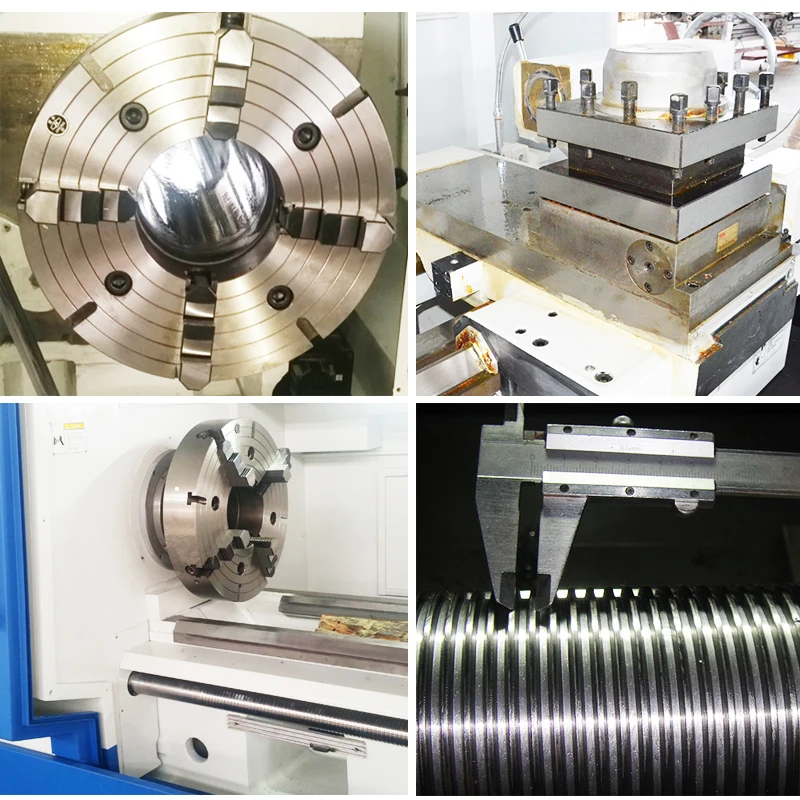

Photos of Mahine
Combination Drilling Milling Lathe 3 in 1 lathe mill combo machine metal lathe

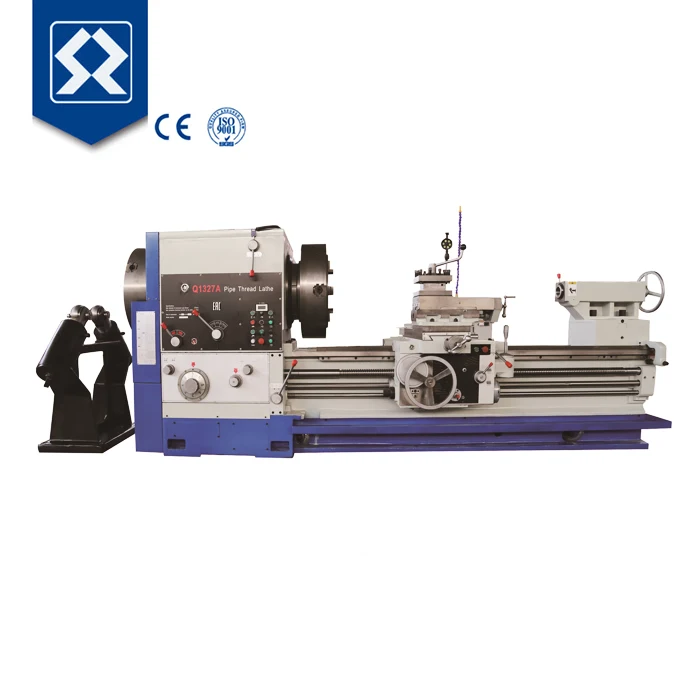

Q13 series pipe thread lathe is specially developed by our company for the processing of AP pipe threads in the oilfield industry.The machine tool has a large spindle through-hole and a double chuck clamping structure on the front and back.It is suitable for all kinds of long pipe cylindrical threads, tapered threads and Turning of special threads.At the same time, it also has all the functions of ordinary CNC lathes. It can replace ordinary CNC lathes to process complex shaped shafts, sleeves, disks and other parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces , Grooving, chamfering, threading, etc., strong process adaptability, high processing efficiency, uniform product. This machine tool has a novel appearance, simple operation, mature structure and stable performance, and is widely used in petroleum, natural gas, chemical, hydropower, and geological exploration departments.
Structural features of pipe thread lathe:
1. The bed is made of high standard cast iron (HT300) secondary molding and casting. After secondary aging treatment, it has strong stability, good rigidity and strong seismic resistance.
2. The guide rail surface is subjected to high-frequency quenching (Rockwell hardness can reach HRC55 or higher). The imported guide rail grinder is used for precision grinding to ensure long life, high accuracy and good retention of the guide rail surface.
3.3 The headstock box of the 3 spindle is completed by one-time molding of the imported horizontal boring and milling machining center. The spindle has high concentricity, strong structural rigidity, and can adapt to heavy cutting. Stable, both recutting and finishing.
4. Automatic forced circulation lubrication makes the transmission system run flexibly and can effectively cool down. Each sliding rail pair is coated with TSF soft belt, which greatly reduces the friction coefficient and improves the service life of the rail.
5. Equipped with a four-station electric tool post as standard, quick and easy tool change.
Main Techinical specifications | Unit | Q1313-1B | Q1319-1B | Q1322 | Q1323 |
Swing over bed | mm | 630 | 670 | ||
Swing over carriage | mm | 350 | 370 | ||
Tube outside diameter | 30-127 | 50-196 | 50-220 | 50-225 | |
Max length of workpiece | mm | 1500 3000 5000 | |||
Max length of turning | mm | 1350 2850 4850 | |||
Span of guideway | mm | 490/550 | |||
Max load of Lathe bed | KG | 3000 | |||
Quenching hardness | ≤HRC55 | ||||
Spindle bore(dia) | mm | 130 | 200 | 225 | 230 |
Mode of spindle speed | 18 | 12 | |||
Range of spindle speed | r/min | 16-800 | 24-300 | ||
Power of main motor | 11 | ||||

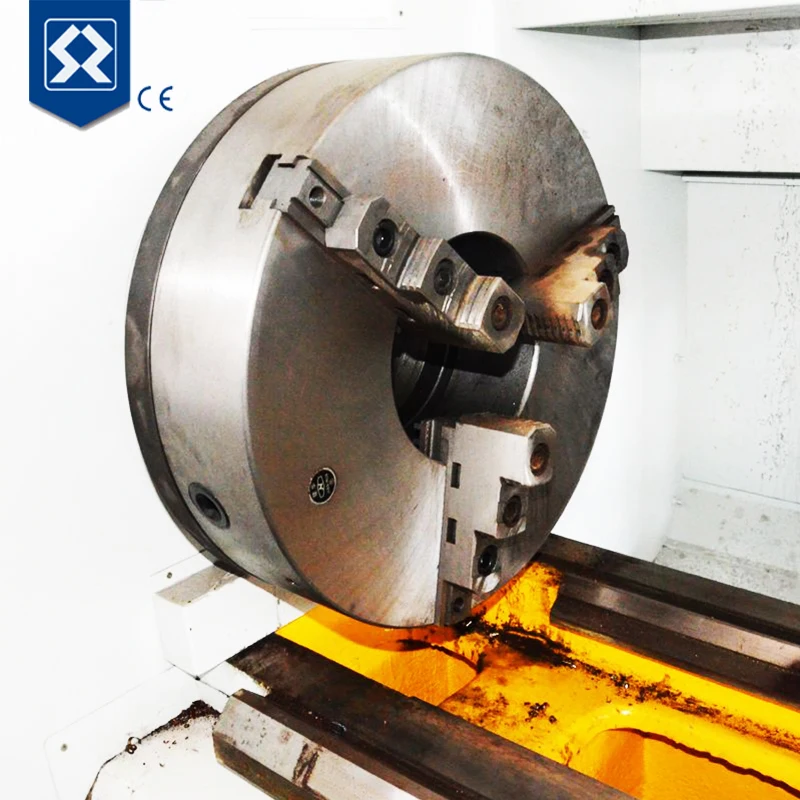

Size of chuck | 4000/3 jaw | 520/4 jaw | |||
Transverse feed range | r/min | 0.02~0.45/22 | |||
Longitudinal feed range | 0.07-1.33/26 | ||||
Screw pitch of leadscrew | mm | 1/2 | |||
Noand range of metric thread | mm | 1-14/24 | |||
No and range of inch thread | 2-28/40 | ||||
Rapid traverse speed | mm/min | 4000 | |||
Max.travel of top slide | 200 | ||||
Section of tool shank | mm | 32/32 | |||

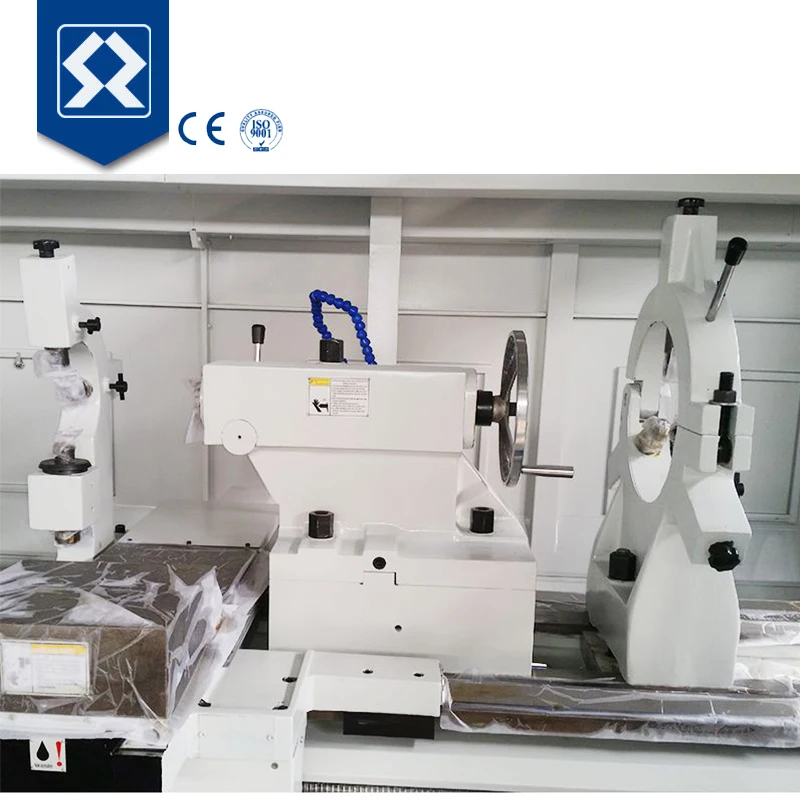

Dia /Travel of tailstock quil | mm | 100/250 | |||
Taper hole of tailstock quill | Morse 5 | ||||
Maximum taper of thread | 1: 4 | ||||
I Max taper machining length | mm | 700 | |||
Length ( L) | mm | 3725/5225/7355 | |||
Width(W/H) | mm | 1750/1550 | 1850/1600 | 1900/1650 | 1950/1650 |
Machine weight (1500mm) | KG | 4300 | 4550 | 4600 | 5000 |
Structural features of pipe thread lathe:
1. The bed is made of high standard cast iron (HT300) secondary molding and casting. After secondary aging treatment, it has strong stability, good rigidity and strong seismic resistance.
2. The guide rail surface is subjected to high-frequency quenching (Rockwell hardness can reach HRC55 or higher). The imported guide rail grinder is used for precision grinding to ensure long life, high accuracy and good retention of the guide rail surface.
3.3 The headstock box of the 3 spindle is completed by one-time molding of the imported horizontal boring and milling machining center. The spindle has high concentricity, strong structural rigidity, and can adapt to heavy cutting. Stable, both recutting and finishing.
4. Automatic forced circulation lubrication makes the transmission system run flexibly and can effectively cool down. Each sliding rail pair is coated with TSF soft belt, which greatly reduces the friction coefficient and improves the service life of the rail.
5. Equipped with a four-station electric tool post as standard, quick and easy tool change.
Checkout Equipment
High Speed Metal Cutting Lathe Machine
SANZHENG Pipe threading lathe advantages:
1. We research and develop Pipe threading lathe for more than 50 years, and our company was restructured in the year 2002 . More than 200 staff ,9 professional engineers ,cover an area of 120,000 square meters.
2.CNC pipe threading lathe is a special model of CNC turning lathe ,mainly used in oil and gas field, machinery manufacturing, geological exploration, thread repair function and so on.
3. Customized service, we can make the pipe threading lathe according to clients’ requirements.
4. We have our own casting workshop, guarantee good quality of the machine.
5. A big production capacity, always have machines in store, though so many orders we can also guarantee delivery time.
6. We have exported to Dubai , Malaysia,the USA ,Russia, Iran etc.
7. We make OEM for Knuth Germany about 8 year ,no quality problem , the orders are added every year.
Related Products
Company Profile
Certificate
SANZHENG Pipe threading lathe after-sales service:
First-class manufacturing equipment, first-class quality guarantee.
The pipe threading lathe has won the unanimous trust and praise from domestic and foreign customers for its high quality product and timely after-sales service! "To develop by quality, to survive in good faith” is the constant business philosophy
Design With Passion:
Certified with European CE and China official design & ISO9001 Quality Management System Certification, Sanzheng experienced internal engineers are standing by to build customized proposal to realize customers’ target in terms of productivity, flexibility and investment pay back.
Technology With Innovation :
Sanzheng is continuously growing to affirm innovative solutions and managing to foresee the emergent demands of the markets, Which has made Sanzheng be able to guarantee a high return and full capacity utilization of your Pipe threading machine
Quality With Consideration:
Sanzheng insists on complete quality control from raw material processing to machine parts assembly then to whole machine working system.
The customers service is not only involves in the process of selling and the short installation, but also accompanies your complete production enduringly.
First-class manufacturing equipment, first-class quality guarantee.
"SANZHENG Pipe Threading Lathe Machine is professional pipe threading lathe manufacturers and suppliers in China, providing bulk products for sale. Welcome to wholesale high quality cnc pipe threading lathe at cheap price from our factory.
