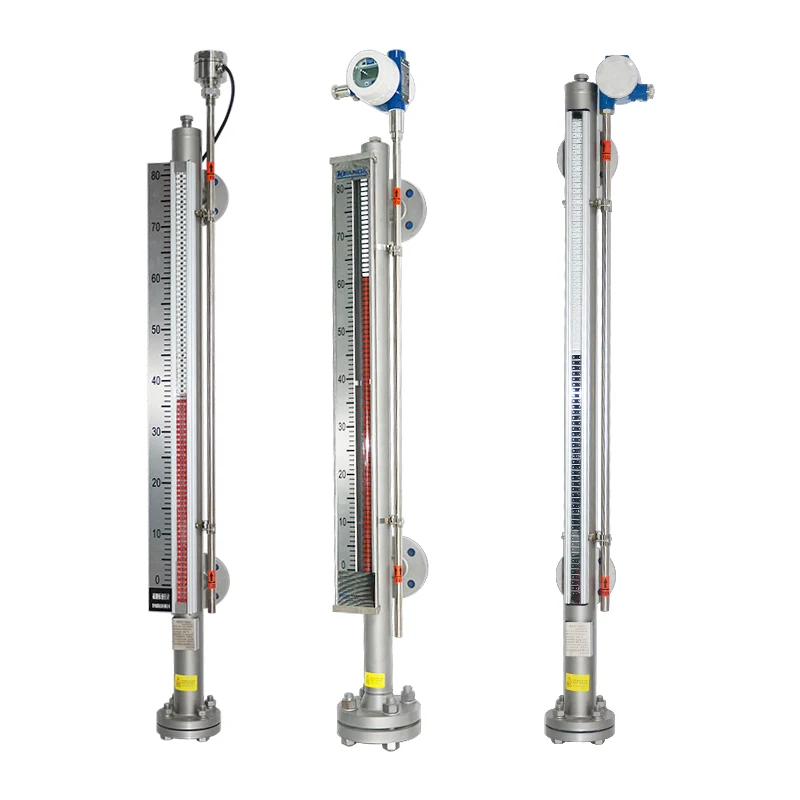

    UHZ-C Series level gauge magnetic magnetic float level meter





• UHZ-C series magnetic float level gauge is the product of our company's introduction and absorption of similar foreign products, as well as absorption, digestion and improvement, according to the magnetic level gauge standard HG/t21584-95 issued by the ministry of chemical industry.It can be used for measuring the liquid level of various tower, tank, spherical container and boiler.This series of magnetic level gauges can achieve high sealing, leakage prevention and adapt to high pressure and high temperature, corrosive conditions of liquid level measurement, with reliable security, it makes up for the glass plate (tube) level gauge indication is not clear, easy to break the shortage, not affected by high and low temperature upheaval, do not need the combination of multiple groups of level gauges.There is no blind spot in the whole process of measurement, the display is eye-catching, the reading is intuitive, and the measurement range is large.In particular, the site indicator part, because it does not directly contact with the liquid medium, so the high temperature, high pressure, high viscosity, toxic and harmful, strong corrosive medium, showing its superiority.Therefore, it has higher reliability, safety, advancement and practicability than traditional glass tube and plate level gauge.


• The most remarkable feature of side-mounted magnetic float level gauge is that the liquid medium is completely isolated from the indicator, which is very safe, reliable and durable under any circumstances.In addition, various types of liquid level meters are equipped with liquid level alarm and control switch, which can realize upper and lower limit offside alarm, control or linkage of liquid level or boundary level.Equipped with the hydrostatic liquid level transmitter produced by hebei xukang instrument or equipped with the drum-resistance liquid level transmitter, the liquid level and boundary signal can be converted into the two-wire 4-20 madc standard signal to achieve remote indication, detection, recording and control.The series of side-mounted magnetic liquid level gauges can be widely used in the electric power, petroleum, chemical and metallurgical environmental protection, shipbuilding, construction, food and other industries in the production process of the level measurement and control.


• Structure principle


• UHZ-C series side-mounted magnetic level gauge principle: the level gauge is developed based on buoyancy principle and magnetic coupling.When the liquid level in the container under test rises and falls, the float in the main tube of the liquid level gauge also rises and falls accordingly. The permanent magnetic steel in the float is transferred to the field indicator through magnetic coupling, driving the red and white inverted columns to flip 180.When the liquid level rises, the turning column turns from white to red, and when the liquid level drops, the turning column turns from red to white. The red and white boundary of the indicator is the actual height of the medium liquid level in the container, thus realizing the indication of the liquid level.
