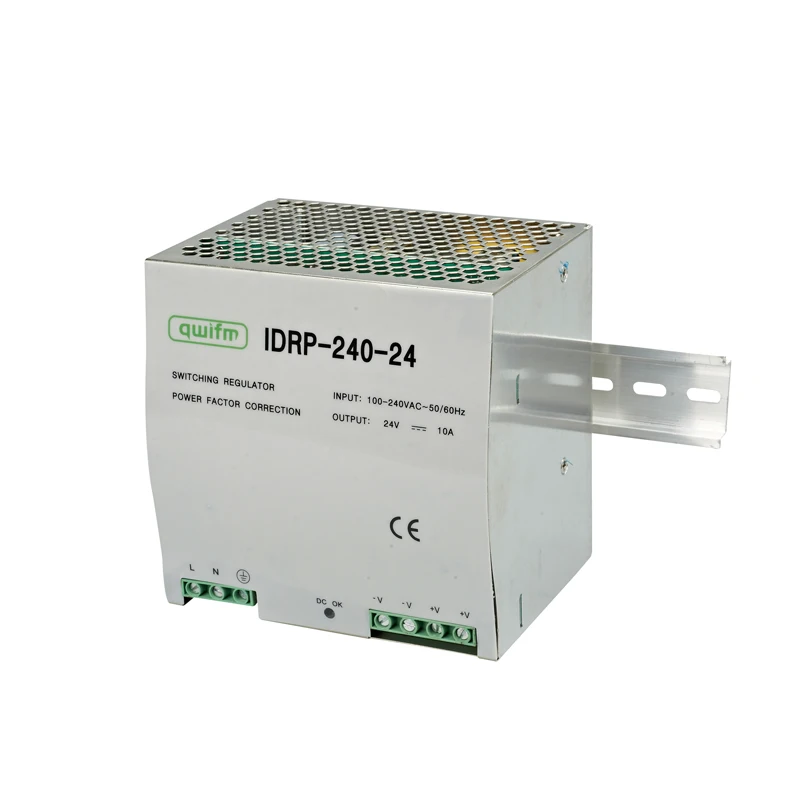

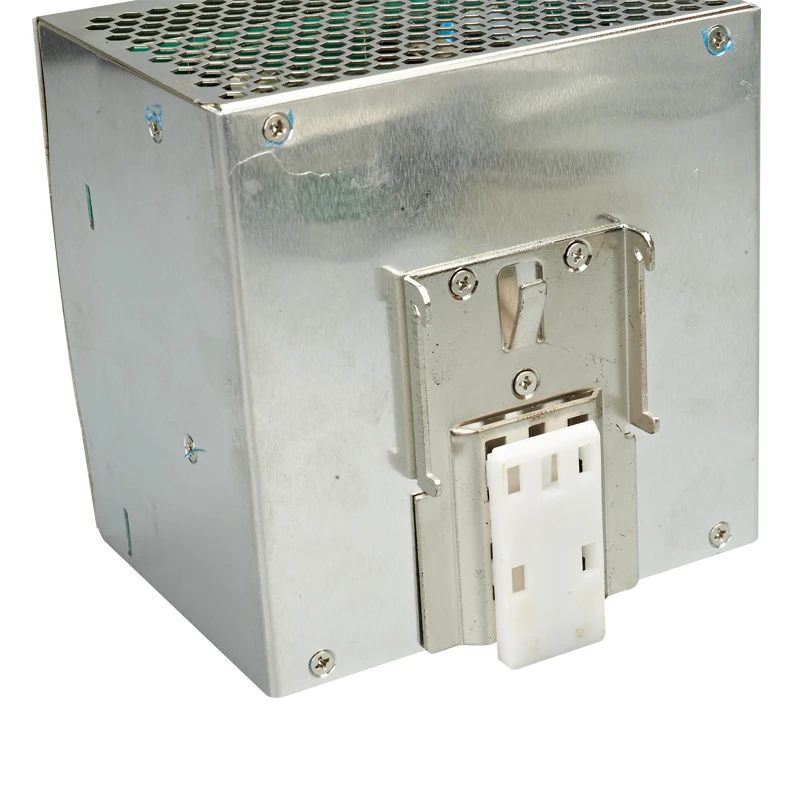

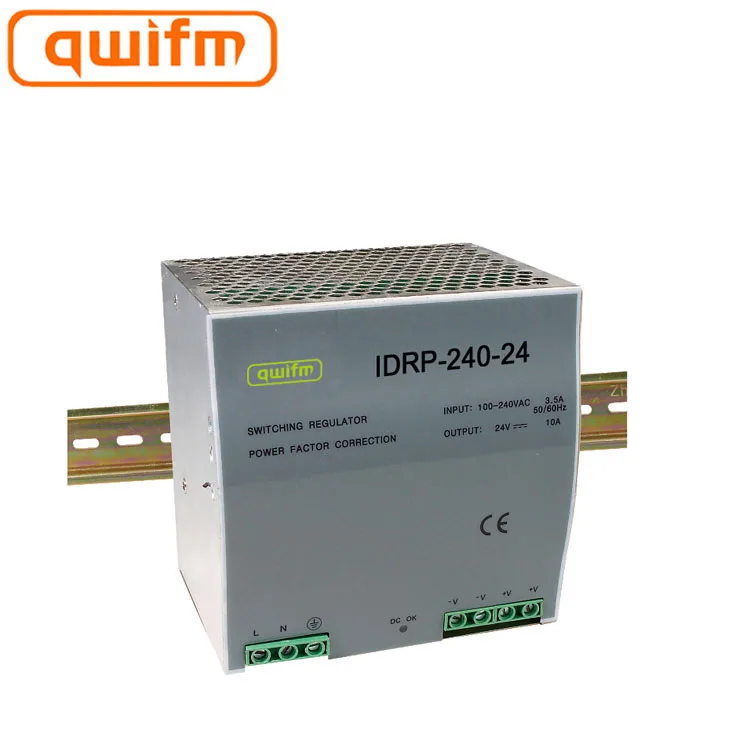

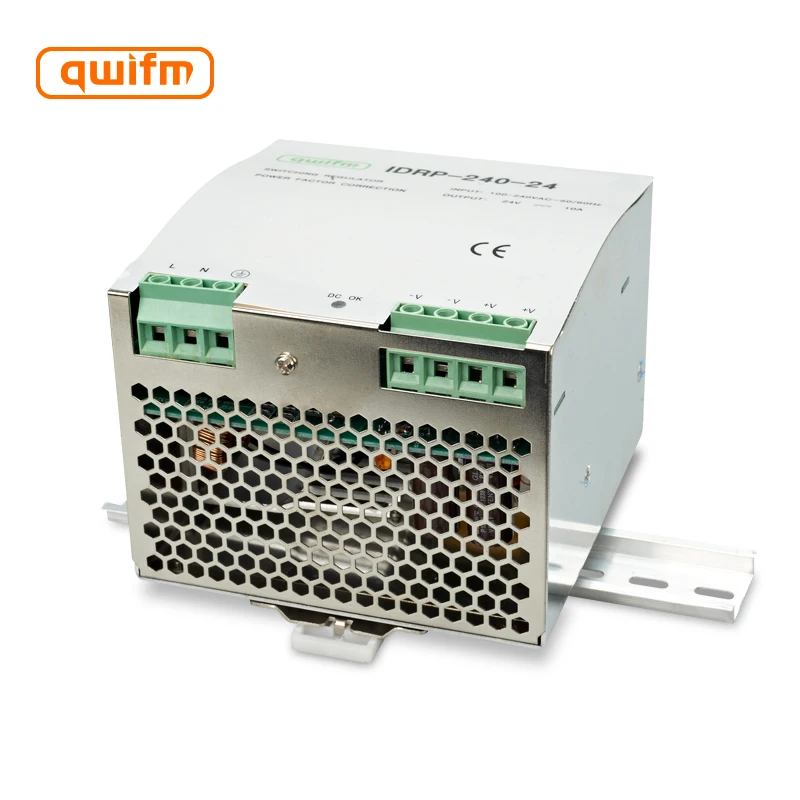

Name: QWIFM 240W 24V переключатель питания на din рейке
SKU: 62453272913
Price: 32,00 $ - 36,00 $ USD
Availability: InStock

96,30 $ - 121,90 $

23,00 $ - 31,50 $

2,00 $ - 3,50 $

0,18 $ - 0,25 $

5,80 $ - 5,87 $

35-53 $

10 000-35 000 $

7,50-7,70 $

3 $

5,50-6,40 $

Model		IDRP-240-24	IDRP-240-48
Output	DC Voltage	24V	48V
	Rated Current	10A	5A
	Current Range	0~10A	0~5A
	Rated Power	240W
	Ripple & Noise	80 mVp-p	150 mVp-p
Input	Voltage Range	85~264VAC
	Efficiency	84%	85%
	Inrush Current	Cold Start, 30A /115VAC; 50A /230VAC
Protection	Over load	105%-150% rated output power
		Protection type: Constant current liimiting, recovers automattically after fault condition is removed
	Over Voltage	115%-135% rated output voltage
		Protection type: Shut down o/p voltage, re-power on to recover
	Over temperature	Shut down o/p voltage, recovers automatically after temperature goes down
Environment	Working Temp & Humidity	·-20-60°C 20-90% RH non-condensing
	Storage Temp & Humidity	·-40-85°C 10-90%RH
Safety & EMC	Withstand Voltage	I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC within 1 min
	EMC Emission	Compliance to EN55032:2015 , EN61000-3-2 :2014,
Others	Dimension	125.5125.2100mm (WHD)
	Packing	1.5kg/pcs

QWIFM 240W 24V переключатель питания на din рейке
