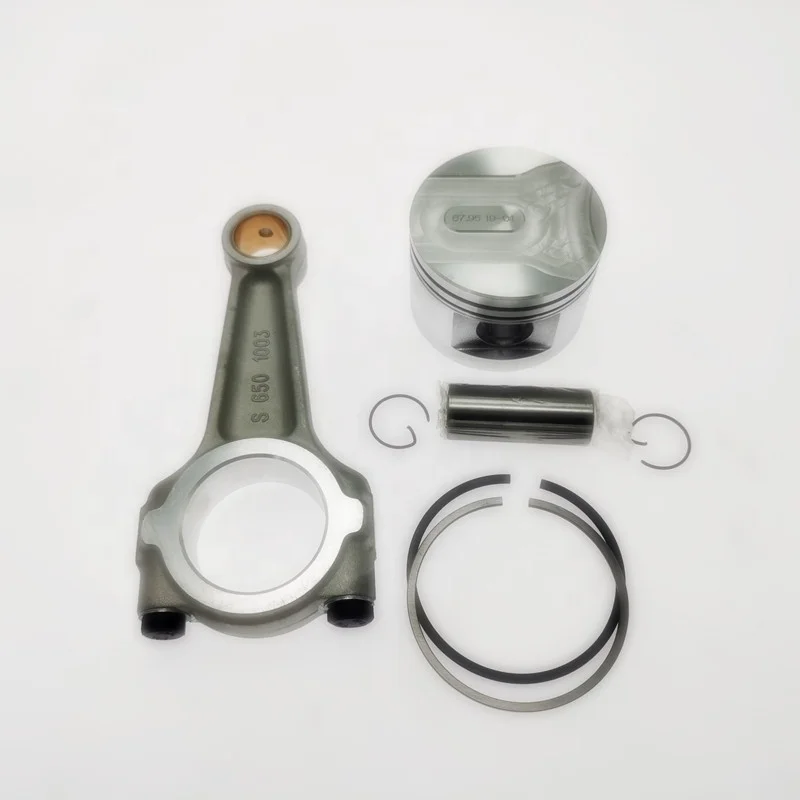

Шатун/поршень в сборе для Frascold холодильного компрессора V15 71E V15 71Y V25 71Y Z25 106E Z25 106Y Z35 106Y
17,00 $ - 20,00 $

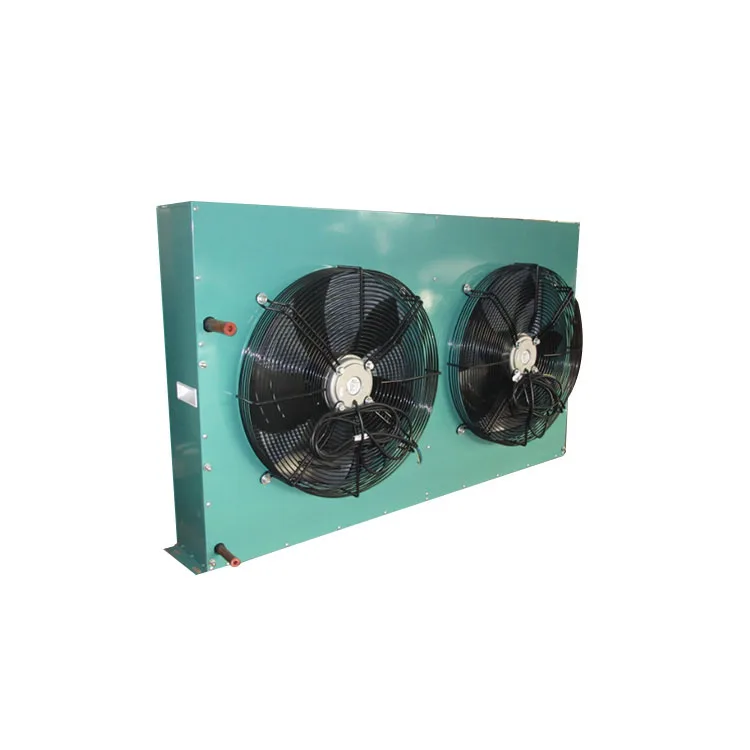

Горячая Распродажа конденсатор с воздушным охлаждением для холодного хранения
- Категория: >>>
- Поставщик: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Сохранить в закладки 62453928634:
Описание и отзывы
Характеристики
Product Description
1. HOW To Named Our Air Cooled Condenser Model?
2. WHAT'S Air Cooled Condenser's Technical Inforamtion?
| Model | Nominal heat transfer tk-tal=15℃;KW | Heat exchange area | coppertube arrangement | fan motor | INLET mm | OUTLET mm | ||||
| QTY | DIA | AIR m^3/H | POWER W | VOLTAGE V | ||||||
| pcs | mm | |||||||||
| LK-ACH2 | 0.6 | 2 | 2*4 | 1 | 200 | 780 | 1*55 | 220 | 10 | 10 |
| LK-ACH3 | 0.9 | 3 | 3*4 | 1 | 200 | 780 | 1*55 | 220 | 10 | 10 |
| LK-ACH4 | 1.2 | 4 | 3*5 | 1 | 250 | 970 | 1*80 | 220 | 10 | 10 |
| LK-ACH6 | 1.7 | 6 | 3*6 | 1 | 300 | 1700 | 1*90 | 220/380 | 10 | 10 |
| LK-ACH8.5 | 2.5 | 8.5 | 3*8 | 1 | 300 | 1700 | 1*90 | 220/380 | 10 | 10 |
| LK-ACH15 | 4.6 | 15 | 4*8 | 1 | 350 | 2200 | 1*140 | 220/380 | 19 | 16 |
| LK-ACH18 | 5.4 | 18 | 4*10 | 1 | 400 | 3400 | 1*180 | 380 | 19 | 16 |
| LK-ACH22 | 6.4 | 22 | 5*10 | 1 | 400 | 3400 | 1*180 | 380 | 19 | 16 |
| LK-ACH22-A | 6.4 | 22 | 4*8 | 2 | 350 | 4400 | 2*140 | 380 | 19 | 16 |
| LK-ACH28 | 7.3 | 28 | 4*9 | 2 | 350 | 4400 | 2*140 | 380 | 19 | 16 |
| LK-ACH33 | 9.7 | 33 | 4*10 | 2 | 350 | 4400 | 2*140 | 380 | 19 | 16 |
| LK-ACH41 | 12 | 41 | 5*10 | 2 | 400 | 6800 | 2*180 | 380 | 19 | 16 |
| LK-ACH50 | 13.8 | 50 | 5*12 | 2 | 400 | 6800 | 2*180 | 380 | 19 | 16 |
| LK-ACH58 | 16.2 | 58 | 6*12 | 2 | 400 | 6800 | 2*180 | 380 | 22 | 19 |
| LK-ACH70 | 20.7 | 70 | 4*18 | 4 | 350 | 8800 | 4*140 | 380 | 28 | 22 |
| LK-ACH80 | 23 | 80 | 4*20 | 4 | 400 | 13600 | 4*180 | 380 | 28 | 22 |
| LK-ACH100 | 27.6 | 100 | 5*20 | 4 | 400 | 13600 | 4*180 | 380 | 28 | 22 |
| LK-ACH120 | 33.3 | 120 | 5*24 | 4 | 400 | 13600 | 4*180 | 380 | 32 | 25 |
| LK-ACH140 | 39.8 | 140 | 5*24 | 4 | 450 | 19200 | 4*250 | 380 | 32 | 25 |
| LK-ACH160 | 45.6 | 160 | 5*26 | 4 | 450 | 19200 | 4*250 | 380 | 32 | 25 |
| LK-ACH180 | 49.9 | 180 | 5*26 | 4 | 450 | 19200 | 4*250 | 380 | 32 | 25 |
| LK-ACH25-G | 6.6 | 25 | 4*10 | 1 | 400 | 3400 | 1*180 | 380 | 19 | 16 |
| LK-ACH35-G | 9.1 | 35 | 4*11 | 1 | 450 | 4800 | 1*250 | 380 | 19 | 16 |
| LK-ACH41-G | 10.8 | 41 | 4*13 | 1 | 500 | 6500 | 1*450 | 380 | 22 | 19 |
| LK-ACH55-G | 14.5 | 55 | 4*16 | 1 | 550 | 8700 | 1*600 | 380 | 25 | 19 |
| LK-ACH80-G | 21 | 80 | 4*18 | 2 | 500 | 13000 | 2*450 | 380 | 25 | 19 |
| LK-ACH110-G | 28.8 | 110 | 5*17 | 2 | 500 | 17400 | 2*600 | 380 | 32 | 22 |
3. WHAT'S Air Cooled Condenser's Installing Dimension?
| Model | L | K | H | A | B | W |
| LK-ACH2 | 280 | 95 | 240 | 260 | 65 | 140 |
| LK-ACH3 | 280 | 120 | 240 | 260 | 80 | 165 |
| LK-ACH4 | 300 | 120 | 290 | 280 | 80 | 175 |
| LK-ACH6 | 350 | 150 | 340 | 330 | 110 | 235 |
| LK-ACH8.5 | 450 | 150 | 435 | 420 | 100 | 250 |
| LK-ACH15 | 520 | 170 | 485 | 490 | 130 | 280 |
| LK-ACH18 | 550 | 180 | 470 | 530 | 130 | 290 |
| LK-ACH22 | 600 | 180 | 520 | 570 | 130 | 290 |
| LK-ACH22-A | 950 | 150 | 420 | 870 | 110 | 290 |
| LK-ACH28 | 950 | 180 | 520 | 870 | 130 | 290 |
| LK-ACH33 | 1010 | 180 | 520 | 930 | 130 | 290 |
| LK-ACH41 | 1010 | 180 | 570 | 930 | 130 | 300 |
| LK-ACH50 | 1010 | 200 | 670 | 930 | 150 | 320 |
| LK-ACH58 | 1010 | 200 | 620 | 930 | 150 | 320 |
| LK-ACH70 | 1170 | 200 | 920 | 1080 | 150 | 210 |
| LK-ACH80 | 1170 | 200 | 1020 | 1080 | 150 | 320 |
| LK-ACH100 | 1170 | 200 | 1220 | 1080 | 150 | 320 |
| LK-ACH120 | 1200 | 200 | 1235 | 1110 | 150 | 360 |
| LK-ACH140 | 1260 | 220 | 1235 | 1170 | 170 | 360 |
| LK-ACH160 | 1260 | 220 | 1335 | 1230 | 170 | 360 |
| LK-ACH180 | 1380 | 220 | 1335 | 1350 | 170 | 360 |
| LK-ACH25-G | 670 | 190 | 530 | 635 | 130 | 290 |
| LK-ACH35-G | 760 | 200 | 580 | 730 | 140 | 300 |
| LK-ACH41-G | 840 | 200 | 680 | 810 | 140 | 310 |
| LK-ACH55-G | 930 | 200 | 830 | 900 | 140 | 310 |
| LK-ACH80-G | 1205 | 220 | 930 | 1175 | 140 | 330 |
| LK-ACH110-G | 1390 | 240 | 880 | 1360 | 160 | 330 |
| Note:We reserve the rights to make technical modification without prior notice. | ||||||
Remarks:
Casing material can be Galvanized sheet,Stainless Steel, Aluminum and Galvanized coating aluminum etc material .
Product Images
1.we take very strict inspection for each product before shipping ,and the soldering by our professional and experienced workers ;
2.and we have kinds of mould for your choose as below:
No. | Diameter Of Copper Tube (mm) | Moulds | Pitch Of Fins (mm) | Smooth Copper Tube | Inner Grooved Copper Tube | Remarks |
1 | 9.52 | 25*21.65 | 1.8 ~ 6 | Yes | Yes | |
2
| 7.94 | 25*21.65 | 3.5~5.5 | Yes | Yes | |
3 | 7.94 | 22*19.05 | 1.8~4.6 | Yes | Yes | |
4
| 7.94 | 21*18.19 | 1.8~2.5 | Yes | Yes | |
5 | 7 | 21*12.7 | 1.2~25 | Yes | Yes | |
6 | 14.5 | 52*45 | 3.5~9.5 | Yes | Yes | |
7 | 12.7 | 31.75*27.5 | 1.8~6 | Yes | Yes | |
8 | 9.52 | 31.75*27.5 | 3.5~7 | Yes | Yes | |
9 | 12.7 | 38.1*33 | 4.5~9 | Yes | Yes |
Related Products
Production Flow
Packaging & Shipping
1.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
2. We and our shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
Factory Show
We Manufacture Work of Arts for HVAC System in our Standard Workshop.
Company Information
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.
Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 - 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
Question:Are you a factory or a trading company?
Answer: We are a factory
Question:Where is your factory located?
Answer: Our factory is located in shengzhou city,zhejiang province you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Question:Can we do our OEM logo?
Answer: Yes, we can do OEM logo for you.
Question: What is the main market for your products?
Answer: Our main market is in Southeast Asia, South America, Europe and USA.
Question: What is your warranty?
Answer: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
Похожие товары

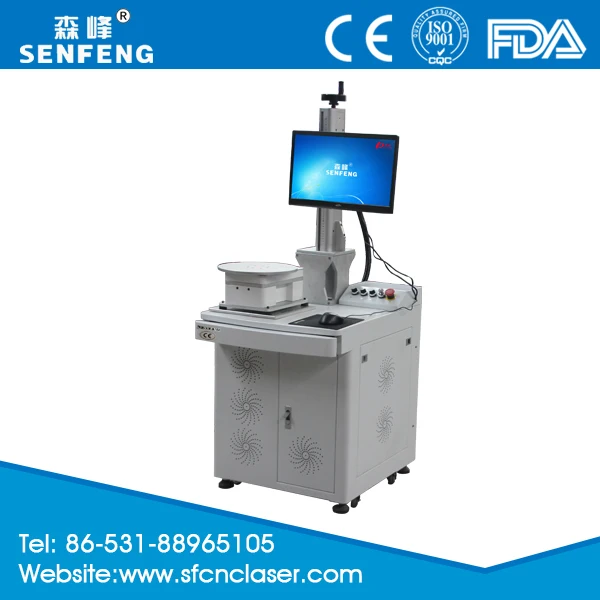

SF200-F для маркировки электроники Волокн Волоконный лазерный маркер

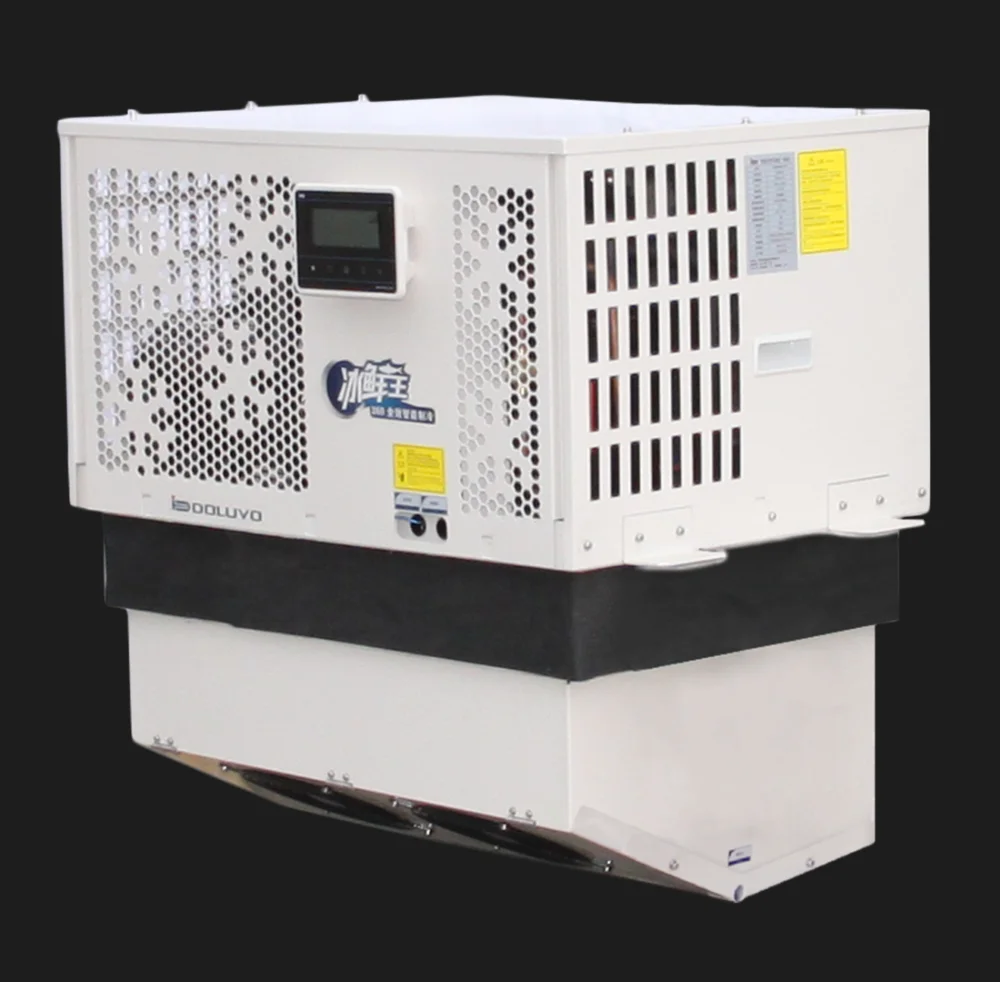

Roof in Monoblock condenser unit
Коробки на заказ, золотой фольгированный штамп с логотипом, черная Гофрированная коробка, упаковка, подписка, отправка, картонная бумажная коробка для одежды
0,19 $ - 0,90 $
Оригинальный дизайн выдвижные ящики Стильные черные картонные коробки на заказ Роскошная бумажная подарочная коробка
0,18 $ - 0,30 $
Голографические коробки с логотипом на заказ, картонные складные бумажные почтовые ящики, доставка
Высокопрочные латунные болты с шестигранной головкой подходят для мотоциклетных аксессуаров, шестигранные болты
0,01 $ - 0,02 $

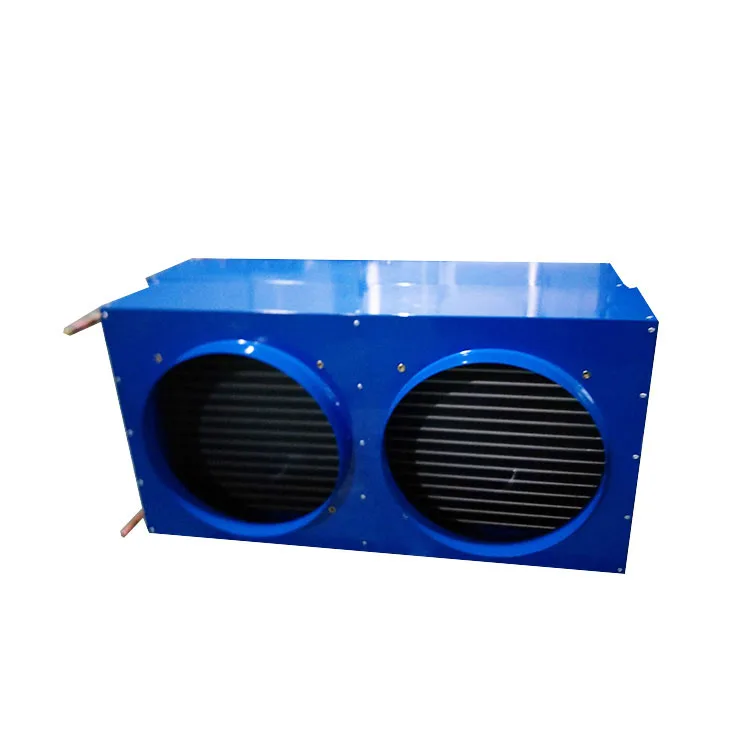

OEM испаритель конденсатор
