Product Description

36v 250w electric bicycle parts ebike kit

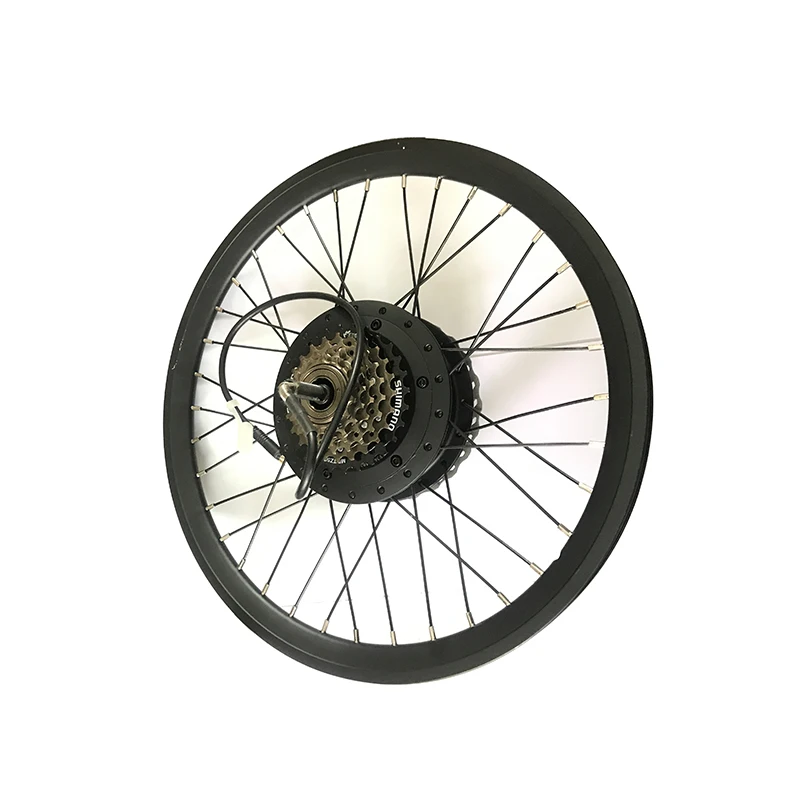

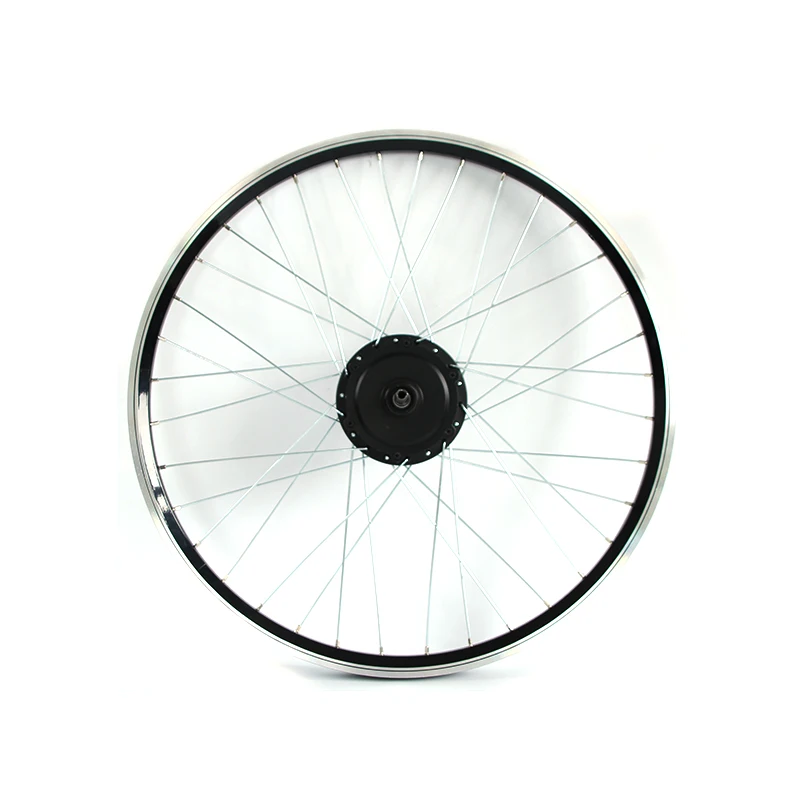

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

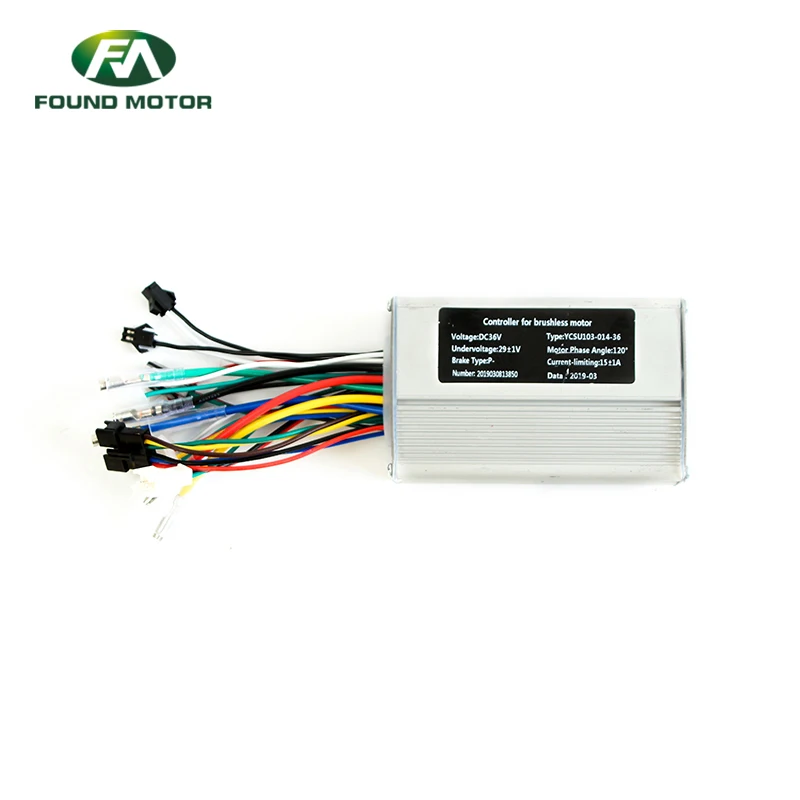

1.SW-6

Size 140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage DC24V/DC36V/DC48V/DC64

Rated Power                 180W-500W
Law Voltage protection          12A-22A
Standby Power Consumption     <50mA
Housing Materials               Aluminum
Water Proof                   IPX6
Motor Matching             Sensored Motor /Sensarless Motor

Display Matching LED Display/LCD Display

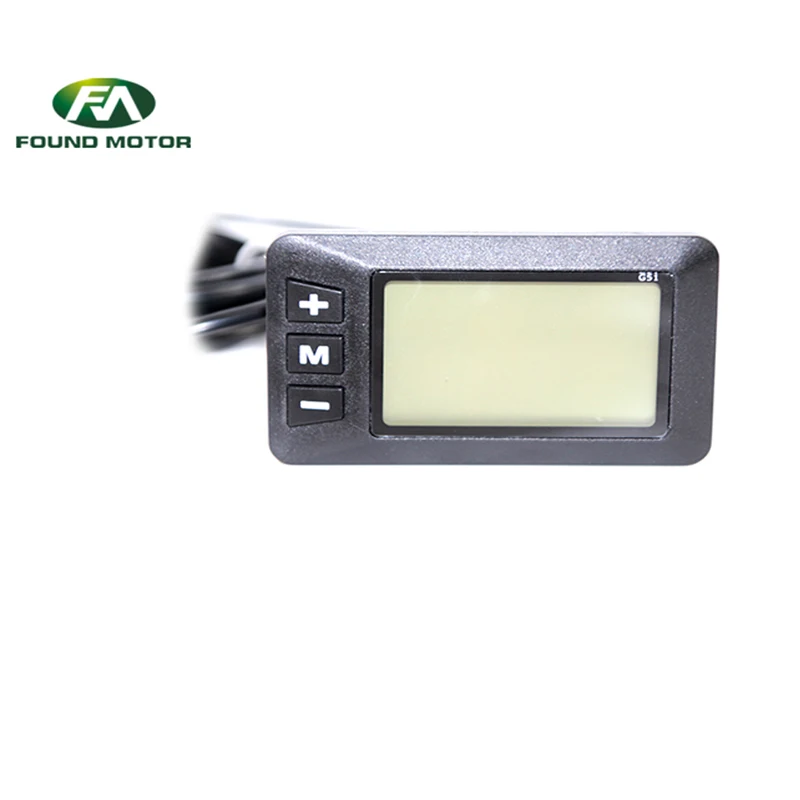

Model:G51

Size:48.1mmx82.1mmx12.5mm

Functions:PAS Level Speed;Trip/ODO/Headlight;Walk;Mile/KM/Error Alarm

Communication:UART

Holder:22.2mm

Voltage:24V/36V/48V

Certificate:CE/ROHS/IP65

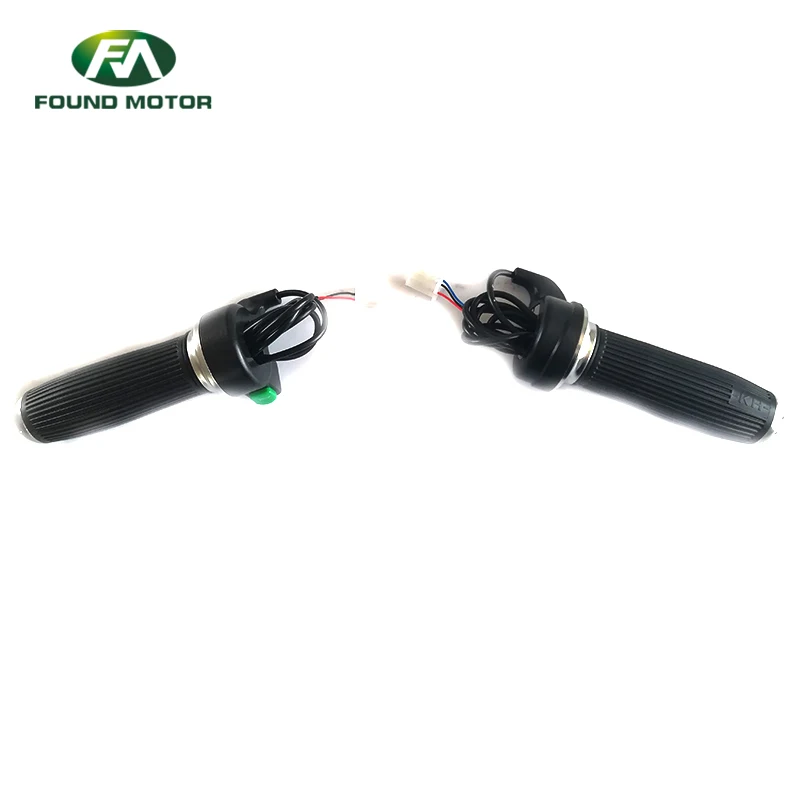

Throttle specifications

Mode number:FD-001

Cable length:1300mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1000mm

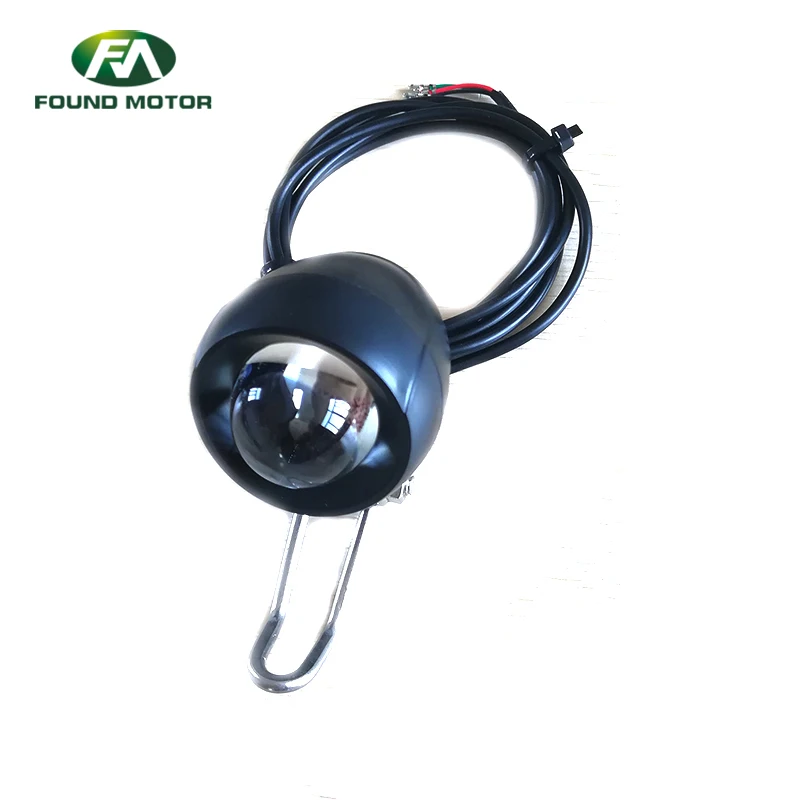

Front light specifications

1.Model:SD-01

2.Front light with normal connector

3.Front light optional

4.Cable length: 1000mm

PAS specifications

1.PAS double hall 12 magnets with normal connector

2.PAS optional

3.Cable length: 600mm

MOTOR OPEN SIZE

MTB/Normal electric bike

1.Front drive motor:100mm

2.Rear drive single speed motor: 125mm

3.Rear drive 6-9speed motor: 135mm

4.Rear drive cassette:140mm

Fat bike/Snow bike

1.Front drive motor:130-140mm

2.Rear drive motor:170-190mm

Single speed, 6-9speed,cassette motor optional.

Electric motorcycle

180-200mm

PRODUCT APPLICATION CASES

Related Product

Company Information

FAQ

1.Q: Is it available for sample?

A:Yes. We offer sample, but free sample are not available at beginning.

2.Q: What's your warranty for products?

A: a.) If you import goods from us, we will be full refunds protection if goods itself has quality problems.

b.) We can return your money if you are not satisfied with our product within 7 days after you get the goods, you only need take the freight.

c.) We promise to replace the goods freely if there are some problems within 6months.

d.) We promise 2 years' warranty. First year, exchanging products for free and second year, maintenance free. You only need to do is pay the freight.

3.Q:What our motors’ max rotaing speed?

A:350RPM—1200RPM

4.Q:How much voltage we can do for motors?

A:24V,36V,48V,60V,72V,96V as your required.

5.Q:How much power we can do for motors?

A: Electric bike motor 180W-5000W.

Switched reluctance motor 1200W-10.5KW

6.Q:How much speed we can do for motors?

A:For normal electric bike motor,25-60km/h as your bike wheel size.

For switched reluctance motor,10-60km/h.

For electric motorcycle motor,60-120km/h.

For customized motor,6-120km/h,depend on your demands&requirements.

7.Q:Special order as your required?

A:Products can be ordered as you need. Technical department can provide you with professional solutions.
