Гидравлический направляющий грузовой Лифт подъемник грузоподъемностью 7 тонн м/2 остановки стандарт CE ISO9001

Описание и отзывы

Характеристики

Introduction

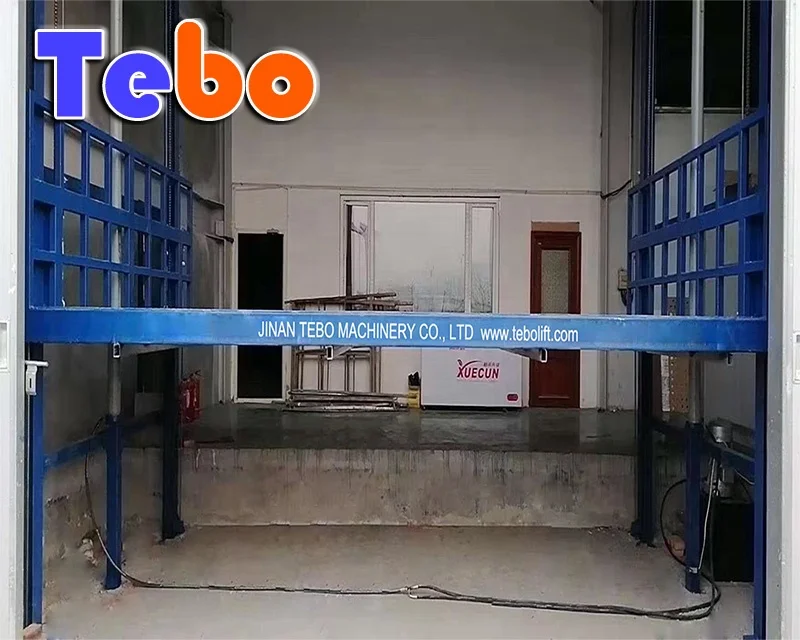

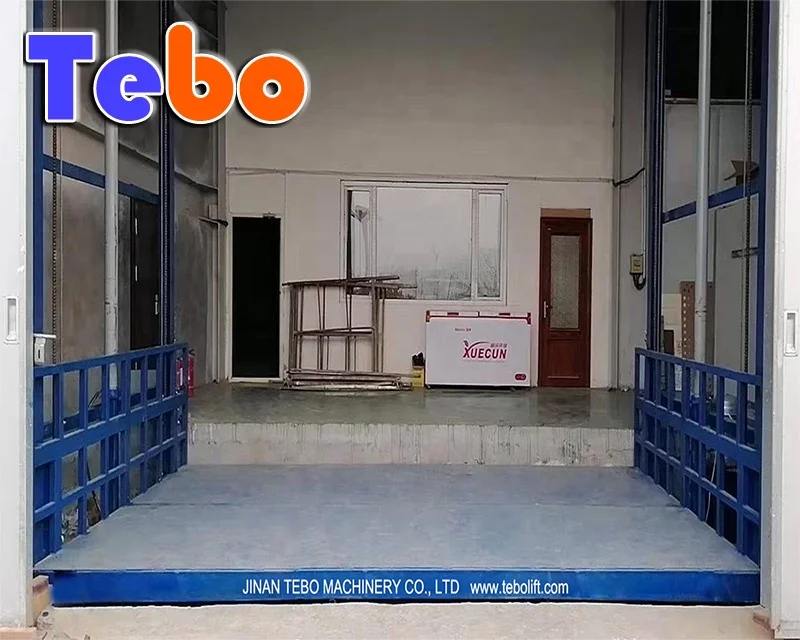

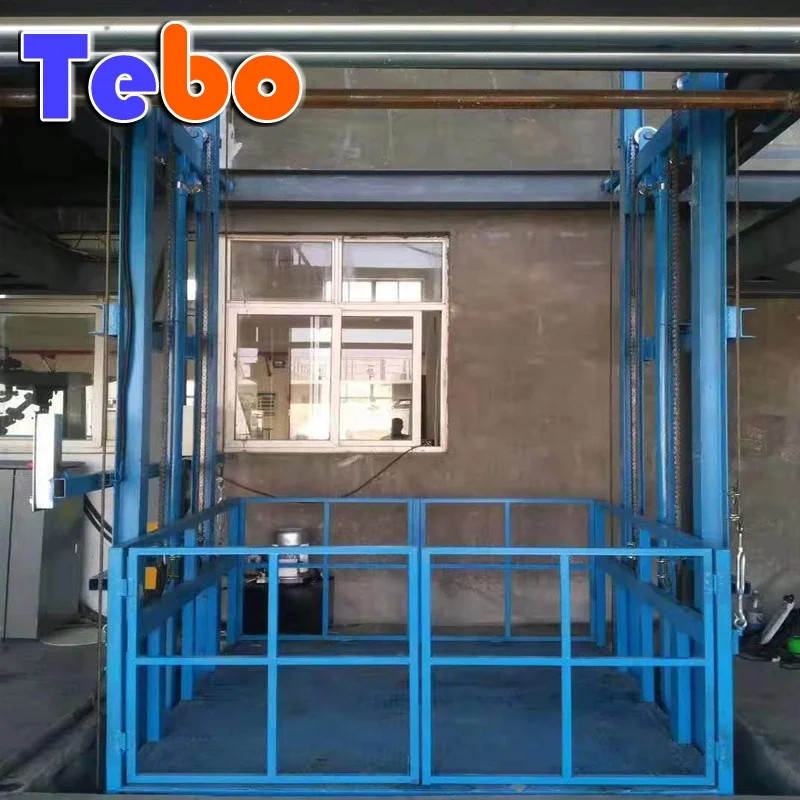

This kind of rail cargo lift platform alsonamed as rail goods lift, rail lift platform, hydraulic rail elevator, etc.

It’s widely used in area of goodswarehouse, multi-levels warehouse, car warehouse, etc. The installation issimple. Now we develop a new model guide rail cargo lift, which is easy to installation and using, the whole structure is no need any welding, only needto bolt and nut.

Feature

1. Stable lifting speed: the lifting upspeed is about 6~10 meters per minute at the condition of not full capacity.

2. Big capacity: the guide rail cargo liftplatform’s maximum capacity can up to 30 ton, to which the other elevatorcannot compare.

3. Flexible design: all the size and heightcan be accurately designed as the work site’s size.

4. Simple to installation: no need anywelding and cutting to the steel structure, only need bolt and nut them likebuilding blocks.

5. Long time warranty: our equipment haslong time warranty: 24 months.

Safetyguarantee: the total system has 3 safety assurances

1. Anti- explosion valve: if some unforeseen condition occurs, such as the pump station failure, or the pressure of the oiltube decline suddenly, the anti-explosion valve will work, it will keep the pressure of the hydraulic cylinder to keep the stable and safety of the lift platform.

2. Safety rope: in the working process ofthe lift, not only the loading chain is working, but the safety rope is workingat the same time, the safety ropes have the same function with the loading chain. Even the loading chain is cut, the safety rope can lift the cargo normally and safely.

3. Emergency stop and decline: if the equipment’s control system failure and out of control, press the emergency button can make the equipment stop immediately. Once power off when operation, openingthe emergency decline switch can make the lift platform decline slowly.

Installation:

The guide rail cargo lift’s installation isvery simple, now we developed two kinds: welding model, and no need weldingmodel. We suggest no welding model to overseas customers. This model only needsto bolt and nut the spare parts together.

Details:

This equipment system is made of 4 parts:

1. Mechanical system: include the steel structure, the mechanical spare parts and equipments.

2. Hydraulic system: include the pumpstation, hydraulic cylinder, hydraulic oil tube, oil tank, etc.

3. Heavy loading system: also named to safetysystem, include steel chain, steel rope, heavy loading structure, and heavy loading cabin.

4.Electric system: also named control system, include electric opponent, electric spare parts, pump station power,the control board, the electric control system, control box, etc.

Main spare parts of lift

	Tebo use heavy-duty I beam as guide rails for warehouse goods lift. It is made of Cabon steel Q345B, with 17% more rigidity strength than normal steel. It could serve more than 50 years with enduring peculiarity, it has a stronger steel stability.
All of Tebo company lift's guide wheel and side wheel are fixed with screw bolts, all of wheels can be disassemble easily and replace new ones, and we will supply additional bearing as wearing parts when delivery goods to keep you can maintenance the lift structure in warranty.
	All of the controlling power box will be connected well and made complete commissioning before ex-work, to keep it will be easily fixed when customer installing.
The overloaded device are designed and fixed for the warehouse using hydraulic lift cargo lift, when the goods are overloaded, it will alarming and cut power to ensure people and goods' safety.
