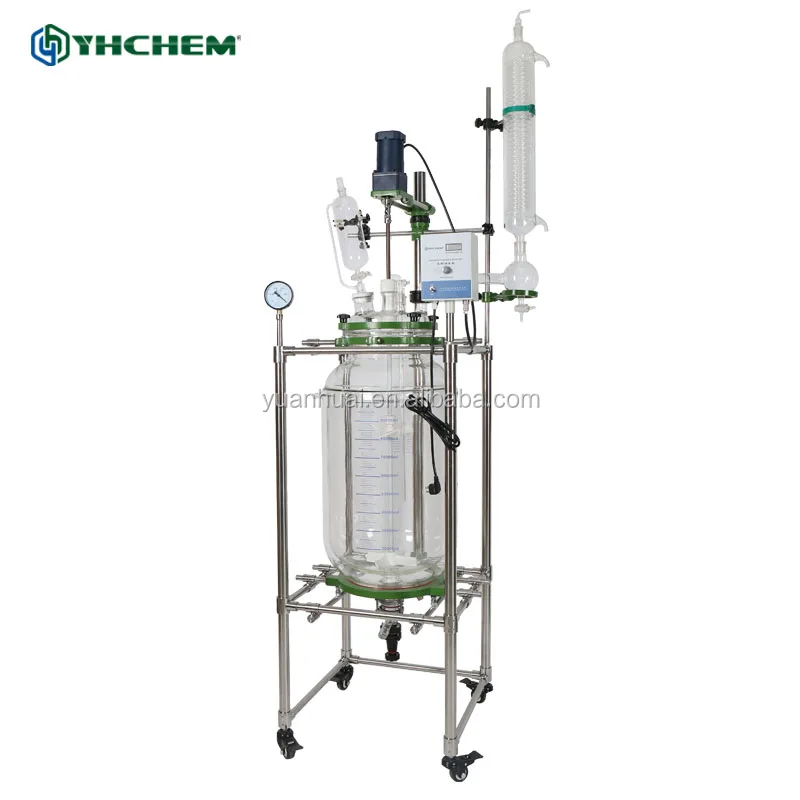

Реактор из жаккардового стекла для химического смешивания 50 л

Реактор из жаккардового стекла для химического смешивания 50 л

Категория: Реакторы >>>
Поставщик: Shanghai Yuhua Instrument Equipment Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

INTRODUCE&SPECIFICATION

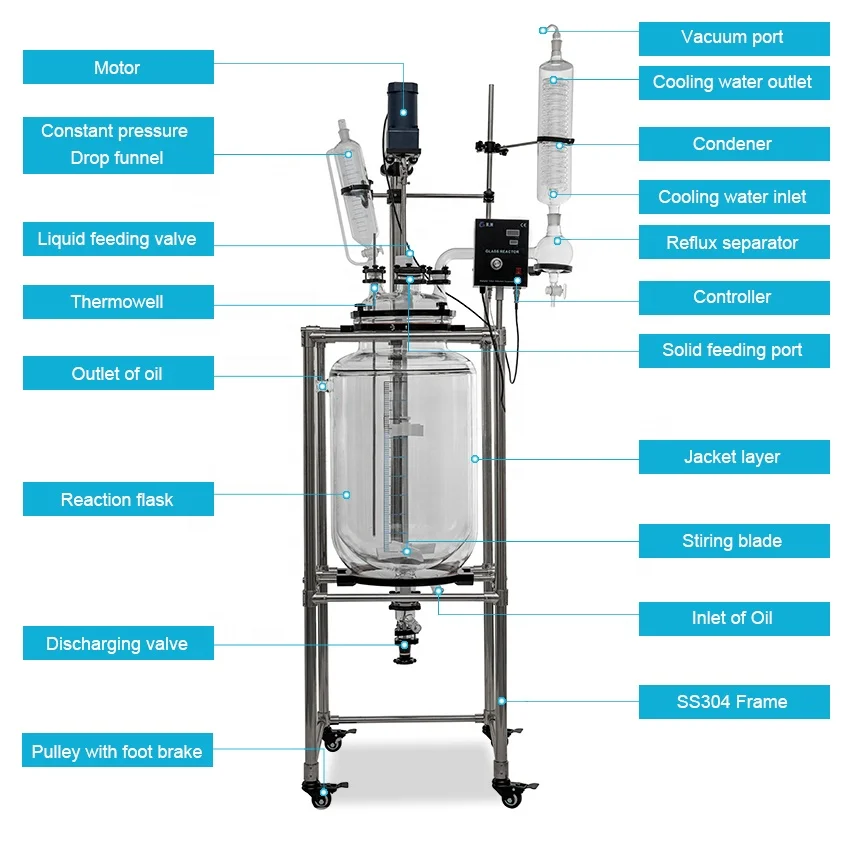

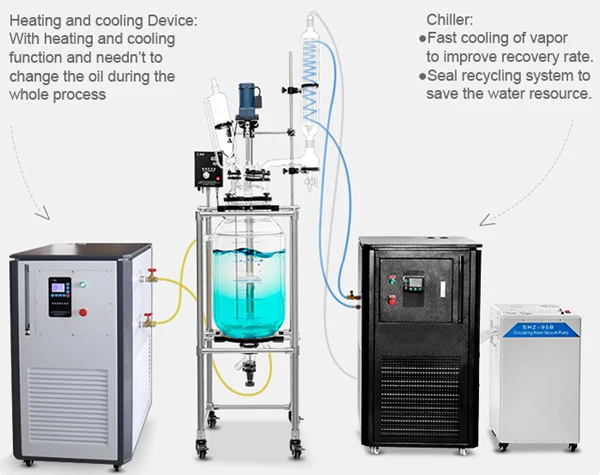

The working principle of the reactor is that the reaction solvent can be stirred in the inner layer, and the interlayer can be heated or cooled by different cold and heat sources (freezing liquid, hot water or hot oil) for cycle heating or cooling reaction. The materials in the reactor are heated or cooled by injecting constant temperature (high temperature or low temperature) hot solution media or cooling media. At the same time, stirring reaction can be carried out under normal pressure or negative pressure according to the requirements of use. After the reaction, the material can be released from the outlet of the bottom of the reactor, and the operation is extremely convenient.
Reactors is widely used in petroleum, chemical industry, rubber, pesticide, dye, medicine, food, used to complete vulcanization, nitrification, hydrogenation, alkylation, polymerization, condensation and other processes of pressure vessels, such as reactor, reaction pot, decomposition pot, polymerization kettle;

Standard Configuration View More
Model	S212-10L	S212-20L	S212-30L	S212-50L
Reaction capacity	2L~10L	2L~20L	5L~30L	5L~50L
Jacketed volume	3L	6L	10L	16L
Tolerance temperature	-120℃~300℃
Working pressure	-0,1Mpa~0.1Mpa (-1~1kgf/cm²)
Glass material	G17 High borosilicate glass
Frame	SS304
Motor	120W(1:3)	120W(1:3)	120W(1:3)	120W(1:3)
Rotating speed display	0-600rpm 【High speed optional】
Frequency controller	Speed adjustment, Temperature and Speed LCD digital display
Voltage	220V/50Hz 【110V/60Hz】

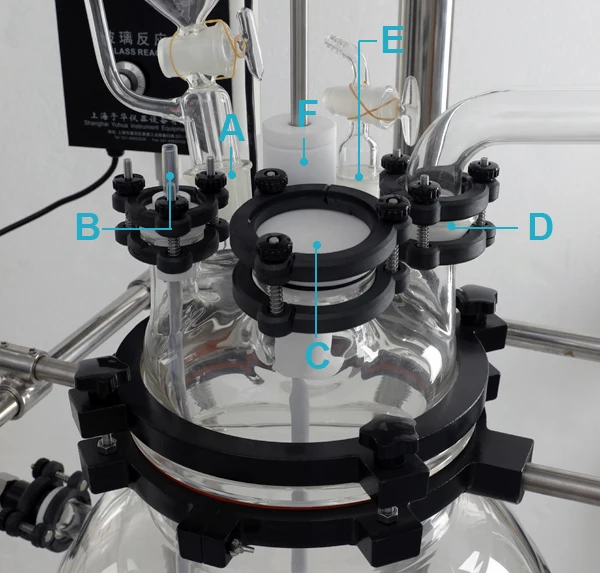

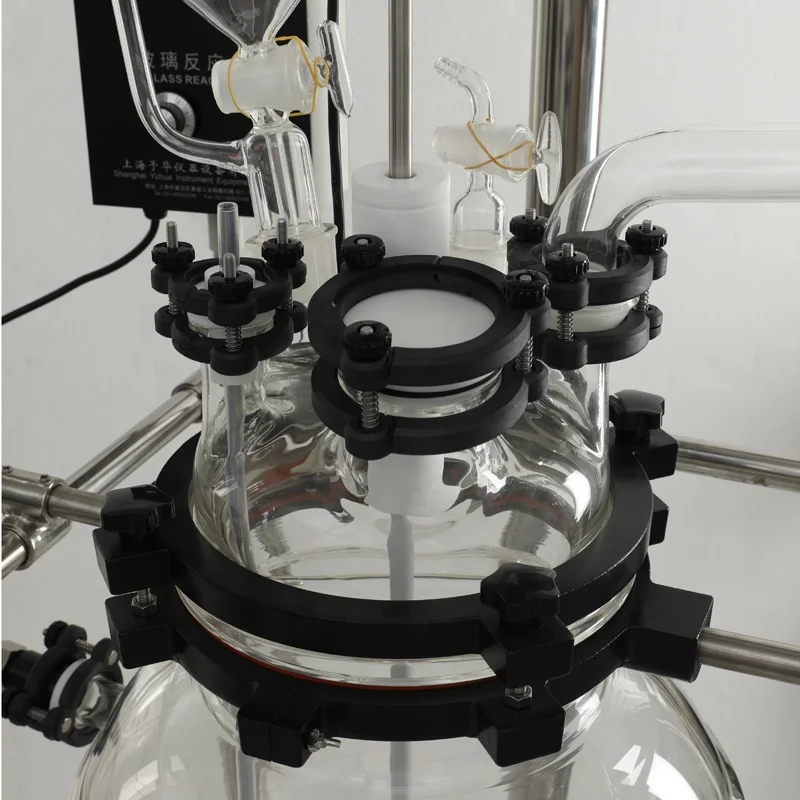

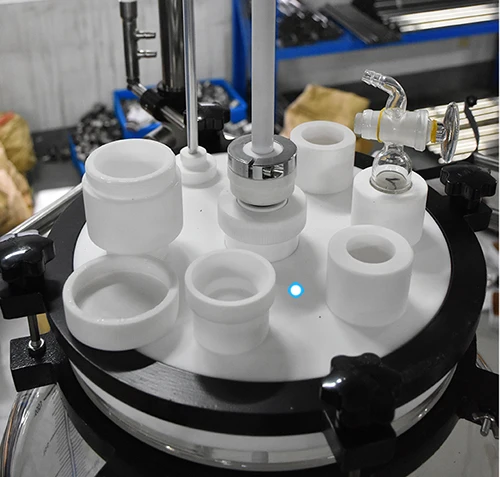

Port No. on the lid	Standard with six openings【other openings can be customized】
Stirring PTFE seal	PTFE oil seal / Ceramic mechanical seal
Spare valve	34#	34#	34#	34#
Constant pressure drop funnel	1L	1L	2L	2L
Thermometer tube	43# Flange	43# Flange	43# Flange	43# Flange
Solid feeding port	80# Flange	80# Flange	80# Flange	80# Flange
Reflux separator	50# Ball-mill	50# Ball-mill	50# Ball-mill	50# Ball-mill
Condenser	φ85*H610mm	φ85*H610mm	Φ100*H700mm	Φ100*H700mm
PTFE Stir blades type	Four blade	Four blade	Four blade	Four blade

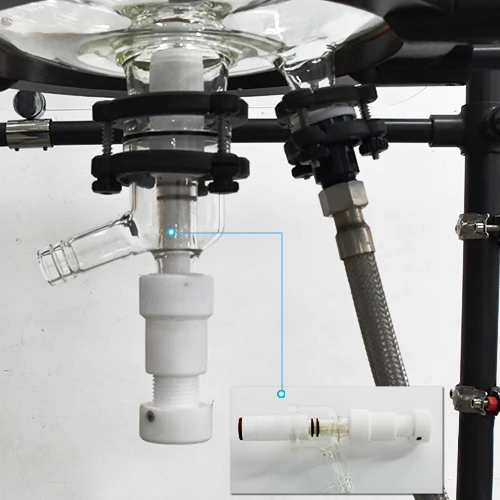

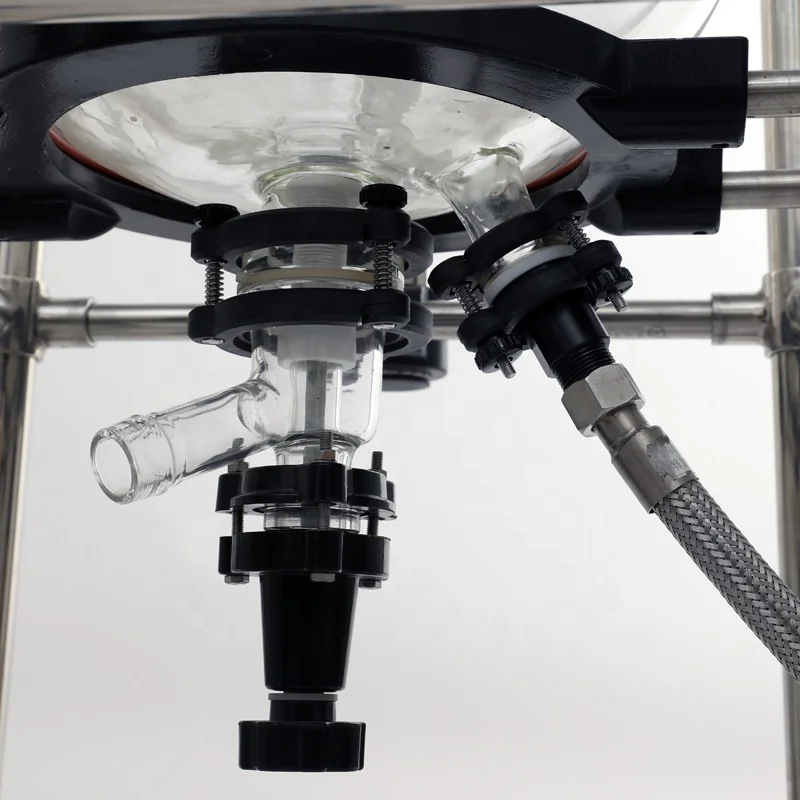

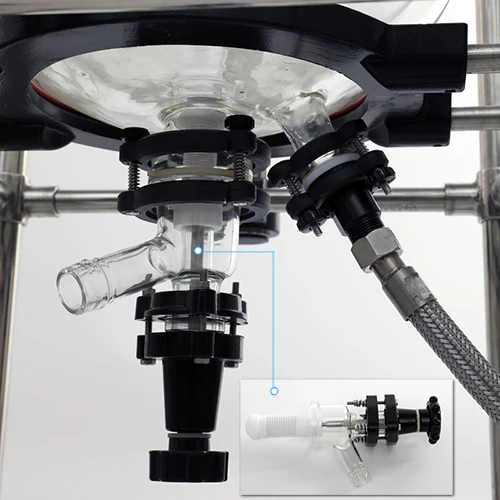

Bottom discharge port	ID23, OD32	ID23, OD32	ID23, OD32	ID23, OD32
Vacuum port	OD12mm
Chiller port	OD12mm
Fixed parts	Aluminum alloy( For kettle body and kettle cover)
Tray	Aluminum alloy( For kettle body)

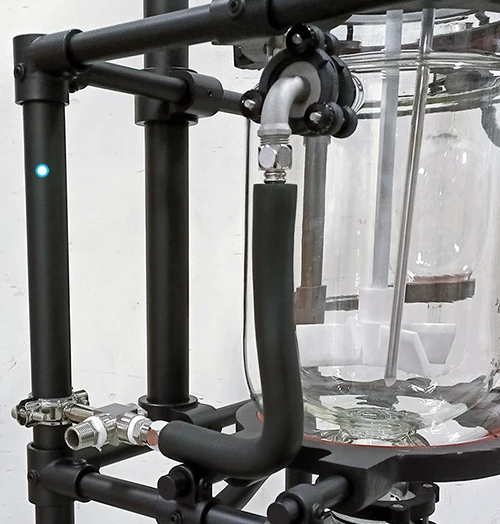

Inlet/outlet oil port	DN25 Ball-mill Joint
Adapter of Inlet/Outlet	Quick opening clamp and Adapter
Machine size(LWH)	6706501920	7207002020	7507002400	7507002450
Optional Configuration
Anticorrosive frame	◎SS304 with PTFE coating or SS316 optional

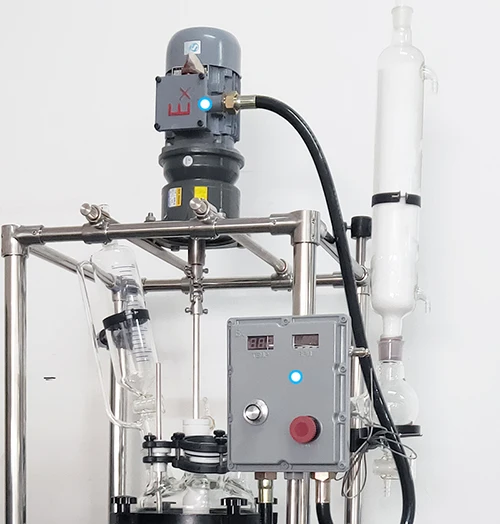

Explosion proof	◎Explosion proof Motor and controller; Grade: Ex DIIB T4 Gb
Receiving flask	◎2L/5L/10L
PH meter	◎0-14ph
Bottom filter	◎Sand core

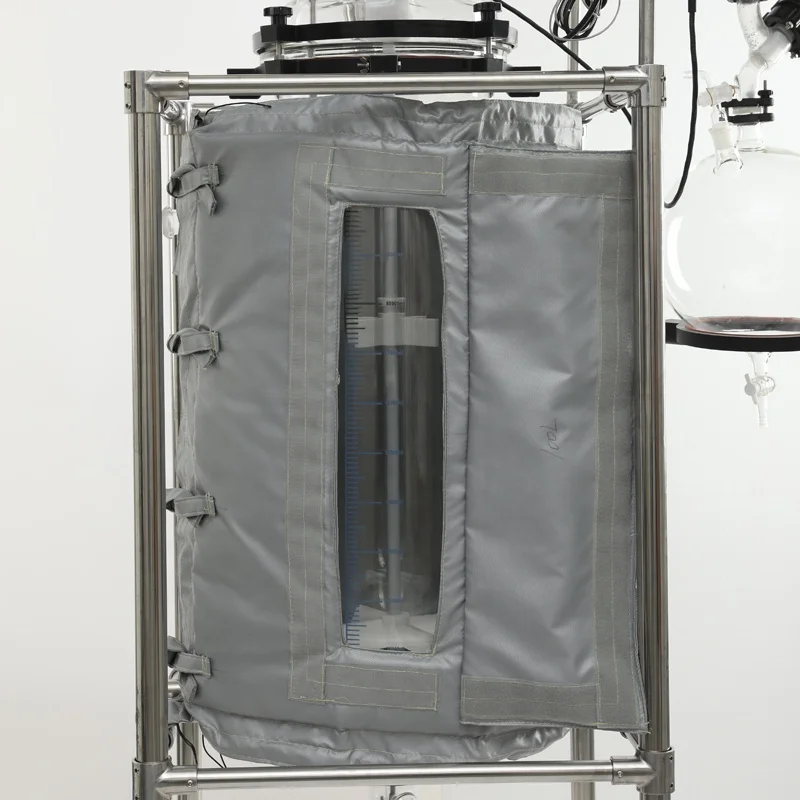

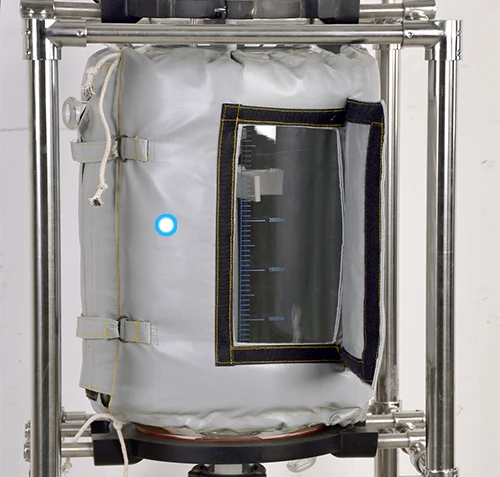

Insulation clothes	◎
Bullet proof glass	◎Explosion-proof glass baffle
Shower nozzle	◎PTFE

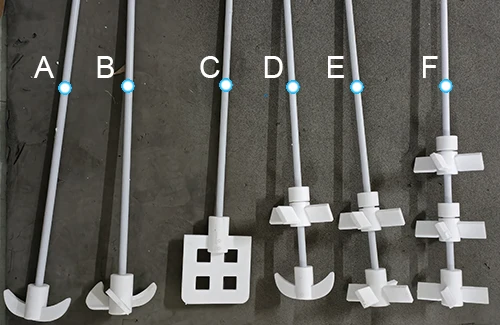

Spare stir rod	◎Various types
Remark: ◎Optional
