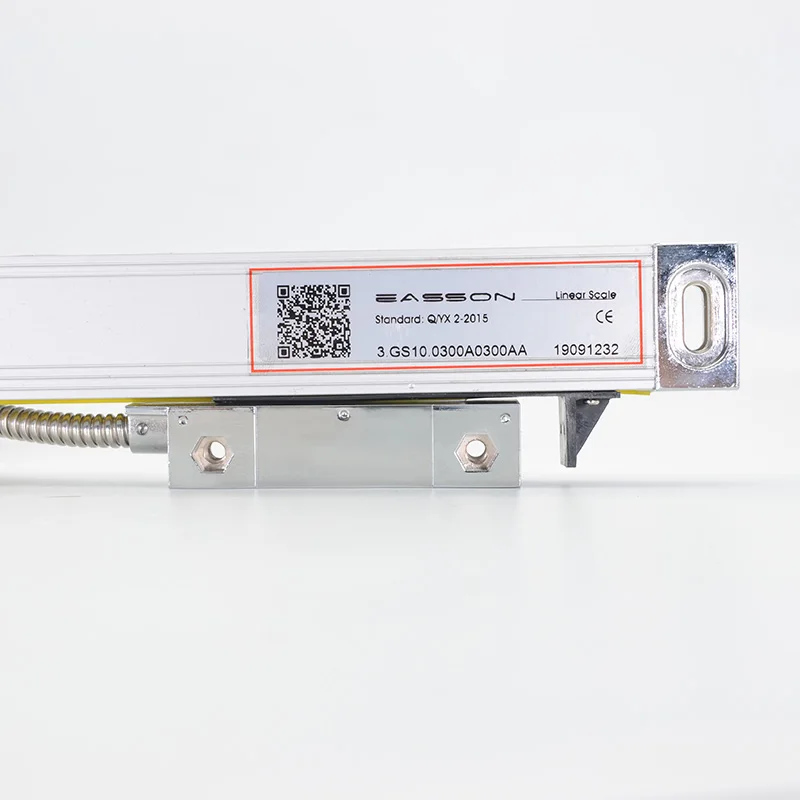

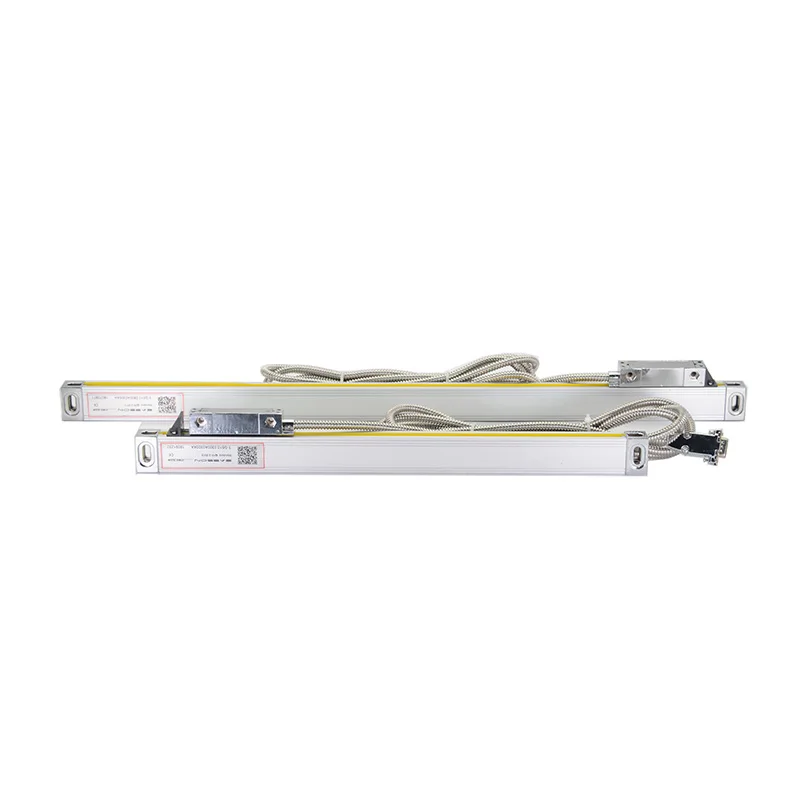

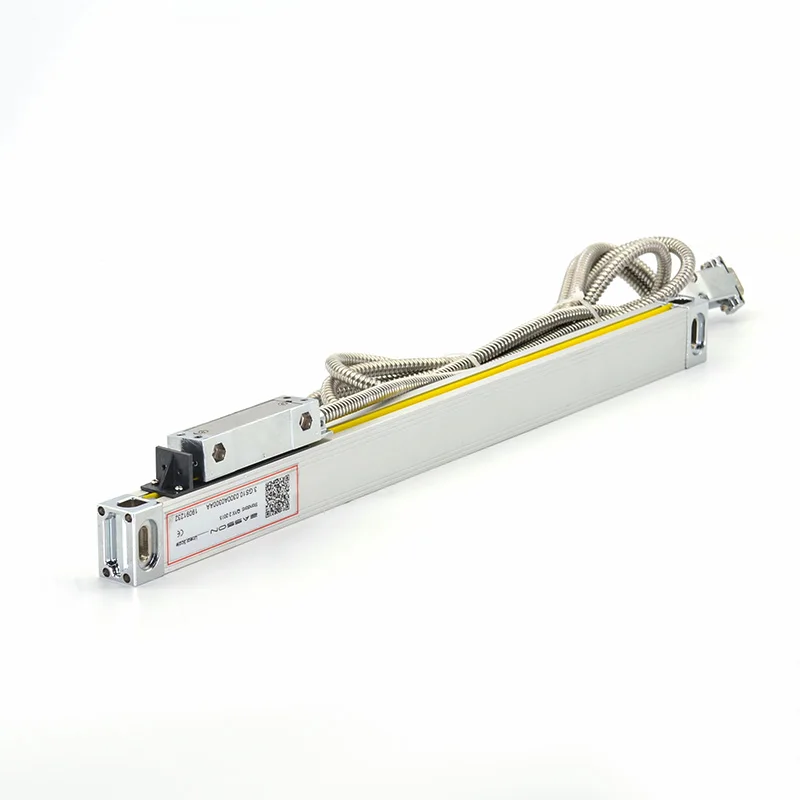

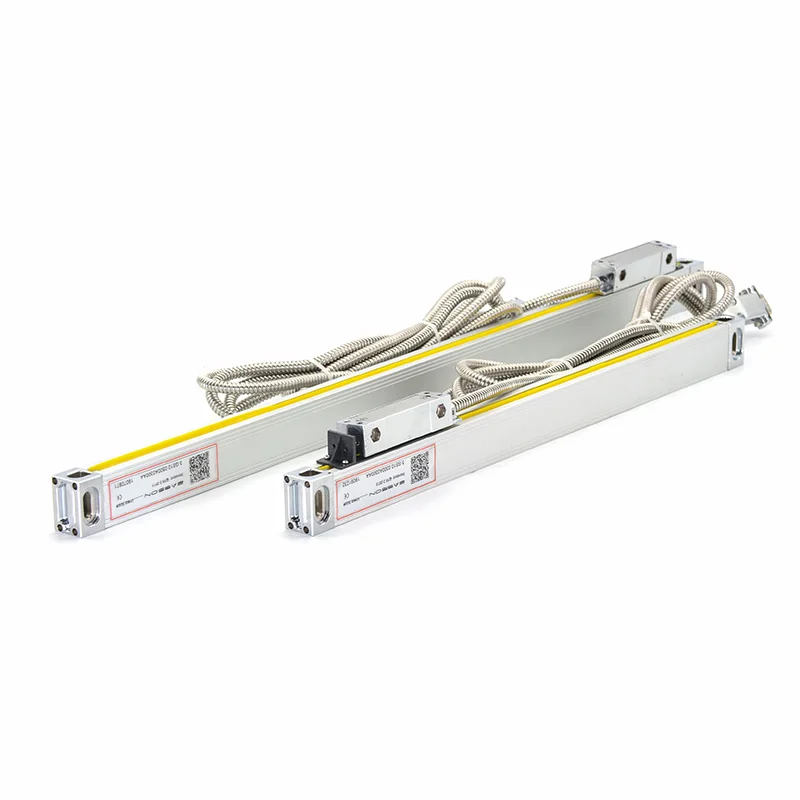

GS10 | GS12 | GS20 | GS22 | GS30 | GS32 | ||||||||
Measuring Standard | Glass scale- Grating period:20um(0.02mm) | ||||||||||||
Optical Detecting System | Transmissive Infrared system: wavelength:880nm | ||||||||||||
Slide Carrier System | Vertical five bearings supporting system | 45"five bearings supporting system | Vertical five bearings supporting system | ||||||||||
Resolution | 5um | ||||||||||||
Measurement Travel | 100-1200mm | Every 50mm per length specification | not avaliable | Every 50mm per length specification upto 500mm | |||||||||
1300-3000mm | not avaliable | Every 100mm per length specification | not avaliable | ||||||||||
Accuracy | 100-450mm | ±6um | ±6um | ||||||||||
500--800mm | ±10um | ||||||||||||
1050-1200mm | ±15um | ||||||||||||
1300-3000mm | ±25um | ||||||||||||
Repeatability | 2um 0.002mm | ||||||||||||
Hystersis | 3um 0.003mm | ||||||||||||
Protection | DIN40050 IP53 | ||||||||||||
Power Supply | DC 5V ±5% | ||||||||||||
Output Signal | TTL | EIA-422-A | TTL | EIA-422-A | TTL | EIA-422-A |
