LTEC-series Automatic Electronic counting machine

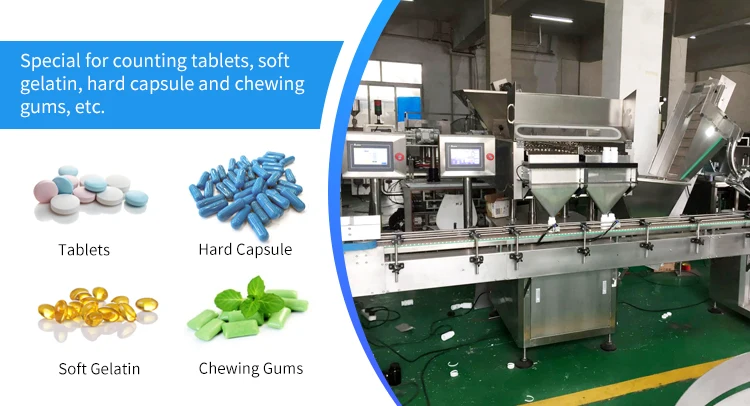

The High Speed Counting Machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Machine Data

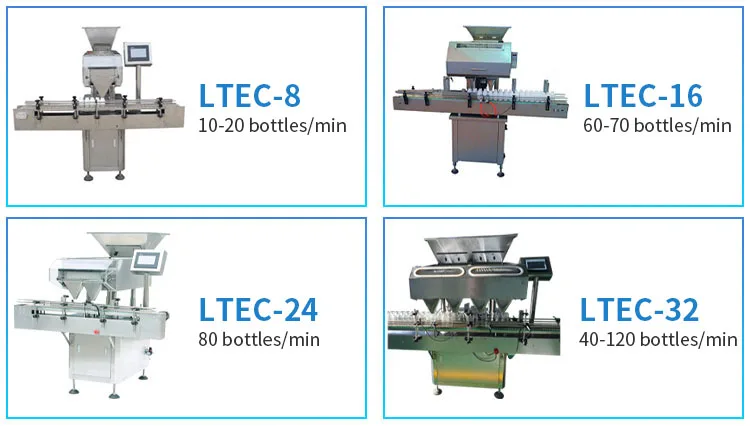

Model Name | LTEC-8 | LTEC-16 | LTEC-24 | LTEC-32 | |||
Hopper Volume | 20L | 40L | 45L | 80L | |||
Capacity | 10-20bottles/min | 60-70bottles/min | 80 bottles/min | 40-120bottles/min | |||
Filling Quantity | 2-9999pcs/bottle | 15-9999pcs/bottle (Adjustable) | |||||
Bottle Size | Diameter: 30-75mm Height:40-250mm | Diameter: 30-90mm Height:40-250mm | |||||
Counting Size | Thickness: 3-10mm Diameter: 3-15mm Length: 3-30mm | Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm | |||||
Compressed air | 0.5Mpa | ||||||
Conveyor Belt Length | 2400mm | 2400mm | 3000mm | ||||
Machine Weight | 120kg | 500kg | 750kg | 1000kg | |||
Machine Size（mm） | 660*1280*780 | 600*2400*1670 | 2000*1600*1680 | 2200*1400*1680 | |||
Product Description
More details

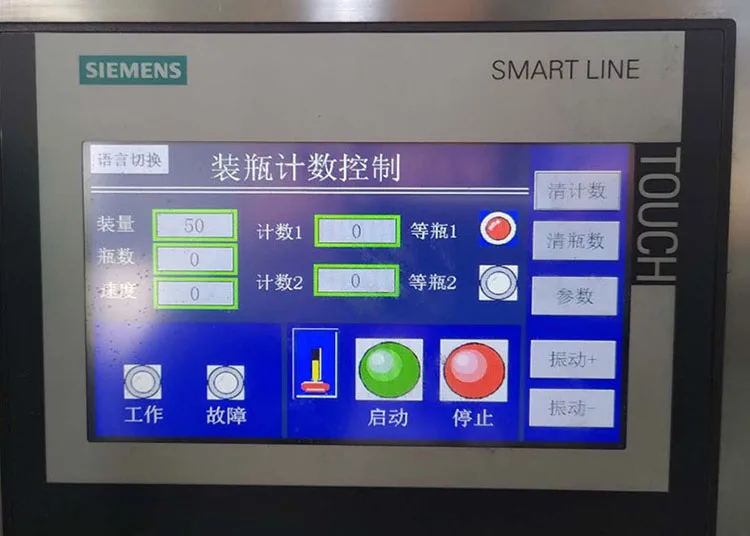

Smart Touch Screen
With Siemens touch screen, various parameters and measurement can be set according to requirements, and multiple languages are supported
Dustproof Device
Has an efficient dust-proof effect.

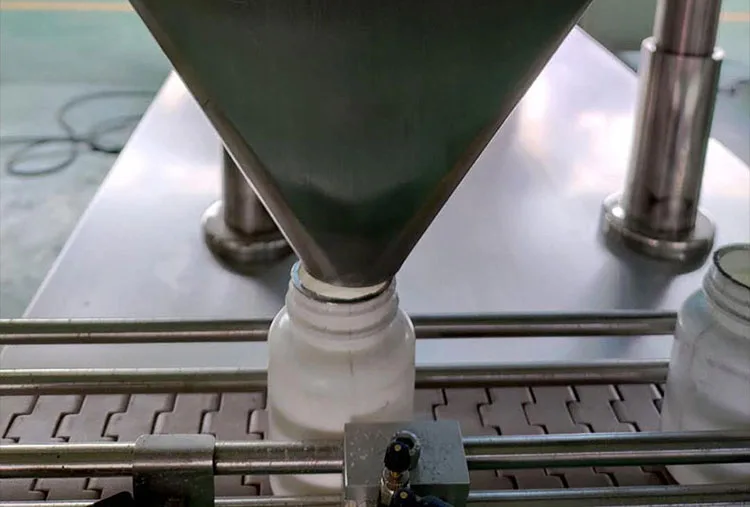

Adjusting Device
The height of the feed opening can be adjusted freely within a certain range to adapt to bottles of different sizes.
Warning Light
Acousto-optic system,
allowing users to see the working status of the machine more intuitively
Feeding Trough
Can be customized according to customer requirements

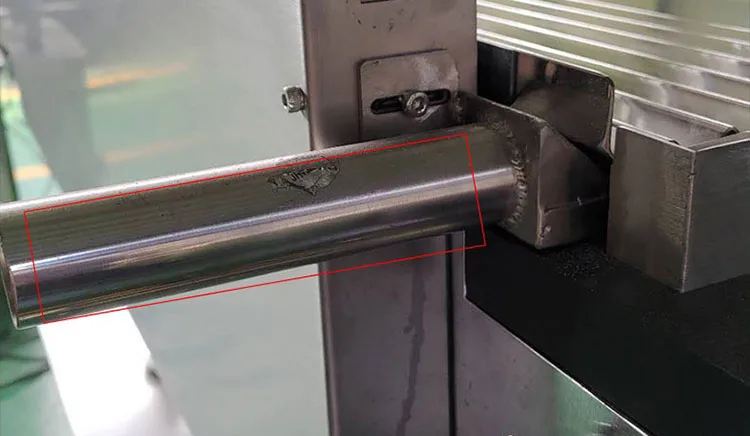

Lifting Adjustment Device
With Schneider switch,
it is suitable for a variety of bottle heights.

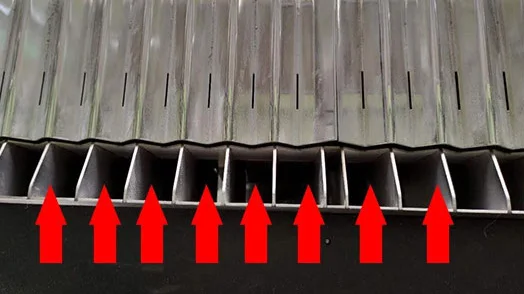

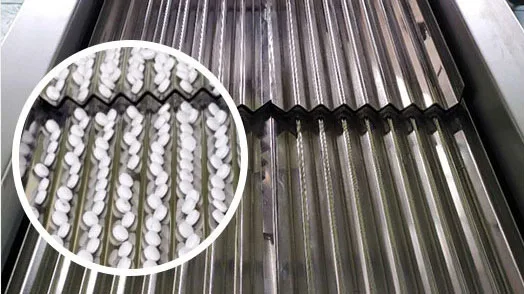

Multi-stage Vibration Blanking Device
Effective separation and sorting of materials of different specifications, adjustable vibration frequency, low noise

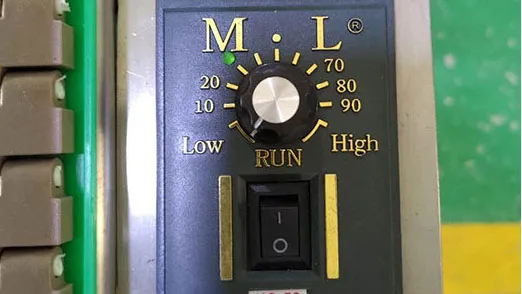

Conveyor Belt Speed Controller
The speed can be adjusted according to the actual loading

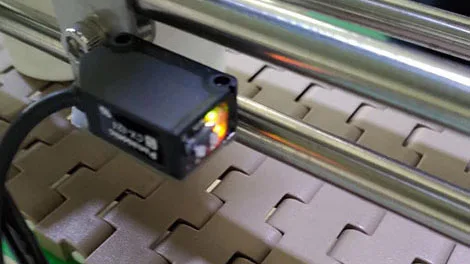

Photoelectric Sensor
It adopts Japan's Panasonic photoelectric eye,
which is sensitive, easy to adjust, has the function of pause when there is no bottle, and self-checking. It is suitable for bottles of different colors and specifications.
High-resolution Photoelectric Detection Device
Using anti-dust electronic counting technology, it can still operate normally in a high dust environment,
there is no electrostatic interference during the transportation process, and the accuracy rate is ≥99.8%

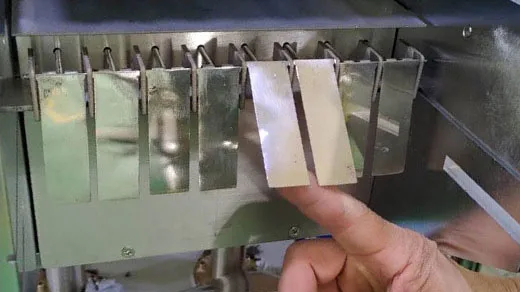

High-performance Piracy System
The upper and lower closure design has obtained the national new patent,
No damage to materials when working
No damage to materials when working

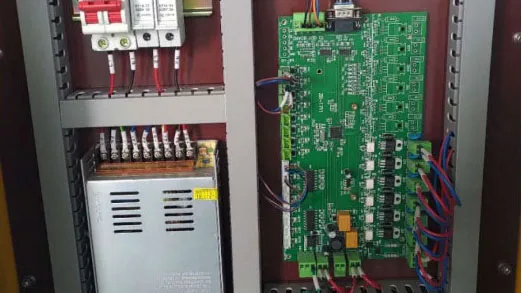

Precision Electrical Components
Adopt branded precision electronic components, safe and stable, reasonable layout, convenient maintenance
Features
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2.Vibratory cutting drugs do not damage;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Automatic Counting Line
Automatic Counting Line
In addition to a single machine, we can also design a complete set of production line according to your needs.
As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.
Related Products
Company Introduction
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Warm hint:
1 -- Because the exchange rate is changing, the specific price of the machine will also change.
2 -- Our machines can be customized according to your requirements, we also provide you with complete packaging line design services. Each of your products has its own optional solution.
3 -- Because of the time difference, online chat may not get a reply. Please click "contact supplier" or "send inquiry" to contact us.
Q: How many different model of Counter you have?
A: Totally we have HY-Series Semi Auto Counter, CountPro-Series Auto Counter, LTEC-Series Automatic Counter.
Q: What is the difference between different Counter?
A: HY-Series are mainly used for TableTop counting, operator needs to manually put bottle under counting nozzle. The advantage of the machine are no change parts, suitable for all kinds object and economic cost. CountPro-Series machine is only used for count capsules, the advantage is economic cost with Fully Automatic Function. LTEC-Series is suitable for all kinds of objects without change parts, Fully Automatic, 100% accuracy, High Speed and multifunction.
Q: How many stage of vibration you have for LTEC-Series Electronic counter?
A: We adopts three stages vibration. The channels are all extra widened for ensure 100% counting accuracy.
Q: How many years of warranty you have for the counter?
A: 5years for LTEC-Series and CountPro-Series. include all mechanical parts and electronic parts. Two years warranty for HY Series.
Q: Do you have local service all over the world?
A: We have local service in below country: Colombia, America, Canada, Peru, Pakistan, Bangladesh, Vietnam, Philippines, Indonesia, Ecuador, Dominican Republic, etc.
A: Totally we have HY-Series Semi Auto Counter, CountPro-Series Auto Counter, LTEC-Series Automatic Counter.
Q: What is the difference between different Counter?
A: HY-Series are mainly used for TableTop counting, operator needs to manually put bottle under counting nozzle. The advantage of the machine are no change parts, suitable for all kinds object and economic cost. CountPro-Series machine is only used for count capsules, the advantage is economic cost with Fully Automatic Function. LTEC-Series is suitable for all kinds of objects without change parts, Fully Automatic, 100% accuracy, High Speed and multifunction.
Q: How many stage of vibration you have for LTEC-Series Electronic counter?
A: We adopts three stages vibration. The channels are all extra widened for ensure 100% counting accuracy.
Q: How many years of warranty you have for the counter?
A: 5years for LTEC-Series and CountPro-Series. include all mechanical parts and electronic parts. Two years warranty for HY Series.
Q: Do you have local service all over the world?
A: We have local service in below country: Colombia, America, Canada, Peru, Pakistan, Bangladesh, Vietnam, Philippines, Indonesia, Ecuador, Dominican Republic, etc.
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
