Tapered Roller Bearing 30210M 90KM1 Single Cone Cup Set Bearing 30210

 Product features :

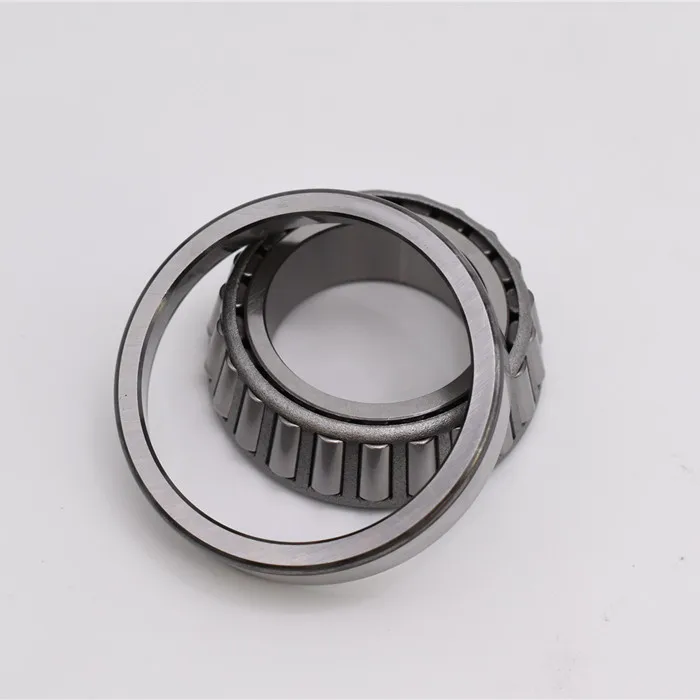

30210 30210M Precision Metric Tapered Roller Bearing in Set of Cone+Cup. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Sizes: ID 50mm x OD 90mm x W 21.75mm

Match#: Y30210M/X30210M, 30210/J2, HR30210J, 4T-30210, K30210, 30210A, 30210-A, 30210X ,5539Z405, S10458, 9192162, K6557, P40059, P62281

  Taper Roller Bearings size information :

• Brand


• Item Number30210M-90KM1


• Also known as30210M-9\\KM1



• CategoryTapered Roller Bearing Single Row


• Inner (d) MM50


• Outer (D) MM90


• Width (B) MM22


• Inner (d) Inch-


• Outer (D) Inch-


• Width (B) Inch-


• Weight (kg)0.5390


• Manufacturer Part Number (MPN)30210M-90KM1


• PrecisionStandard Precision

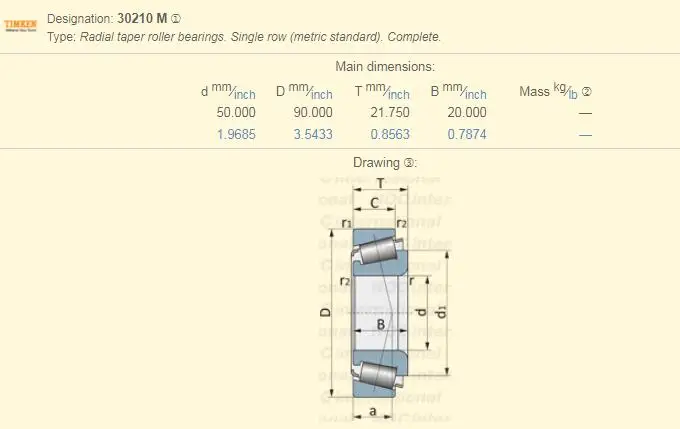

  Taper Roller Bearings design draft :

This Bearing Series is single cone with a stamped steel cage matches with a single cup (outer ring, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads. The cone assembly does not contract or expand under operating temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F). Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single cone is made of 's own high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. The stamped steel cage prevents rollers from coming into contact with each other during use, reducing friction, vibration, and noise.

1. PREFIX

ET:  NTN Endurance tapered roller bearings, case hardened material

4T:  NTN 4-Top tapered roller bearings, case hardened material

E:  Case hardened steel

T:  Internationally interchangeable dimensions

2. SERIES

H:  Heavy

HH:  Heavier than heavy

HM:  Heavy-medium

L:  Light

LM:  Light medium

M:  Medium

ISO:  Metric series 320X, 302, 322, 303 and 323
