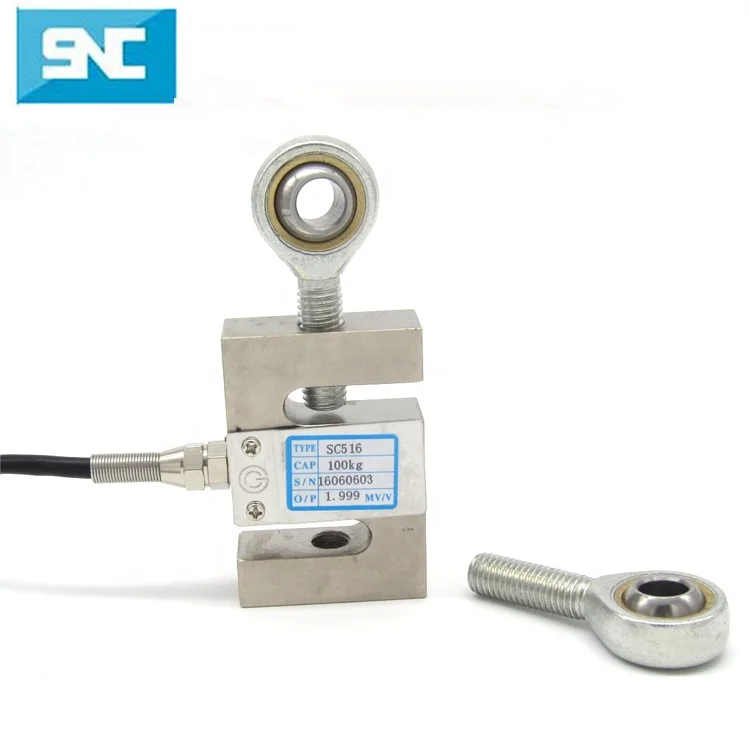

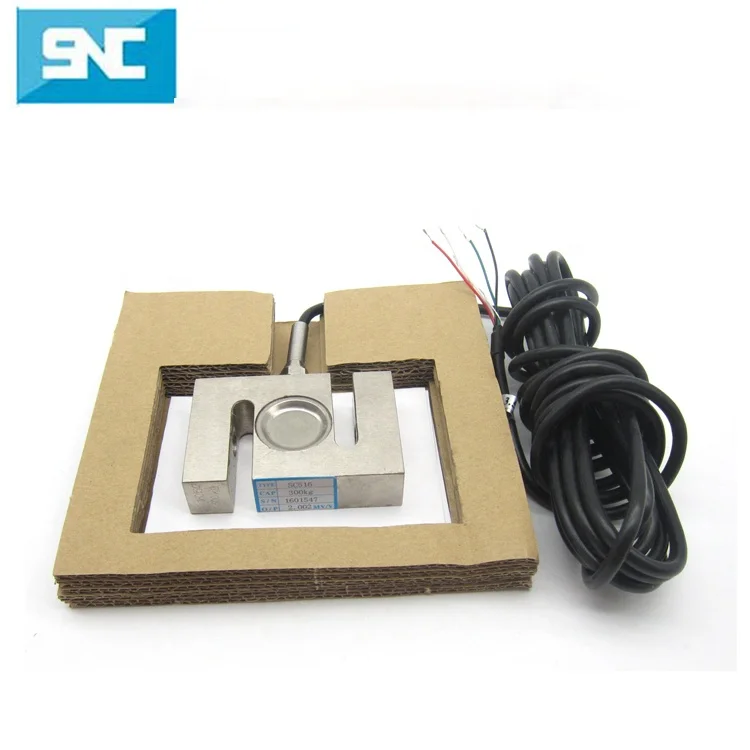

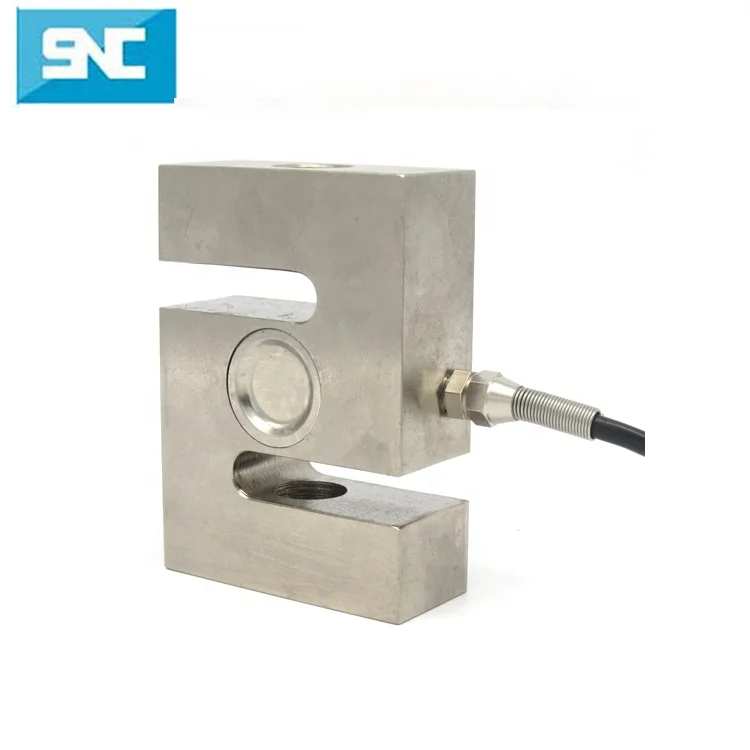

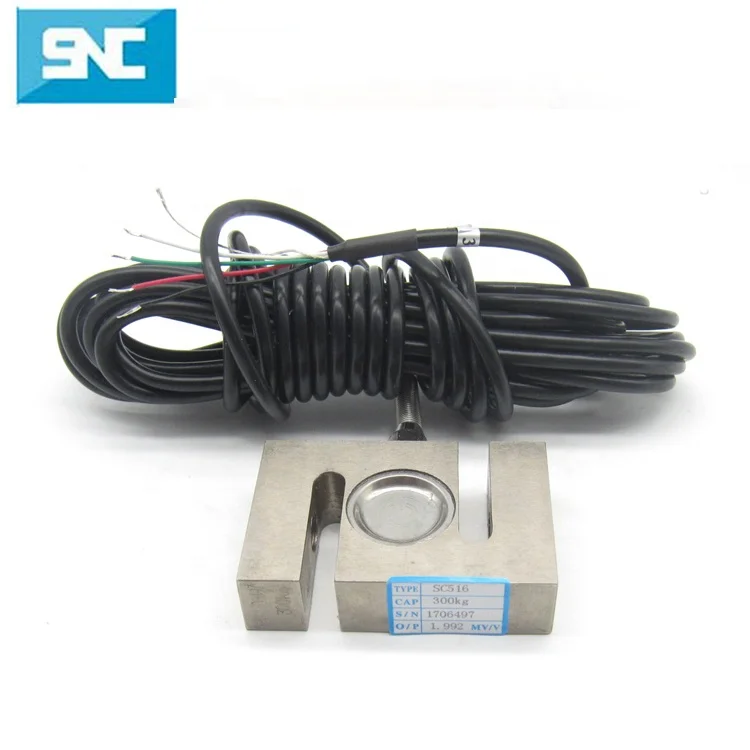

20kg to 10ton Compression Tension Load Cell Pull Force Sensor


20kg to 10ton Compression Tension Load Cell Pull Force Sensor



Product Description


 Parameter:


































































































Application



Crane scale



Model



SC516



Capacity



20-30kg, 50-750kg, 1T, 1.5T, 2-3T, 5T, 7.5T, 10T, 20T, 30T



Rated output



2.0±0.004mV/V               3.0±0.004mV/V(optional)



Accuracy class



C2                                   C3



Maximum number of verification intervals



2000 Nmax                     3000 Nmax



Minimum load cell certification intervals



Emax/5000Vmin             Emax7500 Vmin



Combined error



≤±0.030 % RO                 ≤±0.020 % RO



Creep



0.02 %RO/30min



Temp. effect on sensitivity



0.003 %RO/                 0.0016 %RO/



Temp.effect on zero



0.005%RO/                  0.002%RO/



Zero balance



±1.0 %RO



Input resistance



365±5 ohm



Output resistance



350±3 ohm



Insulation resistance



5000 MΩ(50V)



Recommended excitation voltage



10-15 V



Compensated temperature range



-10-+40



Operating temperature range



-35-+80



Safe overload



150 %RO



Ultimate overload



200%RO



Load cell material



Alloy steel



Connecting cable



20KG-2T Φ5.7 x 3.5m  2.5-30T:  Φ5.7 x 6m



Method of connecting wire



Red- input+, black- Input-. Green- Output+, White- output -



20kg to 10ton Compression Tension Load Cell Pull Force Sensor





Size: mm






















































































Capacity



L



H



B



D



20-30kg



51



64



12.7



M8x1.25



50-750kg



50.8



76.2



19.05



M12x1.75



1T



50.8



76.2



25.4



M12x1.75



1.5T



50.8



76.2



25.4



M16x1.5



2-3T



76.2



108



31.8



M20x1.5



5T



76.2



108



36.98



M24x2



7.5T



100



139.7



36.89



M24x2



10T



177.8



125.5



50.8



M30x2



20T



140



170



81



M42x3



30T



230



190



80



M42x3






20kg to 10ton Compression Tension Load Cell Pull Force Sensor








20kg to 10ton Compression Tension Load Cell Pull Force Sensor











Load cell Accessorie


20kg to 10ton Compression Tension Load Cell Pull Force Sensor





Related Products


20kg to 10ton Compression Tension Load Cell Pull Force Sensor





















Production Process


20kg to 10ton Compression Tension Load Cell Pull Force Sensor





Company Information


Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.





Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.


20kg to 10ton Compression Tension Load Cell Pull Force Sensor


20kg to 10ton Compression Tension Load Cell Pull Force Sensor








Packaging & Shipping


20kg to 10ton Compression Tension Load Cell Pull Force Sensor





FAQ


1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.





2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.





3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.





4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.





5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments


before shipping to our clients.





6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
