1. Overview

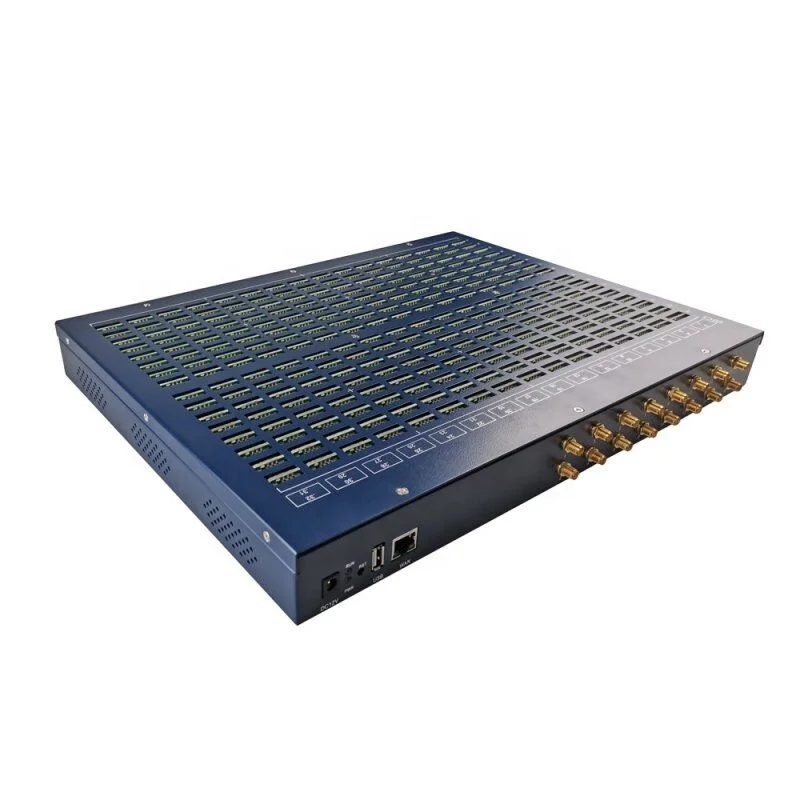

The device is a professional hardware SMS gateway for sending SMS/Voice messages (or receiving sms messages) in an automated manner. With the capacity of up to 512 sim slots, it is designed with focus on reliability and stability. Via a user-friendly WEB-GUI built-in, clients can setup configuration quickly and run the device with ease.

2.Feature

1)GSM/WCDMA/4G LTE FDD/TDD support

2)Maximum 16 ports, up to 512 sim card slots.

3)16 port operate concurrently
4)SIM card auto rotation,32 SIM cards per port for rotation
5)Support bulk SMS,SMS sending of 16 ports concurrently

6)Sending and receiving bulk SMS via web interface
7)Voice messages delivery.

8)TTS&IVR Files

9)Management & configuration via WEB GUI.
10)Autorun task.
11)APIs provided for integration.
12)AT command compatible.
13)SIM card hot plug.
14)IMEI modification.

15)Human Behavior,SIM card lock and rotation automatically by human behavior setup;

3.Applications
Marketing
Businesses send promotions to a large number of targeted customers via SMS/Voice messaging.

Cell Broadcast Services

Applications designed to support geographical messaging such as traffic alerts and emergency services may send bulk SMS/Voice messages periodically to subscribers within a given location.

Appointment reminders

SMS/Voice messaging Used by businesses to remind customers of appointments and avoid the financial impact on customer of a missed appointment.

Two-factor authentication

Using SMS/Voice messaging to send a code that is used as a second factor to verify the identity of an individual. Used for logins.

Information services

An application that enables mobile subscribers to query currency rates or share-price information and have it sent as SMS/Voice messages to potential customers.

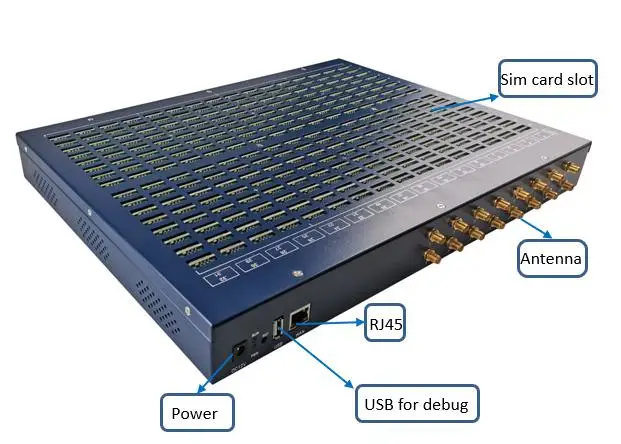

4. Appendix

5.Instructions
1.Connect the device to a switch/router with the network cable.
2.Insert sim card into the slots of the device.
3.Screw antennas onto the device.
4.Connect PC to the same network.
5.Obtain IP address of the device by two ways:
a.send SMS(*****01#) to a sim card of the device and wait for the reply SMS with IP address.
b.Via USB to UART port, connect USB cable to PC, with PUTTY and baud rate of 57600, using command(ifconfig) to get IP address.
6.Open Chrome browser and input IP address to enter WEB-GUI.
