Тестер сопротивления генератора ротора переменного тока измерение электрической обмотки
- Категория: >>>
- Поставщик: Wuhan Huayi Electric Power Technology Co. Ltd.
Сохранить в закладки 62464486061:
Описание и отзывы
Характеристики
Product Description
Introduction
Adapts for diagnosing if there is Turn-turn shorts in rotor winding of electric motors
Easy to operate, can choose fast automatic and manual measuring way, with data storage and micro
printer, can print test data and characteristic curve. It can test the voltage, current, impedance, power
and phase angle and other parameters of rotor winding.
Easy to operate, can choose fast automatic and manual measuring way, with data storage and micro
printer, can print test data and characteristic curve. It can test the voltage, current, impedance, power
and phase angle and other parameters of rotor winding.
Features
1、Test the AC impedance and characteristic curves of winding on all kinds of synchronous electric
generators, asynchronous motors under the static.
2、Easy to operate
3、can select automatic and manual test way
4、Big LCD screen, display test data and curve in real time
5、With data storage, micro printer
6、Automatically adjust the protection action value according to the test parameters to ensure the
safety of the equipment
7、It can also be used as no-load and short-circuit test of single-phase transformer and volt-ampere
characteristic test of voltage (current) transformer and arc suppression coil
generators, asynchronous motors under the static.
2、Easy to operate
3、can select automatic and manual test way
4、Big LCD screen, display test data and curve in real time
5、With data storage, micro printer
6、Automatically adjust the protection action value according to the test parameters to ensure the
safety of the equipment
7、It can also be used as no-load and short-circuit test of single-phase transformer and volt-ampere
characteristic test of voltage (current) transformer and arc suppression coil
Technology Parameters
AC impedance | 0～999.9Ω | 0.5 | |
AC voltage | 0～600V | 0.5 | |
AC Current | 0～120A | 0.5 | |
Active power | 0～72KW | 1.0 | |
Frequency | 45～75Hz | 0.2 | |
Power supply | AC 220V±10% | 50Hz | |
volume | 415×225×200mm3 | ||
weight | 5kg | ||

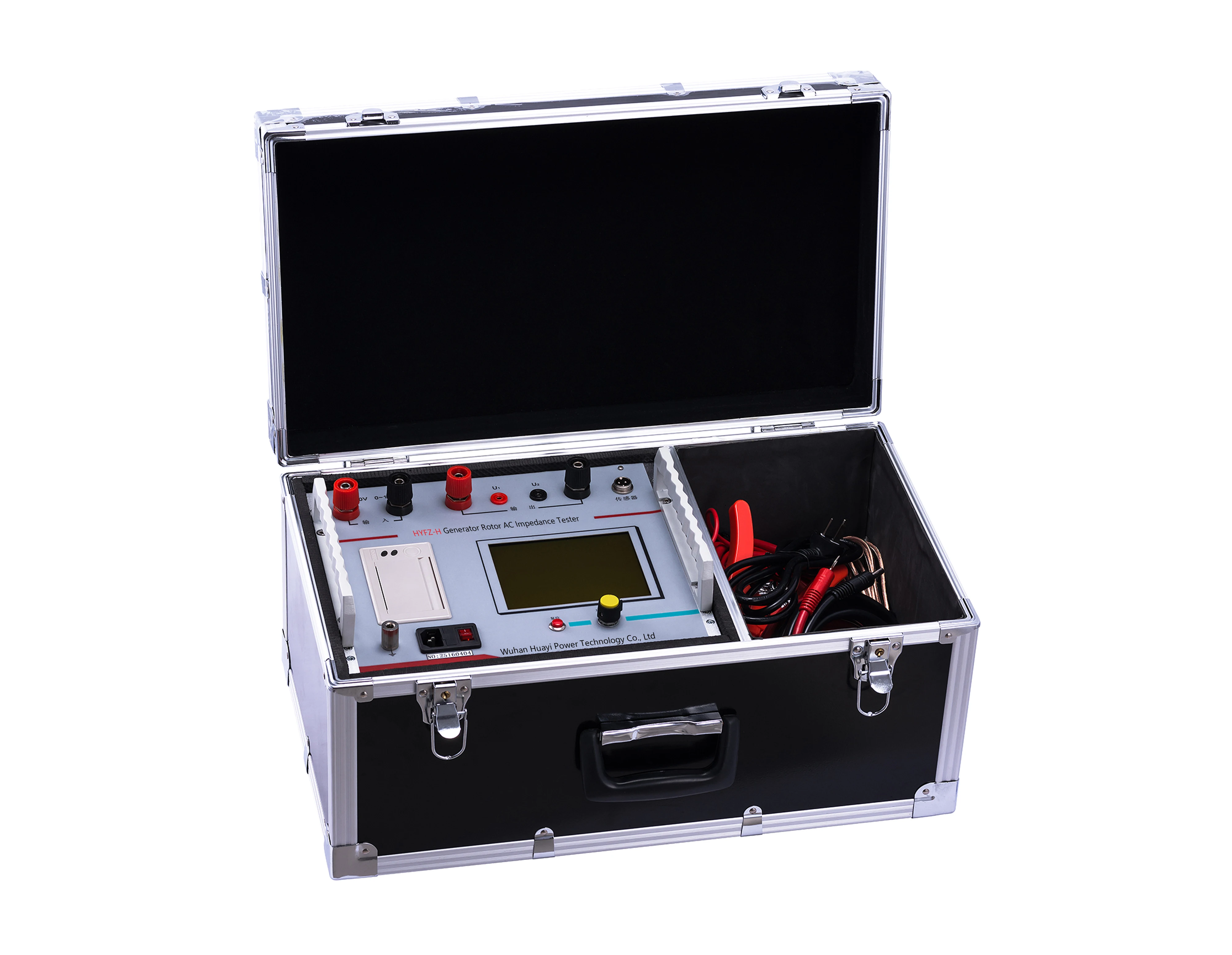

Products Show
Our Company
Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable tester and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical.
Production
office
Warehouse
R&D team
Meeting room

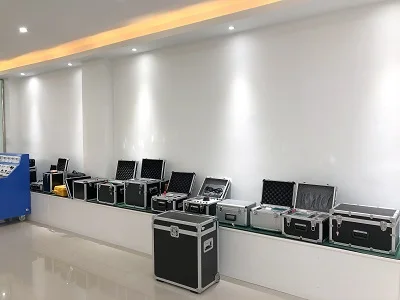

show room

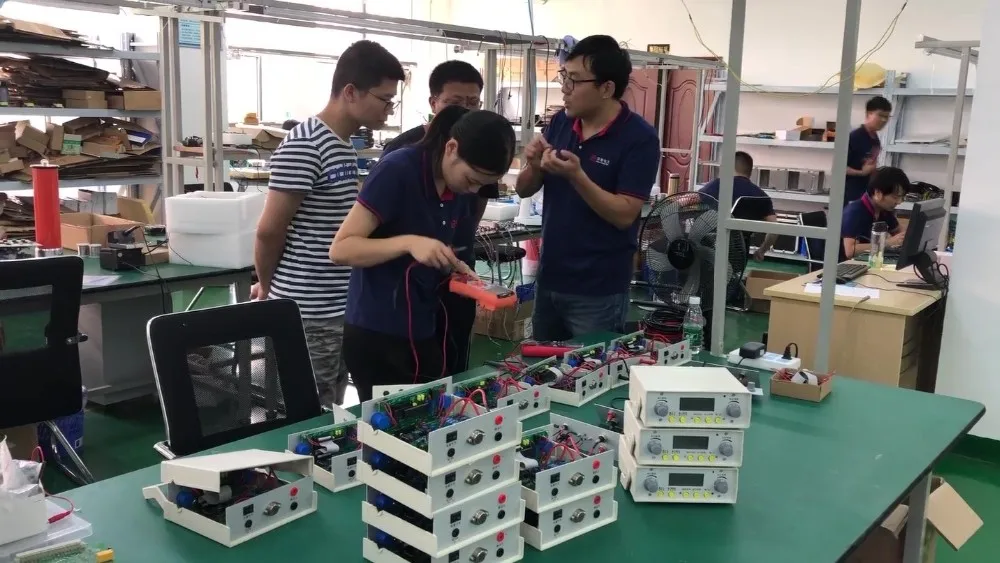

Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.
Filed Test&Service

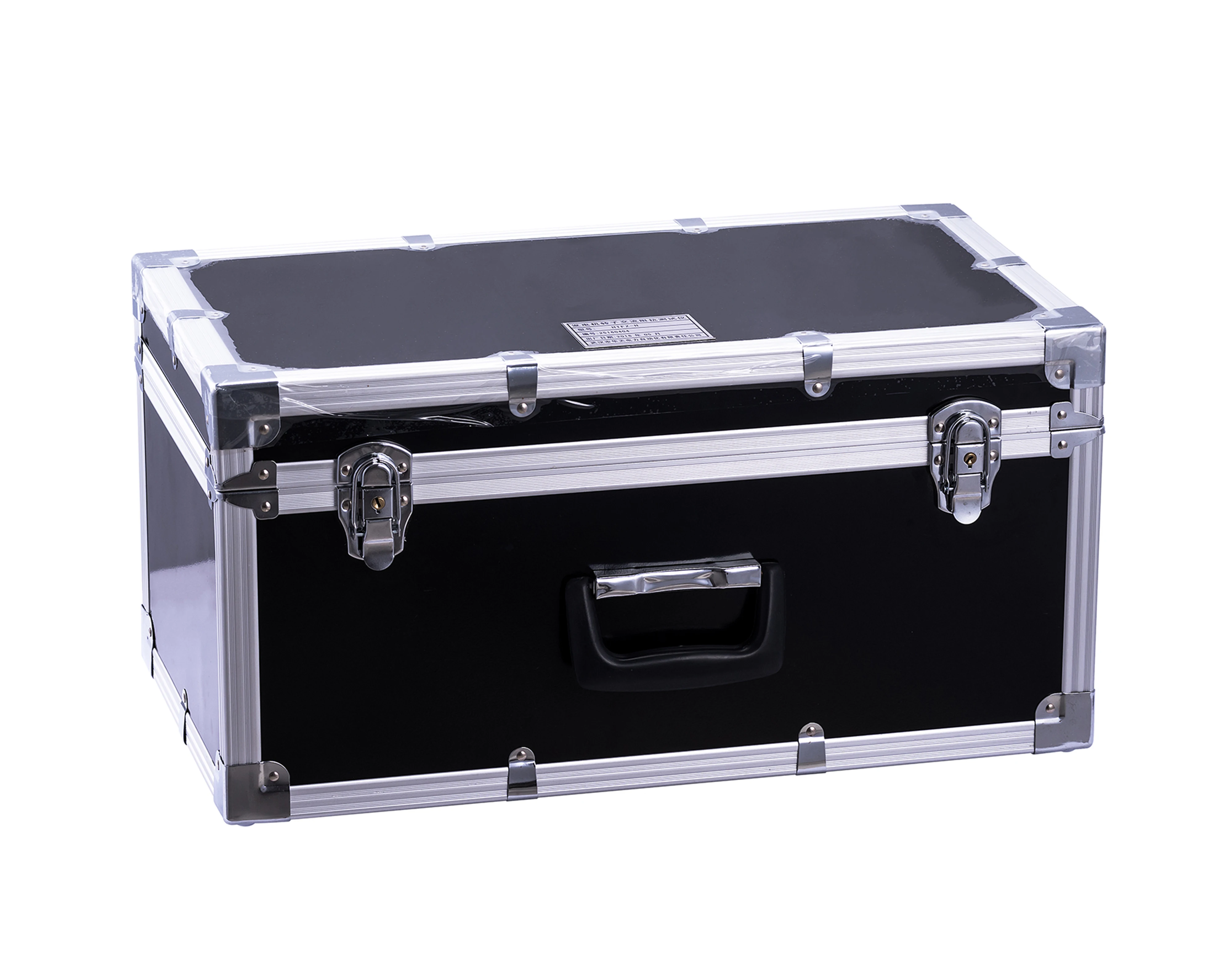

Packing & Delivery
Our Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
Похожие товары

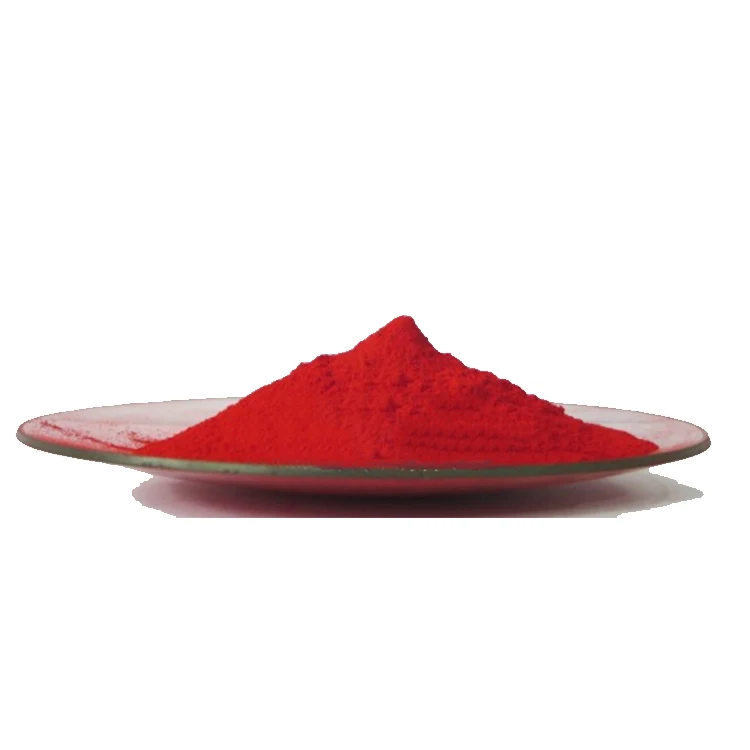

Органический пигмент красный 112 FGR PR112 на водной основе

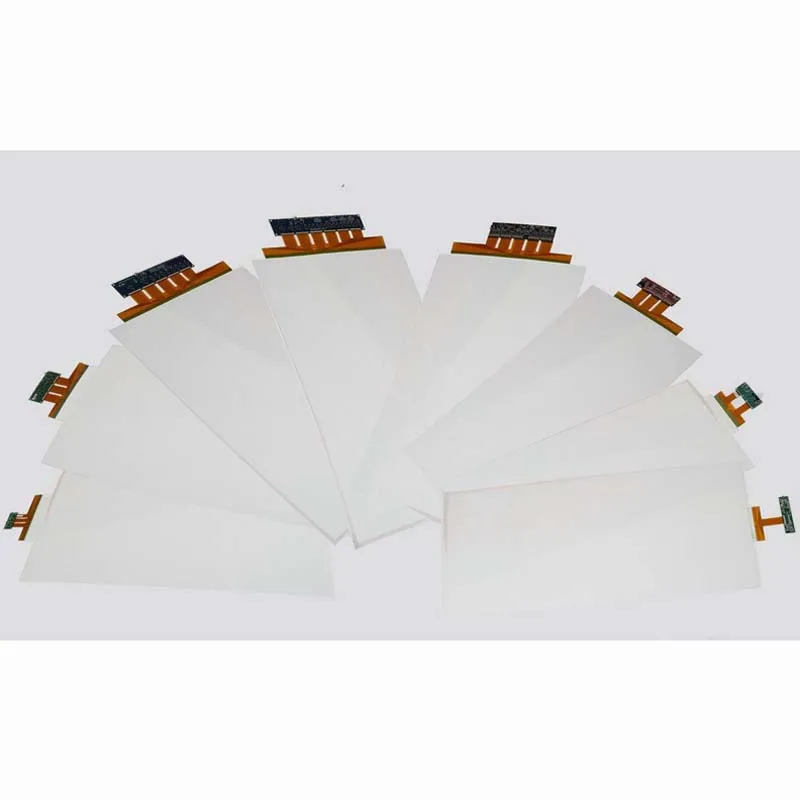

Лидер продаж сенсорная Интерактивная мультифольга ZZDTOUCH 60 дюймов 20 точек
268,99 $ - 270,99 $
Sheenbow Duochrome Duo Хромовый пигмент блестящие тени для век блестящий многохромовый красный черный хромовый Пигментный Порошок
2,80 $ - 3,50 $

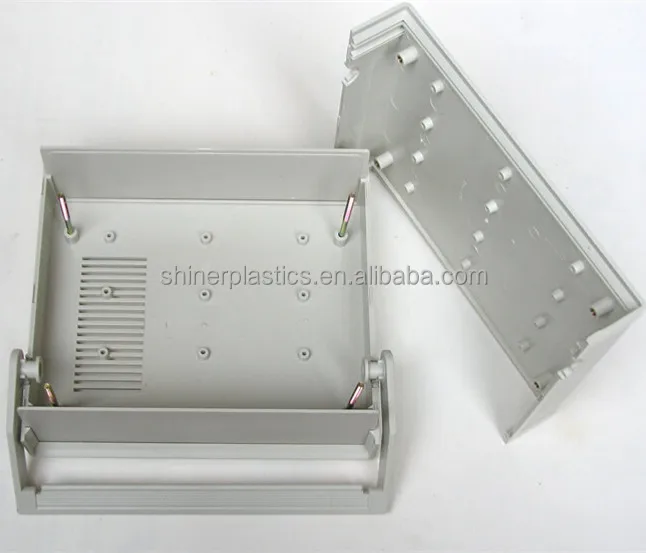

Изготовленный На Заказ пластиковый электронный

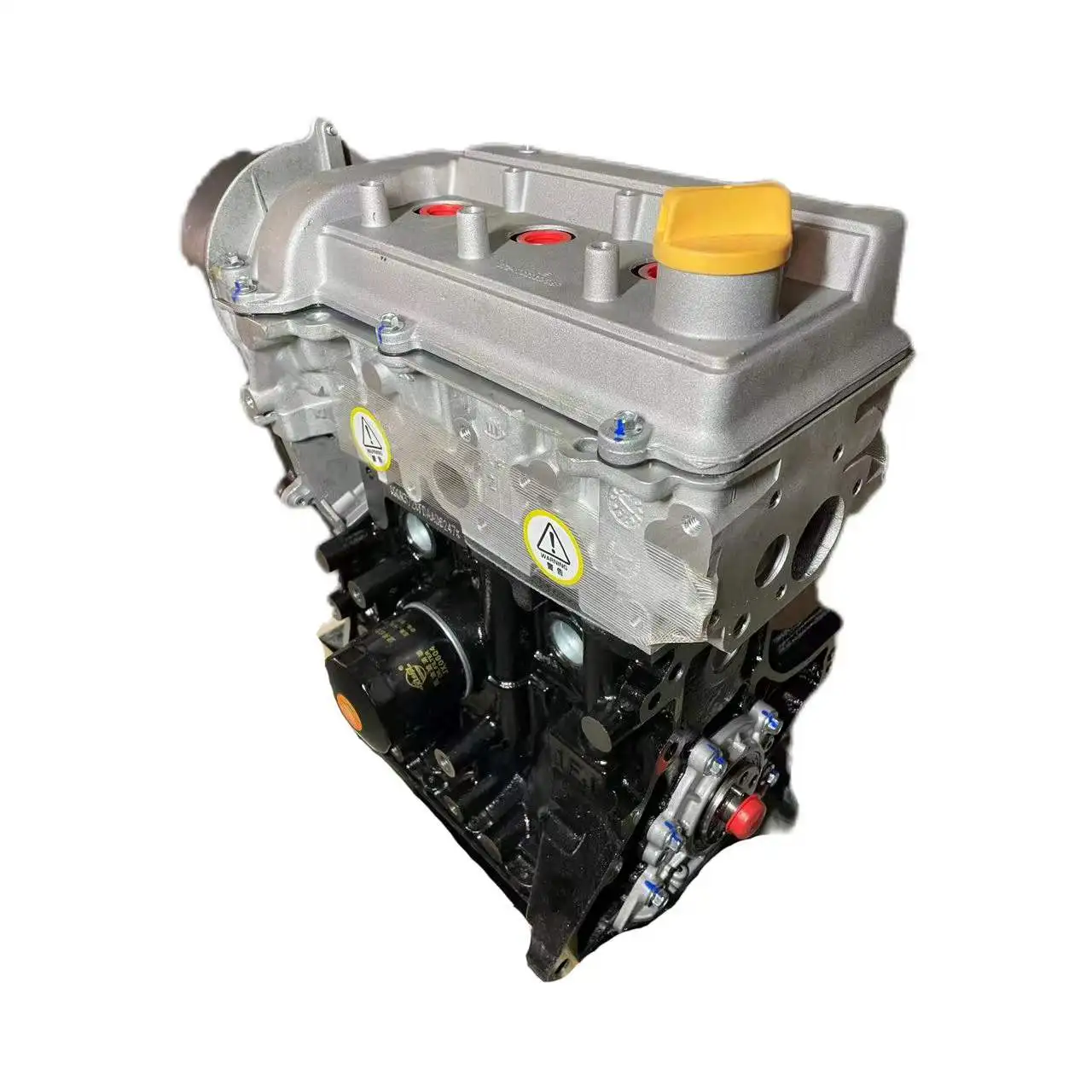

Низкая цена применимы к новым бензиновый двигатель Защитные чехлы для сидений, сшитые специально для Chery QQ 3-цилиндровый двигатель SQR372 двигатель в сборе
313,73 $ - 345,10 $

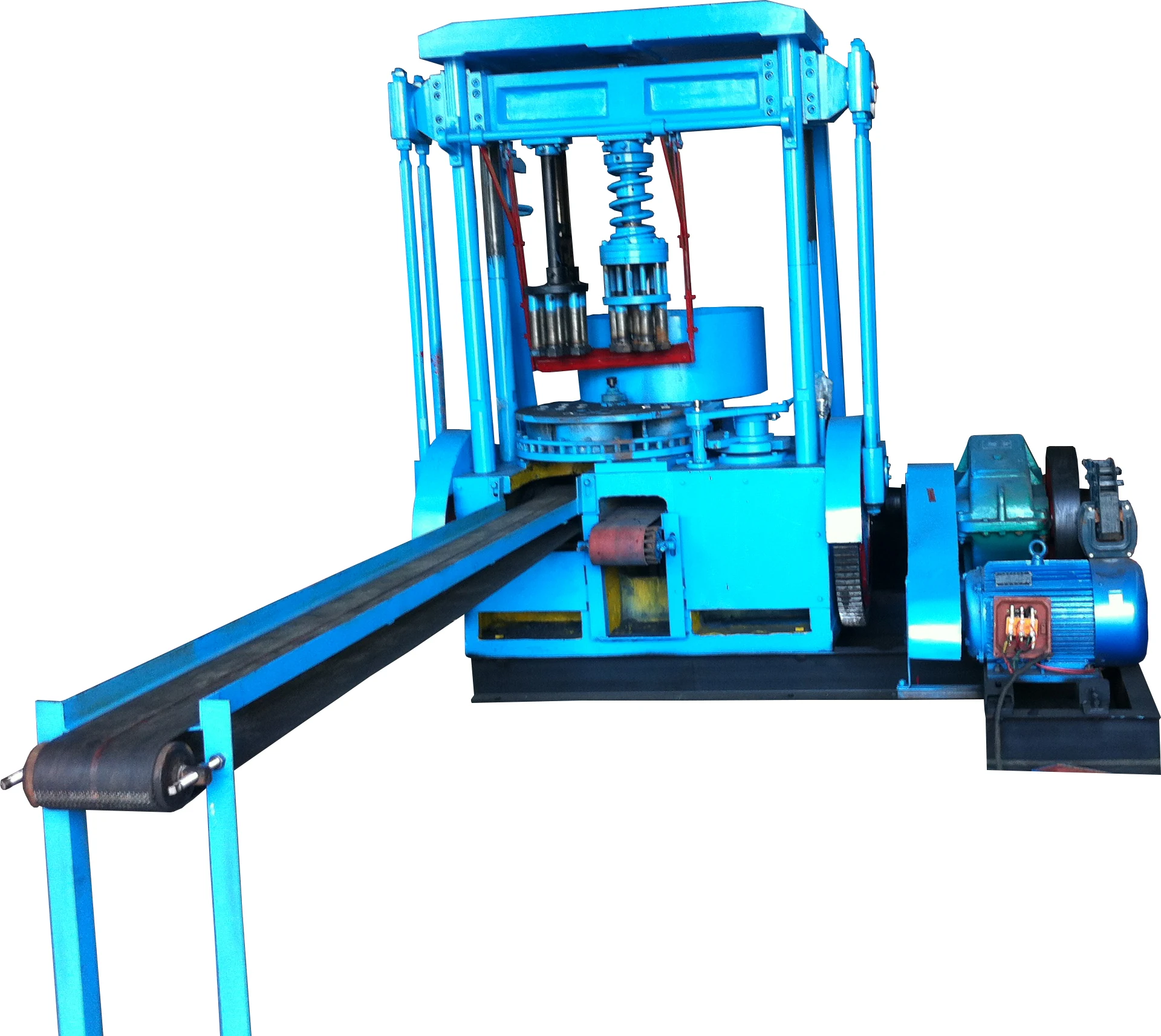

Машина для брикетирования угля WANBO Для Брикетирования Угольной Пыли с сотовой структурой
