Цифровой микроскоп FM750I 12 92X с зумом и ЖК экраном
- Категория: Optical Instruments >>>
- Поставщик: Guilin FT-Opto Co. Ltd.
Сохранить в закладки 62464584418:
Описание и отзывы
Характеристики

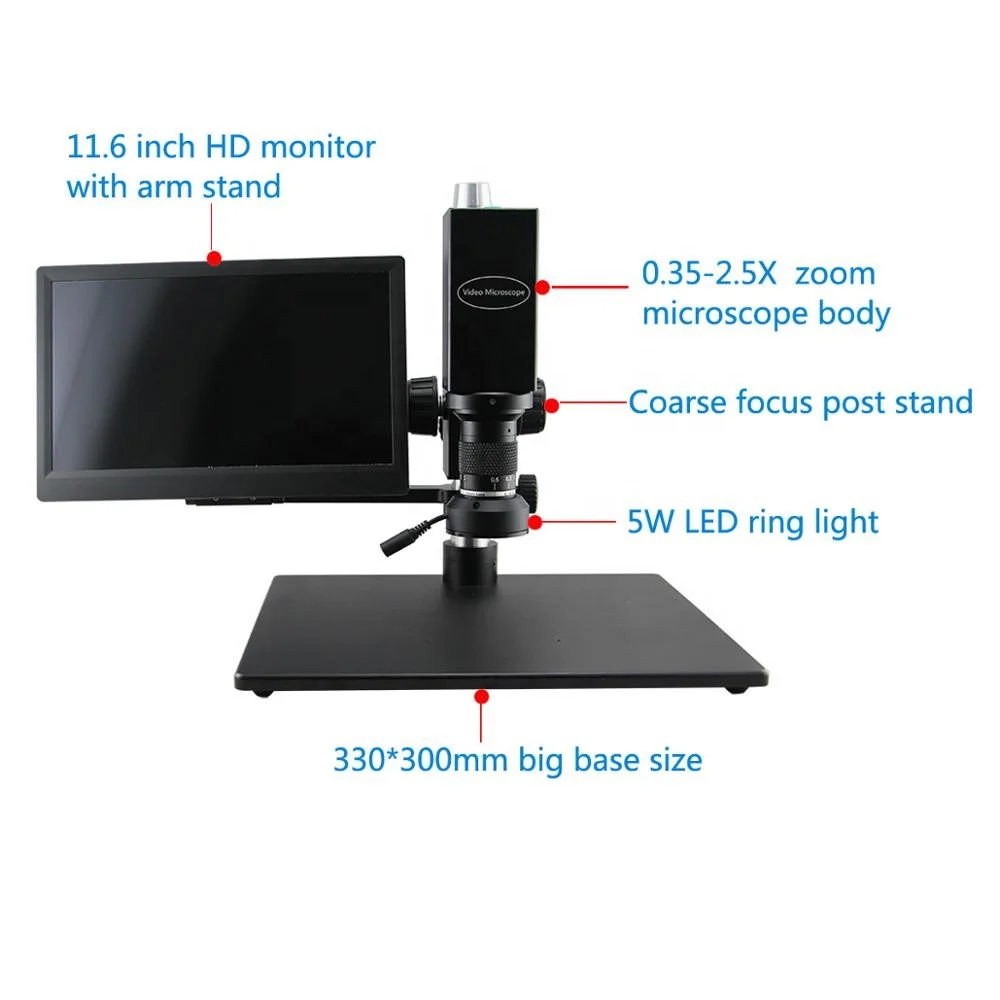

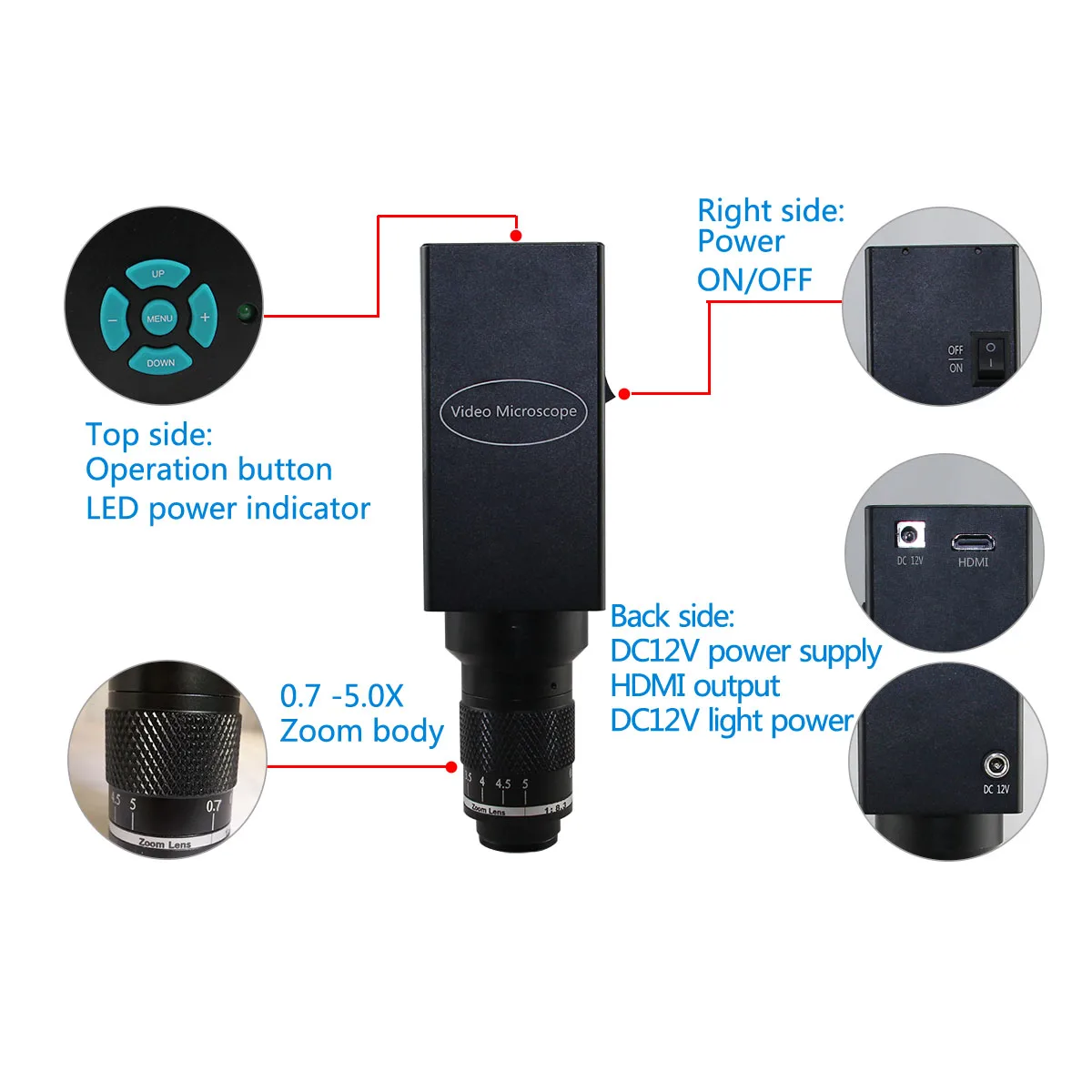

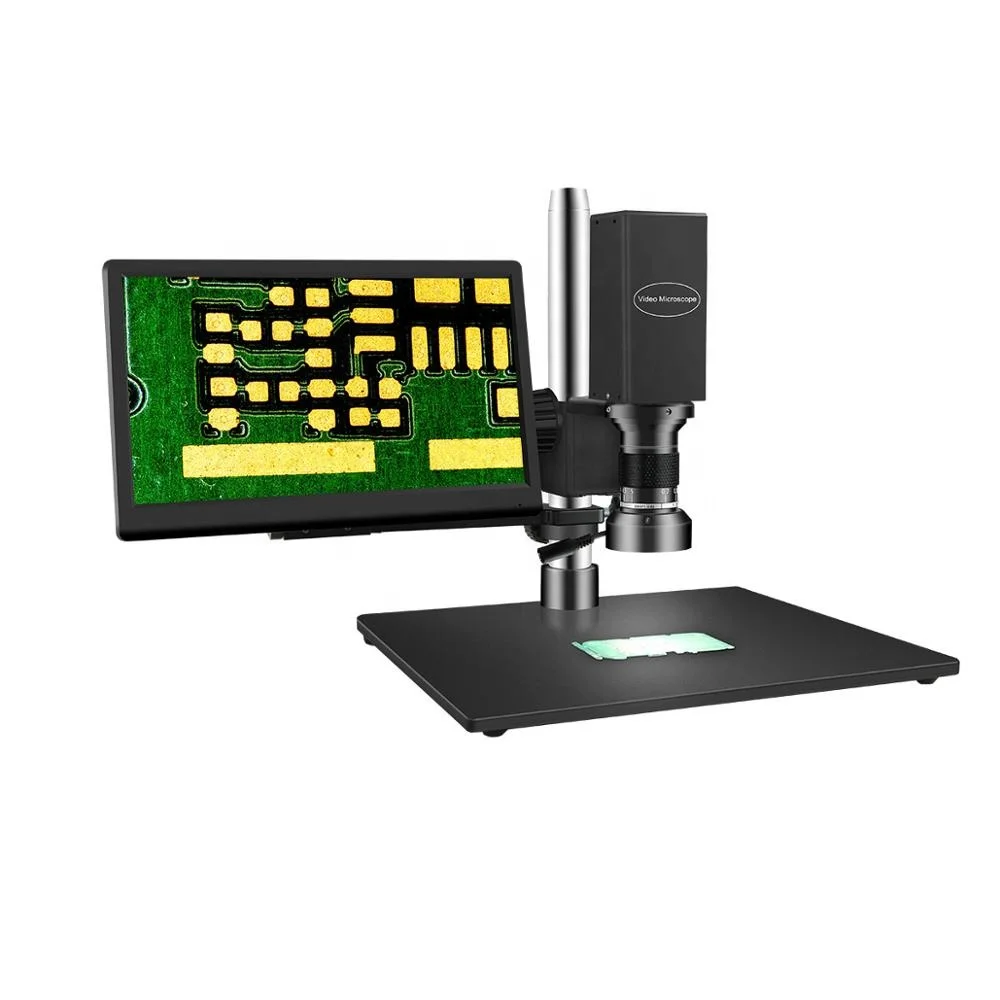

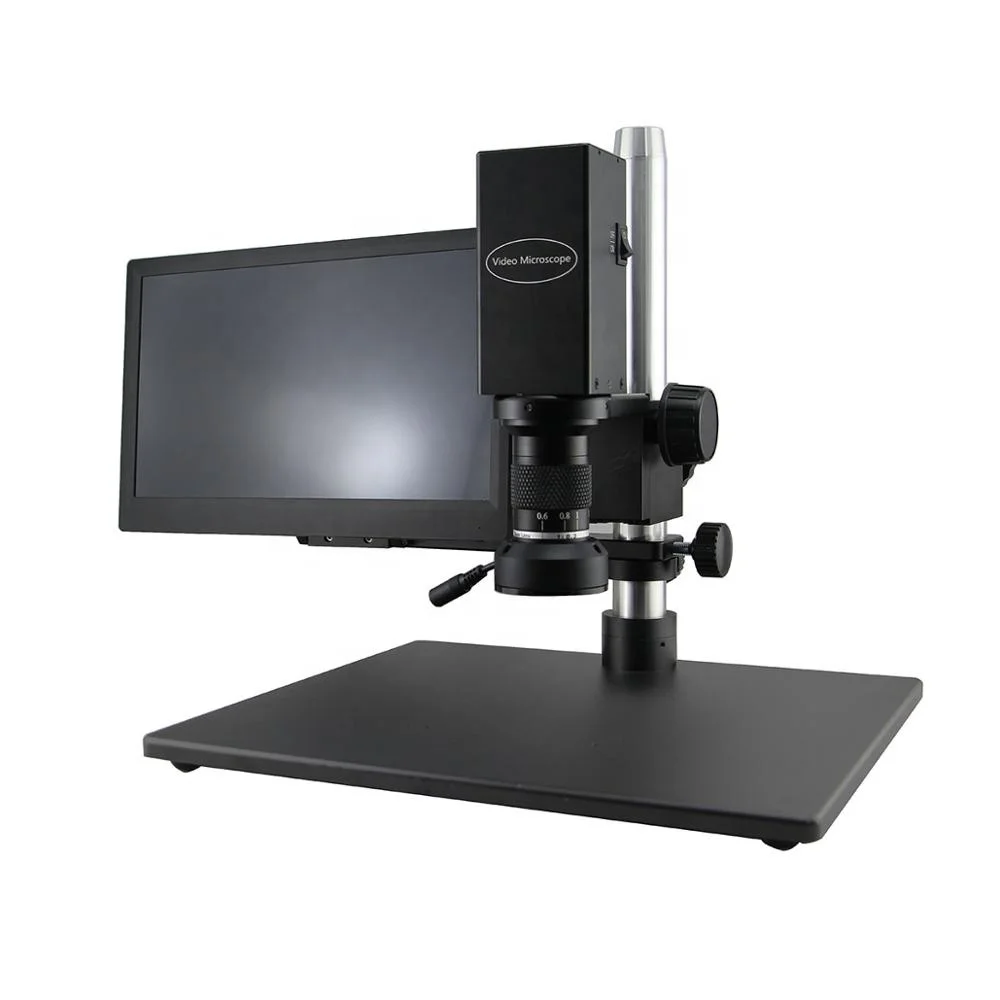

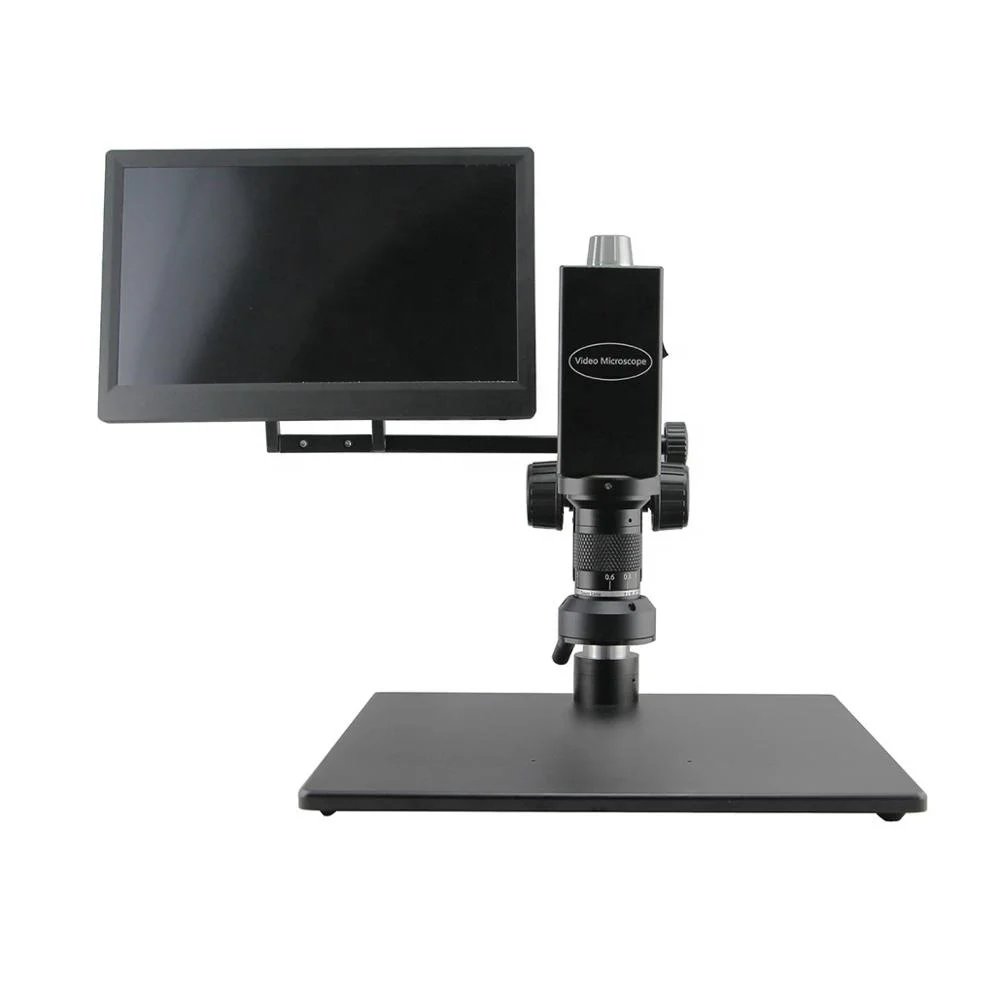

FM750I 12-92X zoom digital microscope with lcd screen
Product Description
1. Unique all-in-one machine design, simple and beautiful overall, more convenient to install and use.
2. The video microscope adopts ZOOM optical system, with high definition, high depth of field and excellent focus alignment.
3. High resolution 0.35-2.5X zoom lens.Total magnification12X-92X zoom magnification.
4. No need install software.Connected HDMI monitor directly.
5. 1920*1080 full HDMI image. Excellent color reduction.
6. Equipped with 5W LED ring light.0-100%Brightness adjustable.
7. 11.6 inch 1080P LCD monitor with arm stand.
8. Used widly in industrial production testing, PCB testing, semiconductor and component testing, teaching and research, material
analysis, microscopic image observation and analysis, laser processing, etc
2. The video microscope adopts ZOOM optical system, with high definition, high depth of field and excellent focus alignment.
3. High resolution 0.35-2.5X zoom lens.Total magnification12X-92X zoom magnification.
4. No need install software.Connected HDMI monitor directly.
5. 1920*1080 full HDMI image. Excellent color reduction.
6. Equipped with 5W LED ring light.0-100%Brightness adjustable.
7. 11.6 inch 1080P LCD monitor with arm stand.
8. Used widly in industrial production testing, PCB testing, semiconductor and component testing, teaching and research, material
analysis, microscopic image observation and analysis, laser processing, etc
Product Detailed
Specification
Model/Name | FM750I | ||
Miroscope parameter | Optical magnification | 0.35-2.5X | |
Total magnification | 12-92X | ||
Zoom ration | 1:7.14 | ||
FOV | 20.6*11.6-2.88*1.62mm | ||
Working distance | 86mm | ||
Sensor | 1/2” SONY CMOS | ||
Pixel | 2.0MP | ||
Resolution | 1920x1080 | ||
Pixel size | 3.75μm x 3.75μm | ||
White balance | Manual and Auto | ||
Exposure | Manual and Auto | ||
Output | HDMI | ||
Monitor parameter | Panel size | 11.6 inch | |
System | NTSC/PAL | ||
Brightness | 400cd | ||
Visible angle | ISP all angles | ||
Power supply | dc12v | ||
Light parameter | Power | 3-5w | |
Brightness | 0-100% adjustable | ||
Quantity of LED | 52PCS | ||
Stand parameter | Focus | Coarse focus | |
Base size | 330x300mm | ||
Post height | 318mm | ||
More Choice
Optional Accessory
AW6503 | 0.3X Auxilliary Objective , WD:270mm | |
AW6504 | 0.4X Auxilliary Objective,WD:205mm | |
AW6505 | 0.5X Auxilliary Objective, WD:160mm | |
AW6506 | 0.6X Auxilliary Objective, WD:130mm | |
AW6515 | 1.5X Auxilliary Objective ,WD:50mm | |
AW6520 | 2.0X Auxilliary Objective,WD:39mm | |
Light source | LC6511 | Coaxial device |
LC6511P | Coaxial device with polarized | |
L6511 | 3w LED point light for coaxial device | |
LR65-R | 12V 5W ring LED light source for Circular column of stand, the installation diameter is 32mm | |
LL65 | Bar LED illumination, large lighting, suitable for low range, good uniformity | |
LR65P | 3W Coaxil light source with polarizer | |
FW522M | 2X, NA:0.055mm, WD:34.6mm | |
FW523.5M | 3.5X, NA:0.1mm , WD:40.93mm | |
FM525M | 5X, NA:0.13mm , WD:44.5mm | |
FW5210M | 10X, NA:0.28mm, WD:34mm | |
FW5220M | 20X ,NA:0.29mm , WD:31mm | |
FW5250M | 50X, NA:0.42 ,WD:20.1mm | |
FW235U | 5X, NA:0.12mm,WD:26.1mm | |
FW2310U | 10X, NA:0.25mm,WD:20.2mm | |
FW2320U | 20X, NA:0.40mm,WD:8.8mm | |
FW2340U | 40X, NA:0.60mm,WD:3.98mm | |
FW2350U | 50X, NA:0.7mm,WD:3.68mm | |
FW2360U | 60X, NA:0.75mm,WD:1.22mm | |
FW2360UA | 60X, NA:0.7mm,WD:3.18mm | |
FW2380U | 80X, NA:0.8mm,WD:1.25mm | |
FW23100U | 100X, NA:0.85mm,WD:0.4mm | |
FH65 | Coarse focus post stand(standard stand) | |
FH65L | Coarse focus post stand with transmitted light | |
FH65A | Coarse and fine focus post stand | |
FH65AL | Coarse and fine focus post stand with transmitted light | |
FH65Q | Coarse focus track stand | |
FH65QL | Coarse focus track stand with transmitted light | |
FH65QA | Coarse and fine focus track stand | |
FH65QAL | Coarse and fine focus track stand with transmitted light |
Auxilliary Objective
LC6511 coaxial device
LC6511P Coaxial device with polarized
3w LED point light
LR65-R 12V 5W ring LED light source for Circular column of stand
Bar LED illumination
3W Coaxil light source with polarizer
FW23U Infinity plan achromatic objective
FW52M 95mm APO objective
FH65L Coarse focus post stand with transmitted light
FH65A Coarse and fine focus post stand
FH65Q coarse focus track stand
FH65QAL Coarse and fine focus track stand with transmitted light
FH65QA Coarse and fine focus track stand
Product Pictures
Company Profile
Guilin FT-OPTO Co.,Ltd established in 2009, with 10 years of optial experienxce ,with good reputation in optical industrial.
.Which is technical enterprise specializing in precision optical instrument,optical-mechanical integration industry, integrating product technical management, development and scale manufacturing.
.Which is technical enterprise specializing in precision optical instrument,optical-mechanical integration industry, integrating product technical management, development and scale manufacturing.
We are a Chinese factory of high reslution zoom lens, video microscope, measuring microscope, smart microscope,auto inspection system microscope and microscope accessories.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products.
Похожие товары

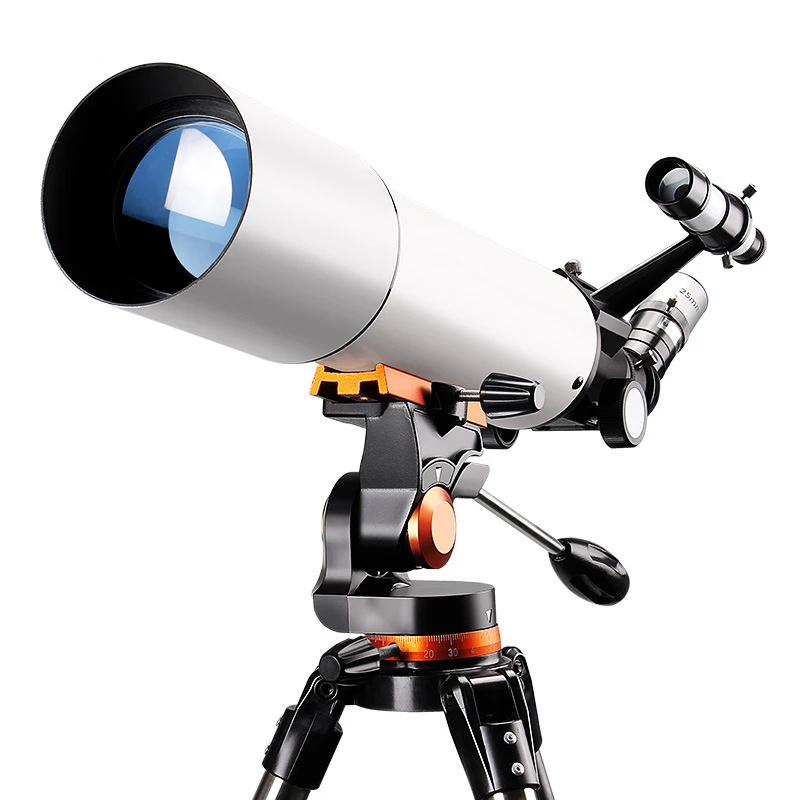

80500 Telescopio HD 90X зум Монокуляр телескоп с штатив преломления пространство астрономического телескопа для путешествий с фокусирующей оптикой для наблюдения точечных целей для использования вне помещений
79,53 $ - 87,40 $

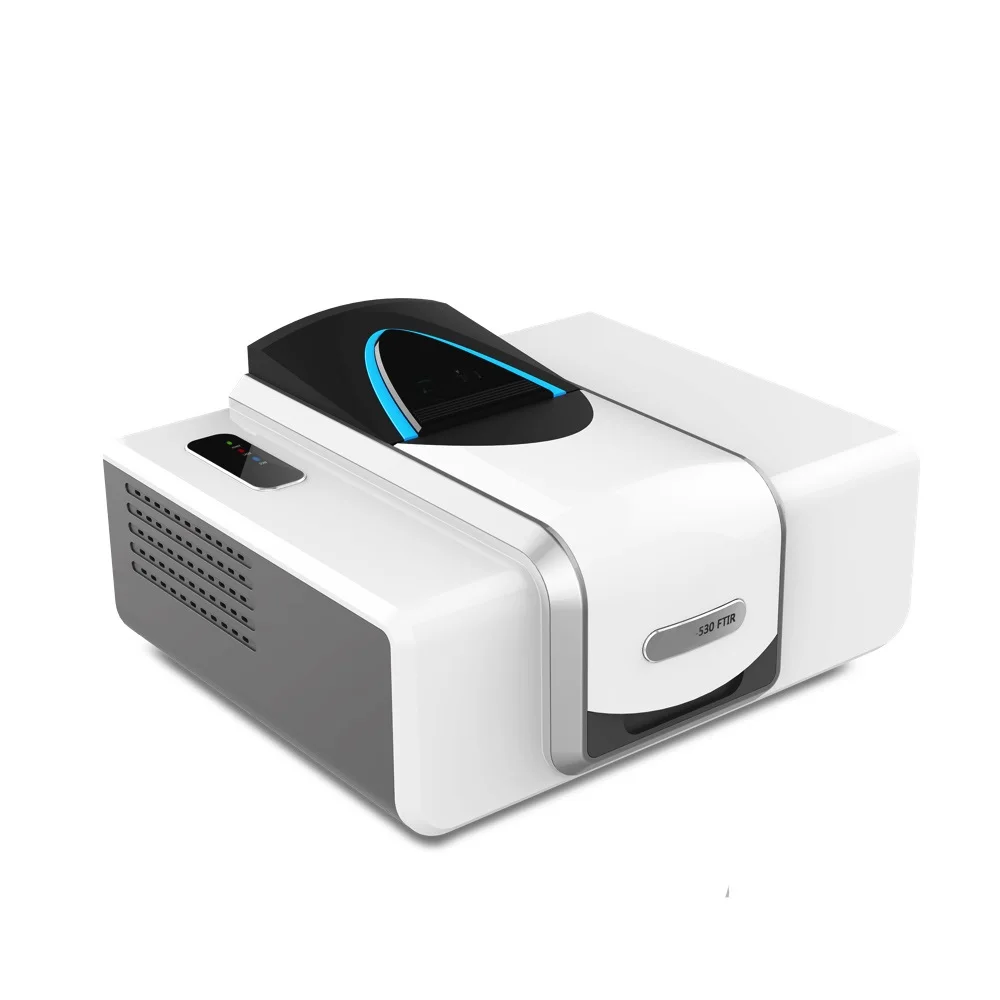

Инфракрасный спектрометр с преобразователем Fourier, дешевый спектрофотометр FTIR
15 500,00 $ - 16 250,00 $

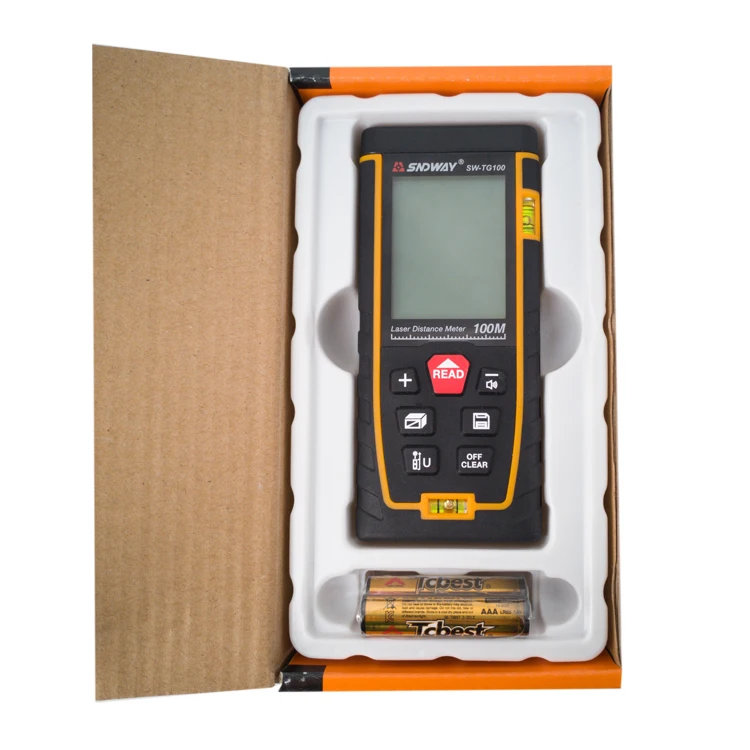

SNDWAY классический большой экран лазерный дальномер для 100 м
21,50 $ - 24,20 $

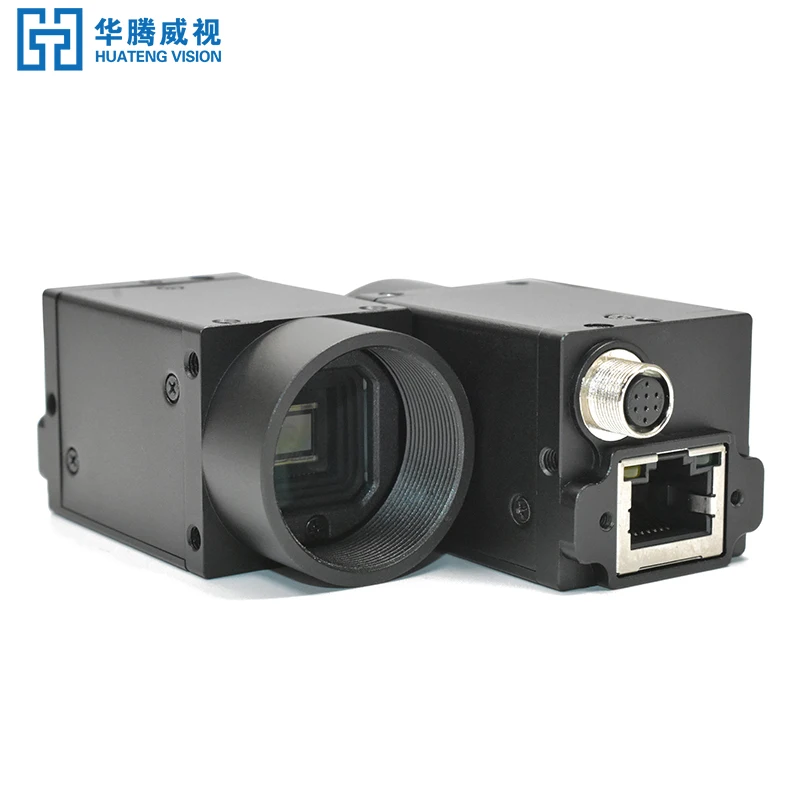

Цветная промышленная камера с высоким разрешением Gigabit Ethernet 5.0mp, устройство видения, вращающийся затвор, датчик CCD, поддерживает Windows Linux
FB0745 0.7X до 4.5X zoom C mount монокулярный оптический микроскоп

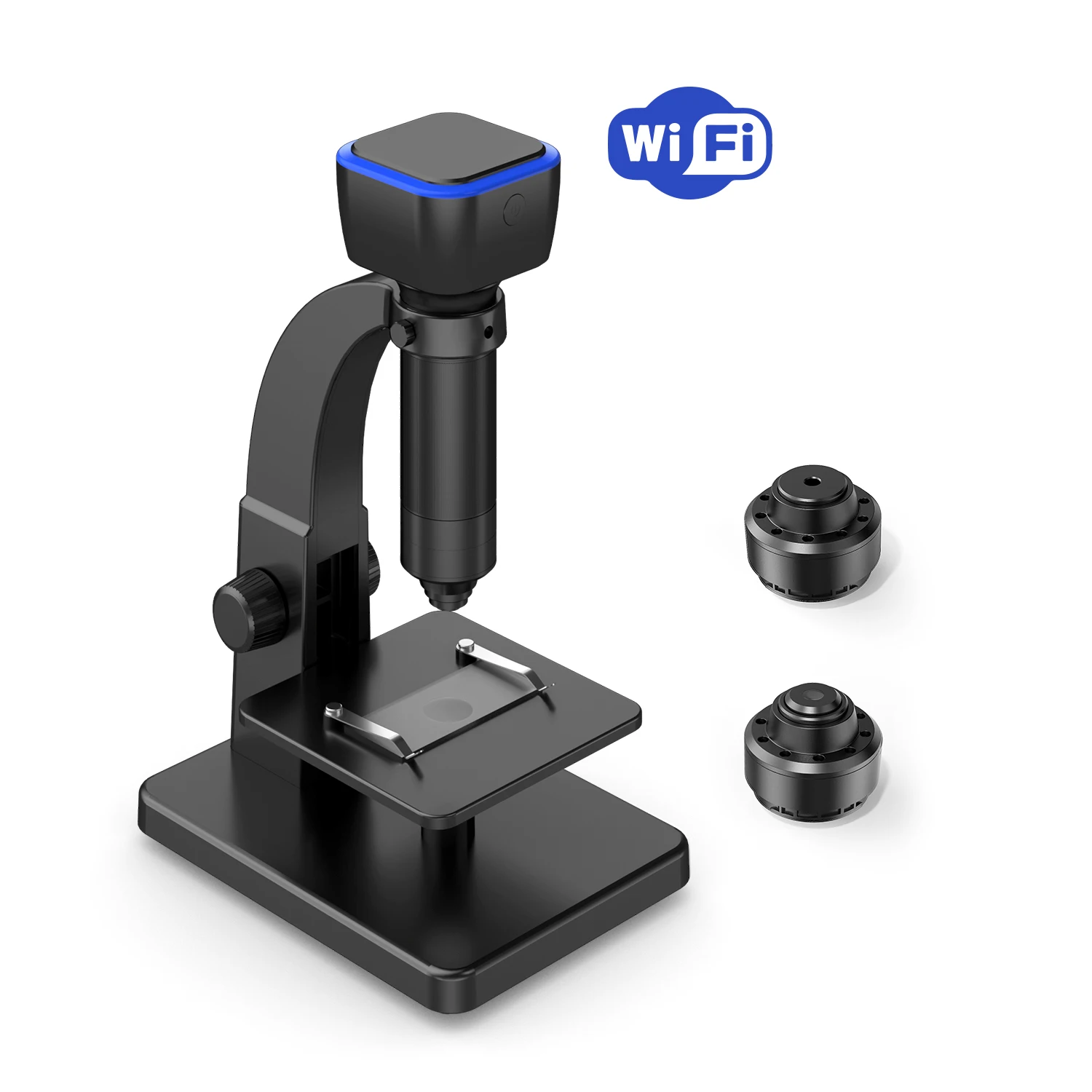

Высококачественный микроскоп для печатной платы Full HD цифровой сканирующий электронный беспроводной микроскоп камера
40,00 $ - 54,00 $

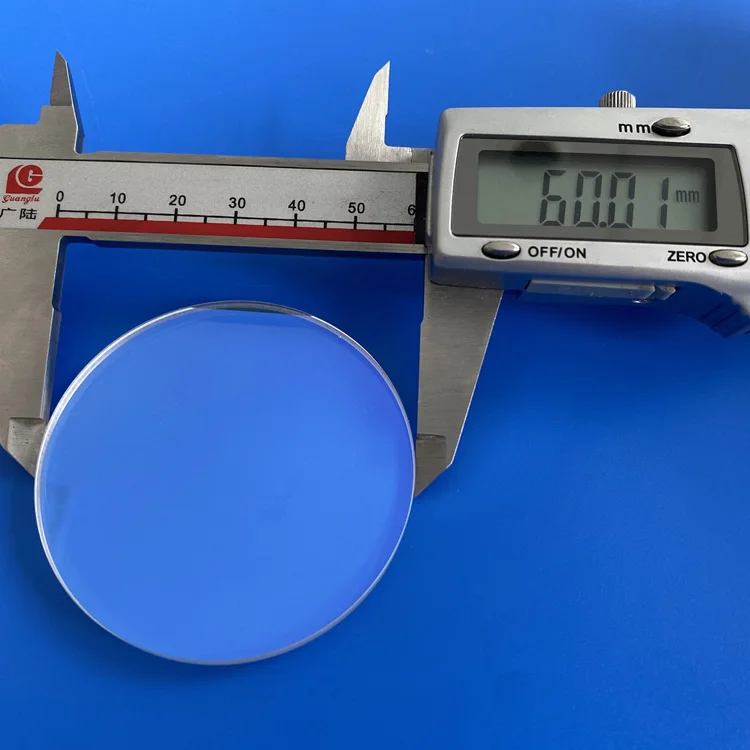

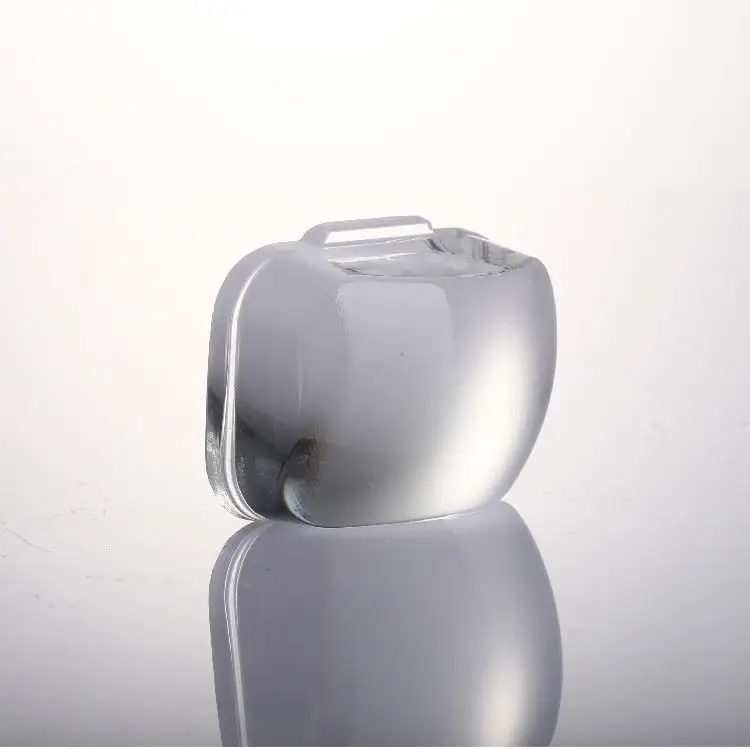

Высококачественные линзы для коллиматора из оптического стекла, толстые Квадратные прозрачные линзы, линзы по рецепту, линзы из боросиликатного стекла
