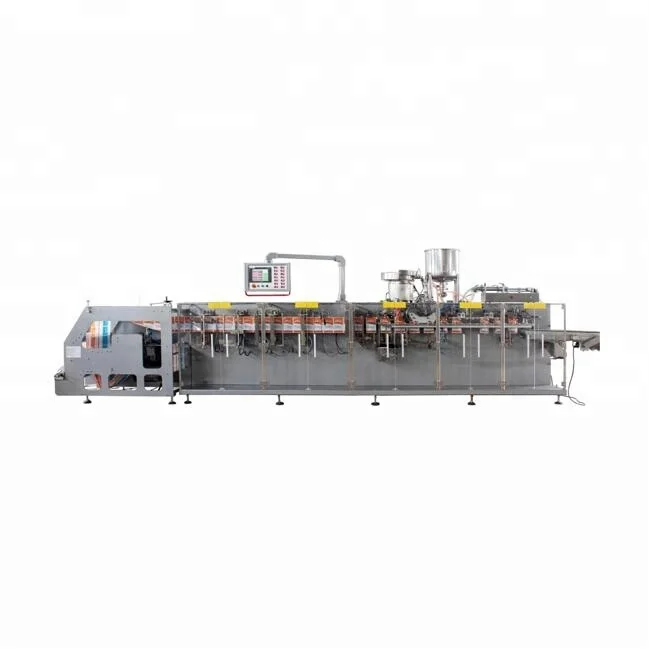

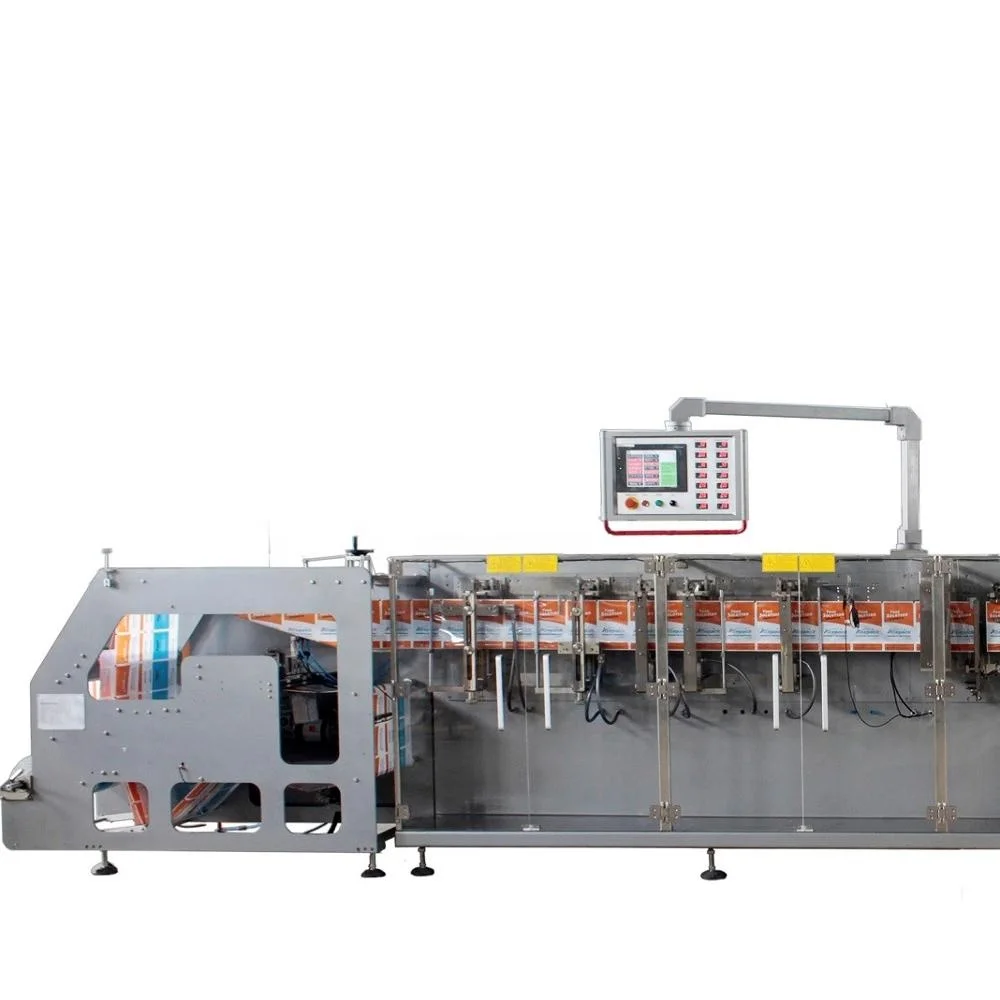

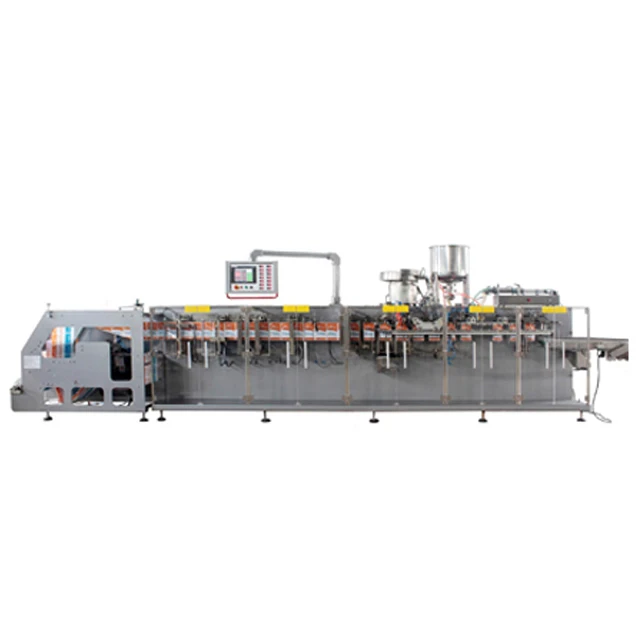

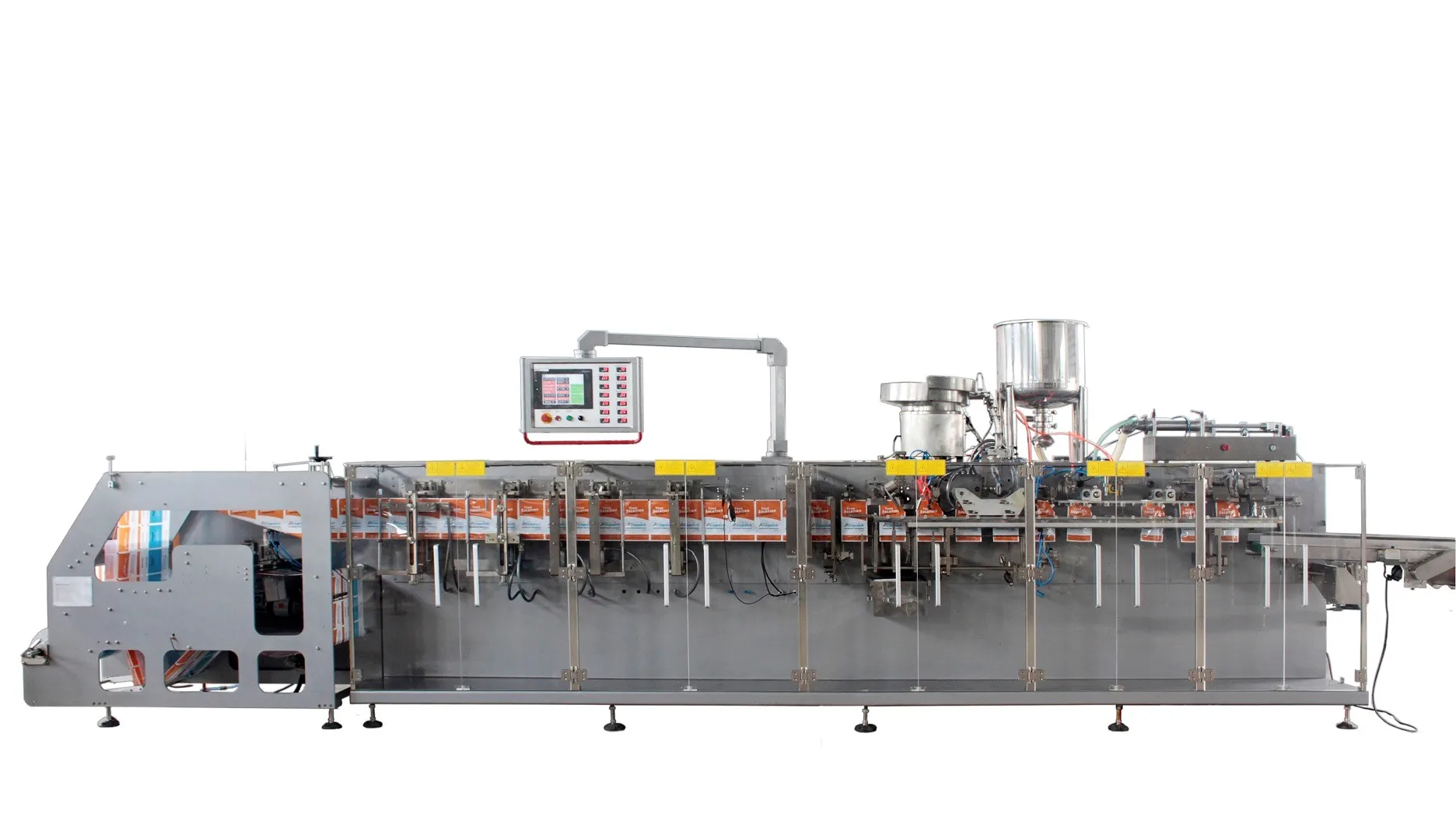

Автоматическая горизонтальная машина для упаковки шоколадных палочек сахарных пакетов мешков конфет производитель

This machine is applicable for packing powder, granule, liquid in form of corner spout pouch, with different patterns of sealing, which include processes of flat pouch or stand up pouch forming, product dosing, filling, corner spout installation and sealing.

Film Unwinding Process

Note: the gusset hole punching process applies for stand-up pouch

Pouch Forming Process

Pouch Filling Sealing Process

 Note:

1) The product filling process can be 1 to 4 station according to project requirement

Standard Features

1)  Stand up pouch form fill, corner spout installation and seal

2)  Rigid carbon steel structure with plastic spraying process and covered by stainless steel 304

3)  Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars

4)  Stainless steel 304 for product touching parts

5)  PLC & Touch Screen HMI Control

6)  Intelligent PID temperature controller

7)  Servo motor for film pre-pulling and bottom hole punching

8)  Easy pouch length adjustment

9)  Twice product filling, twice vertical sealing and twice horizontal sealing processes

10)  Once pre-heating, three times pressurized heat sealing, once cold sealing, used for corner spout installing and sealing

11)  Pouch vacuum and mechanical opening

12)  Vacuum system powered by vacuum pump with negative pressure tank

13)  Individual pressure tank for different compress air supplies

14)  Pouch not open completely, no fill and seal interlock

15)  Central lubrication system for punching device and other key mechanical parts

16)  Visual Protective Cover

17)  Cold Embossing type coding

Optional Features

1) Flat top spout pouch

2) Irregular shaped top spout pouch

3) Stainless steel 316 for product touching parts

4) Automatic film offset correction system

5) Ribbon, inkjet or laser coding

6) Cold sealing with chiller

7) AB Control System

PP146                                                       PP133                                                       PP120
