Product Description

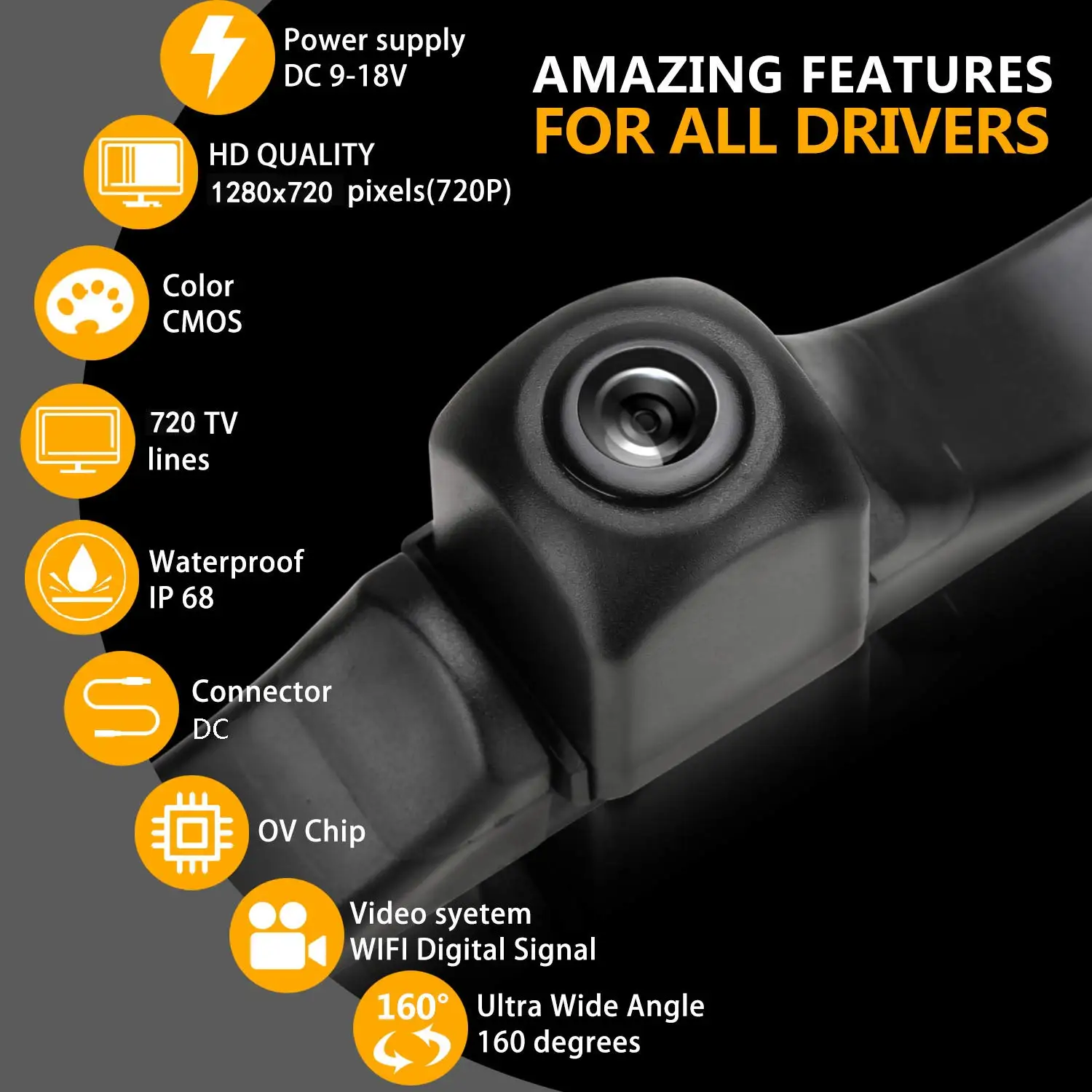

Certification | CE FCC Rohs |
Feature | Wireless Reverse Camera Car License Plate Mount |
Chip | OV |
Image sensor | CMOS |
Total Pixels | 1280*720 |
Resolution | 700 TV Lines |
Lens Angle | 160 degree |
Waterproof | IP 68 |
Note | Do Not Include Cigarette Lighter Adapter |
The main function.
●Reversing visual function
Through the WIFI link smart device of the camera, high-definition rear view can be realized.
● Intelligent electronic rearview mirror function
Real-time viewing through the device, after entering the rear view video, you can watch the real-time
Watch the situation behind the vehicle, view from all angles
● Intelligent background startup, voice call initiation
The back-up trigger signal is detected in the background of the Android system, and it is automatically started without manual entry. Apple system voice call starts, static IP link, online and reverse

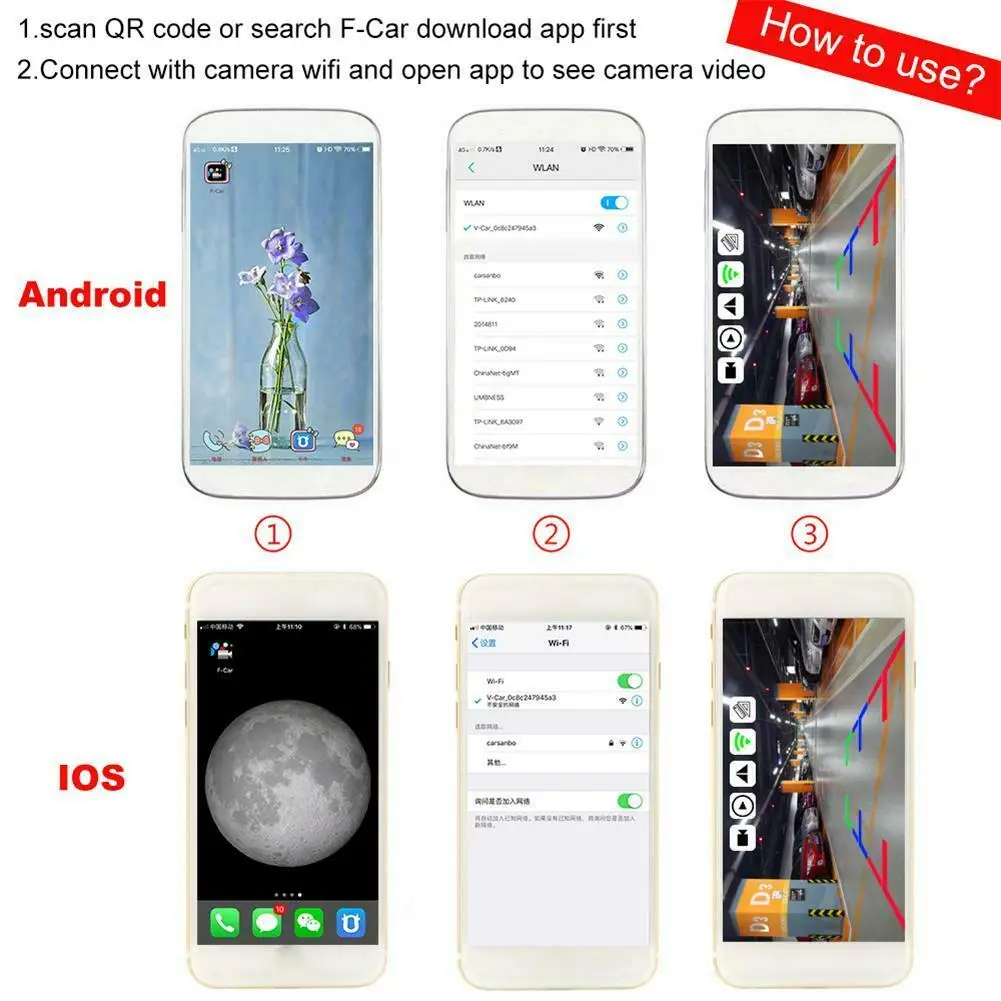

Android device use; connect to V-Car WIFI, open APP video automatically pops up, need to use 4G network, click the exit button, the software background automatically disconnects from V-Car.
● Apple's old device usage mode; after the software is installed, set the static IP; connect the V-Car name WIFI, 2 Enter the WIFI setting interface, remember the two lines below the "DHCP" (IP address. Subnet mask), click " Static" Here, fill these two lines of numbers below the static button (IP address. Subnet mask). 3 Click Back to set the success. Set static IP, which can realize WIFI and 4G simultaneous communication, without affecting the mobile Internet channel.
● New IOS system setting method; 1. Find the V-Car name WiFi. 2. Remember the IPV4 address bar; IP address, subnet mask, router, these three lines of numbers. 3. Click on “Configure IP”, select “Manual”, fill in the following three lines at the bottom, and click Save.
Fifth, product installation (very important, please read carefully)
1. First turn off the power supply of the vehicle, and it is forbidden to power on when the power cable of the camera is not connected.

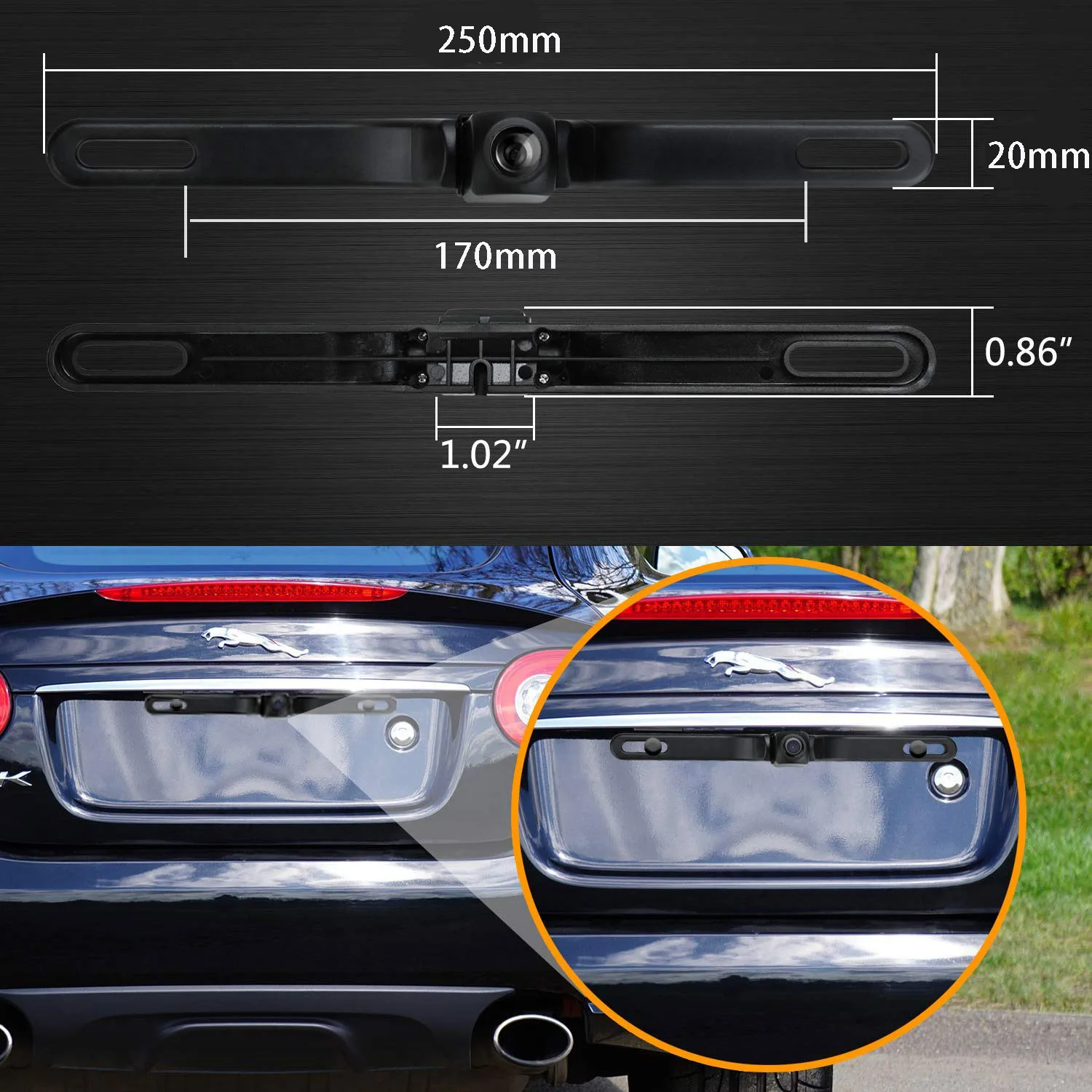

2. Determine the installation position of the car camera. (Please install at the top of the trunk, with a large field of view and strong signal).

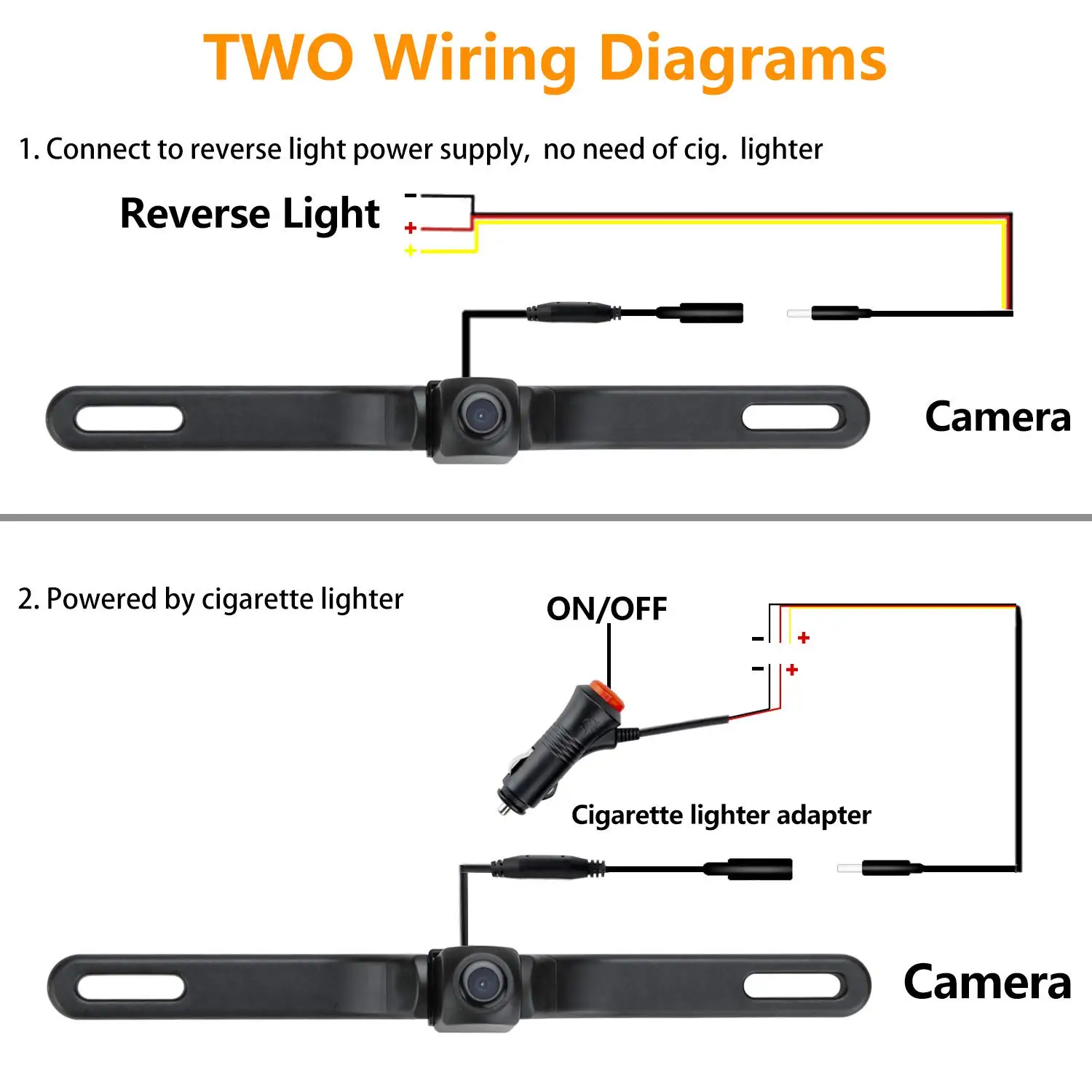

The first installation method, select the location where the camera is installed to find the position of the power cord
accurately;
● ACC power supply positive (red power cable), please pick up the ACC wiring position (such as the positive fuse box / the line when the car starts to power on).
●Negative ground (black power cord), please pick up the negative harness.
Recommended first installation method
In the second installation method, two wires of ACC and GND are connected to the cigarette lighter, red is connected to red wire, black wire is connected to black wire, wrapped with tape, and the switch can be used.
Select the position of the camera bracket screw and open the hole with the drill. Connect the exact position of the power cord, adjust the optimal reversing angle, and fix it with screws.
Through the WIFI link smart device of the camera, high-definition rear view can be realized.
● Intelligent electronic rearview mirror function
Real-time viewing through the device, after entering the rear view video, you can watch the real-time
Watch the situation behind the vehicle, view from all angles
● Intelligent background startup, voice call initiation
The back-up trigger signal is detected in the background of the Android system, and it is automatically started without manual entry. Apple system voice call starts, static IP link, online and reverse
Android device use; connect to V-Car WIFI, open APP video automatically pops up, need to use 4G network, click the exit button, the software background automatically disconnects from V-Car.
● Apple's old device usage mode; after the software is installed, set the static IP; connect the V-Car name WIFI, 2 Enter the WIFI setting interface, remember the two lines below the "DHCP" (IP address. Subnet mask), click " Static" Here, fill these two lines of numbers below the static button (IP address. Subnet mask). 3 Click Back to set the success. Set static IP, which can realize WIFI and 4G simultaneous communication, without affecting the mobile Internet channel.
● New IOS system setting method; 1. Find the V-Car name WiFi. 2. Remember the IPV4 address bar; IP address, subnet mask, router, these three lines of numbers. 3. Click on “Configure IP”, select “Manual”, fill in the following three lines at the bottom, and click Save.
Fifth, product installation (very important, please read carefully)
1. First turn off the power supply of the vehicle, and it is forbidden to power on when the power cable of the camera is not connected.
2. Determine the installation position of the car camera. (Please install at the top of the trunk, with a large field of view and strong signal).
The first installation method, select the location where the camera is installed to find the position of the power cord
accurately;
● ACC power supply positive (red power cable), please pick up the ACC wiring position (such as the positive fuse box / the line when the car starts to power on).
●Negative ground (black power cord), please pick up the negative harness.
Recommended first installation method
In the second installation method, two wires of ACC and GND are connected to the cigarette lighter, red is connected to red wire, black wire is connected to black wire, wrapped with tape, and the switch can be used.
Select the position of the camera bracket screw and open the hole with the drill. Connect the exact position of the power cord, adjust the optimal reversing angle, and fix it with screws.
