CE certificated 60KW 550V CCS CHAdeMO dual outlet level 3 EV chargers manufacturers
Overview

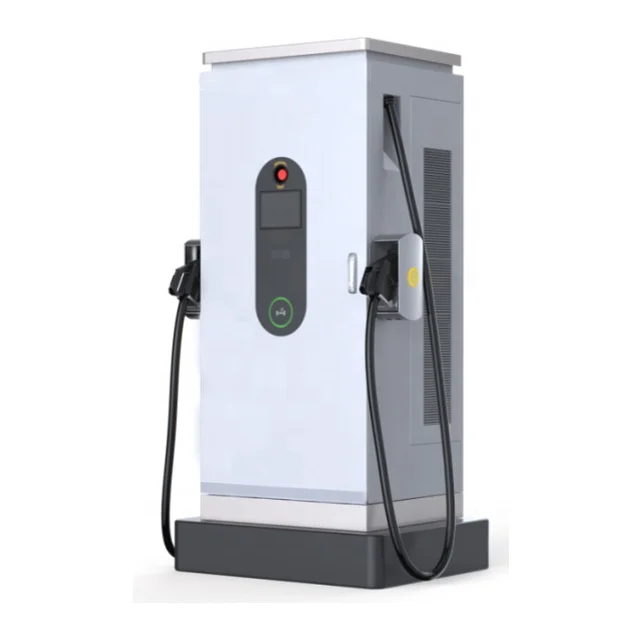

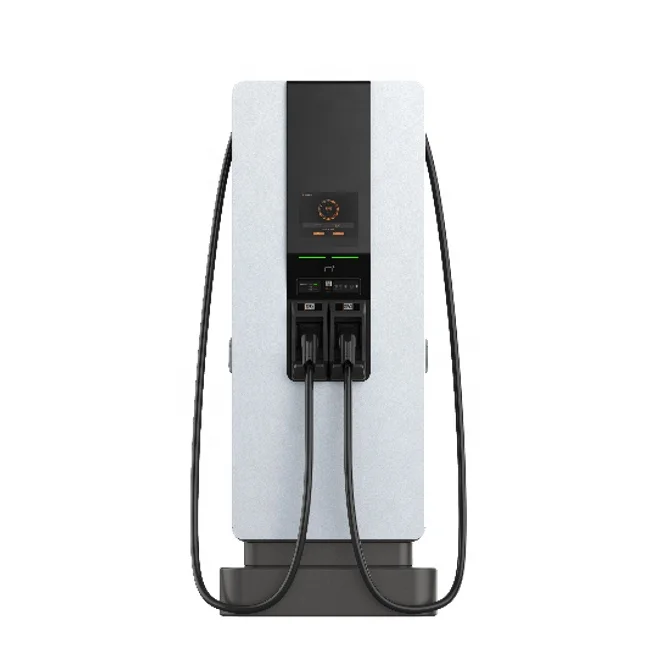

120KW series DC charging station is designed for public use,applications for CCS CHAdeMo standard fast charging. And it easy ground stand installation. IP65 high protection level,sturdy and durable for outdoor application. The charger with 8 power modules space design, it can easily configure the power form 60KW to 120KW by adding or reducing the power module, in this way, customer can easy manage electrical costs or choice a best output power to meet site-specific requirements.
Features
- CCS1 / CCS2 / CHAdeMO Support
60KW EV chargers with 2 output connectors design, support 3 different charging connectors combination.
Connectors Optional configuration:
1* CCS (Combo CCS1 or Combo CCS2)
1* CHAdeMo
1*CHAdeMo + 1* CCS (Combo CCS1 or Combo CCS2)
1*CCS+ 1* CCS (Combo CCS1 or Combo CCS2)
2 Connectors can charging at the same time
Also support configuration:
1*CHAdeMo+ AC (Type1 or Type2)
1*CCS+ AC (Type1 or Type2)
1*CCS+ 1*CHAdeMo+ AC (Type1 or Type2)
MAX 3 Connectors charging at the same time
- Internet with Wifi / 3G / 4G / Ethernet; OCPP 1.6 compliant
60KW EV chargers with OCPP board inside (the EV charger OCPP protocol alread tested with many EU back serve), it can easy directly integrated into customer third party systerm to achieve remote manage and control.
- Future high power upgrade support
The 60KW EV chargers shell with 8 units power modules design, and 60KW only with 4 power modules inside.
In future, the charger can upgrade to higher power by just adding the power modules, max upgrade to 120KW.
- 7 inch Touch screen, Support RFID card and smart phone charging
The 140KW EV charger with a colorful 7 inch touch screen, with RFID function,can swipe the authorized RFID card to charge,also support using the smart phone to scran QR code to charge and payment online.
- Wide output 550V DC output, compatible with most EV on the road
Suitable for BMW / VW / NIssan / Chevy / Porsche / Tesla (with adapter) etc...
(750V DC / 1000V DC output for option)
- TUV CE certificated and more than 8 aspects advanced safety features
TUV Test according to terms : IEC 61851-1:2017; IEC 61851-23:2014; EN 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014
- IP65 design for harsh environment
Indoor or out door installation is acceptable.
- Customized Brand Painting support
Improve comply influence in local industrial ,customized labal,box ,carton or logo is acceptable.
EV Charger Technical Data
Specification | ||
AC Nominal Input | Phases/ Lines | 3-phase (without neutral supported) |
Input Voltage | 260-530V AC (Wide input voltage range, allows operation in most poor grid conditions) | |
Frequency | 45Hz-65Hz (Suitable for both EU and US market) | |
DC Nominal Output | DC Voltage Accuracy | <±0.5 |
Output Efficiency | >94% (Rated input and output) | |
Output Parameter | 60KW 140A 150V-550V DC | |

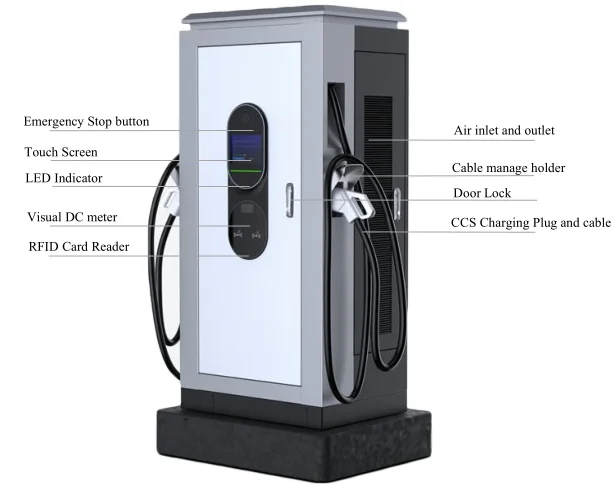

Electrical Specification | LED Indicator | Green (Power Led) / Yellow (Charging Led) / Red (Alarm Led) |
LCD Touch Screen | Colorful 7" Touch screen | |
Stop Button | Yes (Red Emergency Stop Button) | |
RFID Function | YES (Authorized RFID cards can charged only) | |
RFID Card Quantity | 2pcs Mifare card | |
Smart Phone APP | Yes (Support use the smart phone to charge and make payment) | |
Energy Meter | Certificated DC energy meter | |
Structure Design | Housing Material | Metal case |
Application scenes | Commercial / Public Use (Both indoor & Outdoor Installation) | |
Charging Outlet Quantity | 1 or 2 (CCS1 / CCS2 / CHAdeMO option) | |
Cable Length | 4M cable | |
Communication | Network Method | Ethernet (Inner LTE wireless modem (3G/4G) and Wifi for Option |
Communication Protocol | CAN, PLC (DIN70121 and ISO15118) | |
OCPP 1.6 ( Charger with ocpp board inside) | ||
Environmental Index | Operating Temperature | -20~+70°C, full output under 50°C, power derating 5%/° above 50°C |
Working Humidity | 5%~95% without condensation | |
Working Altitude | <2000M | |
Protection Grade | IP65 / IK10 | |
Application Site | Indoor/Outdoor | |
Cooling Method | Fan cooling | |
Security Protection | Multi le Protection | Over-current, Over/Under Volatge, Short Circuit Protection, Reverse Polarity, Over-temperature, Protect Earth Connect Monitoring, RCD Protections |
MTBF | 100,000 hours | |
Safety Standard | TUV CE Certificated ( IEC 61851-1:2017; IEC 61851-23:2014; EN 61851-1:2019; EN 61851-23:2014; EN 61851-24:2014; EN 61851-21-2001 EMC) | |
Warranty | 12 months | |
Dimension | Dimension & Weight | 700*1750*700 mm & 150KG (weight without charging module) |
Optional Parts | Connectors | Type2 / Type1 |
WE BELIEVE IN
ONE GOOD Quality Charger> N Poor Quality Chargers
Senku Machinery EV charging station is strictly design and produce according to the CE and IEC 61851 standards. Unlike other manufacturers, they simply replace the china GBT standard charging station with a charging connector and sell it directly to customer. We choose the international high quality components as raw material, ensure the charger stable performance, safe and the long service life of the charger. Instead of using the inferior components.Because poor quality EV charger will bring many additional invisible operations and maintenance costs.
Especially for EV operators,once the EV charging station installed, it will serve many electric vehicles, so a stable & secure and real high efficiency charging station is important, so we always believe one good quality charger can bring more profit.
Produce Process
Part of Certifications
What are you waiting for? Get in touch with us to experience quality products and services!!!
FAQ
What after service you support?
1 Year warranty and while service life technical support.
During the warranty time, we provide comprehensive technical support.In normal conditions, we provide after-sales technical training by providing written training materials or videos, also we support online remote technical service. If there is a urgent situation, we will also send our professional technicians to provide local on-site support.
And we supply "One time purchase, lifetime service” , even the EV charger which you buy is out of warranty time, you also can contact us to get in time service support.
How I know which connector i should choose?
CCS1: also know as Combo CCS Type1 or Combo CCS-1.
This is the DC fast EV charging standard North America market.
Typical EVs: Chevy Bolt.
CCS2 also know as Combo CCS Type2 or Combo CCS-2.
This is the DC fast EV charging standard for Europe.
Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO
DC fast charging standard for Japan
Typical charging EVs: Nissan Leaf.
Chademo EV charger also can charge Tesla EVs with CHAdeMo adapter.
Any other questions please contact us to get details.
