Шлифматериал высокого качества кованые циркониевый корунд шаровая мельница jar для минеральных

 A Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back but stay on the perimeter of the mill.

The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.

 Main Features

1) This Ball mill machine changes the intrinsic grinding mill structure.

2) Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.

3) Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.

4) The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

The mineral ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft evenly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. And then the grinded materials are discharged through the discharging board.

Composition of high quality widely used ball mill sale price/zirconia ball mill grinding media price:

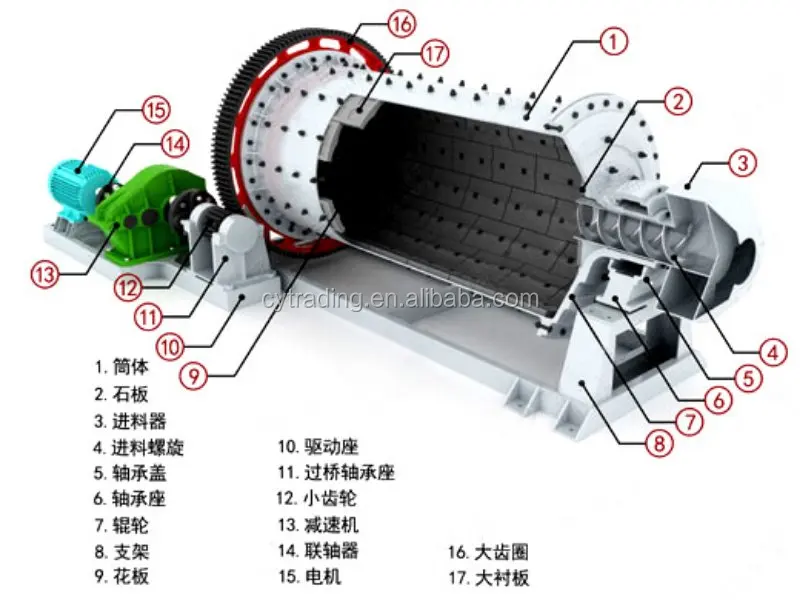

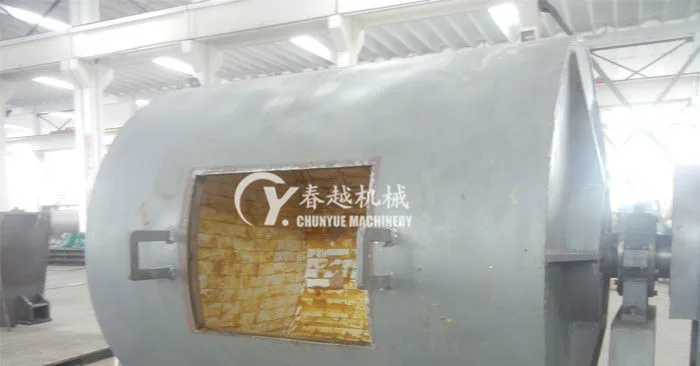

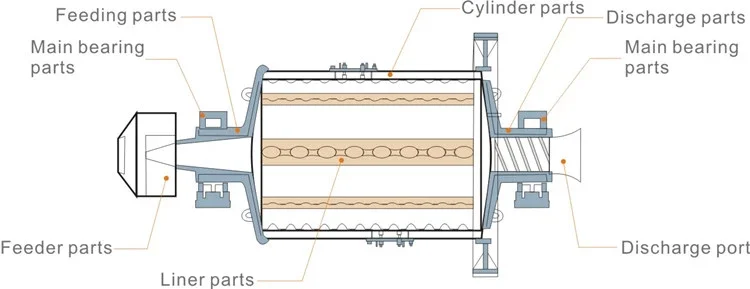

This machine is mainly consists of feeding device, discharge device, rotating device, transmission devices (gear box, pinion gear, motor and electric control device). The hollow shaft is made of cast steel. The liner is replaceable. The gear wheel adopts casting gear hobbing. The wear-resisting liner is inlayed in the cylinder of ball mill.

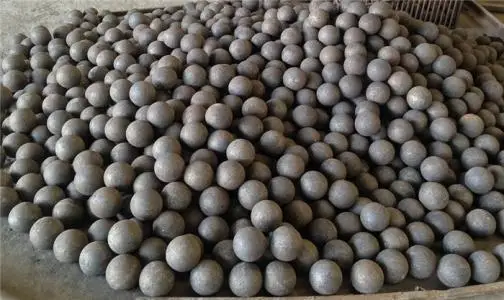

 Main Spare Parts for the Ball Mill

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-25 work days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: T/T,Alibaba Trade Assurance or L/C

Q: “What’s the technique structure of ball mill machine?

A: Cast steel hollow shaft, lined with removable, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good wear resistance. Smooth mill operation of the machine, reliable.

Q: “Can introduce the details of several issues when used ball mill to grind rocks?”

A: 1. Additional ball mill should be regularly in order to maintain the best ball mill loading.
2. Running regularly on the recirculation pump, piping and recycling containers to wash, cyclone should also be regularly switch, flush to prevent clogging.
3.Ball mill output should be in the best run, should not easily change the output.
