Полностью автоматическая машина для производства высушенных фруктов из
- Категория: Осушитель воздуха >>>
- Поставщик: Zhucheng Lijie Food Machinery Co. Ltd.
Сохранить в закладки 62471673831:
Описание и отзывы
Характеристики
Product Description
Production Processing Flow:
Feeding elevator-Remove the stalk--Hoist--Remove the impurity and stone-Colour sorter-Surf cleaning-Bubble washing-dehydrate-Glazing-drying-Air cooling-Automatic weighing Packing.
This whole line can process the raisin into good quality. The main parts are made of SUS304 stainless steel. Feeding elevator-Remove the stalk--Hoist--Remove the impurity and stone-Colour sorter-Surf cleaning-Bubble washing-dehydrate-Glazing-drying-Air cooling-Automatic weighing Packing.
The dryer can be used not only for the drying of raisin, jujube, rhubarb, salvia miltiorrhiza, and ginseng,but also for garlic, potato, onion, ginger, green pepper, apple, lemon, bamboo shoots, garlic, flowers, mushrooms, sweet potatoes,corn, peas, beans and so on.You can set the dryer temperature and humidity according to the actual situation.
Detailed Images

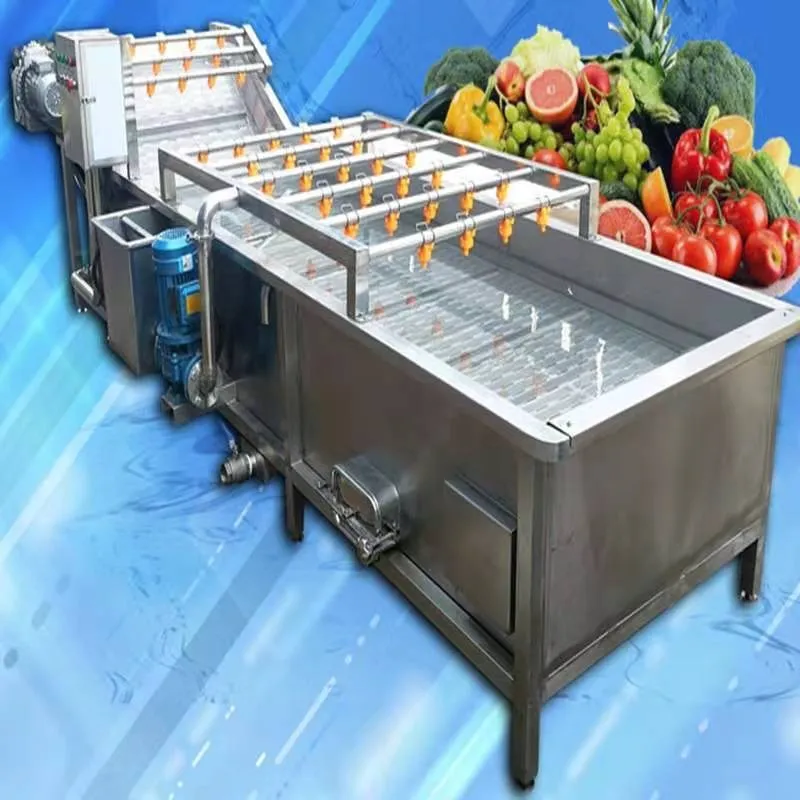

1.Bubble washing machine
(1) Usage: Clean wash the raisin and date palm, with lifting function..
(2) Size: 6000*1000*2100mm
Mesh belt width 800mm,stainless steel mesh belt
Motor :\tfrequency variable motor
(2) Size: 6000*1000*2100mm
Mesh belt width 800mm,stainless steel mesh belt
Motor :\tfrequency variable motor
2.Centrifugal dehydrator
(1) use: remove excess water after washing ,it can save time to dry.
(2) the technical parameters:
dimensions:2000 * 1000 * 1250 mm
Drive power: 0.75 kw
Total power:5.25kw
(2) the technical parameters:
dimensions:2000 * 1000 * 1250 mm
Drive power: 0.75 kw
Total power:5.25kw
3.Impurity removing machine
It can remove the stalk of the raisin automatically
4.Gravity separator
Function :can separate all types of impurities from all types of raisins using the specific gravity principle
Features: The machine is made of food grade stainless steel, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :4000*2000*1500mm
Power :36kw/380v/50HZ
Features: The machine is made of food grade stainless steel, easy maintenance, easy cleaning, no rust.
Technical parameter:
Size :4000*2000*1500mm
Power :36kw/380v/50HZ

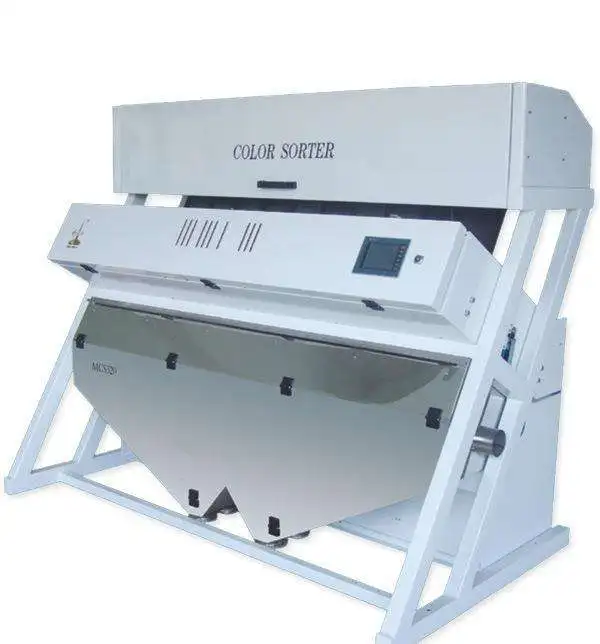

5.Colour sorter
It uses photoelectric detection technology to automatically sort out the different color raisin particles in the granular materials according to the difference of optical properties of materials.
External dimension: 2225 * 1630 * 2050 (mm)
Power supply voltage: 110-250 (V)
Equipped with power 2.6kw
Power supply voltage: 110-250 (V)
Equipped with power 2.6kw
Capacity:1000kg/h, can be customized
Weight: 880 (kg)
Weight: 880 (kg)
No. | Description | Specification | set | |||
1 | Feeding conveyor | 4200*2200*3500mm | 1 | |||

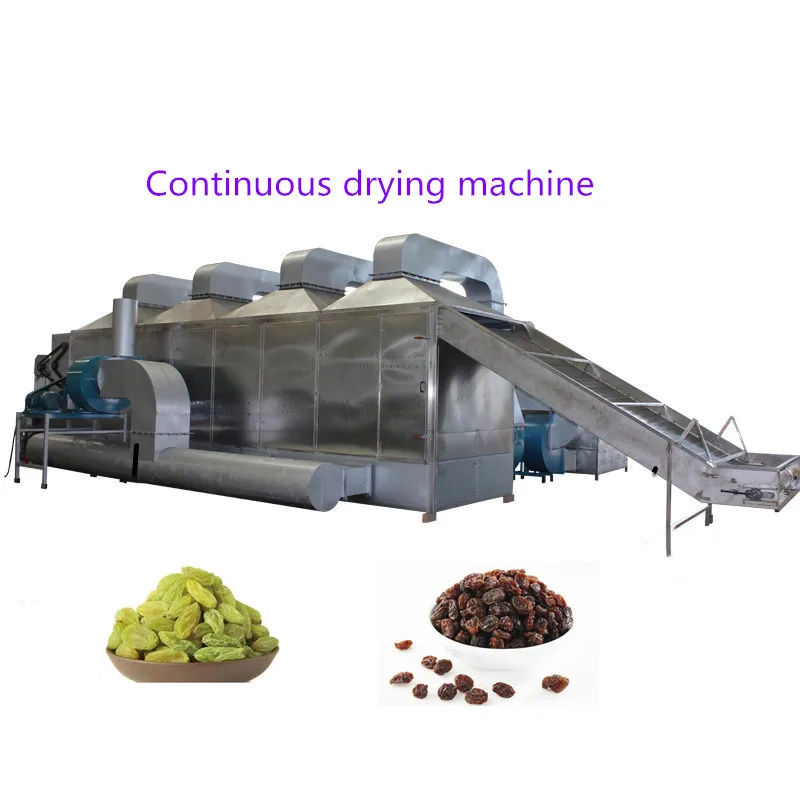

2 | Continuous dryer main body | 10000*3200*3700mm 5layers | 1 | |||
3 | Steam Generator ( or hot air stove) | 2200*1100*2150mm Steam evaporation: 600 kg/h Hot air stove power :300000kcal | 1 | |||
4 | Gas burner | Power:300000kcal | 1 | |||
5 | Electricity Distribution Controller | SUS304, including Electrical components Siemens brand | 1 | |||
Shipping freight (2 x40’containers+1x20’container) | ||||||
Size Information
Model | LJHG8-5 | LJHG10-4 | LJHG10-5 | LJHG16-5 | LJHG21-5 |
Length | 8000mm | 10000mm | 10000mm | 16000mm | 21000mm |
Water evaporation(kg) | 300-350kg/h | 350-400kg/h | 400-450kg/h | 600-700kg/h | 900-1000kg/h |
Related Products
Packing&Shipping
Packing Mode:
1. For LCL Cargo, we make Non-Fumigation Export Standard Wooden Cases.
2. For whole container Cargo, sometimes no pack except of some small parts.
Shipping Choice:
1. Ocean Transport--Need customer supply destination port.
2. Air Transport--Need customer supply airport of customer country.
3. Express Transport--Door to door transport, need to know postal address and code.
4. Train Transport--Need customer supply arrival station.
5. Truck Transport--Detail address. For more transport way, talk directly.
1. For LCL Cargo, we make Non-Fumigation Export Standard Wooden Cases.
2. For whole container Cargo, sometimes no pack except of some small parts.
Shipping Choice:
1. Ocean Transport--Need customer supply destination port.
2. Air Transport--Need customer supply airport of customer country.
3. Express Transport--Door to door transport, need to know postal address and code.
4. Train Transport--Need customer supply arrival station.
5. Truck Transport--Detail address. For more transport way, talk directly.
Company Introduction
Zhucheng Lijie Food Machinery Co., Ltd is located in Zhucheng City, Shandong Province. Our products mainly sold to the UnitedStates,Singapore,Russia,kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and
1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them.Our company's main products include Frying machine, potato chips frying (frozen) processing equipment,fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot,and cooking equipment, etc.
Welcome to Lijie machinery!
1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them.Our company's main products include Frying machine, potato chips frying (frozen) processing equipment,fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot,and cooking equipment, etc.
Welcome to Lijie machinery!
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .
And help customer to produce good quality food according customer’s detailed formula.
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .
And help customer to produce good quality food according customer’s detailed formula.
How to contact us
