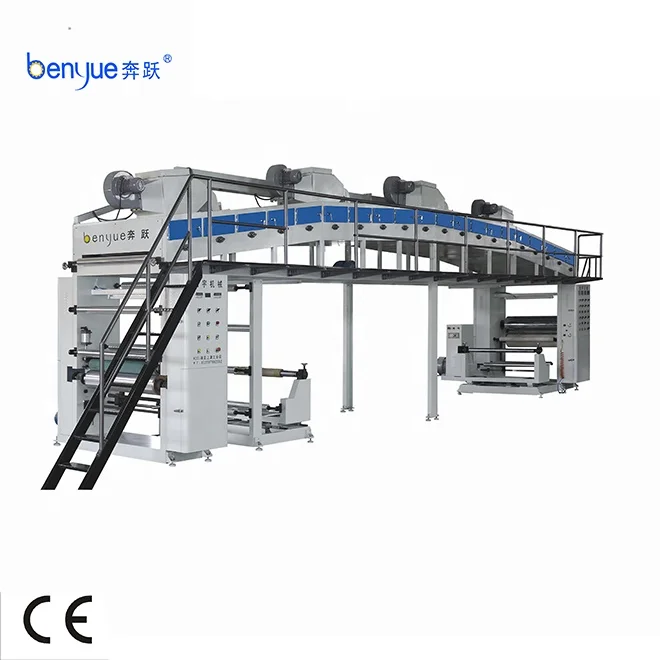

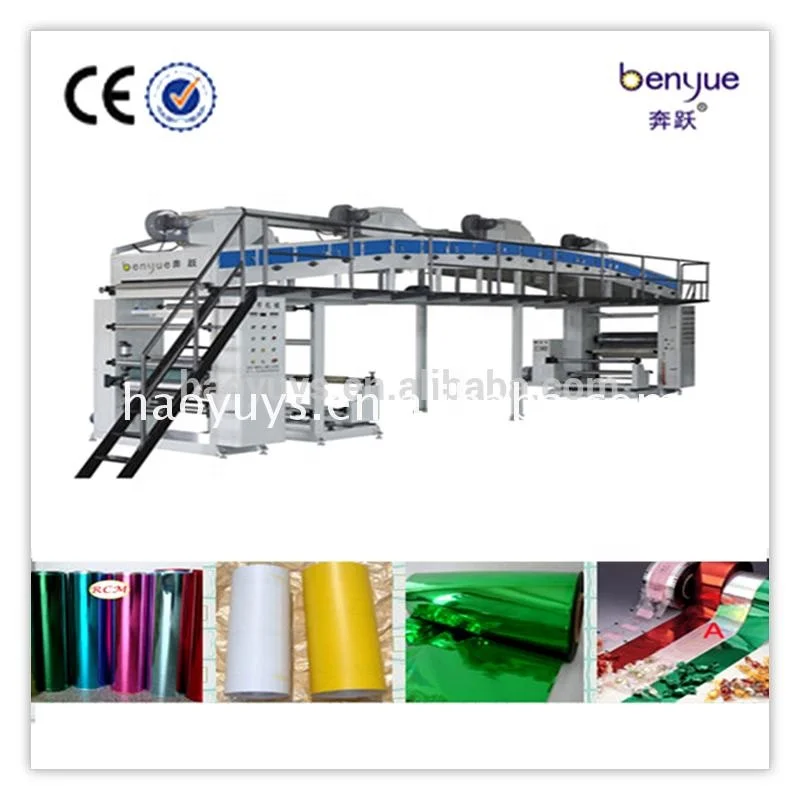

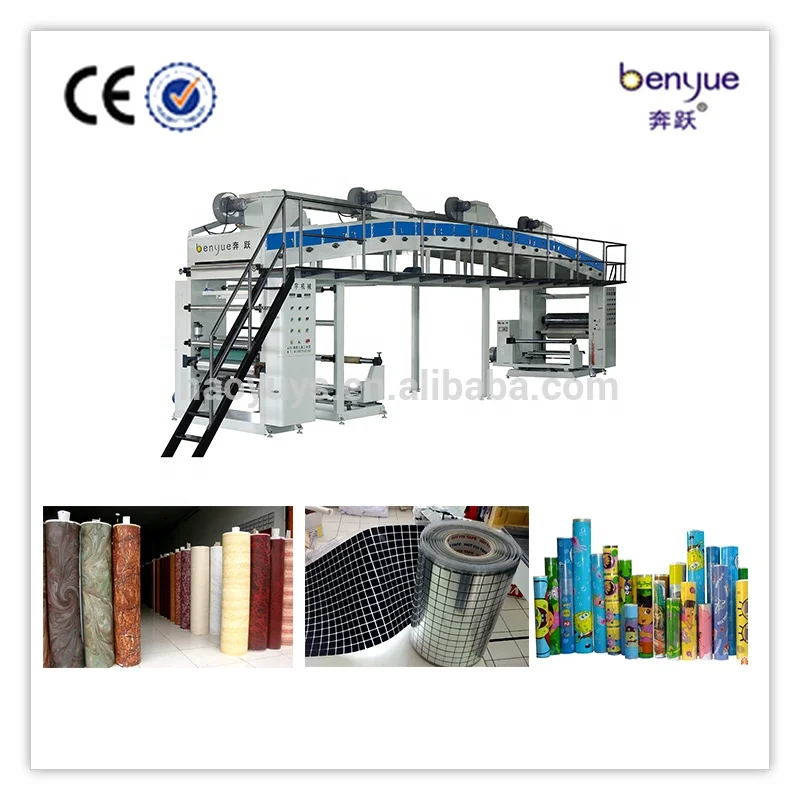

Tb600 ~ 2500 мощная Высококачественная Водонепроницаемая машина для нанесения покрытия бумаги 10 80 м/мин

Overall machine adopt 3frequency motor control,

Electrical rotation double station unwinding frame, adopt magnetic powder auto control the tension

Gravure coating method, coating blade shaft adopt heavy double shaft type machine independently moving, blade adjust by manual with pneumatic type, angle is adjusted freely, coating quantity is depend the gravure roller mesh, different coating quantity can change different mesh gravure roller.

For coating more evenness, there is one pc uniformity roller by motor inverter control

Oven:14m for 6section independently control, heating adopt conduction oil cycle heating, hot air intake type drying system, adjustable inner cycle air intake and out device, air intake and out with strong air , dry thoroughly,

Oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker can work very easily.

The tension between coaitng roller and traction steel roller adopt float swing arm

Auto-length and speed meter device

Webguide adopt EPC air sensitive register to assure the trimness when rewinding

Rewinding and unwinding adopt key type airshaft for easily operate when loading and unloading the material

High presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat. to reach good cooling effect.

Rewinding frame is alongside rewinding, the drive same as traction unit
