FPL320-1 High Speed Roll to Roll Sticker Flexo Printing Slotting Rotary Die Cutting Machine
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
ideal machine for printing note and top-grade adhesive label.
1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.

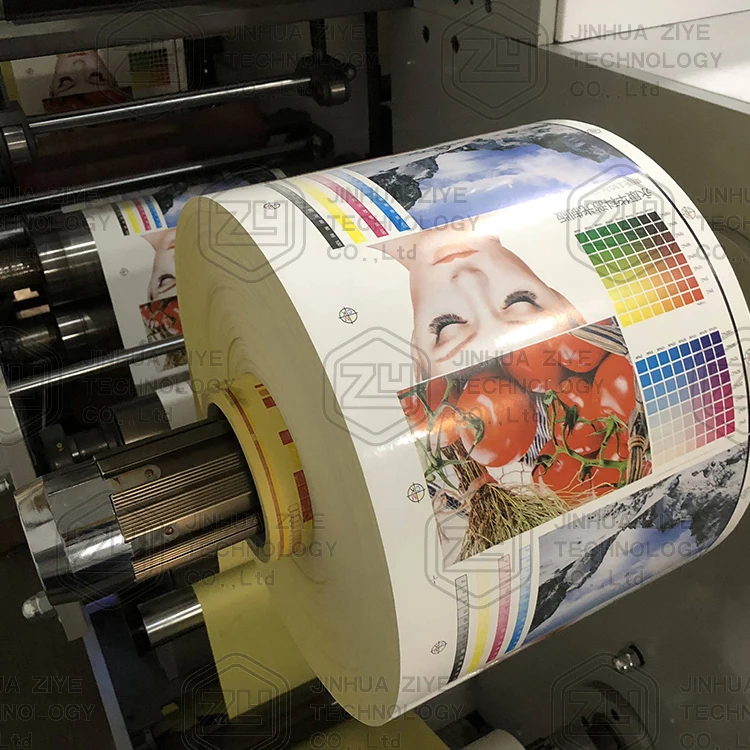

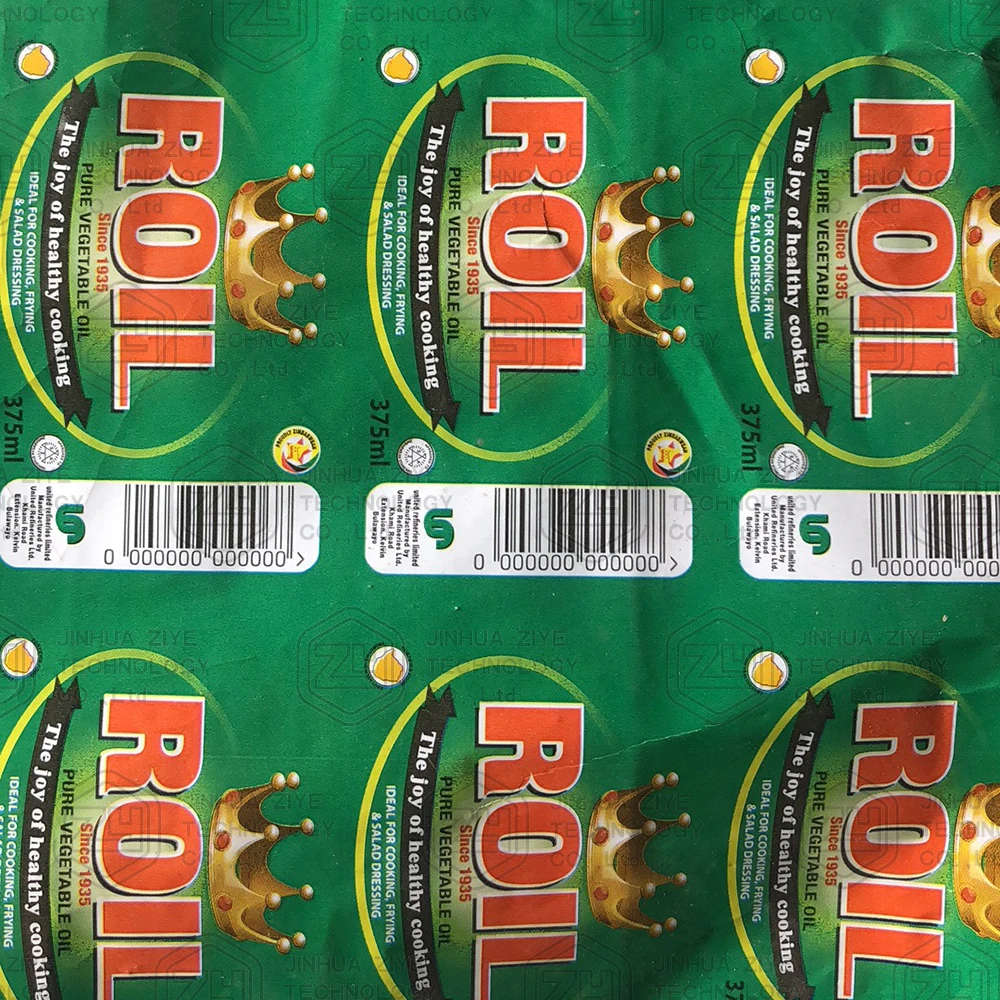

Samples
Labels
All kinds of Sticker Labels
Plastic Films (PVC, PET...)
All kinds of Paper (below 250gsm)
Aluminum Foils
Product Paramenters
Machine Model | FPL320-1 |
Printing speed | 60m/min |
Max. Web Width | 320mm |
Max. Unwinding/Rewind Diameter | 600mm |
Printing Length | 170-450mm |
Color Quantity | 1 color |
Dimensions | 3000*1500*1800mm |
Main motor | 15 KW |
Voltage | 220V/380V |
Gear | Helical Gear |
Machine weight | 2000 kgs |
Details Images
Flexo Printing Unit
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container. Helical Gear
Web Guide System
Control paper move straightly.
Unwind Unit
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 600mm material jumbo roll. (can be customized)
Rewind
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 600mm material jumbo roll. (can be customized)
Magnetic Brake and Clutch
1).With One 50 N.M Magnetic Brake, Two 50 N.M Magnetic Clutch
2).Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Auto Constant Tension Controller
With 2 Set ZXT-600 Auto Constant Tension Controller For Unwind and Rewind
IR Drying Unit
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
Control Panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
Company Profile
Jinhua Ziye
professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national brand’ as development strategy, to make company as the leader in after printing machinery line.
Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
Professional Team
For flexo printing machine, we can provide you in 20-50days.
Factory Monthly Output is 30 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:
Factory Monthly Output is 30 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:
Product packaging
We promise best quality package:
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
Contact Information
JINHUA ZIYE TECHNOLOGY CO.,LTD
Whatsapp/Wechat/Skype: +86-18758075891
EMAIL: manager@ziyechina.com
Website: https://ziye.en.alibaba.com/
Whatsapp/Wechat/Skype: +86-18758075891
EMAIL: manager@ziyechina.com
Website: https://ziye.en.alibaba.com/
Похожие товары
Флексографская/флексографическая печатная
18 000,00 $
Горячая Распродажа новый продукт наклейка этикетка шесть цветов флексографическая пластиковая печатная

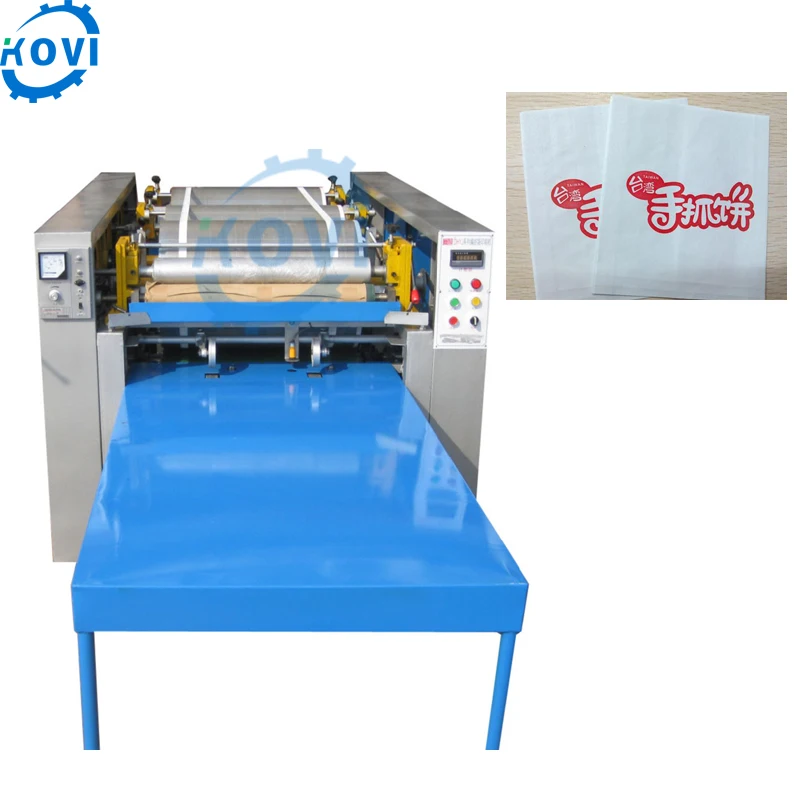

WX-4/WX-6 четыре/шесть цветов CI Flexo бумажный мешок флексографическая печатная
Мини-машина для флексографской печати этикеток 2 3 одноцветная цифровая машина
4 500,00 $ - 6 200,00 $

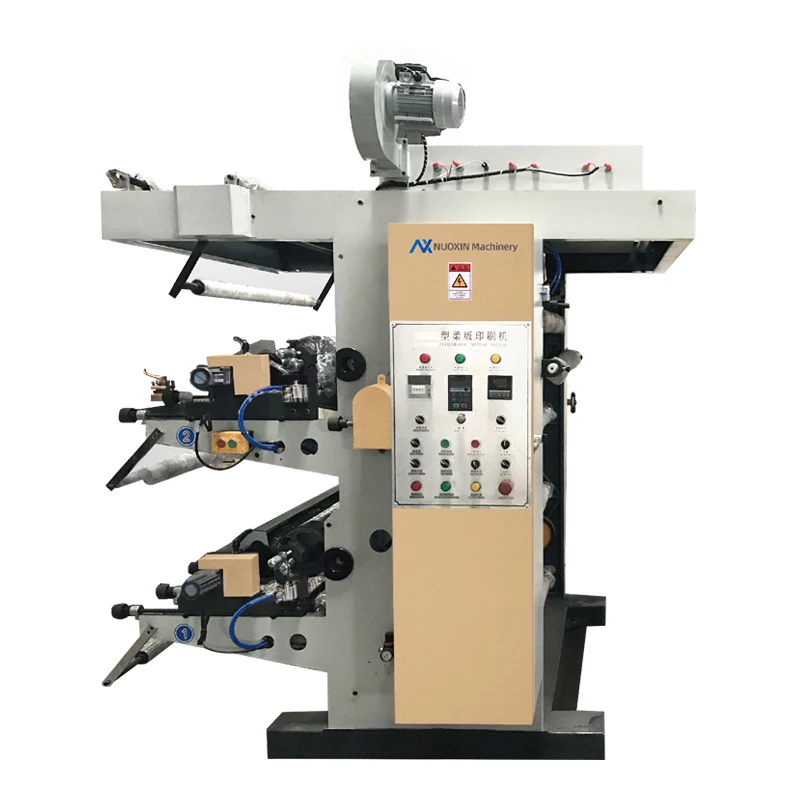

Флексографская печатная машина пластиковая трафаретная для

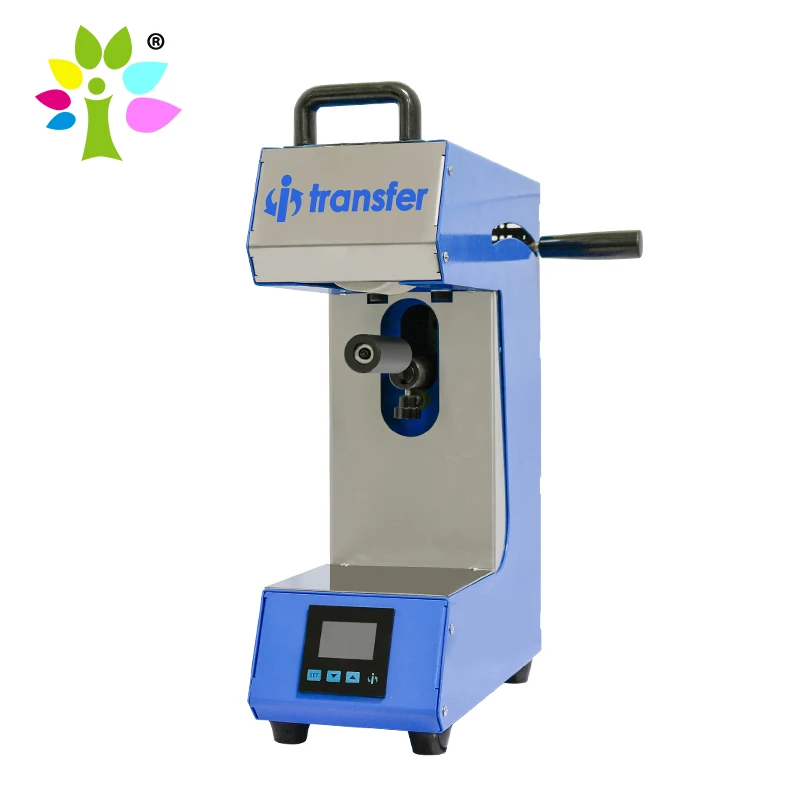

360 теплопередающая машина пластиковая печатная для чашек и
