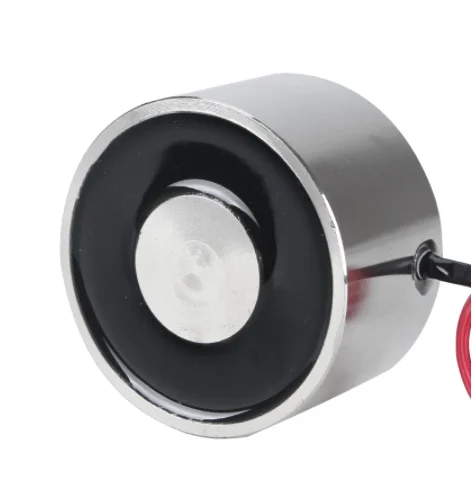

Электрический подъемный магнит, электромагнитный подъемник с круговой присоской DC 12 В 75 кг
11,11 $ - 12,70 $

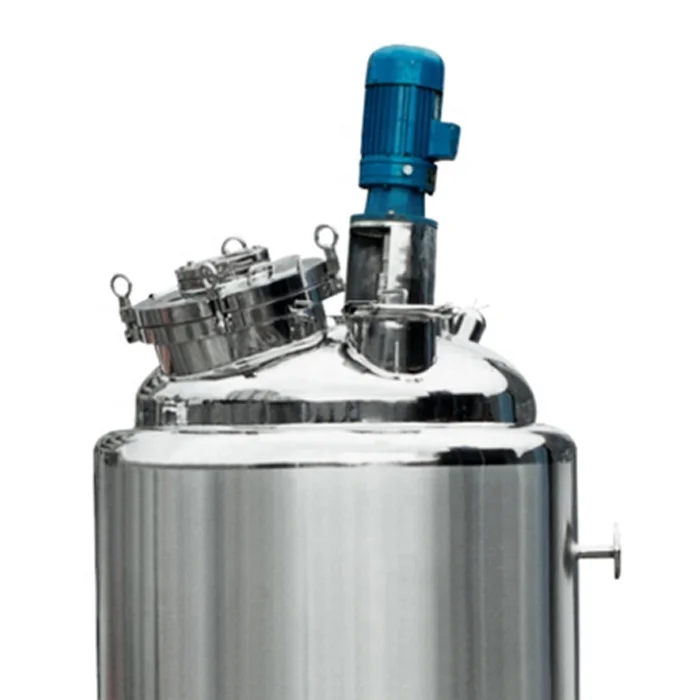

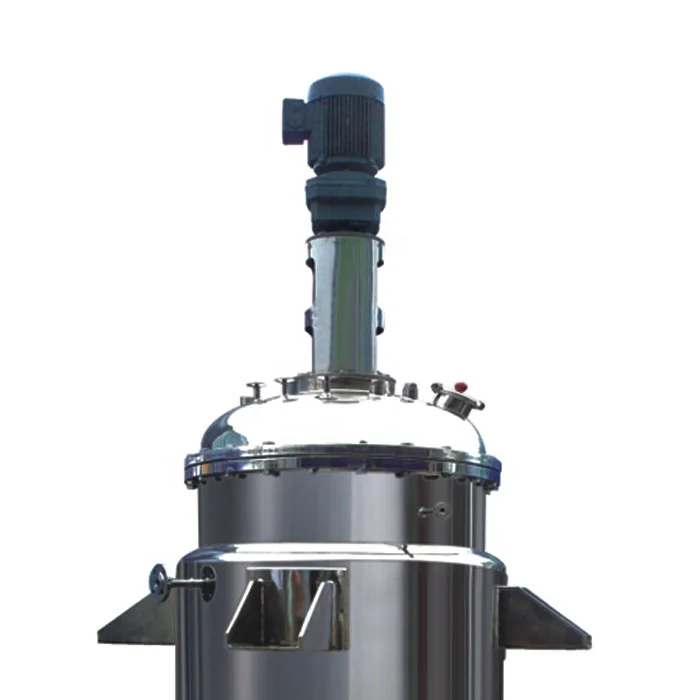

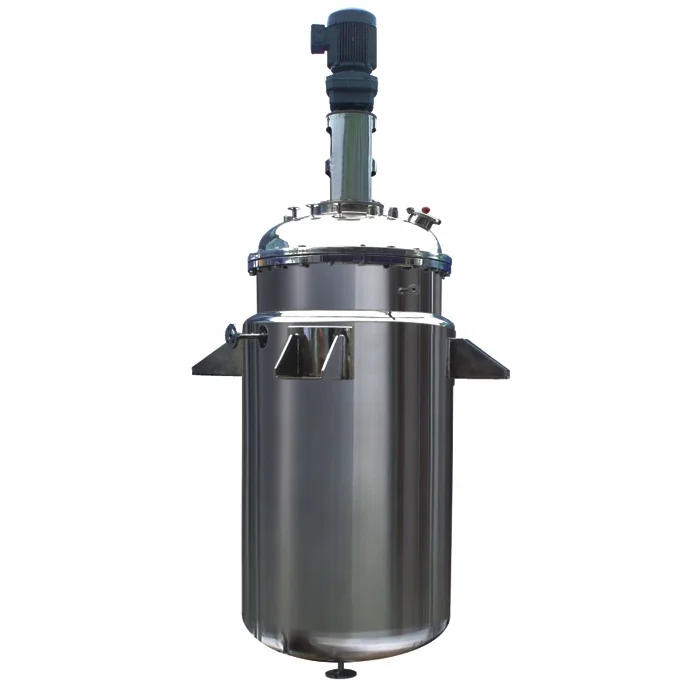

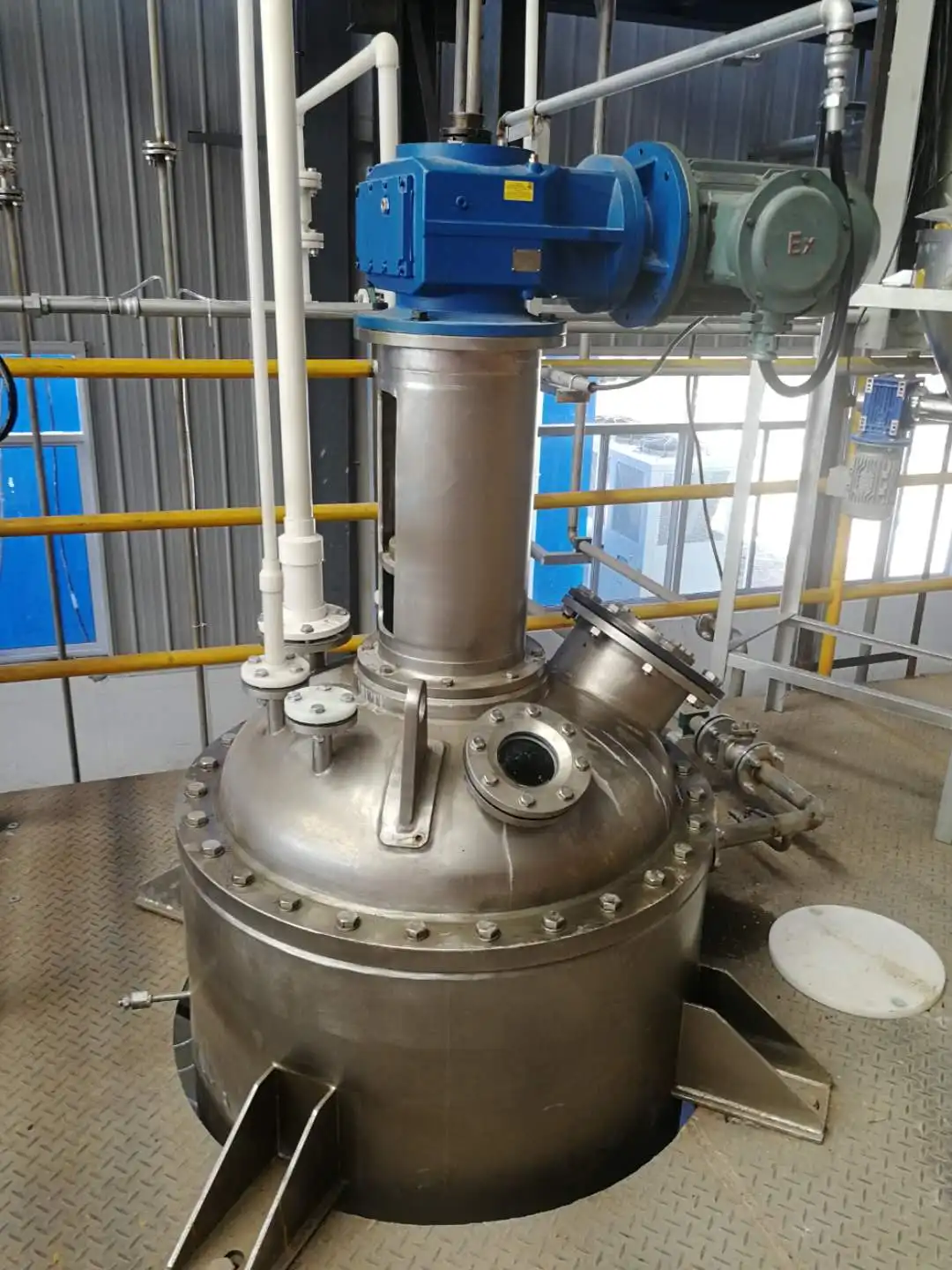

Смешивающий ферментер из нержавеющей стали для химической промышленности
- Категория: >>>
- Поставщик: Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd.
Сохранить в закладки 62475161443:
Описание и отзывы
Характеристики
Products Description
Fermentation Tank Seeding Tank
Material: SS304, SS316L, Titanium, Hastelloy, PTFE lined
Application Scope
Food industry:edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: medical ointment, ointment, lotion, cream, various vitamin, etcChemical industry :concerned with product of daily use: shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Basic Conditions for Fermentation Tank
The mechanical agitation fermentation tank is one of the common types used in the fermentation plant. It uses mechanical agitators to completely mix air and the mash, and make the oxygen dissolved in the mash, which guarantees the enough supply of oxygen for microbial growth, reproduction and fermentation. Several basic requirements needed to make fermentation tanks as followed:
➤ Fermentation tanks should have suitable scale of diameter to height, whichis generally about 1.7 to 4, the longer the tanks are, the higher the utilization rate of oxygen will be.
➤ Fermentation tanks can bear certain pressure. When fermentation tanks are normally working or being disinfected, there will certain pressure (hydraulic pressure and pneumaticpressure) and temperature in the tanks, so all of their components must have certain strength to bear the pressure.
➤ The stirring and ventilating device in fermentation tanksmake thegas and the liquid fully mixed to make sure that the fermentation broth must dissolve oxygen.
➤ Fermentation tanks should have sufficient cooling area. Inthe process of microbial growth and metabolism, it will release a lot of heat. So in order to control the temperatures on different stages in the fermentation process, it should be equipped with adequate cooling area.
➤ Fermentation tanks must minimize dead cornersto avoid accumulation of dirt, so it can be thoroughly sterilized to avoid bacterial contamination.
➤ The seal of agitators should be tight to minimize leakage.
➤ Fermentation tanks should have suitable scale of diameter to height, whichis generally about 1.7 to 4, the longer the tanks are, the higher the utilization rate of oxygen will be.
➤ Fermentation tanks can bear certain pressure. When fermentation tanks are normally working or being disinfected, there will certain pressure (hydraulic pressure and pneumaticpressure) and temperature in the tanks, so all of their components must have certain strength to bear the pressure.
➤ The stirring and ventilating device in fermentation tanksmake thegas and the liquid fully mixed to make sure that the fermentation broth must dissolve oxygen.
➤ Fermentation tanks should have sufficient cooling area. Inthe process of microbial growth and metabolism, it will release a lot of heat. So in order to control the temperatures on different stages in the fermentation process, it should be equipped with adequate cooling area.
➤ Fermentation tanks must minimize dead cornersto avoid accumulation of dirt, so it can be thoroughly sterilized to avoid bacterial contamination.
➤ The seal of agitators should be tight to minimize leakage.
Size Scale of Fermentation Tank
There is a certain scale of the size of each part of the tank. The scale of height to diameter of the tank is about 1.7 to 4.
Fermentation tanks usually are equipped with two sets of agitators. The distance between the two sets of agitators (S) is about three times as the diameter of the agitator. For large-scale fermentation tanks or those that have high liquid depth (HL), they can install three or more sets of agitators. It will be better if the agitator at the bottom is close to the exit of air dust, and the distance to the bottom of the tank (C) equals to the diameter of the agitator (Di), but could not be less than 0.8 times of Di, otherwise it will affect the cycle of liquid.
Fermentation tanks usually are equipped with two sets of agitators. The distance between the two sets of agitators (S) is about three times as the diameter of the agitator. For large-scale fermentation tanks or those that have high liquid depth (HL), they can install three or more sets of agitators. It will be better if the agitator at the bottom is close to the exit of air dust, and the distance to the bottom of the tank (C) equals to the diameter of the agitator (Di), but could not be less than 0.8 times of Di, otherwise it will affect the cycle of liquid.
Technical parameters of fermentation tank
Nominal Volume (m³) | Diameter of internal tank (mm) | Mixing shaft rotational speed (rpm) | Mixing shaft power (kw) |
10 | 1800 | 160-260 | 17-22 |
15 | 2000 | 160-260 | 20-30 |
... | ... | ... | ... |
200 | 4600 | 140-240 | 215-360 |
Technical parameters of fermenting and seeding tank
Nominal Volume (m³) | Diameter of internal tank(mm) | Inner tank height (mm) | Mixing shaft rotational speed(rpm) | Mixing shaft power (kw) |
0.05 | 300 | 700 | 300-350 | 0.55 |
0.1 | 400 | 800 | 300-350 | 0.75-1.1 |
0.2 | 500 | 1000 | 280-340 | 0.75-1.5 |
... | ... | ... | ... | ... |
5.0 | 1400 | 3200 | 180-220 | 7.5-18.5 |
Design / Calculation Software
You May Like
ANFD Paddle Dryer Double-Cone Rotary Dryer Vacuum Dryer
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, etc.
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, etc.
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
➤Scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
Company Profile
Похожие товары

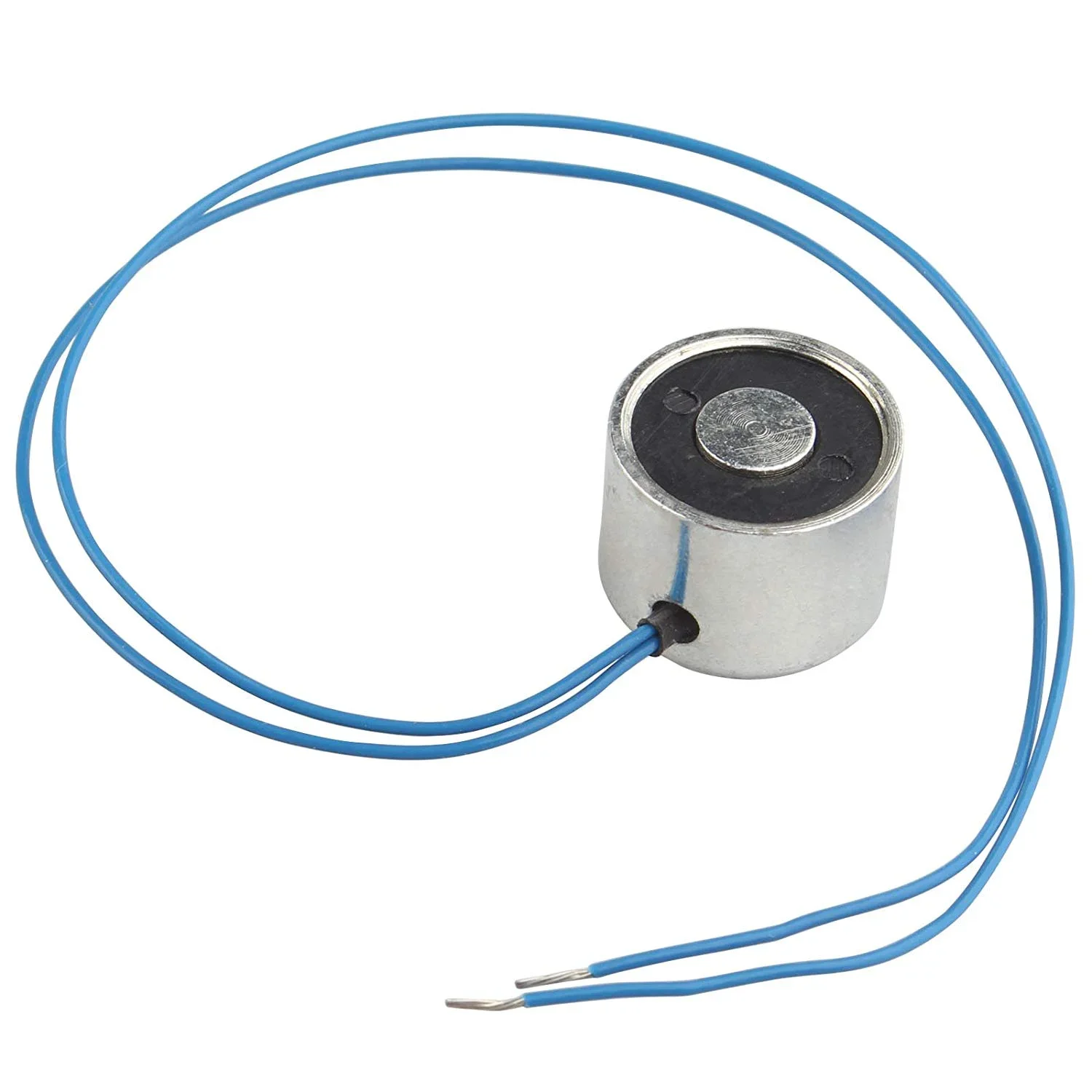

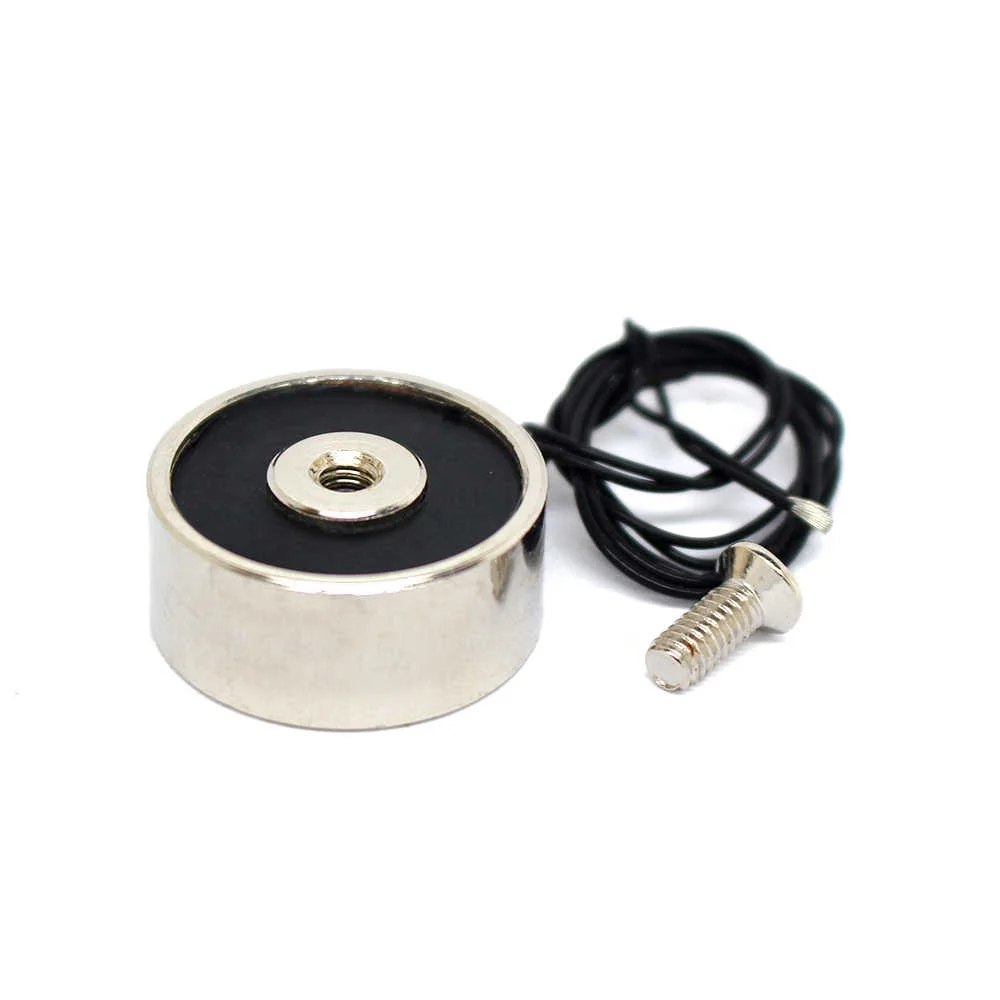

Электрический подъемный магнит, электромагнитный подъемник с круглой присоской, 24 В постоянного тока, 5 кг
2,22 $ - 3,17 $

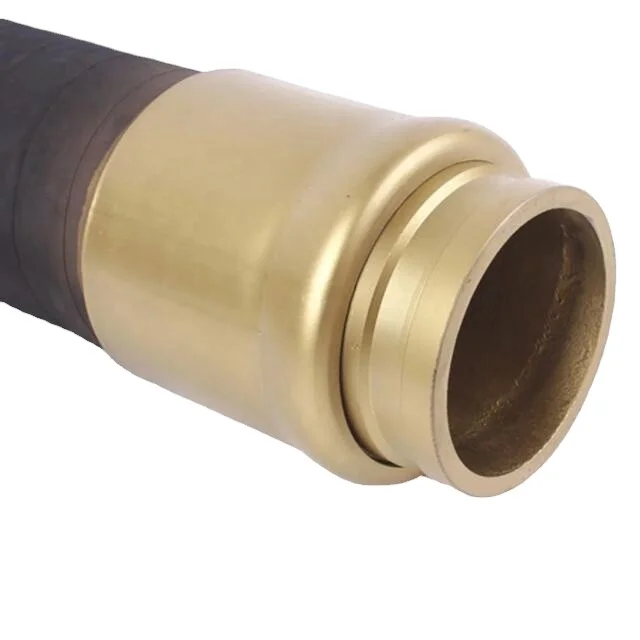

DN125 5 дюймов 3 м 85 бар два фланца sk148 строительная техника шланг для бетононасоса
107,00 $ - 150,00 $
Лидер продаж на Amazon, кабель для iPhone, 3 фута, 6 футов, 10 футов, нейлоновый плетеный кабель, USB-Зарядка для iPhone
Популярный зажим для дисплея, пластиковый держатель для ценников, держатель для знаков, настольная подставка для рамок
1,80 $ - 2,00 $
Электрический электромагнитный подъемник, 36 В постоянного тока, 10 кг, держатель с круглой присоской
3,17 $ - 3,97 $
Силиконовый защитный чехол IMD с цветочным принтом, подходит для iphone 13 pro max, чехол для мобильного телефона iphone 12 pro
0,94 $ - 1,41 $

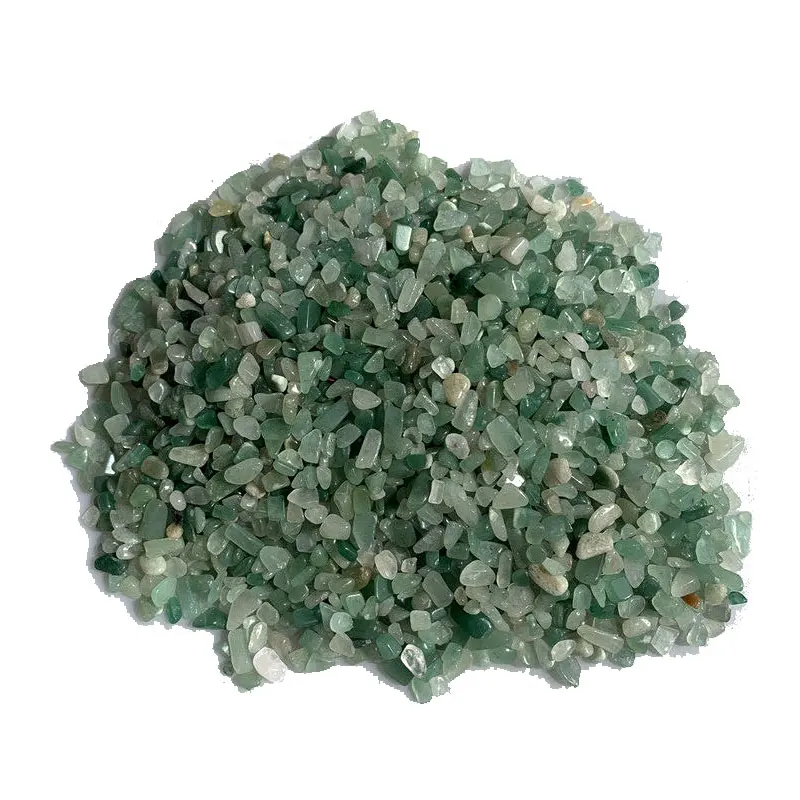

Натуральный Полированный зеленый авантюрин, Хрустальный гравий
