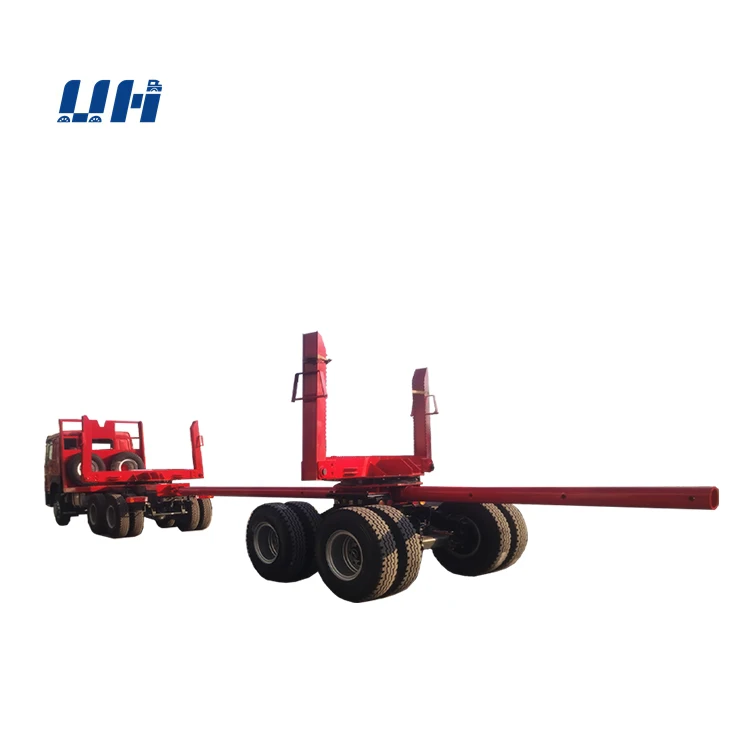

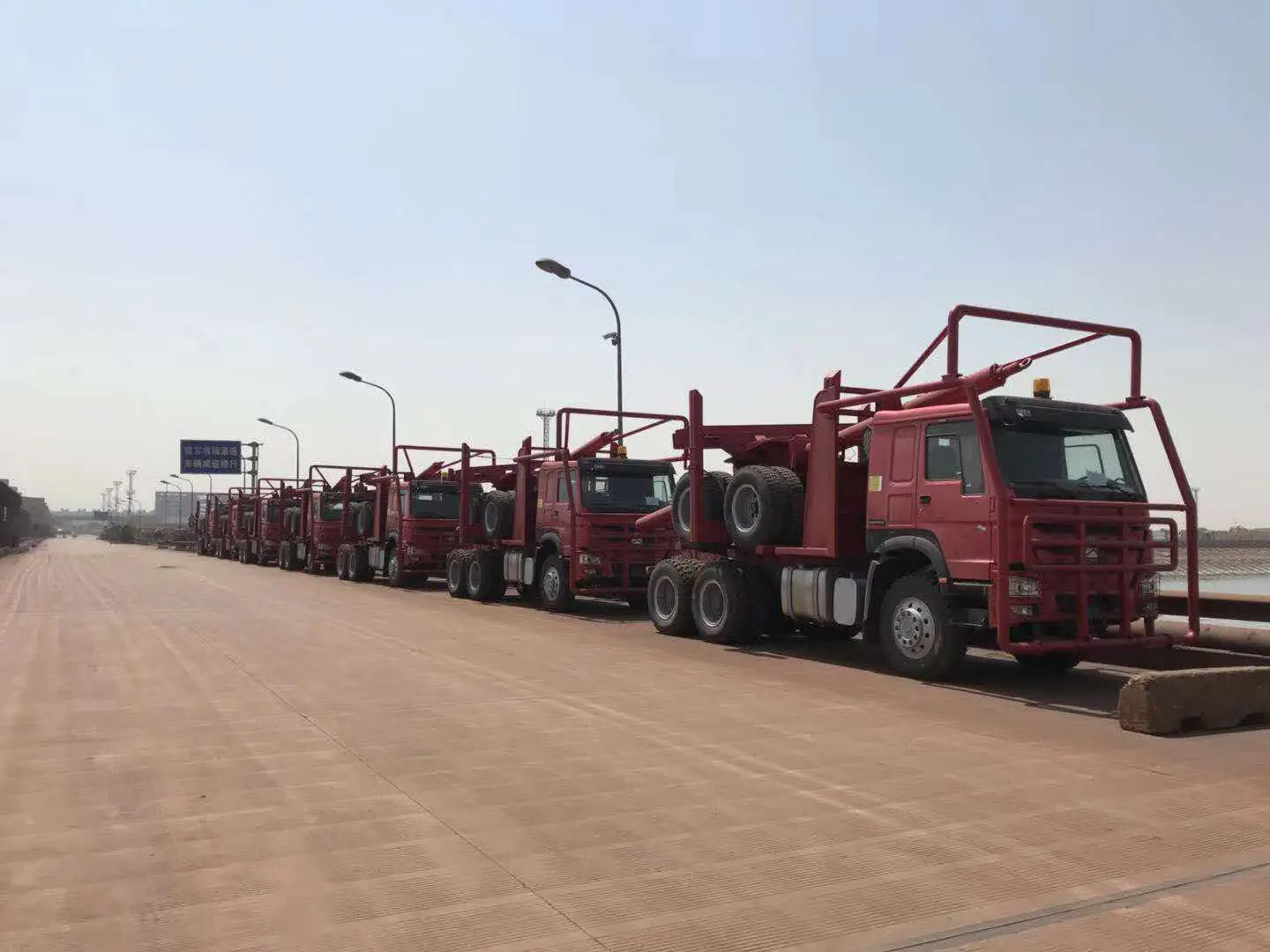

Logging Trailer
The flat top trailer is designed for use in stevedoring and transporting of wood only.
AXLE | FUWA, BPW |
TIRE | 12r22.5 |
Dimension:
Length: 11,800 mm (approximate)
Width: 2,480 mm (including side pocket)
King Pin Location: 800 mm from the front face of the front bolster
Axle spacer: 6,945mm + 1,350mm + 1,350mm
Fifth Wheel Height: 1,250mm with the chassis level
Landing Gear location: 2,545mm behind the king pin location
(The above dimension will be adjusted according to the tractor specification. )
Weight:
Tare Weight (Tolerance 0~-4%): approximate 6,500 kg
Max. Payload: 40,000 kg
OEM Parts Configuration:
King Pin: 3.5” exchangeable (bolted) king pin, Supplier:JOST. Made in China.
Landing Gear: 2 speed road side winding with sand shoe. Lifting capacity 25T. Type: JOST, Made in China.
Suspension: Mechanical suspension. 8 pieces springs (90mmX16mm per pcs). Made in China.
Axles: 150x150 square axle with 13 tons capacity. Brake: S420x180, Wheel fitting 10xM22x1.5 ISO/ PCD335/281. Supplier & type: BPW. Made in China..
Rims: 8.25x22.5, 10 Holes ISO, 13 pieces. Made in China.
Tires: 11R22.5, Radial tyre, 13 pieces; China Famous Brand. Option by Factory Made in China.
Brake System: Dual air brake system; Wabco relay emergency valve, none ABS brake system, Option by Factory.
Brake Chamber: 30/30 type on the rear axle, 30 type on the front axle
Electrical System: 24 volt lighting system with modular wiring harness, 7 pole plug
Tail/Stop light: Red.
Rear turn signal light: amber
License light: white
Side Maker Lamp: Amber.
PACKAGE : 2 UNITS LOG TRAILER PACK INTO 1X 40HC' CONTAINER
1. Payment: Deposit , 1 year balance credit after the B/L date.
2. Assemble : We assble the trailer on your company.
3. Working time : Our team working in 24 hours, we copy with all of your questions and after service.
CIMIC Container and trailer has longest history. Businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as the semi trailer. Its annual production capacity of containers and trailers exceeds 2.4 million .
1. Design code and certificates
ASME,GB,ISO,CE,ADR,BV,DNV
2. Productivity
100units per day
3. Logo
Design and painting as your request
4.Payment
50% deposit , 50% before shipment
5. Guarantee
Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.
Decal guarantee Seven (7) years.
7. Contact information
Email : artest_zhang2004 (@)aliyun.com or 313365674 (@)qq.com
Mobile phone: 008613920482102
Whatsapp: 008613920482102
Skype: 008613920482102
