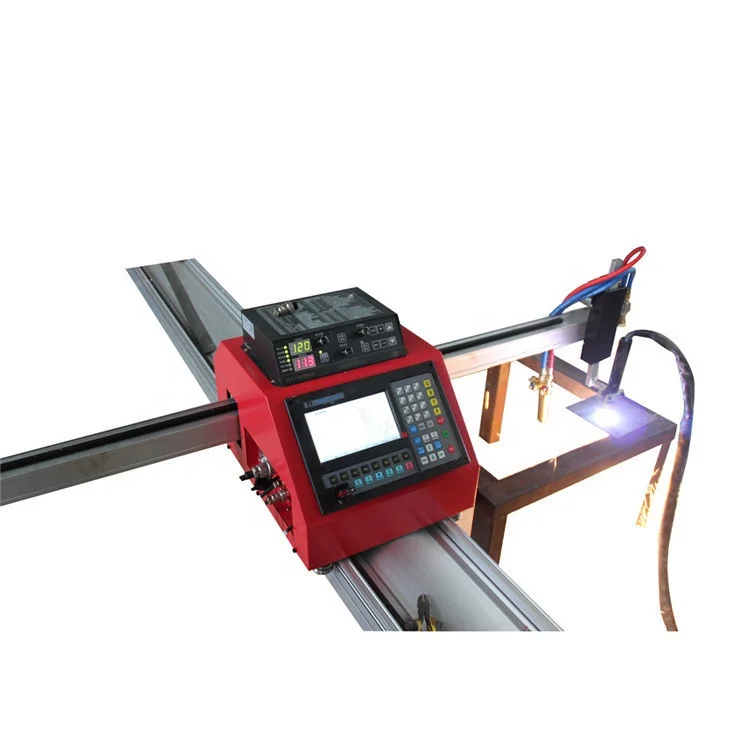

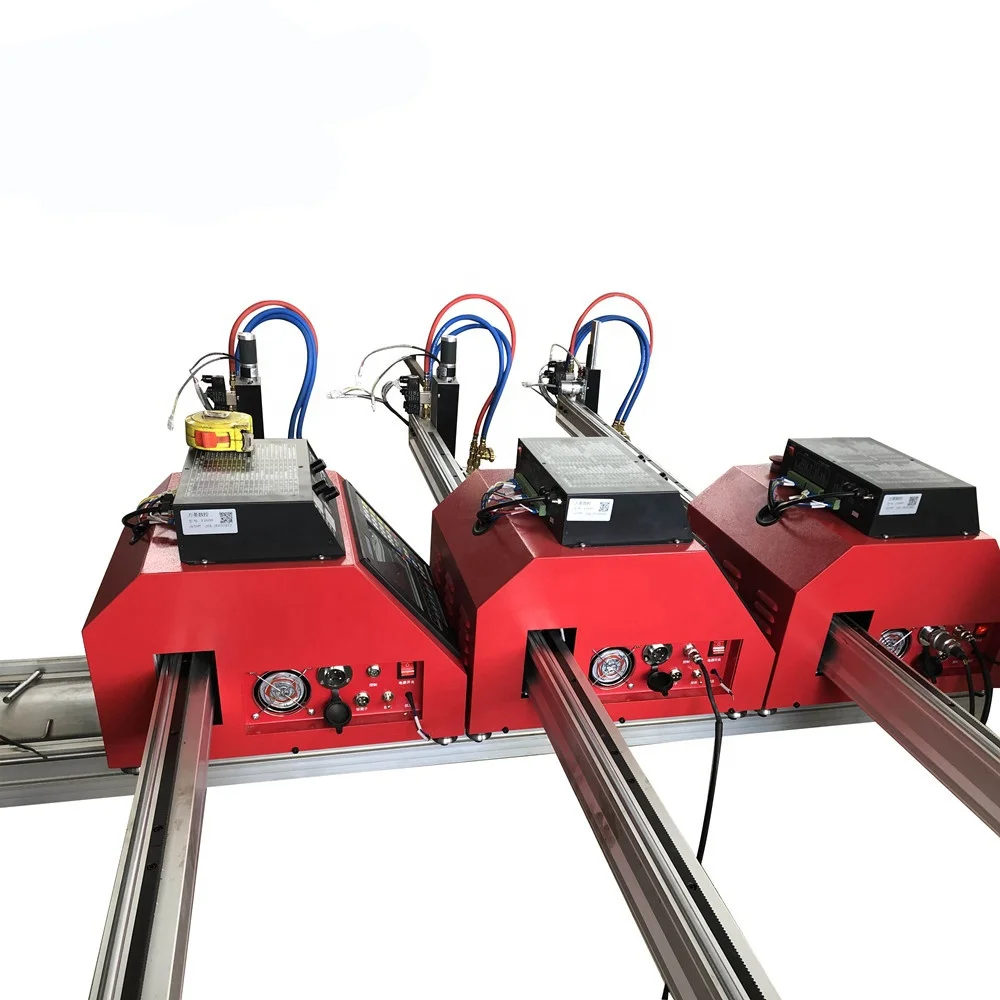

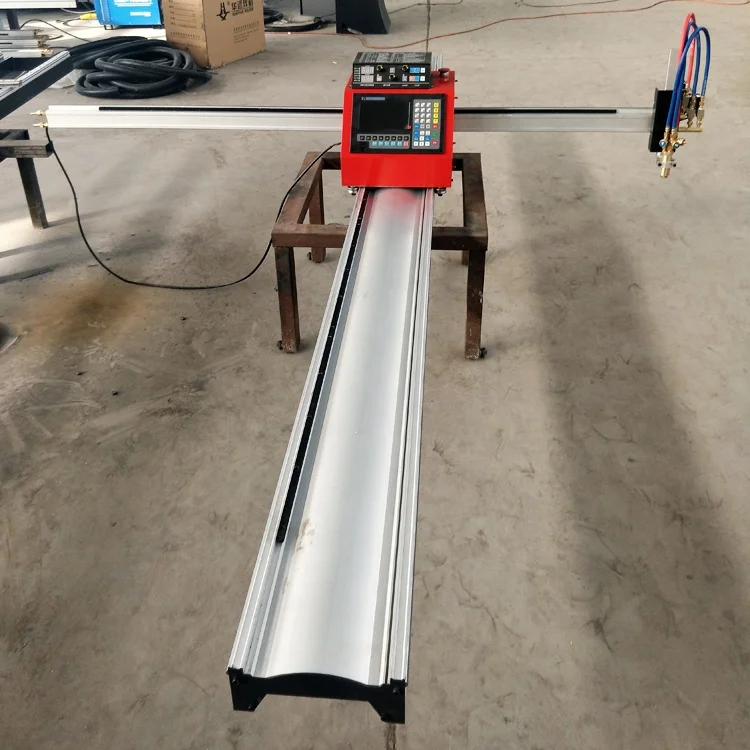

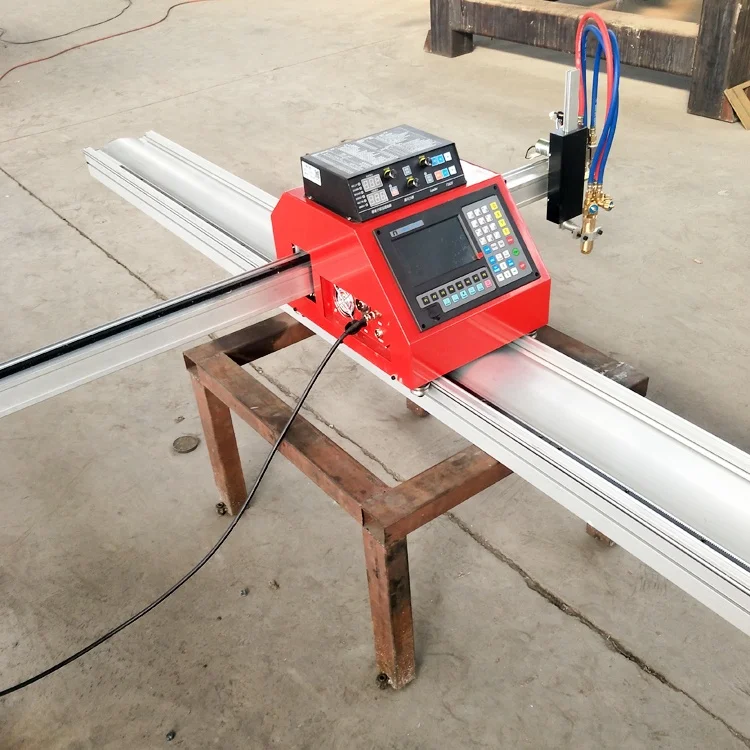

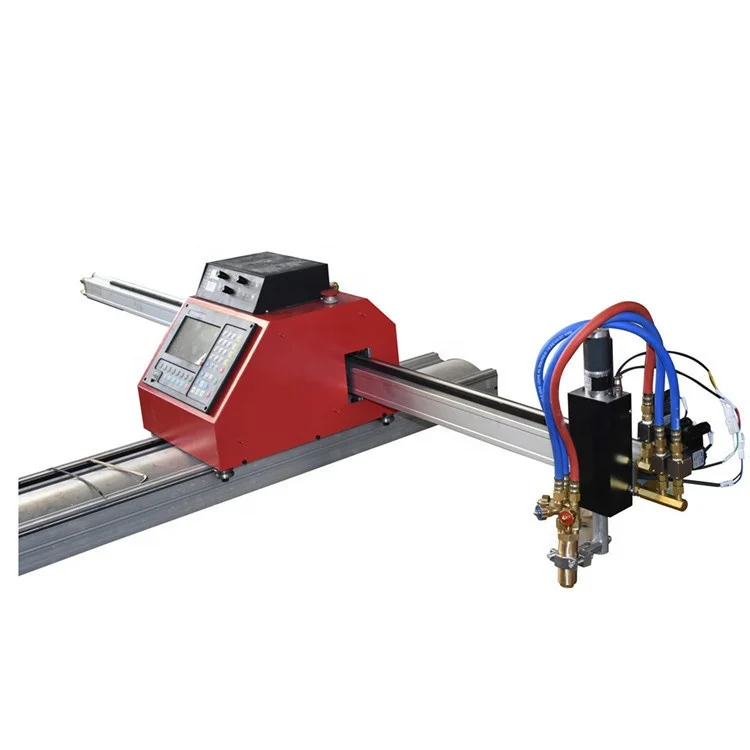

This industrial plasma cutting machine can cut any complex profiles on metals, which reduces machining again and improves productivity. It supports both plasma cutter and oxy-fuel cutting.

With its USB port, the data transmission from a PC is as easy as downloading photos from a digital camera.

Features:
It is compact design and lightweight, small size and easy to move. It is usable both indoors and outdoors.
The FastCAM programming software is easily learned and supports both drawing and nesting.

Application:

It can cut metal plates such as carbon steel, stainless steel, copper, aluminum etc.
It is a replacement of hand-held flame torch, hand-held plasma cutter, profile and pantographic shape cutting machines.

Technical Parameters:

Numercial Control System: FLCNC brand

Functions:

l Compact keyboard design and easy to input files.

l Shape have some operations such as Proportion, Rotate, and Mirror.

l Shape can be arrayed in matrix, interaction, stacked modes.

l Steel plate can be adjusted according to any steel side.

l Coordinate system can be customized to support two dimensional coordinates of all eight kinds.

l All input and output port type and the number can be customized

l Self-diagnostic function, to diagnose the key status and all the IO status, facilitate inspection and debug.

l Provide a front USB interface for copying files.

l System can be upgraded by USB interface easily, and we provide lifetime upgrade service.

l All functions and techniques can upgrade online and don’t worry about the after sale service.

l Import and export files by single or all files.

l Parameters backup and parameter restore.

l Support the Flame, Plasma, Marker and Demonstration four kinds of mode.

l Including various types of processing parameters to meet the needs of different processes.

l Flame and Plasma are separated in the control IO ports.

        l Support THC(Torch Height Control), two-level preheat, three-level pierce in flame mode.

Torch Height Control: Automatic, FLCNC brand

Main Features:

l Use Keys and digital buttons for parameter adjustment and operation, easy using.

l Inner arc voltage dividing PCB, covered by metal all angle, compact size, better anti-interference.

l Arcing relay and arcing ok relay adopt Omron power relay, stable working.

l Input signal real-time electric level can be observed during all working process.

l Different work process closured independently, make sure no wrong operate.

l In the cutting process, can real-time monitor if arcing real happens. If arcing break in the middle way, THC will inform CNC system and close arcing relay, avoid blank arcing under arc breaking.

l In the process of automatically THC, make sure actual arcing always follow set arc, without static difference.

l Arc voltage set value can be changed, to adjust the cutting torch height during cutting.

l Collision signal can feedback to CNC system, avoid CNC system running after collision.

l After finished cutting, the THC will automatic hoisting cutting torch, hoisting height can be set freely.

Plasma Power Source: Any brands

HONEYBEE brand portable CNC Cutting Machine is compatible with any brands of plasma.

Program Software: FastCAM in English

This is a fully automated system with a high level of automation and a focus on saving time. Which is based on AutoCAD drawing. The software is easy to learn can can automatically convert the AutoCAD drawing int to  G-code file, and then transfer G-code file into CNC cutting mahcine by USB key which is convient to operate.
