M & T резервуар для горячей воды мини солнечного теплового насоса инвертор кондиционер

M & T резервуар для горячей воды мини солнечного теплового насоса инвертор кондиционер

Категория: >>>
Поставщик: Guangzhou Sst Heating Energy Co. Ltd.Guangzhou Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

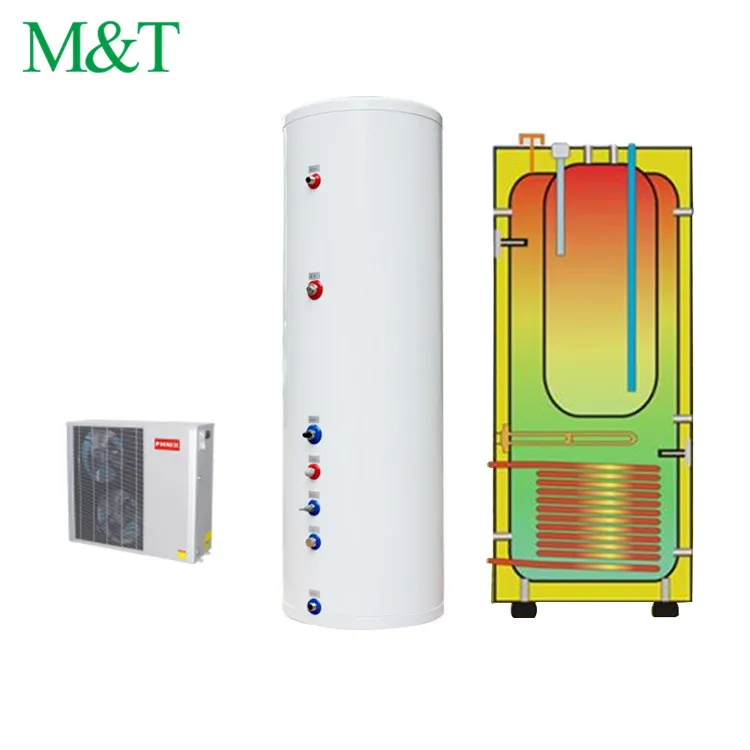

M&T hot water tank for mini split solar heat pump inverter air conditioner

2021.7_01 photobank (2).jpg

Advantage:

The largest leading manufacturer of stainless steel hot water tank and the No.:1 duplex stainless steel water tank and butt welding technology producer in China with more than 12 years experiences,we are good at OEM and ODM.

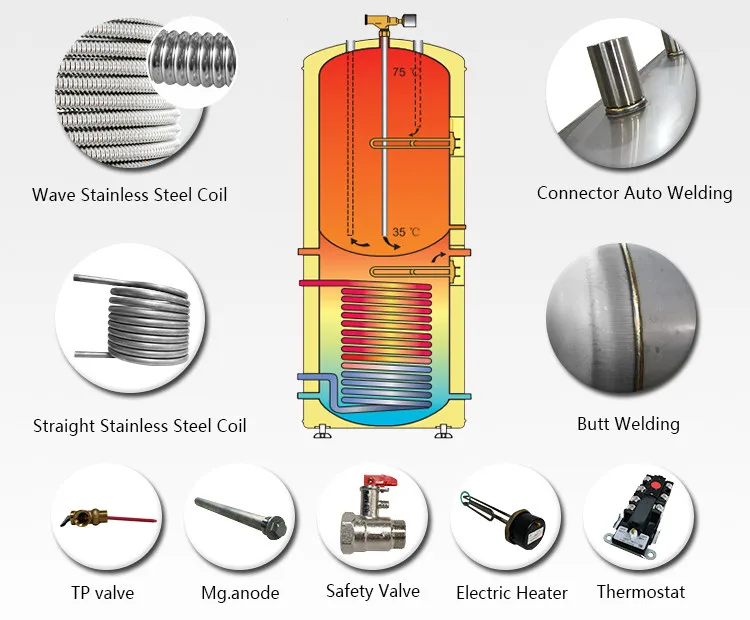

• combined with solar heation system, heat pump, electrical heater and other heating source

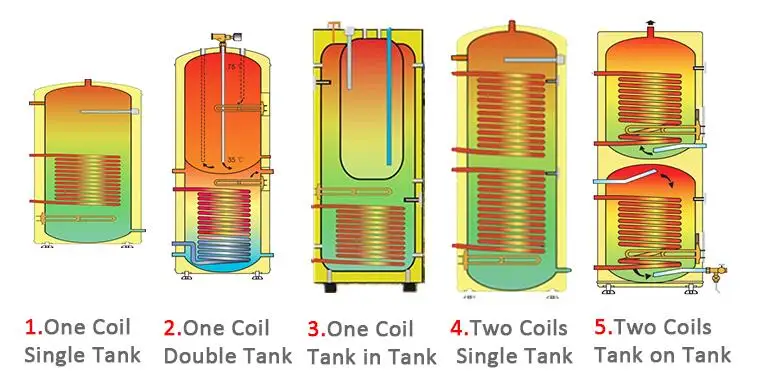

• Optional outer copper coil or inner stainless steel coil;

• Optional coils to fast the efficiency of heat transferring;

• Optional water connections according to customers requests;

• High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency

1-2 (1).jpg 1-2 (2).jpg photobank(13).jpg

Capacity	L	100	200	300	400	500	600	800	1000
Inner tank diameter	mm	Φ370	Φ470	Φ500	Φ550	Φ600	Φ650	Φ700	Φ800
Out shell diameter	mm	Φ470	Φ560	Φ600	Φ650	Φ700	Φ760	Φ800	Φ900
Inner tank material	mm	SUS304 / SUS316L / Duplex2205 / Duplex2304
Out shell material	mm	galvanized steel with painting / stainless steel / PU
Out shell color		white / silver-grey / blue /red / golden / stainless steel
Max.working pressure	bar	6	6	6	6	6	6	6	6
Max.testing pressure	bar	10	10	10	10	10	10	10	10
Max.running temperature	℃	90	90	90	90	90	90	90	90
Heating loss	W/K	0.65	0.72	0.89	1.02	1.15	1.26	——	——
Standing loss	W	30	33	40	46	52	57	——	——
ERP Class		A	A	A	A	A	A	——	——
Electrical heater	kw	1.5	1.5	1.5	1.5	3	3	3	3
Mg.Anode	mm	*Φ22300**
Water connection		G / BSP / NPT 3/4"				G / BSP / NPT 1"
Packing size	mm	L:540 W:540 H:1170	L:630 W:630 H:1440	L:670 W:670 H:1630	L:720 W:720 H:1920	L:780 W:780 H:1930	L:850 W:850 H:1940	*Φ9002200**	*Φ9802420**

Company Information

photobank(4)

Technology leader: is the largest stainless steel water tank leading manufacturer and exporter and the No.:1 duplex stainless steel water tank and butt welding technology in China.

The leading technology: the international advanced water tank production equipment (such as laser cutting machine, Japan AMADA 357 CNC machines, ABB automatic Robert machine, USA automatic straight and connector welding machine, Italy automatic butt welding machine), and the Germany Advanced welding technology improves not only the stability of product quality, but also the great corrosion resistance and long service lifetime.

Certification: ISO9001 quality system, the French NF certification and Alibaba third party SGS / BV certified factory, the highest standard of stainless steel tank: Australia WaterMark, the European Union CE and ERP. Besides, we are the first and may be the only one factory to obtain the watermark certificate of duplex stainless steel tank.

SST Heating Energy Co., Ltd has been offering OEM&ODM service for customers since 2006. Approved by ISO9001 quality system, the European Union CE and ERP, the French NF certification and the highest standard of stainless steel tank: Australia Water Mark, instant electric water heater, mini instant storage container and Backup water heater for SPA, etc., are mainly exported to Europe, North America, Australia and Asian countries

We insist in 100% Leakage Testing, Full-automatic productions to ensure product quality. And SST is always committed itself to customize products for you, even the capacity, the shape, or even the design of the products you want with our 14 years experience in this industry.
