Машина для розлива бутылок 10 м 15 мл 30 50
- Категория: >>>
- Поставщик: Guangzhou ABCDPACK Machine Co. Ltd.
Сохранить в закладки 62481542763:
Описание и отзывы
Характеристики
Product Overview

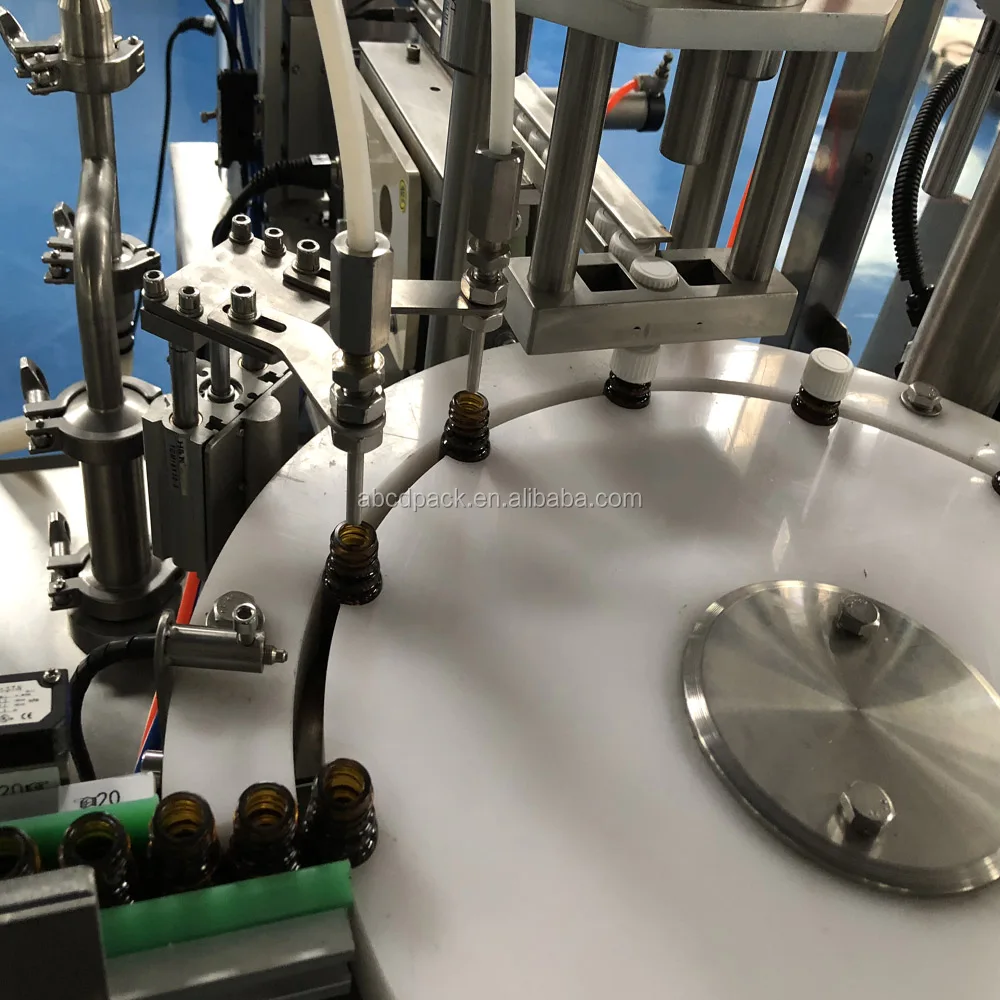

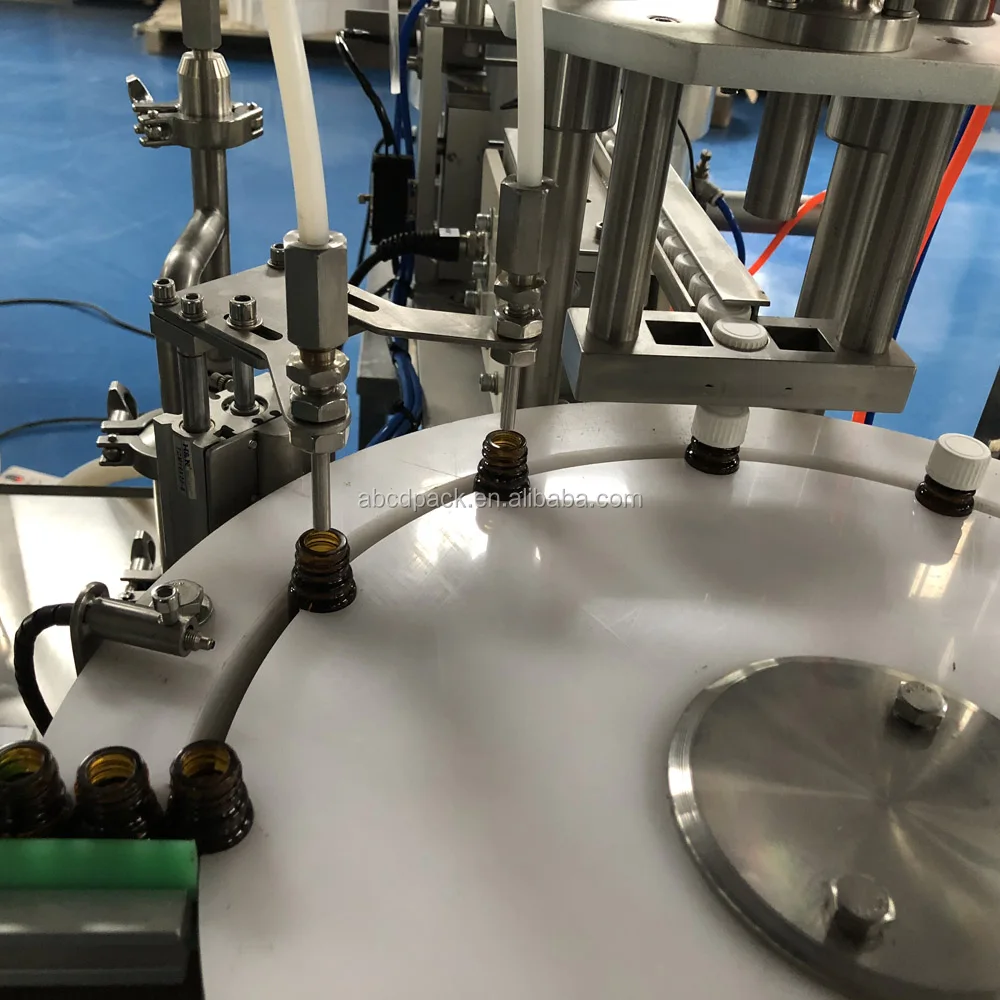

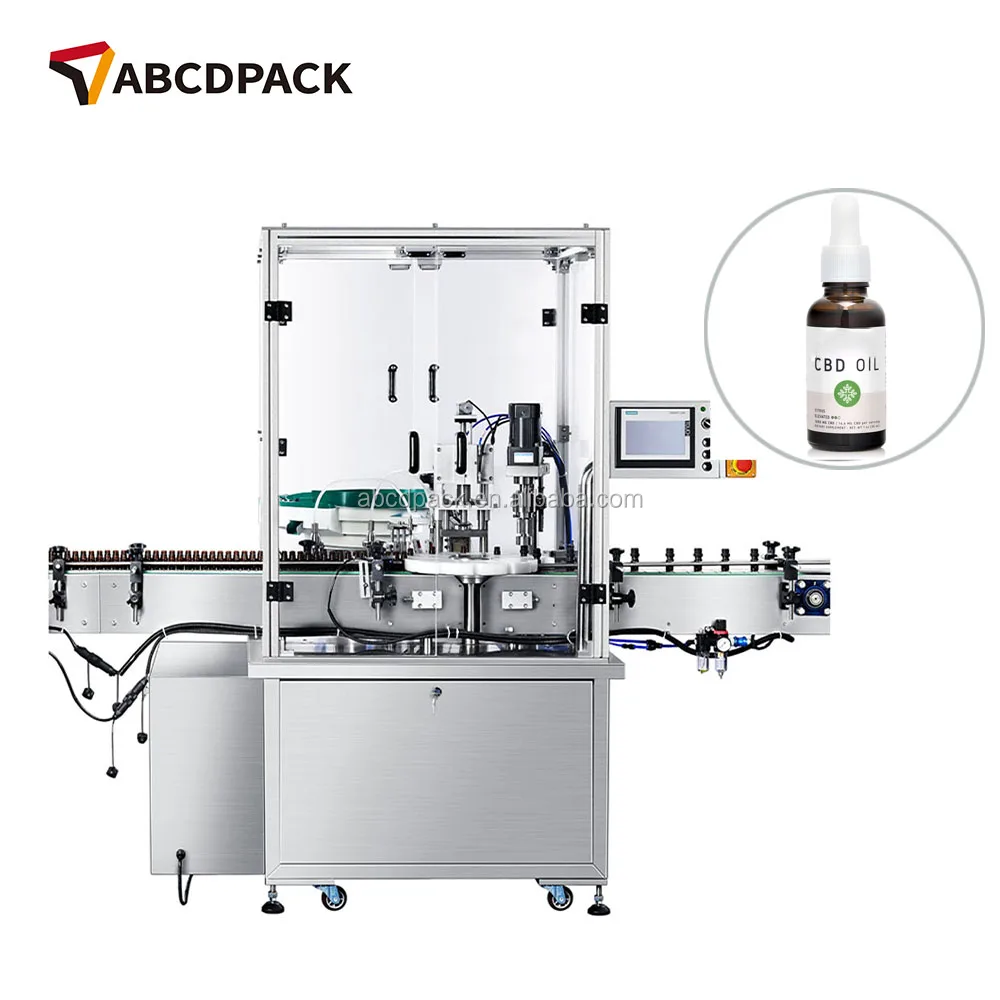

Automatic Bottle Filling Machine 10m 15ml 30ml 50ml CBD Oil Tinctures Glass Dropper Bottle Filling Machines
Products Specifications

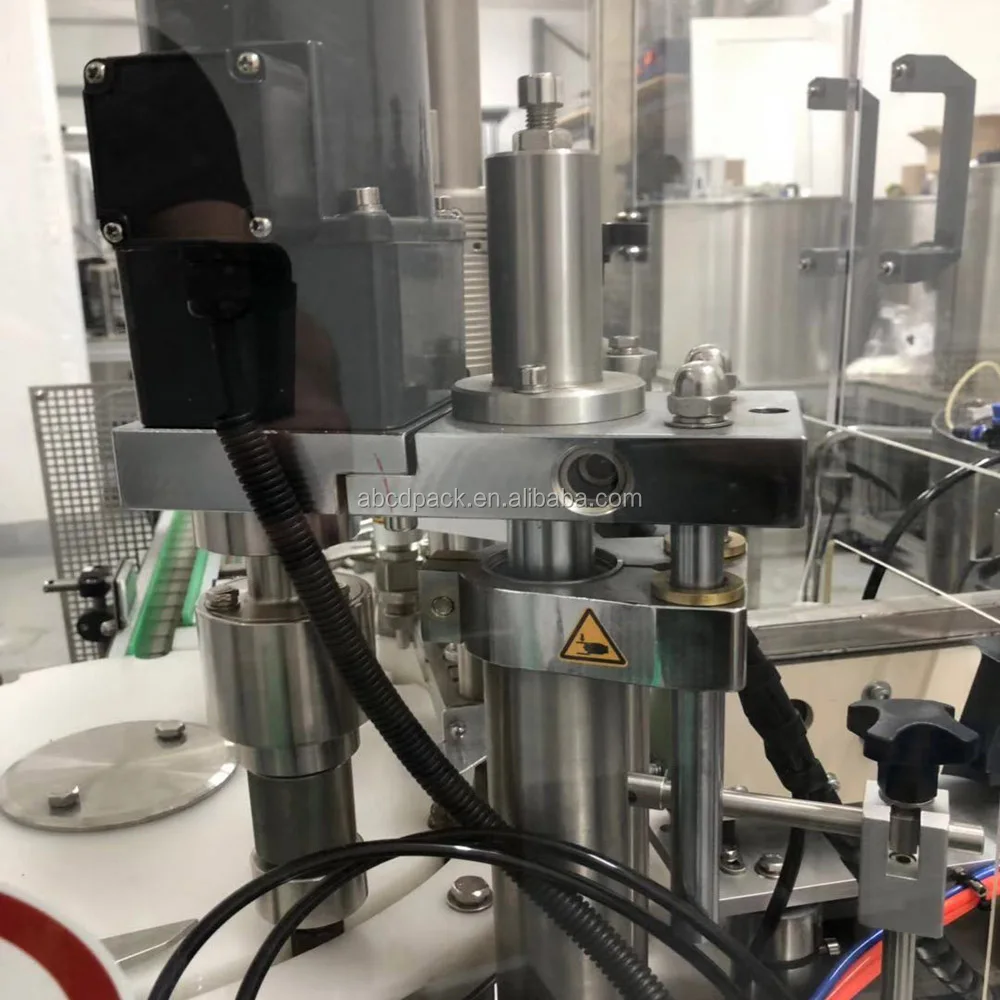

1. Panasonic servo digital screw torque control and Panasonic servo filling system.

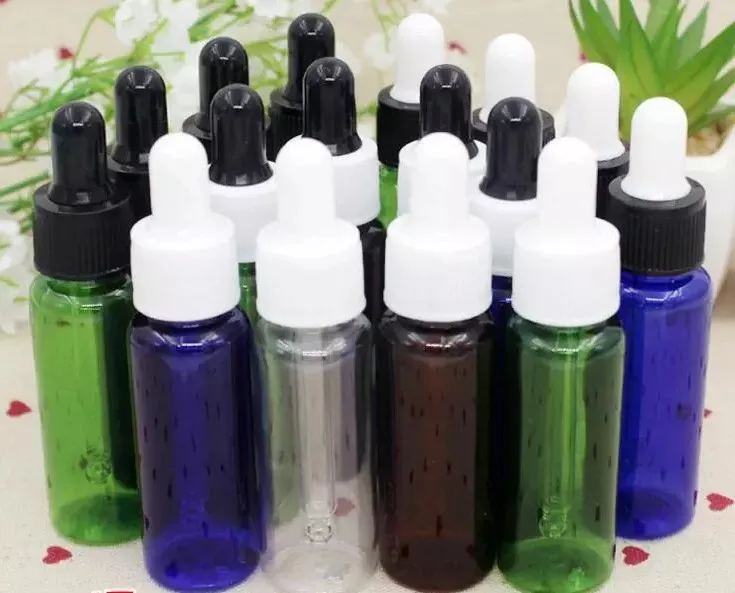

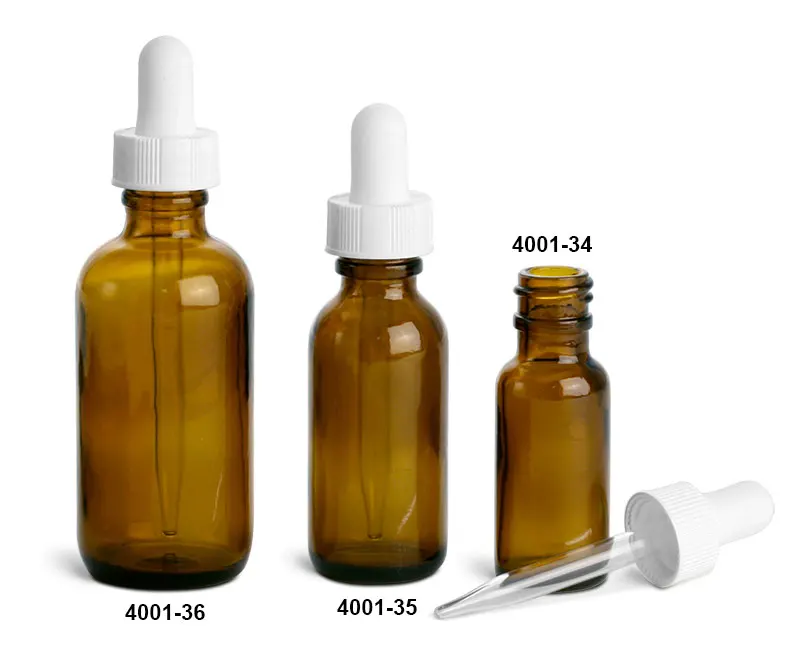

5. Small bottle filler and caper suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid,aseptic drops and so on.
2. Small bottle filler and caper suitable filling volume is 5-60 ml.
3. Filling speed about 1000-3000 per hour.
4. Siemens industrial control system.
4. Siemens industrial control system.
5. Small bottle filler and caper suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid,aseptic drops and so on.

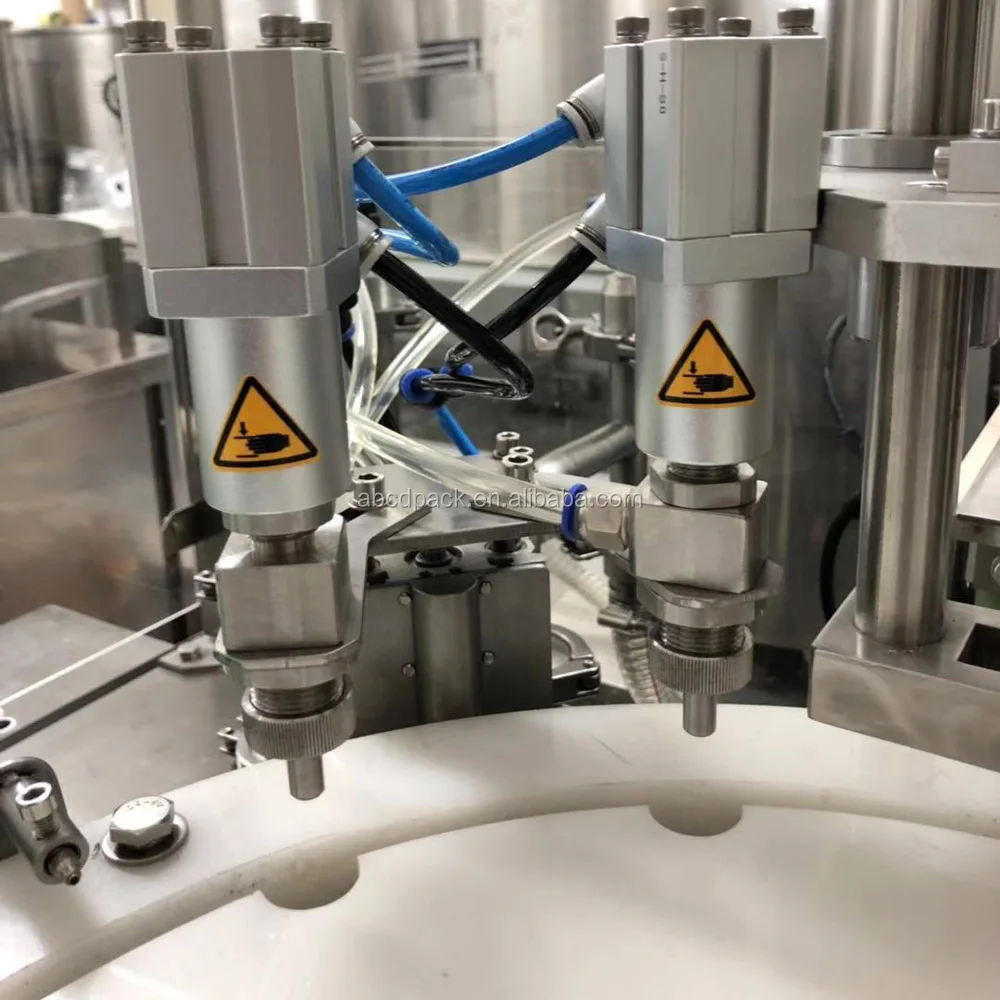

6. Filling nozzle without leak and drip.
Main parameters of the machine | ||
Name and model | AXGZ-SX-1 Small capacity filling machine | |
Max filling speed | 1000-1800 pcs/hour | |
Applicable bottle diameter size | Φ20 ≤D≤Φ50mm | |
Applicable bottle height size | 30≤H≤100 mm | |
Filling accuracy | ±1ml | |
Voltage | AC220V, single phase, 50/60HZ | |
Power | 1.2KW | |
Working pressure | 0.6MP | |
Air consumption | 700L one hour(speed 1500 bottles/hour) | |
Net weight | 400 Kgs | |
Machine size(L*W*H) | 2000*1600*1900mm | |
Main construction and electrical products | ||
Object sensor | Keyence or Autonics or similar brand sensor | |
Cylinders | Airtac or similar china brand model | |

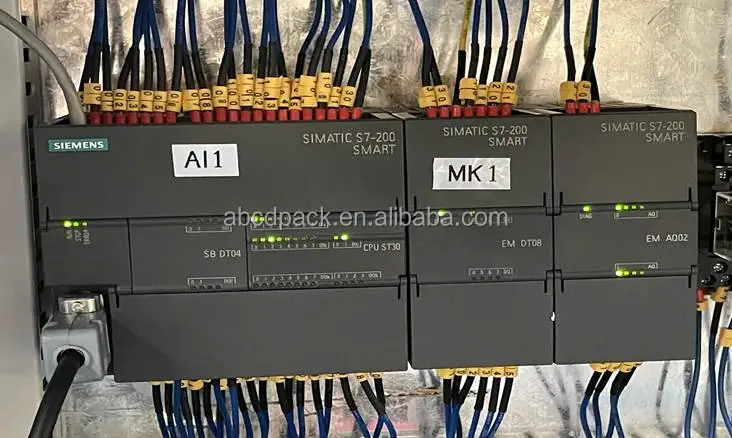

PLC | Siemens | |

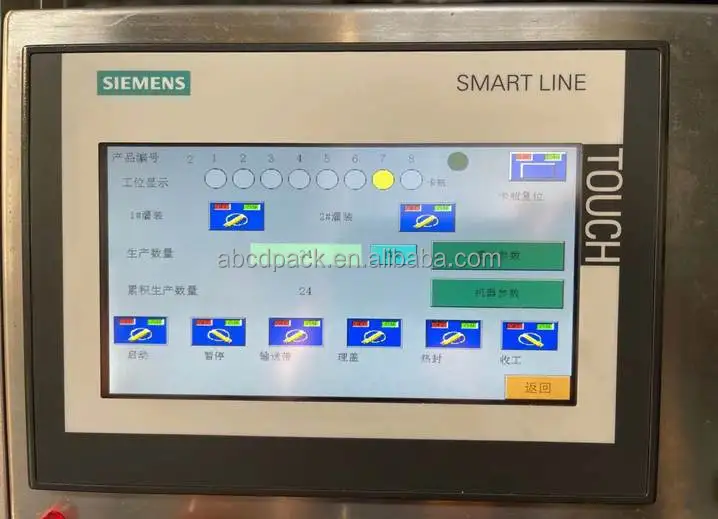

Touch screen | Siemens or Samkoon | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inner frame is normal steel | |
Material | SUS304 or SUS316 according to customer | |

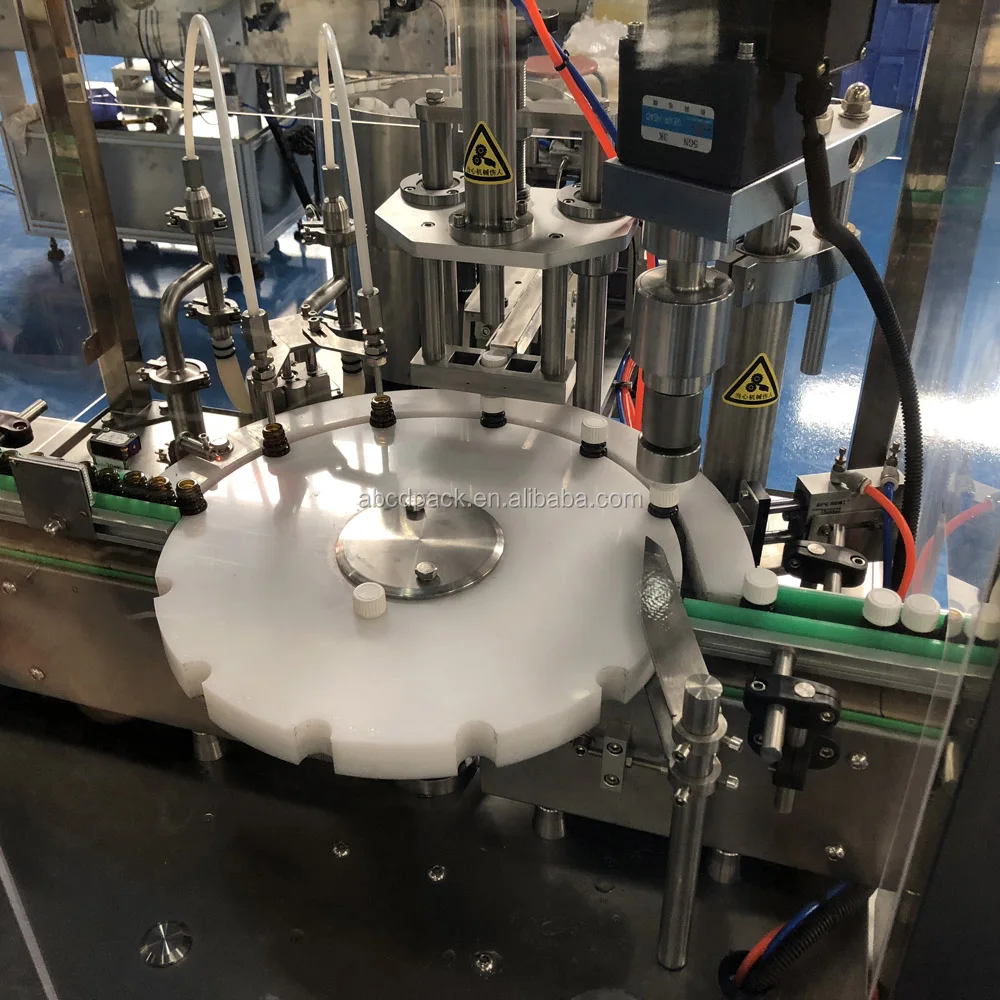

The mold can be replaced for different size of the bottle

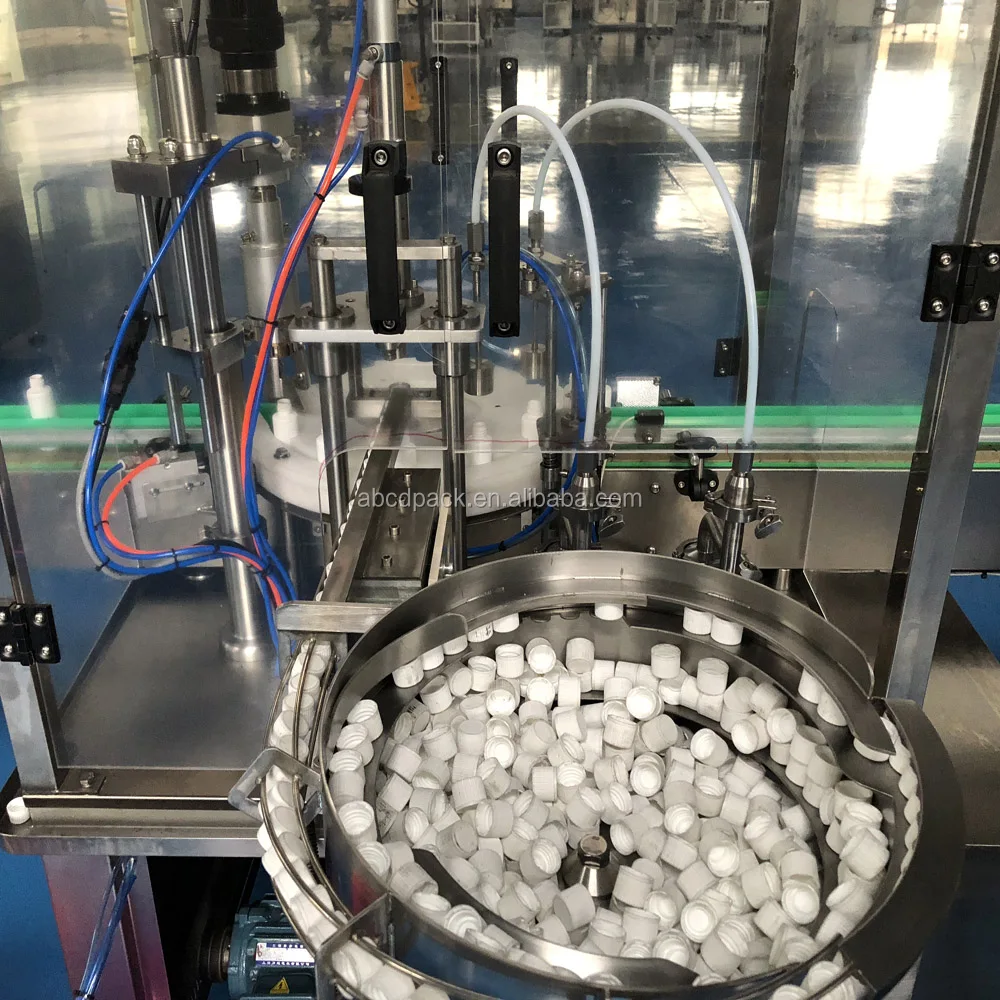

AUTOMATIC CAP FEEDING DEVICE
Simple use of structure, economical and practical.
Recommend Products
Production Process
Successful Project & Feedback
Packaging & Shipping
Packaging Details:
Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing,in case of damage in the course of carriage, we also can pack it according to clients' requirements.
Port: Guangzhou
Lead Time : 10-30 working days after payment.
Lead Time : 10-30 working days after payment.
Company Introduction
Guangzhou ABCDPACK Machine Co.Ltd
ABCDPACK LIMITED is an industry-leading manufacturer of automatic filling, capping, labeling, induction sealing and packaging machinery. We have an experienced research and development team that specializes in customized solutions.
Our professional team provides clients with comprehensive tailored solutions to fit almost any application for all kinds of
beverage, food, cosmetics etc, including liquid, paste, granules and powder type filling and packing machinery with mature
technique and first-class quality.
Our products, which sell well in mainland China, as well as many countries in Europe, America, Southeast Asia, the Middle East,obtains high reputation from customer. Because of our high quality, lower prices, fast speed delivery and satisfying services.
Base on our rich experience, high quality, perfect service, timely delivery, and competitive price, we believe that it must be a
pleasure cooperation once you choose us!
pleasure cooperation once you choose us!
Pre-sales Services:
1.Over 1,000 professional Machine video, give you direct feeling about our machine.
2.Free Machines' solution from our chief engineer.
Medium-sales Services:
ABCDPACK have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24hours.
3. ABCDPACK engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. ABCDPACK has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
1.Over 1,000 professional Machine video, give you direct feeling about our machine.
2.Free Machines' solution from our chief engineer.
Medium-sales Services:
ABCDPACK have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24hours.
3. ABCDPACK engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. ABCDPACK has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
FAQ
Q: What industry is your product suitable for?
Q: Where is your factory location? How can I visit there?
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 40 days; for the single product is about 10-25 days.We will deliver it on time as the date we agreed both side.
Q: What’s the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
Q: What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: Where is your factory location? How can I visit there?
A:Our factory is located in Guangzhou, China. You could visit us by high speed train or by plane). It’s only 20 minutes from our factory to Guangzhou South Train station .It’s only 45 minutes from our factory to Guangzhou Baiyun International Airport. then we could arrange a car to pick you up there.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 40 days; for the single product is about 10-25 days.We will deliver it on time as the date we agreed both side.
Q: What’s the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
Q: What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
