Product Description
Portable Laser Finger Touch Portable usb Interactive Whiteboard FP4
Product Description
Laser Image Calibration Technology (LICT)

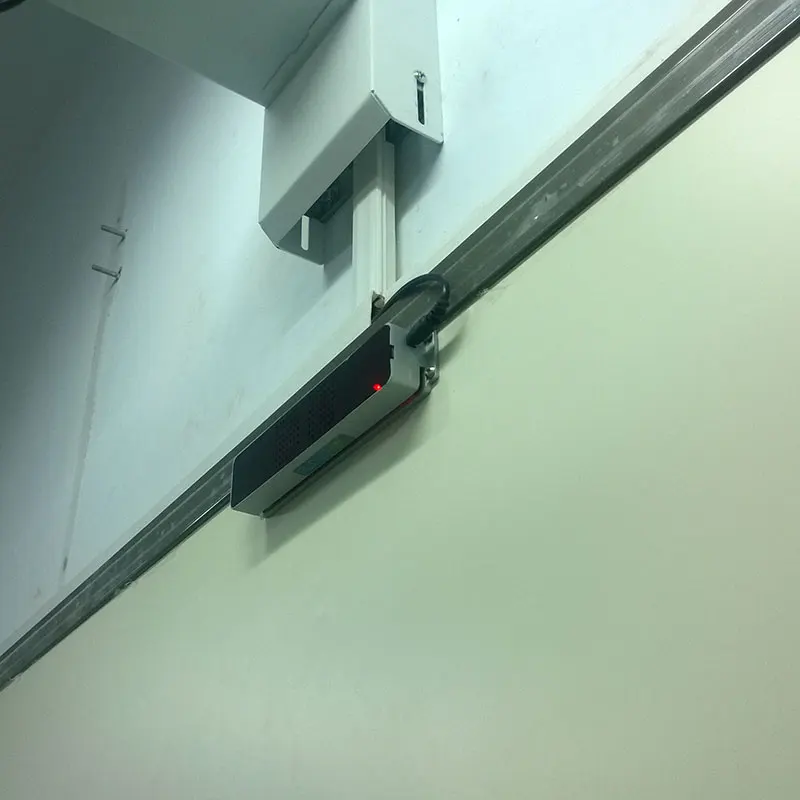

FP4Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the
surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface.
When the finger or any non-transparent object touch this virtual surface, the light will be reflected and detected by the sensor.
Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Laser Image Calibration Technology (LICT)
FP4Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the
surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface.
When the finger or any non-transparent object touch this virtual surface, the light will be reflected and detected by the sensor.
Computer will figure out the position of the mouse by accurate calculating the reflected light position.
Finger Touch Portable Interactive Whiteboard—FP4 Board | ||
Calibration | Automatic(5s) / Manual (25/36 points) | |
Automatic(5s) / Manual (25/36 points) | Gesture Recognition In Education Software:Write with single finger,Erase with palm, Two fingers for move,Two fingers away for zooming out and zooming in,Stay 2s with palm for opening spotlight,Double slap with palm for backing to desktop. In Windows:Max,Min windows,Zoom in or Zoom out or Rotate the picture, One finger as a scroll bar,Display all the windows,Shift windows. | |
Multi-touch | Ten points touch, write and eraser can do together. | |
Latency | <30ms | |
Filter | Software auto-control, enhance stability. | |
Minimum Active Size | 40 inch | |
Max Active Size | 100inch ( the room with light-proof curtain,excludes double screen ) | |
Technology | Laser Image Calibration Technology | |
Positional Accuracy | ±1 Pixel (Resolution: 4096*4096) | |
Aspect Ratio | 4:3;16:9;16:10 | |
Projection ratio | Ultra short throw:0.15, shortest installation distance:0.24m; Ultra short throw:0.21, shortest installation distance:0.34m; Ultra short throw:0.28, shortest installation distance:0.45m; Short throw:0.34, shortest installation distance:0.55m; Short throw:0.55, shortest installation distance:0.88m; Long throw:0.86, shortest installation distance:1.4m; Long throw:1.34, shortest installation distance: 2.2m. (Depends on 80” projection screen aspect ratio:4:3) | |
Laser Beam | 2units. | |
Wave of Laser | 940nm | |
940nm | 5w | |
Power of Laser Beam | 280mw*2 | |
Power Requirements | 3.3V/2A | |
Signal Refresh Rate | 120fps | |
Connect | The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just needs power. | |
Weight | 0.5kg | |
OS Requirement | Windows XP, Vista, Windows 7, Windows 8,Windows 10,Android | |
software | Calibration software(driver) and GLboard(education software) | |
Certification | CE, FCC | |

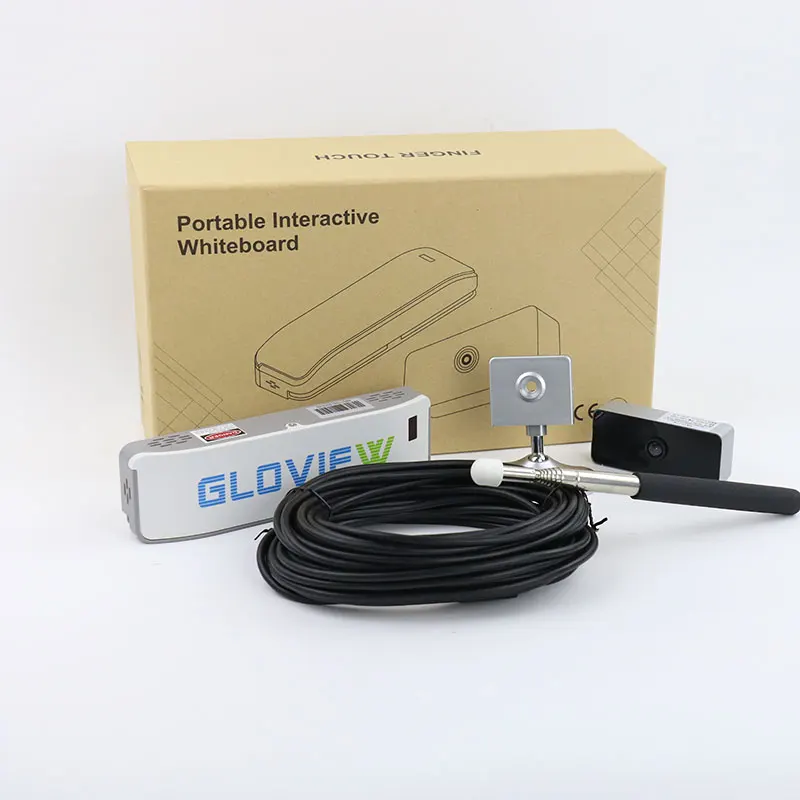

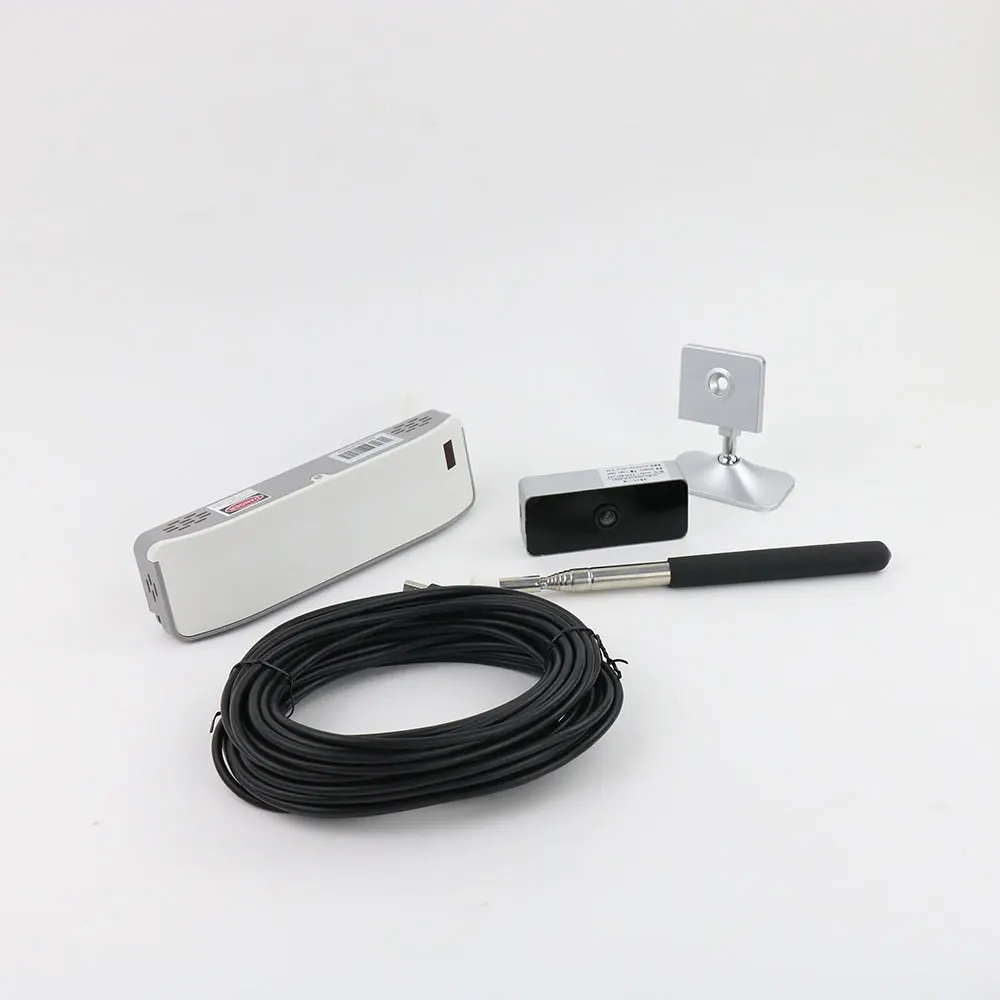

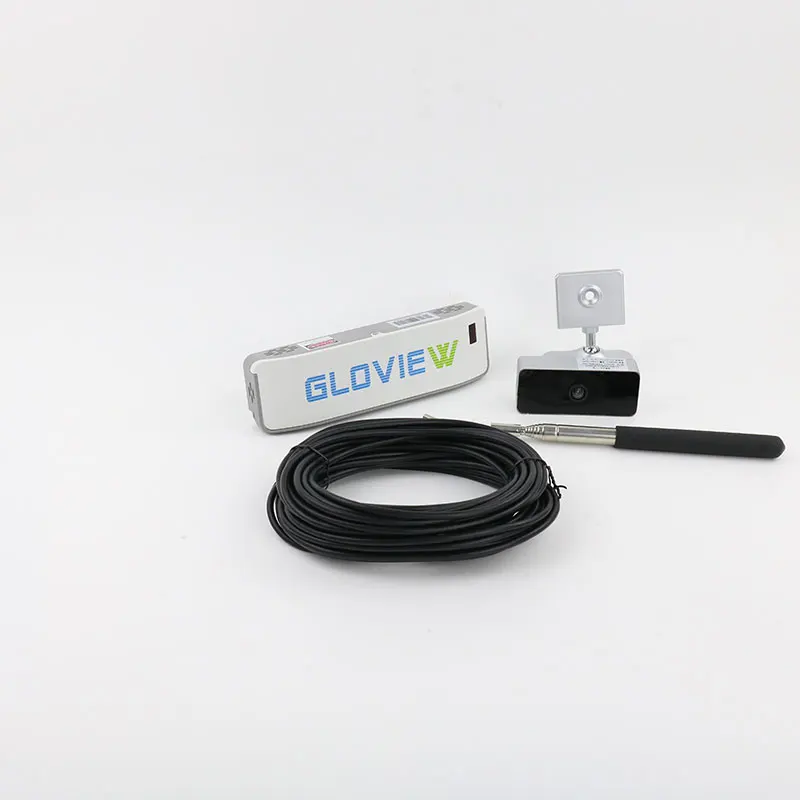

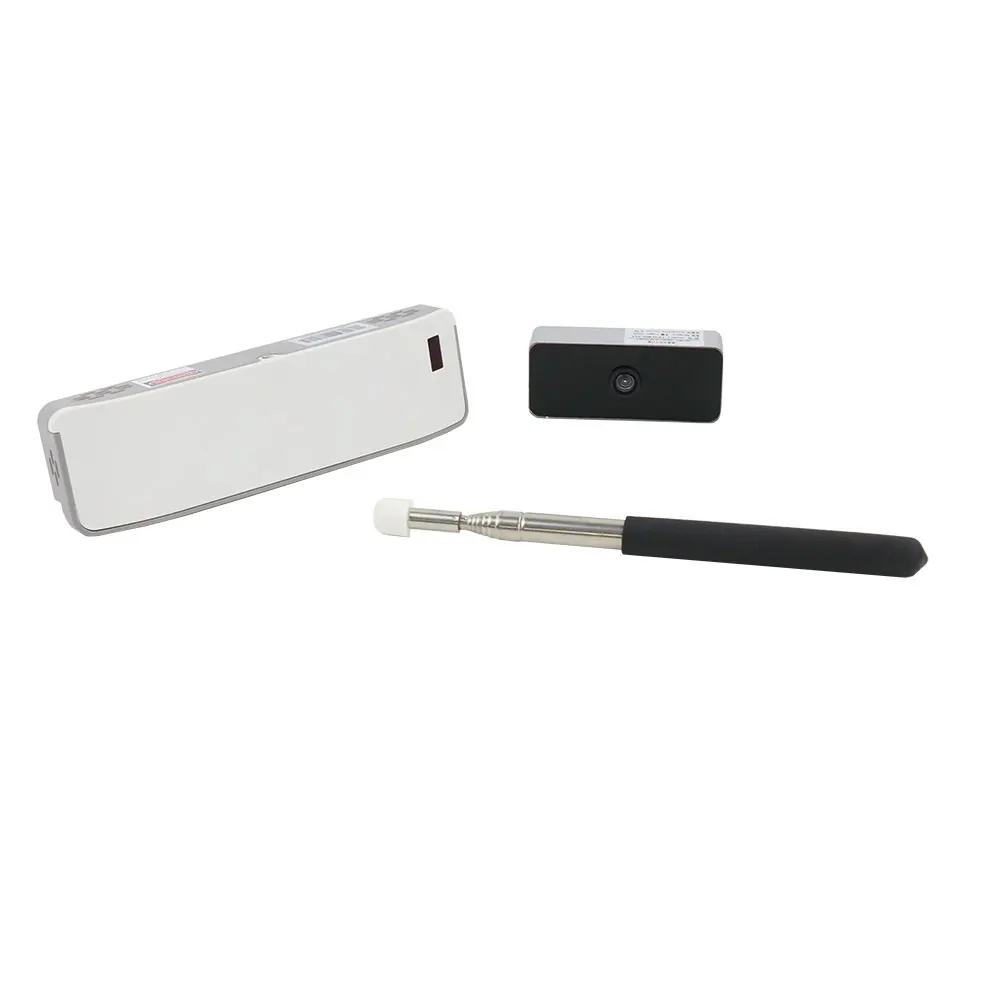

Package | 1. Sensor 2.Emitter 3.Mounts 4.USB cable(12m) 5.Pointer 6.Power Adapter(including 6m cable) 7. Manual 8. Magnets | |
