Цифровой монокулярный микроскоп FA0650 0 6 5.0X для промышленной проверки цифровой биологический электронный
- Категория: >>>
- Поставщик: Guilin FT-Opto Co. Ltd.
Сохранить в закладки 62483458353:
Описание и отзывы
Характеристики
Wholesale FM0650 0.6-5.0X industrial inspection digital monocular microscope
Product Description
● High-resolution and big zoom radio 1:8.3
● Parallel Optical System
● whole focus, uniform illumination
● Available to observe different objects by using LED illumination or fiber optic illumination
● Mounting size for focusing mount (holder) Dia. 39.6mm.
● Max compatible camera 2/3
● It can with Nikon, Olympus, Mitsutoyo standard screw thread endless far metallographical lens.
● CCD Adapter Magnification:0.3X,0.4X ,0.5X,0.75X,1X (Standard),1.5X,2X,3X.
● Auxiliary Objective Magnification:0.3X,0.5X ,0.6X,1.5X,2X.
● High Magnification infinity Plan Achromatic Objective Mag.: 5X,10X ,20X,40X,60X,80X,100X.
● High Magnification infinity Long working distance Plan Apochromatic Objective Mag.: 5X,10X ,20X,50X.
●5W LED ring light，0-100% brightness adjustable

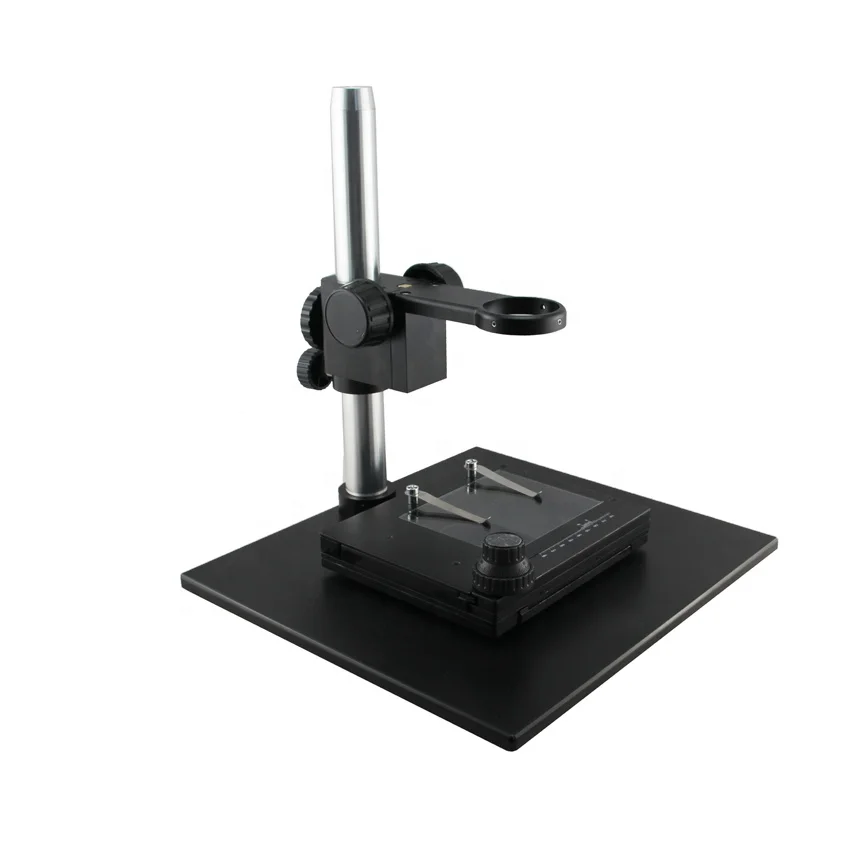

●Good quality 330*300 base size coarse focus post stand.
● Widely used in electric equipments, semi-conductor ,LCD,LED and ect. , for digital image observation, inspection and measurement.

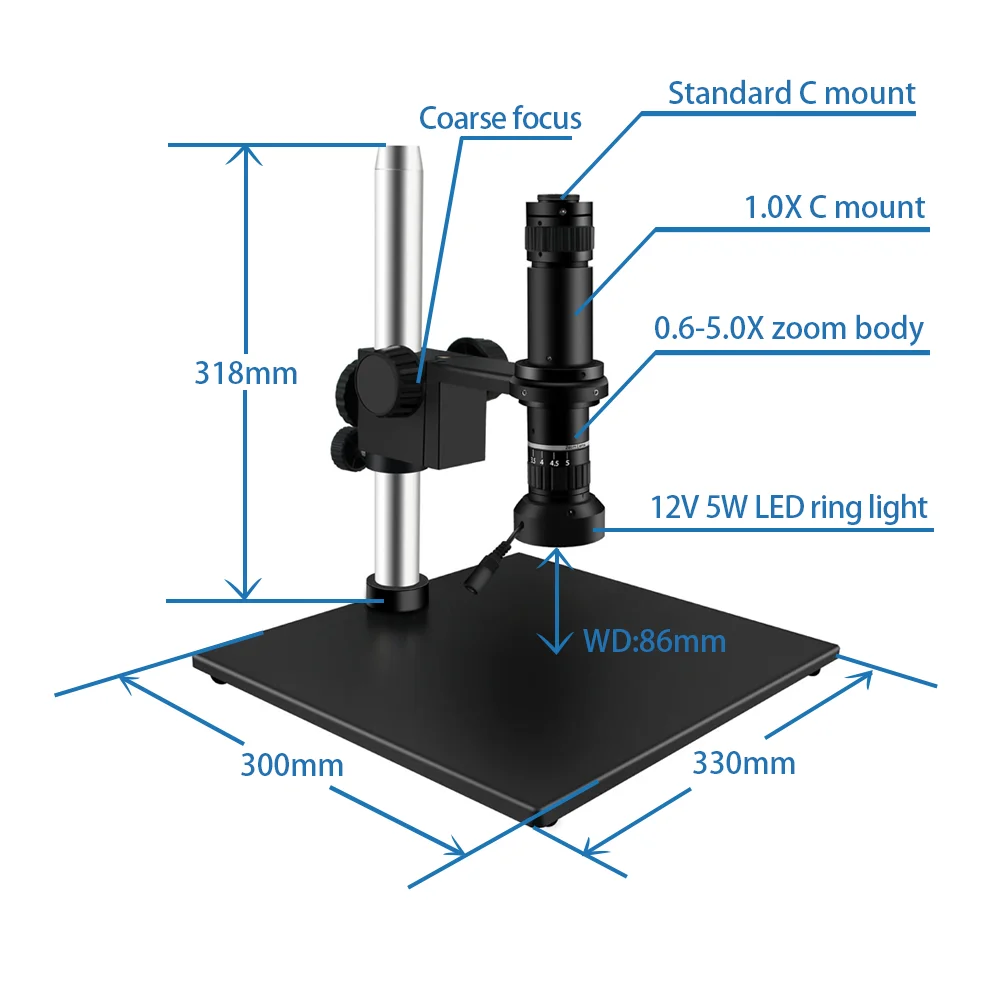

Optical Parameter of Wholesale FA0650 0.6-5.0X industrial inspection digital monocular microscope | ||||||
Magnification | 0.6-5.0X | |||||
Working distance | 86mm | |||||
FOV | 8X6-0.9X0.7(Base on 1/3" camera) | |||||
Light sourse | 12V 5W LED ring light,brightness adjuatable | |||||
Scope holder | 50mm | |||||
Height of track stand | 318mm | |||||
Travel distance | 50mm | |||||
Center distance | 145mm | |||||
Base size | 330*300mm | |||||
Standard specification is 0.6-5.0X,1XCCD+1x objective,Working distance is 86mm.
Different magnification CCD adapter and objective to meet different inquiry.

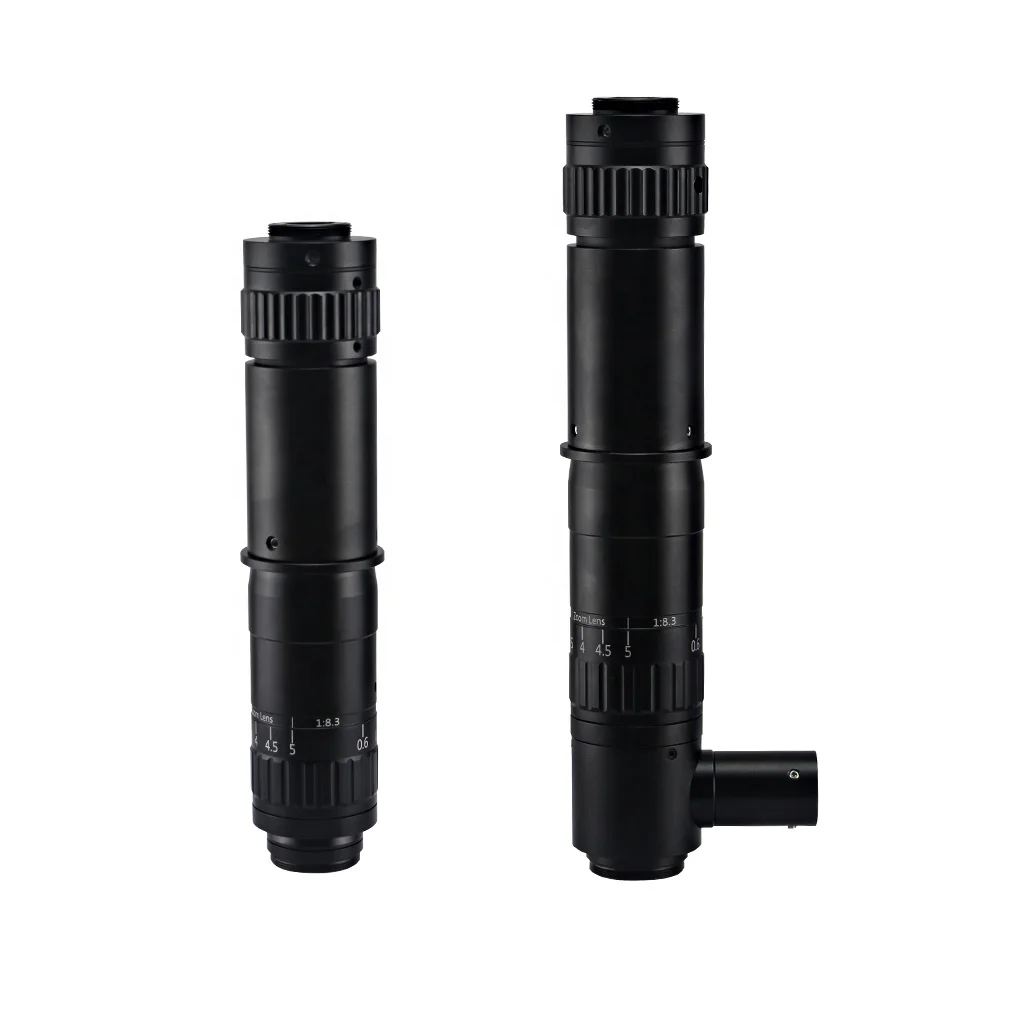

FB0650 zoom lens
FB0650 zoom lens with coaxial diveice
FB0650 zoom lens with LED ring light
FB0650 zoom lens with nosepiece
Optical parameter of 0.6-5.0X zoom lens | ||||||||||||||||
Auxiliary Objective (use for 1X) | CCD Adapter | |||||||||||||||
0.3X | 0.5X | 0.75x | 1X Standard | 1.5X | 2.0X | 3.0x | ||||||||||
Standard 1.0X WD:86mm | Mag | 0.18X-1.5X | 0.3X-2.5X | 0.45X-3.75X | 0.6-5.0X | 0.9X-7.5X | 1.2X -10.0X | 1.8X-15X | ||||||||
FOV (mm) | 26X20-3X2.0 | 16X12-1.9X1.4 | 11X8-1.3X0.9 | 8X6-0.9X0.7 | 5X4- 0.6X0.5 | 4X3-0.5X0.36 | 2.6X2-0.3X0.2 | |||||||||
0.3X WD:270mm | Mag | 0.05X-0.45X | 0.09X-0.75X | 0.14X-1.13X | 0.18X-1.5X | 0.27X-2.25X | 0.36X-3X | 0.54X-4.5X | ||||||||
FOV (mm) | 96x72-10.6X8 | 53X40-6.4X4.8 | 34X26-4X3.1 | 26X20-3.2X2.4 | 18X13-2X1.6 | 13X10-1.6X1.2 | 9X6.6-1.1X0.8 | |||||||||
0.5X WD:160mm | Mag | 0.09X-0.75X | 0.15X-1.25X | 0.23X-1.875X | 0.3X-2.5X | 0.45X-3.75X | 0.6X-5X | 0.9X-7.5X | ||||||||
FOV (mm) | 53X40-6.4X4.8 | 32X24-3.8X2.8 | 21X16-2.6X1.9 | 16X12-1.9X1.4 | 11X8-1.3X0.9 | 8X6-0.9X0.7 | 5X4-0.6X0.5 | |||||||||
0.6X WD:130MM | Mag | 0.22X-0.9X | 0.18X-1.5X | 0.27X-2.25X | 0.36X-3X | 0.54X-4.5X | 0.72X-6X | 1.08X-9X | ||||||||
FOV (mm) | 22X16-.3 X4 | 26X20-3X2 | 18X13-2X1.6 | 13X10-1.6X1.2 | 9X6.6-1.1X0.8 | 6.6X51-0.8X0.6 | 4.4X3-0.5X0.4 | |||||||||
1.5X WD:50mm | Mag | 0.27X-2.25X | 0.45X-3.75X | 0.675X-5.625X | 0.9X-7.5X | 1.35X-11.25X | 1.8X-15X | 2.7X-22.5X | ||||||||
FOV (mm) | 18X13-2X1.6 | 11X8-1.3X0.9 | 7X5.3-0.89X0.6 | 5X4-0.6X0.5 | 3.5X2.6-0.4X0.3 | 2.6X2-0.3X0.24 | 71.7X1.3-0.2X0.1 | |||||||||
2.0X WD:39mm | Mag | 0.36X-3X | 0.6X-5.0X | 0.9X-7.5X | 1.2X-10X | 1.8X-15X | 2.4X-20X | 3.6X-30X | ||||||||
FOV (mm) | 13X10-1.6X1.2 | 8X6-0.9X0.7 | 5X4-0.6X0.5 | 4X3-0.5X0.36 | 2.6X2-0.3X0.2 | 2X1.5-0.2X0.18 | 1.3X1-0.16X0.12 | |||||||||
Remark:Total magnification of lens = Magnification of zoom body× CCD adapter magnification × Objective agnification,The range of Field of View is base on 1/3"CCD Camera, FOV= the chip size of CCD / total Optical Magnification | ||||||||||||||||

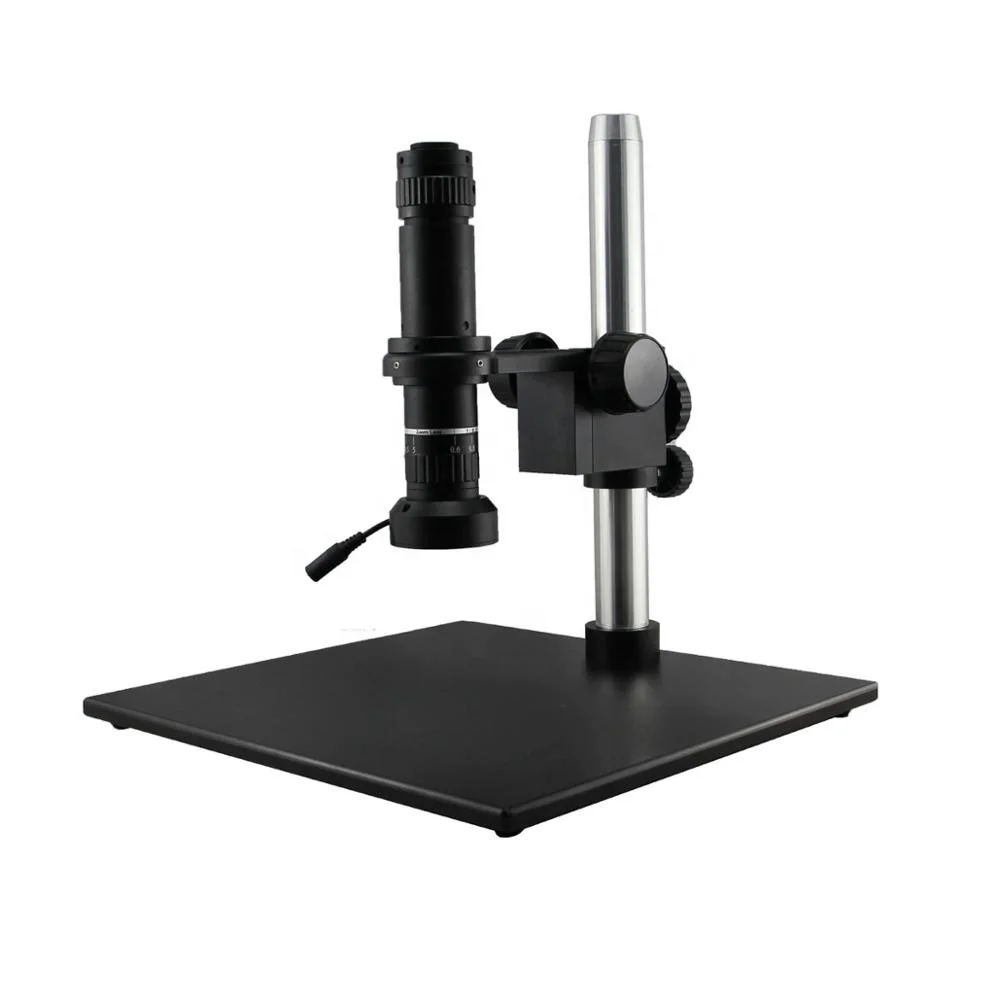

Product Pictures
Actual Effect Image
Optional Accessory
CCD Adapter | ||
C6503 | 0.3X CCD adapter | |
C65045 | 0.45XCCD adapter | |
C6505 | 0.5X CCD adapter | |
C65067 | 0.75X CCD adapter | |
C6515 | 1.5X CCD adapter | |
C6520 | 2.0X CCD adapter | |
C6530 | 3.0X CCD adapter | |
Auxiliary Objective | ||
AW6503 | 0.3X .Working distance is 270mm | |
AW6504 | 0.4X .Working distance is 195mm | |
AW6505 | 0.5X .Working distance is 160mm | |
AW6506 | 0.6X .Working distance is 130mm | |
AW6515 | 1.5X .Working distance is 50mm | |
AW6520 | 2.0X .Working distance is 39mm | |
LC6511 11mm coaxial device
LC6511P 11mm coaxial device with polarizer
L6511 11mm 3W LED point light for coaxial device
H650M monocular eyepiece tube
AW0342 Adjustable auxiliary objective.0.3X,WD:270mm to 0.42X，WD:160mm
Product packaging
Packing szie | 39*36*16cm/1 set 39*36*47/3sets |
Gross weight | 5.8kgs |

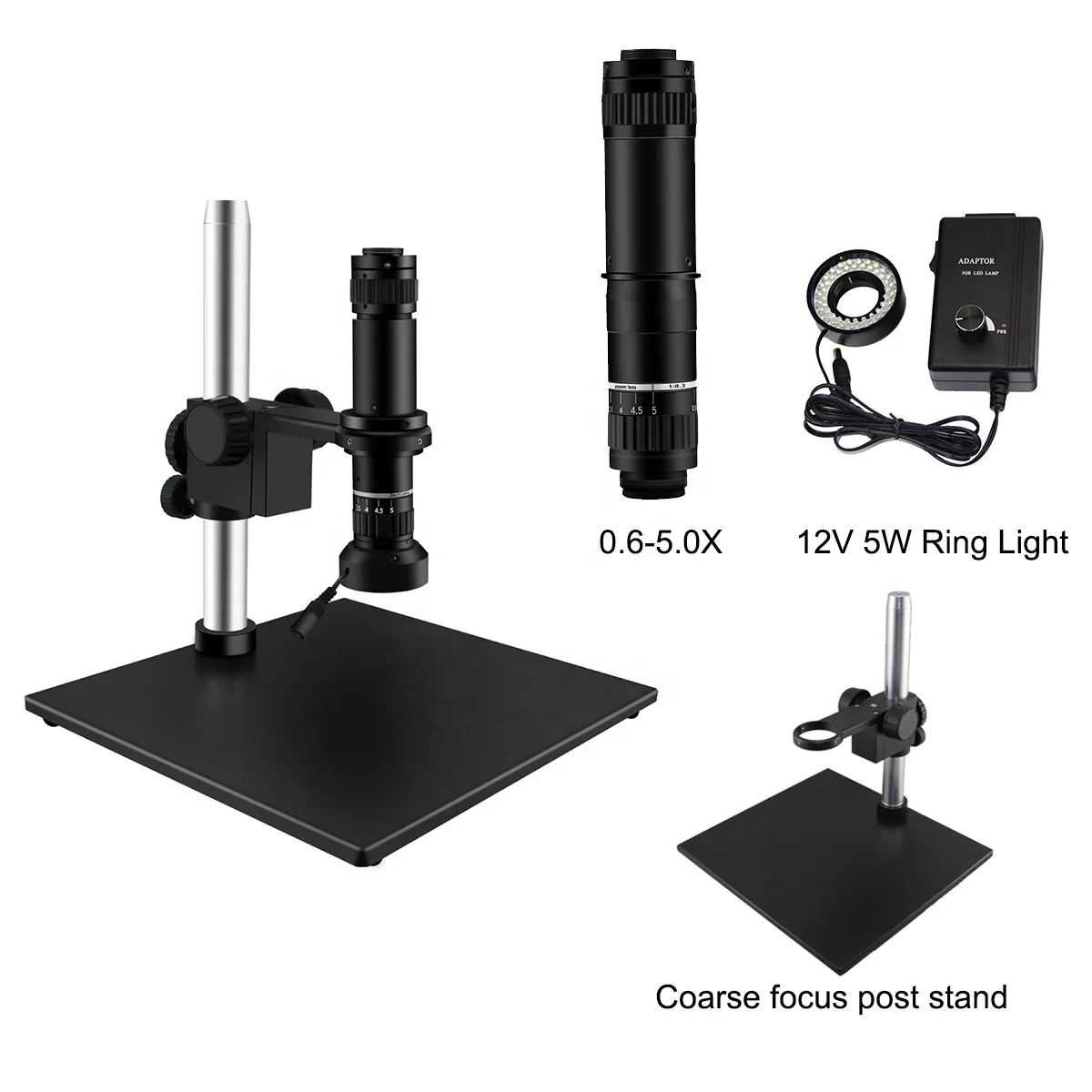

Packing list | Standard is FB0650 zoom lens+FH65 coarse focus post stand+LR65 LED ring light |
Delivery time | sample order within 5 days |
More Choice
Our Company
Guilin FT-OPTO Co.,Ltd established in 2009, with 10 years of optial experienxce ,with good reputation in optical industrial.Which is technical enterprise specializing in precision optical instrument,optical-mechanical integration industry, integrating product technical management, development and scale manufacturing.
We are professional factory of high resolution zoom lens, video microscope, measuring microscope, smart microscope,auto inspection system microscope and microscope accessory.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products. Sound after-sales service to ensure the response to customer questions within 24 hours.
We will try our best to provide with the most advanced technology, the best quality products, the lowest operating costs and the most comprehensive services.
Exhibition
Похожие товары

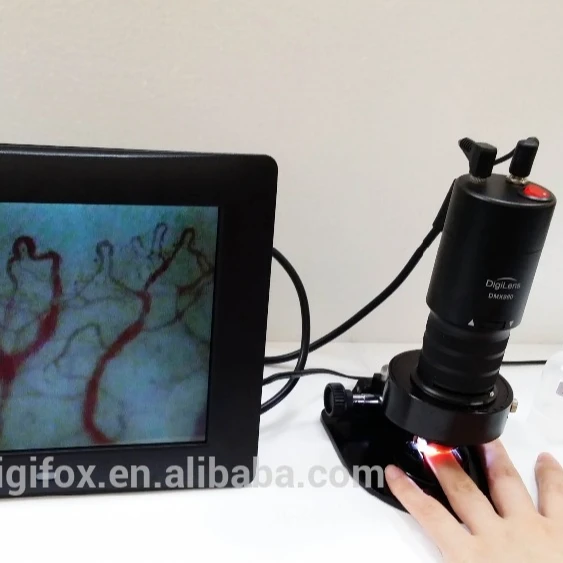

DMX980-1 биологической микроциркуляционный микроскоп микрососудистой рассечения микроскоп
