Высококачественный водонепроницаемый правый угловой клапан 12 в привод

R&D Ability
1.Be approved by GB/T 13927 -92EN215-1 standard and passed the test of Beijing Construction Project Quality Testing Center and
sixteen items testing of national thermostatic radiator valve standards.
2. Certificates:CE, ISO9001:2008, ISO14001:2004 Certificate at the end of 2010.
Be awarded "Science and technology enterprises" title of first batch Wenzhou economic and Technological Development Zone.
3. The company owns more than 50 utility model and appearance designpatent certificates.

2-1. THERMOSTATIC HEADS

CONTROLS FOR THERMOSTATIC VALVES

Thermostatic heads provide the ability for each radiator to function independently from the others, creating greater comfort while simultaneously providing considerable energy savings.

When installed on a thermostatic valve and, when used in conjunction with a thermostat, thermostatic heads offer the easy regulation of the temperature in each room by controlling the delivery of water or steam to the radiator.

Designer thermostatic head with incorporated command and liquid expansion sensor Provides automatic, extra-quick modulating adjustment of space temperature. In addition to units designed for the remote determination of temperature through the use of a capillary tube that connects to the head and senses the temperature of the room, apart from the actual radiator. By simply removing the head’s cap and adjusting the unit’s two control rings, the head can be set in the locked position, which prevents further adjustment of the head, or to limit the minimum and maximum temperature range of the radiator.

The liquid-element thermostatic insert features extremely low values of thermal inertia, response time and hysteresis, providing fast reaction to heat load changes and remarkable stability in time.

In addition to thermostatic heads, thermostatic valves can also be controlled by electronic devices, such as axial servomotors and electrothermal heads, which are generally used with manifolds or mixing systems.

Axial servomotors must be managed by a climatic regulator, while electrothermal heads are managed by a thermostat.

As well as selling valves for fitting in homes we also sell commercial radiator valves, ideal for schools, hospitals and a range of other public settings.

Our selection of commercial valves features a variety of thermostatic and manual radiator valves – meaning you can choose the best valve for your customer’s requirements.

All thermostatic valves are machined to NPT requirements and can be used on traditional water and low-pressure steam radiators, as well as hydronic baseboard, panel radiators and towel bar warmers, and are compatible with any thermostatic head using an M30 x 1.5 fitting.

Our commercial offering doesn’t stop at valves and heads. We also sell commercial radiator valve sensors – which can simply be attached to older thermostats without having to drain the whole system.

2.2. THERMOSTAT HEAD REMOTE COMMAND

 Thermostatic head with remote command and liquid expansion sensor. Provides automatic, modulating adjustment of space temperature. Remote command and sensor allows quick adjustment and precise detection of space temperature even when the heater is covered by furniture or curtains, or enclosed in cabinets. Setting can be limited or locked.

The thermostatic valve can automatically adjust the room temperature to meet your need.It is designed to control the volume of heat in the room so as to reach a balance between the interior heat and the needed heat.

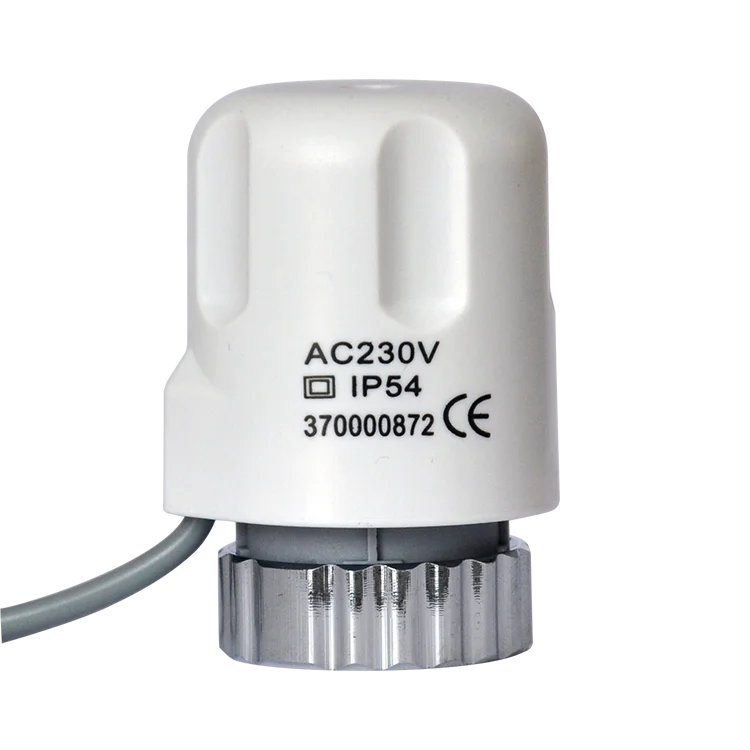

2.3.Thermal Actuator

Used in conjuction with room thermostats and all our wiring centres. Actuators open or close ports on the manifold when there is a demand from a thermostat.

The thermal actuator is used with electrical on/off-controls to activate several types of valves and floor heating manifolds. The actuator is equipped with a visual position indicator to show the open or closed position of the valve. Our actuators can be provided with connections for for valves with M30x1.5 connection.Actuators are made for either 24 V (SELV) , 110V, 230 V or 240 V supply in both normally closed (NC) or normally open (NO) versions (valve positions with no supply voltage to the actuator).

Actuator for use with an Underfloor heating manifolds or Radiator Thermostatic Valves. Will fit all manifold and radiators valves with M30 X 1.5 sizing. This is the most common fitting.
