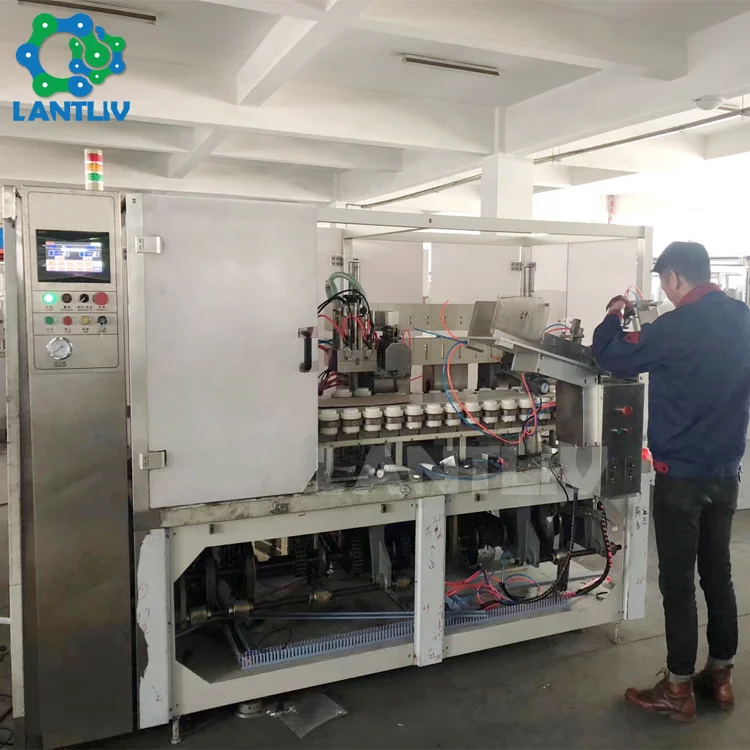

Автоматическое мягкое пластиковое трубчатое внутреннее нагревательное упаковочное оборудование Косметическая мазь зубная паста машина для наполнения тюбиков

Сохранить в закладки 62483928403:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

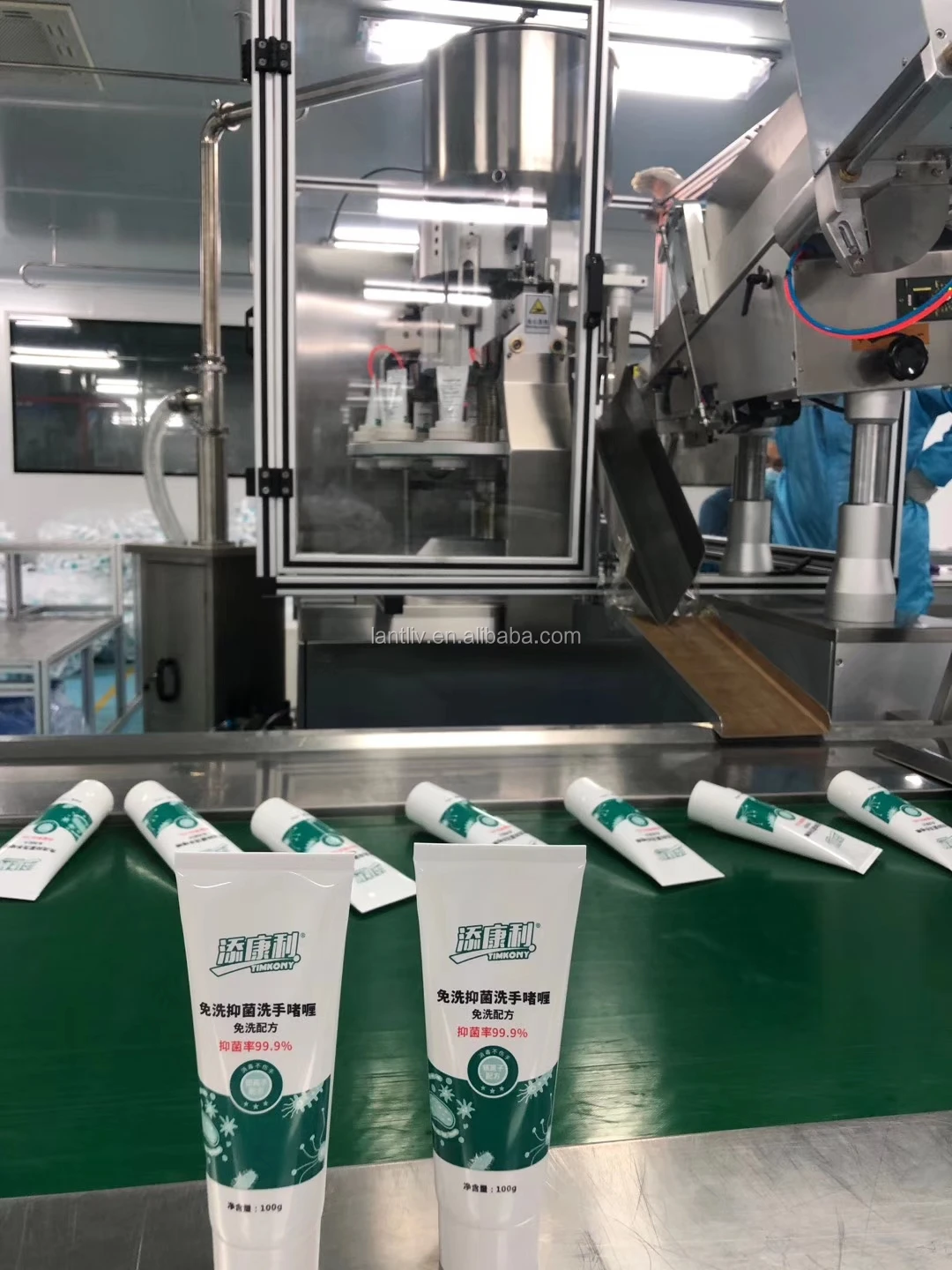

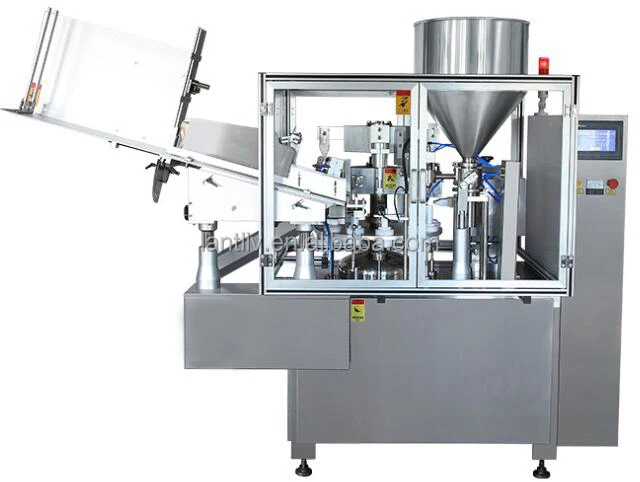

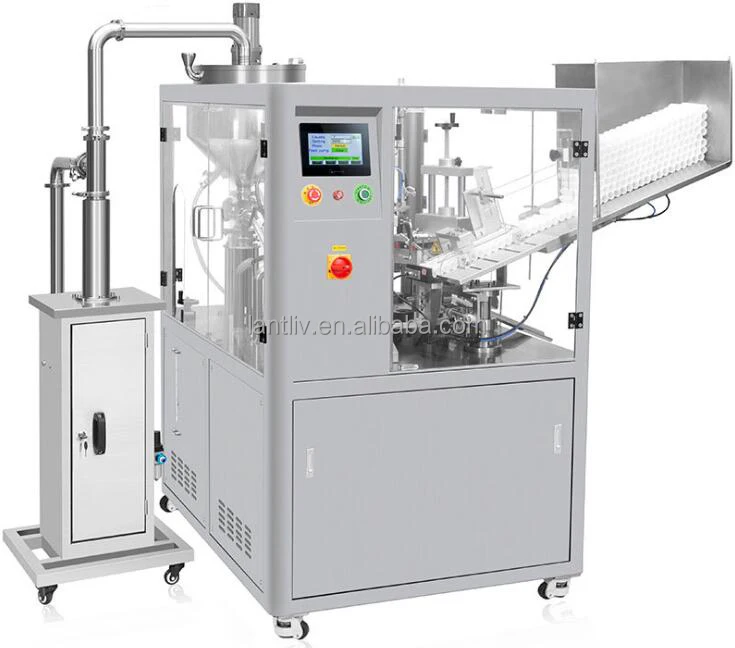

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, hot sealing, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.




Technical Parameters


Tube material
Plastic tube, composite tube
Tube diameter
10-50mm
Tube length
50-250mm
Filling volume
1.5-300ml
Filling accuracy
≤1%
Product capacity
120-150tubes/min
Water consumption
6L/min
Max power
9.5kw
Average power
6.5kw
Hopper capacity
50L (can be customized)
Machine size and weight
2150*1100*2100mm, about 1300kg

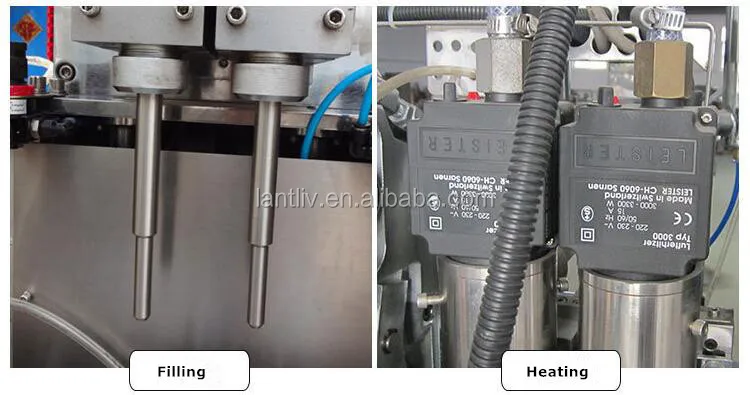

Details Images

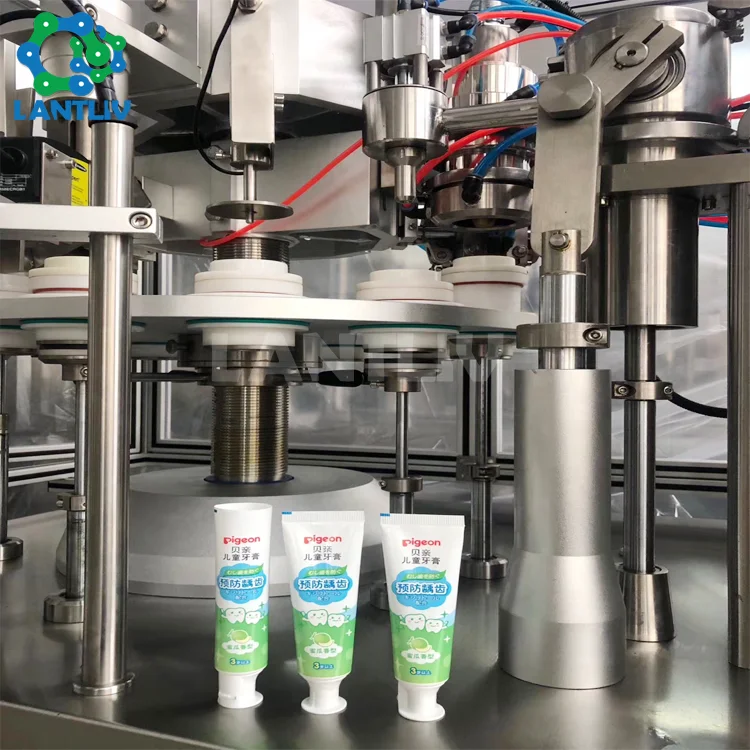

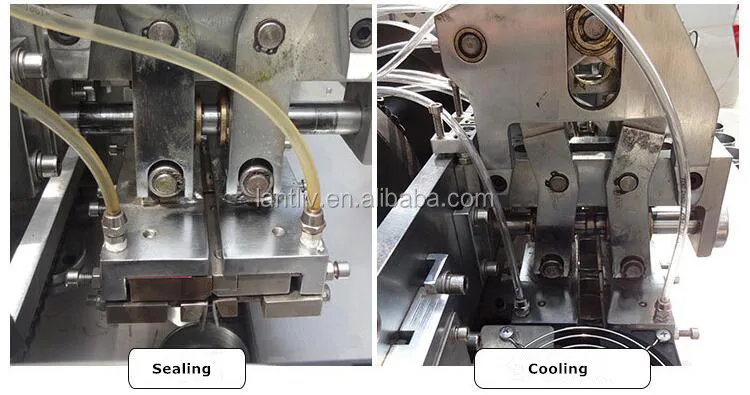

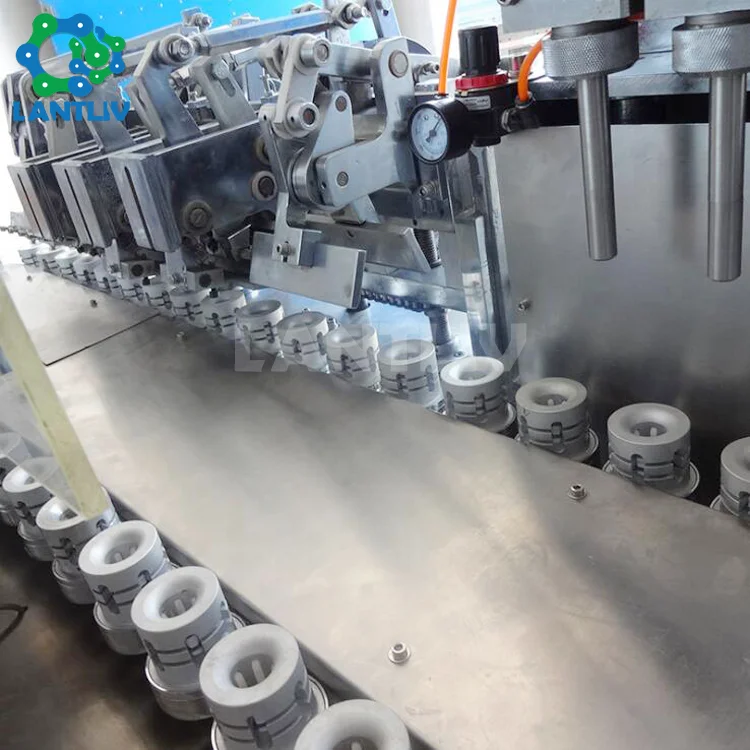

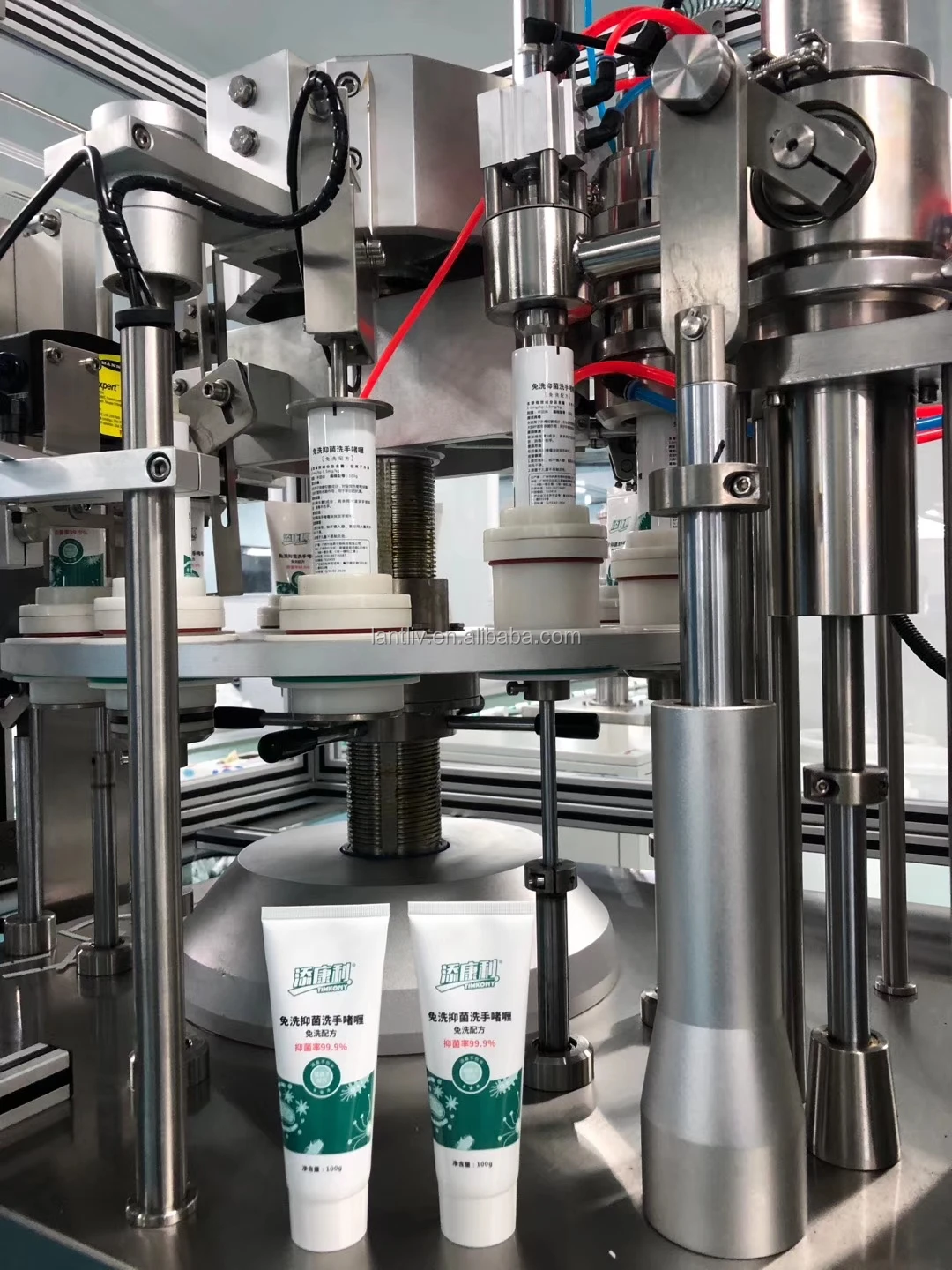

(1) The Product has 40 locations and matching with manipulator, the machine is able to meet different type of sealing requirements of plastic tube and laminated tubes.
(2) Tube feeding, eye marking, material filling, sealing , batch number printing, finished products discharging can be performed automatically (the whole procedure).

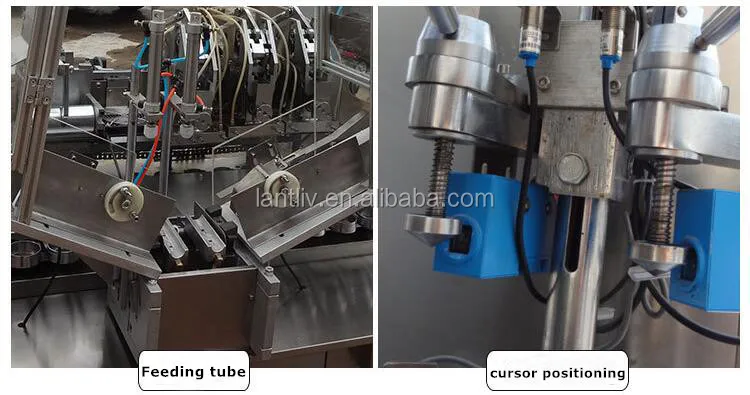

(3) With external reversal feeding system, makes tube charging more convenient and tidy.

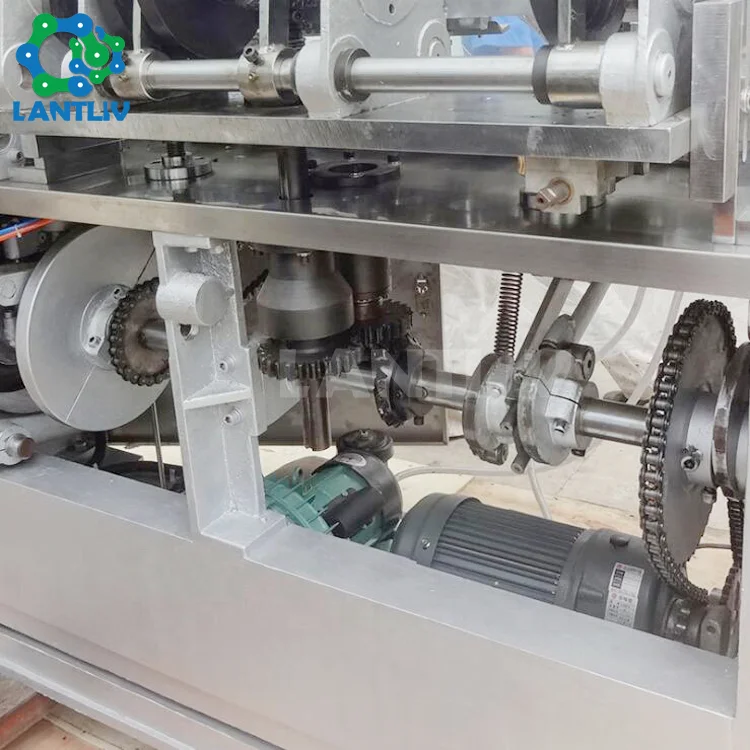

(4) The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

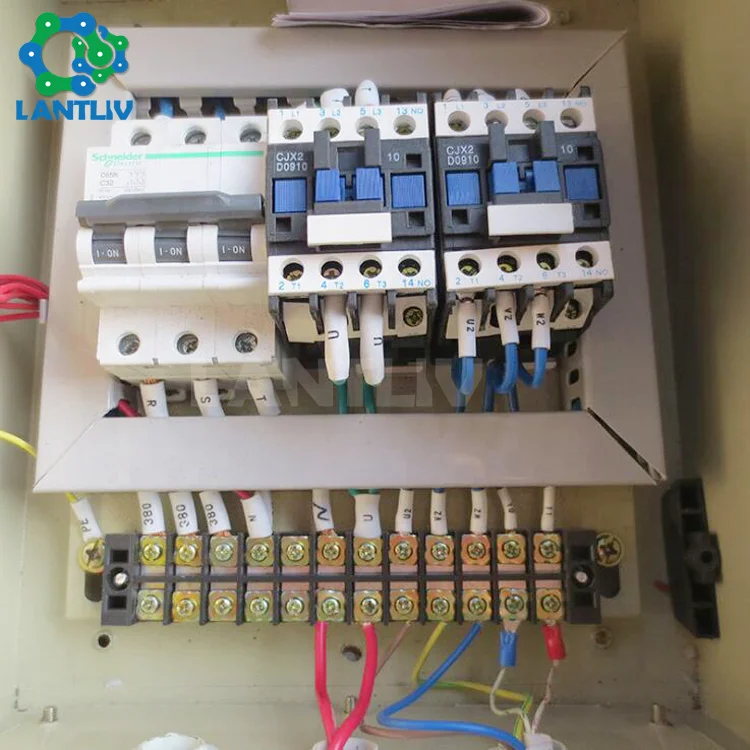

(5) Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

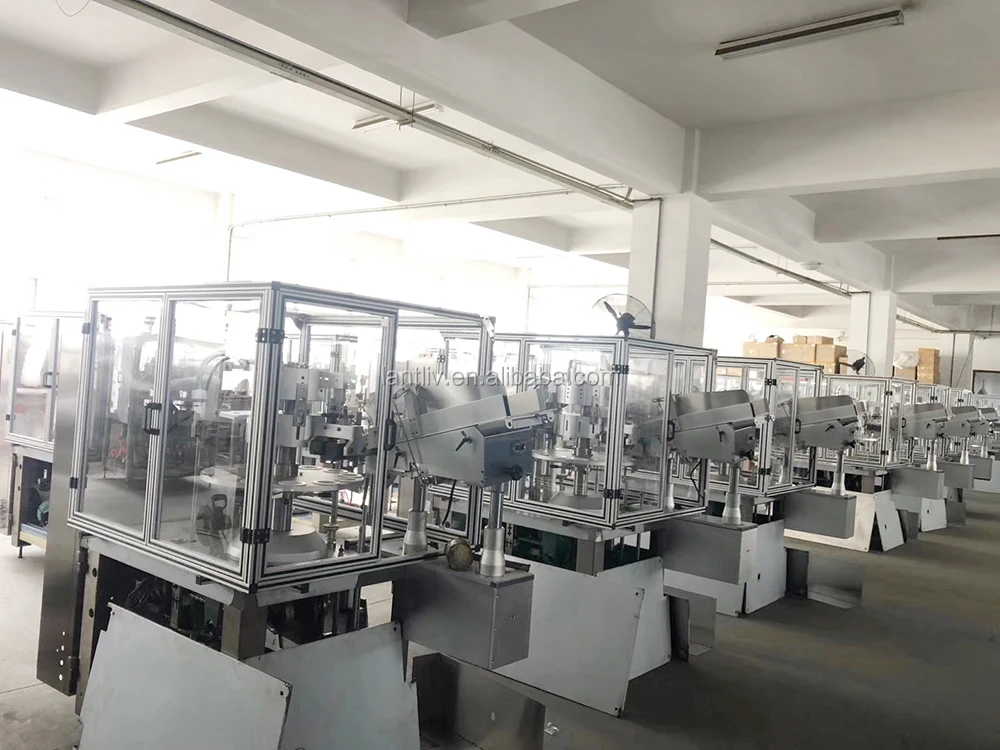

Exhibition






Our Advantages




Pre-sale Service
1. Equipment model selection;
2. According to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;

Sales Services
LANTLIV have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.

After-sales Service
1. One Year Warranty, as long as there is a non-human fault in a year, free re-placement parts.
2. Parts Replacement, don’t worry about the parts damaged or not sold after the machine is sold. we have a field factory with hundreds of employees to serve you.
3. Engineer assignment, lifelong maintenance, if your equipment breaks down, we will arrange engineers to repair it.
4. Online instruction, we open online services, as long as your equipment failure, our engineers will be the first time for a one-to-one troubleshooting.
5. Feedback survey, the engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.


Payment & Shipping

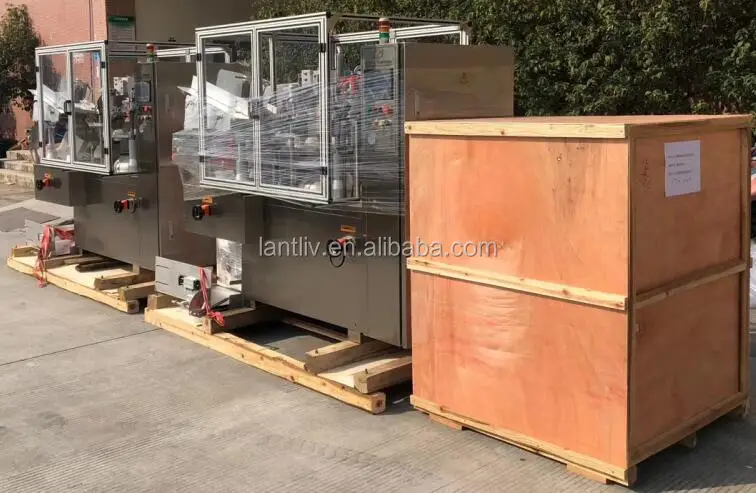

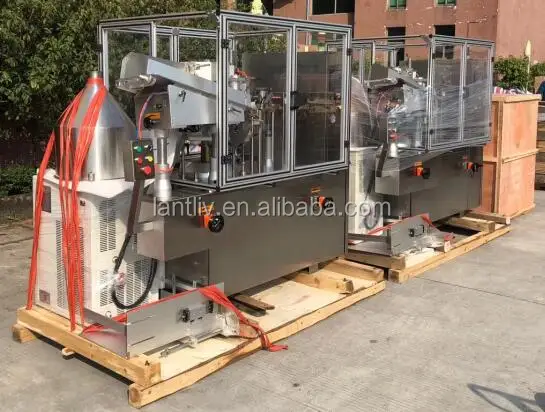

1. Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for moisture resistance; white foam filling is used to tighten the machine.
2. Outside: standard export plywood case.
3. Finally, label the destination country and shipping mark.
4. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
(1) Over 1cbm or 100kg, recommended shipment by Sea.
(2) Below 1cbm or 100kg, recommended shipment by Air.
(3) Below 0.5cbm or 50kg, recommended shipment by Express.




FAQ




Q1: Are you trading company or manufacturer?
A: We are manufacturer, we have own production factory, also do oversea trading by ourselves.

Q2: First time cooperation, how can I trust you?
A: We are verified company by Alibaba, and welcome to visit our factory.

Q3: How long is your delivery time?
A: Generally it is 7-12 working days if the goods are in stock. or it is 15-20 working days if the goods are not in stock.

Q4: How to ensure that I got the machine undamaged?
A: Packed in standard wooden case with well supported materials wrapped.

Q5: What about your service or any question about products?
A: Test machine with your sample after finish machine. Training how
to install the machine, training how to use the machine before shipping. Engineers available to service machinery overseas. This machine enjoys 1 years warranty, any problem, please send mail or call us, will reply and help ASAP.

Q6: What is your terms of payment ?
A: Payment ≤1000 USD, 100% in advance; payment≥1000 USD, 40% T/T in advance, the balance before shipment. Alibaba order or L/C also can be accepted.
