Function and introduction

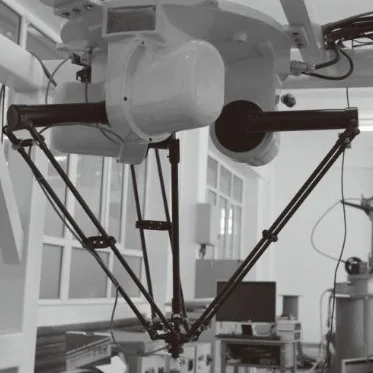

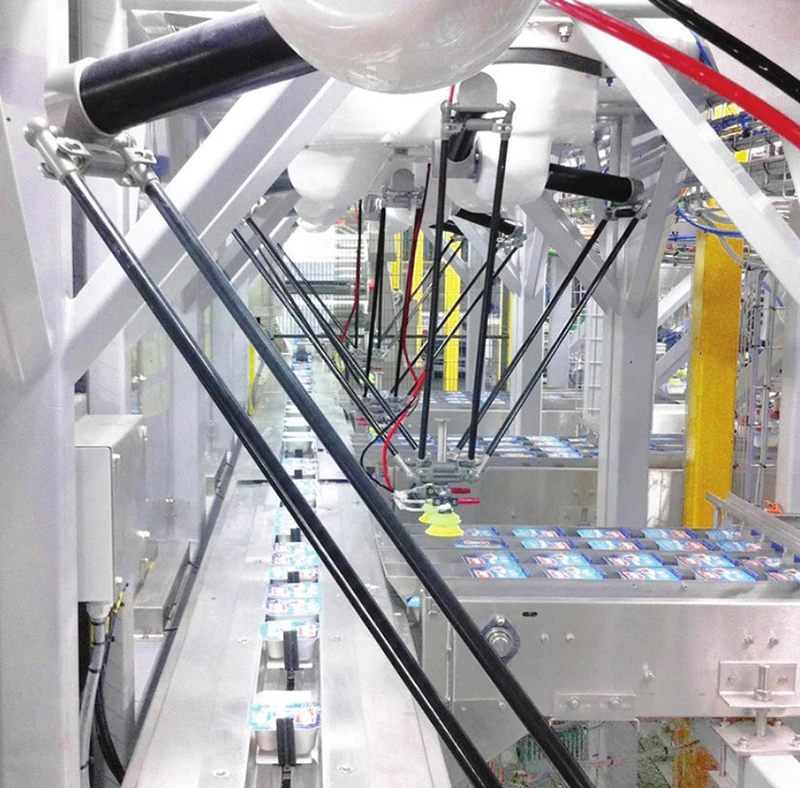

The OY-D is a high-speed robot designed for fast pick and place applications. Its body is made up of carbon fiber and aluminum alloy. The leapfrog test beats up to 200 beats per minute. The target object is captured by a sensor or vision system to achieve dynamic tracking picking and placement of the target object. The equipment can be widely used in the fields of packaging, material sorting, handling and assembly.

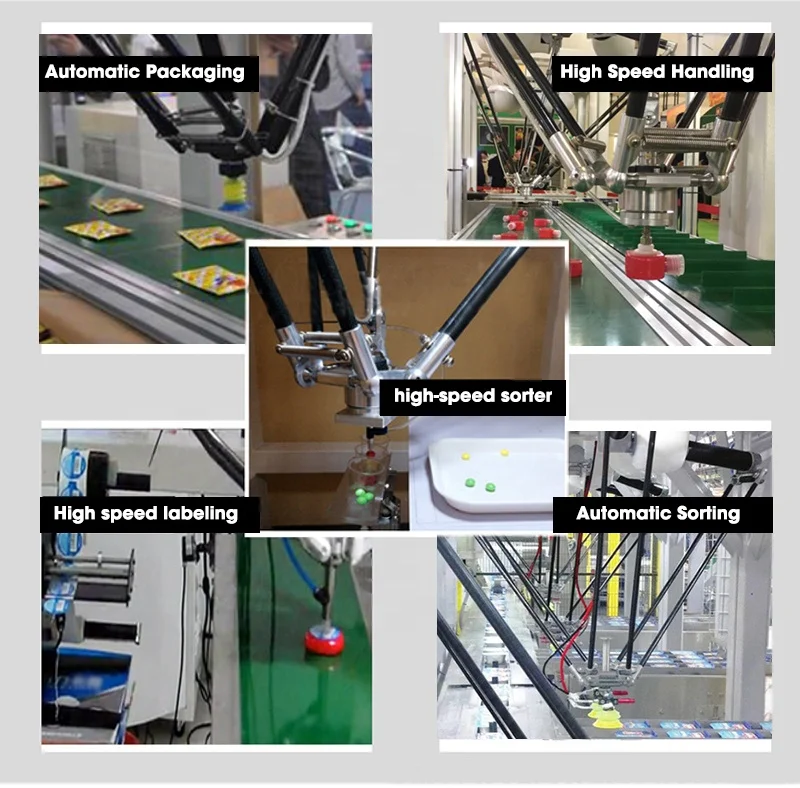

The main application areas:
• Packaging
• Sorting
• Handling
• Assembly
Features
• High motion accuracy
• Fast movement
• Large range of motion
• Strong carrying capacity,
• Can be used with visual positioning, conveyor tracking

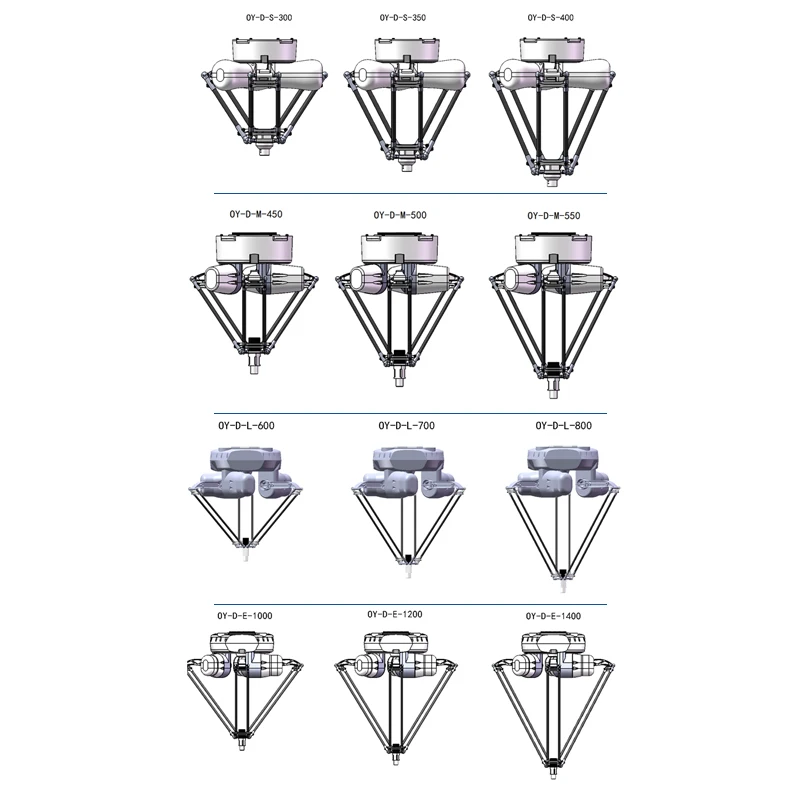

Model | OY-D-300 | OY-D-400 | OY-D-600 | OY-D-800 | OY-D-1000 | |
Dof | 3 axis / 4 axis | |||||
Rated Payload | 1.2 KG | 0.8KG | 4KG | 3KG | 4KG | |
The Range | The length of upper arm | 160 | 160 | 300 | 300 | 400 |
The length of lower arm | 300 | 400 | 600 | 800 | 800 | |
L | 424 | 541 | 856 | 1103 | 998 | |
M | 72 | 99 | 138 | 163 | 193 | |
N | 58 | 81 | 112 | 132 | 157 | |
A | 330 | 430 | 634 | 858 | 1130 | |
B | 280 | 380 | 598 | 813 | 904 | |
C | 130 | 180 | 250 | 295 | 350 | |
D | 91 | 126 | 175 | 206 | 245 | |
Repeatability | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
Motor | Closed-loop stepper moto | Absolute servo motor | ||||
Total power | 0.5KW(3 axis)0.42KW(4 axis) | 2.25KW(3 axis) | ||||
Weight | 15KG | 55KG | 65KG | |||
Protection Level | IP54 |
Contact Supplier Get More Detail
Ant Automation Equipment (Shenzhen) Co., Ltd.is a high-tech enterprise specializing in the research and development, production, sales and service of industrial automation equipment. The company introduced advanced technology from developed countries and combined with its many years of industry experience, developed and developed a series of industrial automation control products. The current product line has covered robots, harmonic reducers, servo motors, and industrial control systems. Users are involved in food, pharmaceutical and other industries.
The company has established a huge sales and service network in China to provide our customers with timely and thoughtful services.
If you need any favorable or fast shipping
Welcome to contact us
Q: Are you a factory?
A: Yes,we are factory,have more than 10 years experience;
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 15 days for 1 set.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Shenzhen city, China.
Q: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcom to you visit our company to learn and check the robot.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery.
