Product Description

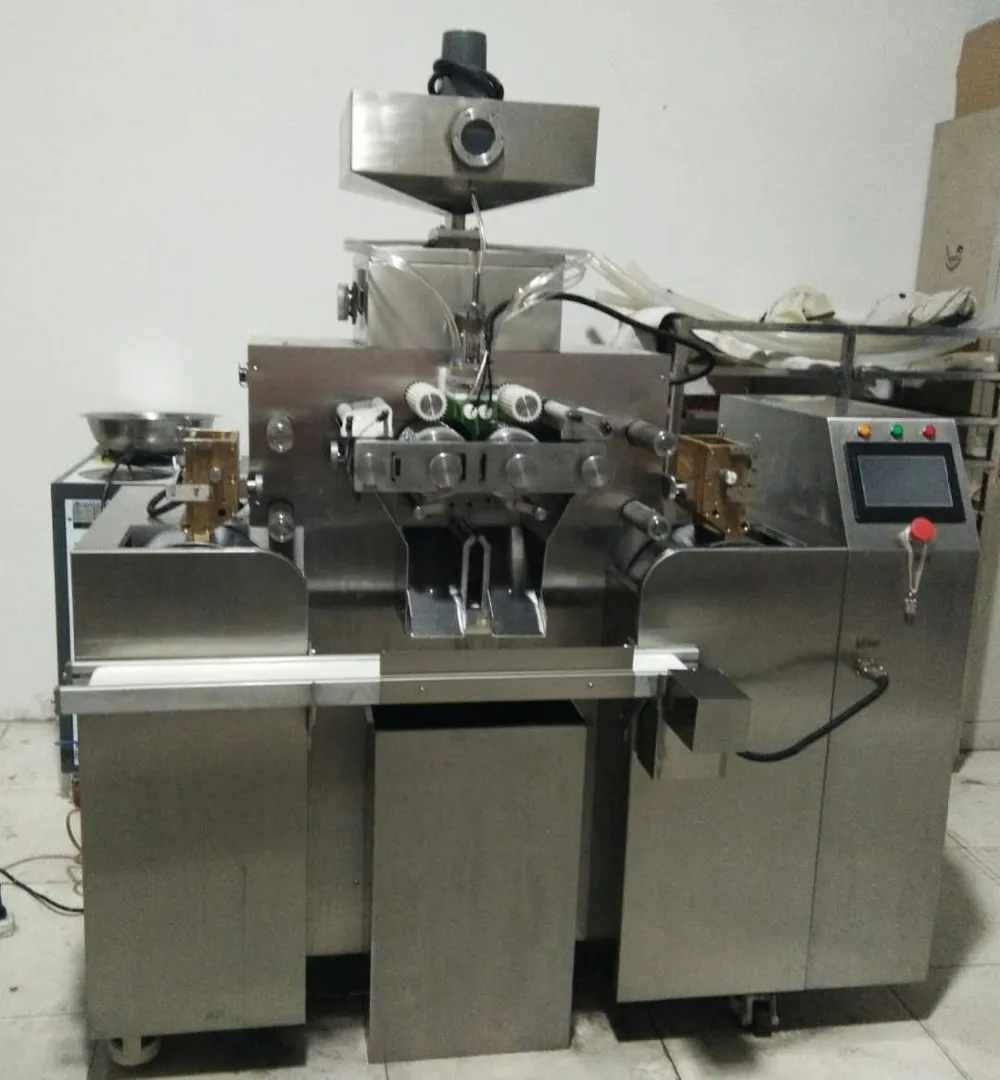

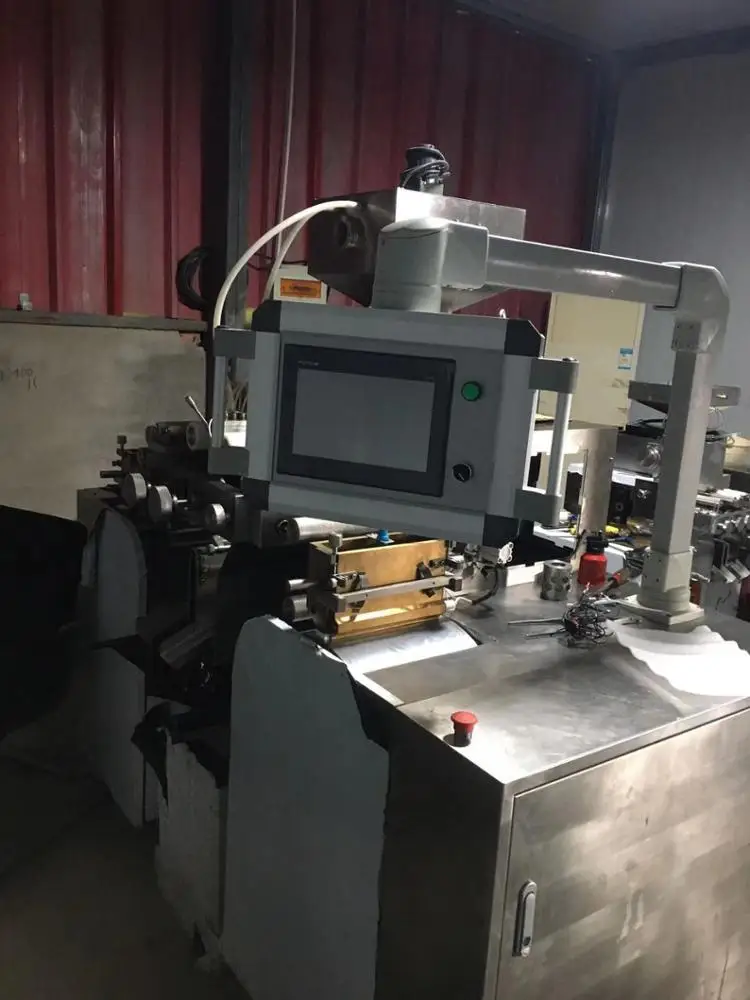

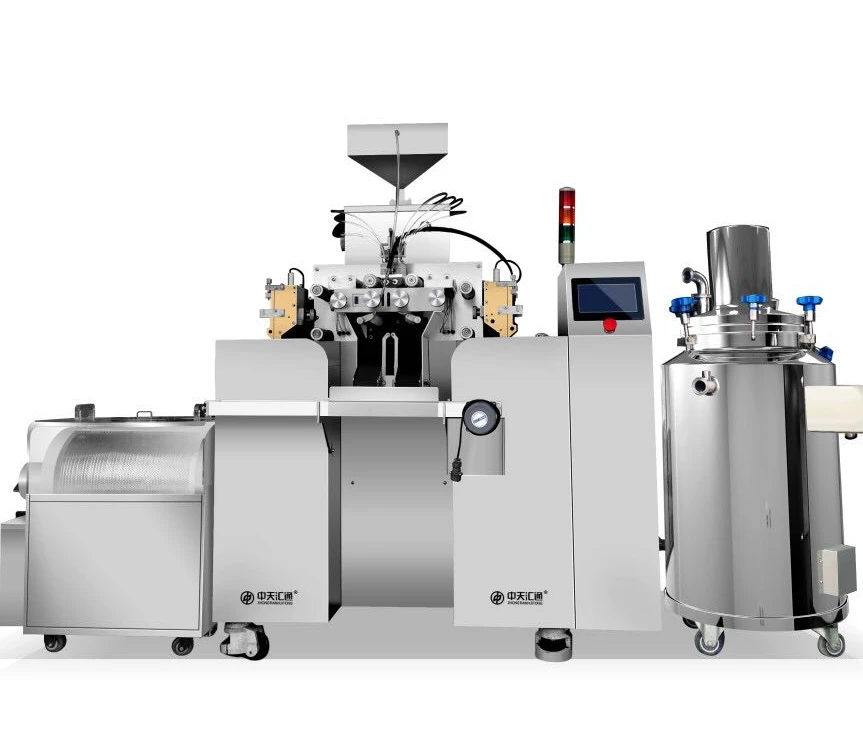

HTSYS-5 Soft Capsule Machine

5000-10000 unit per hour

THSYS-5 soft capsule machine is mainly used for laboratory and research institutions capsule drug product development trail, can be used as pharmaceutical ,health care products factory , food factory test equipment ,aircraft using a variety automatic control technology ,simple operation function stable and reliable, machine meet GMP standards, models small function ,superior performance ,compact structure.

Main Feature

Cold system with integrated cooling fan .low energy consumption ,convenient installation the temperature accuracy.
Machine model suitable for small laboratories .low noise ,high accuracy (loading error is less than +/-2%), to solve the problem with the waste of raw materials , raw materials can do more times the same experiment.This machine adopt 50Hz frequency control ,roll-mode speed 0-2.5 RMP. 2 Plunger feed, single plunge feed rate 0-1.5ml.

Application

Soft Capsule

            Vitamin E ,Vitamin D3

Cosmetic Capsule

Cod Liver Oil

Pharmaceutical      Capsule

Rocaltrol, Cyclosporin,Blackmores,Ethly polyenoate

Detailed Images

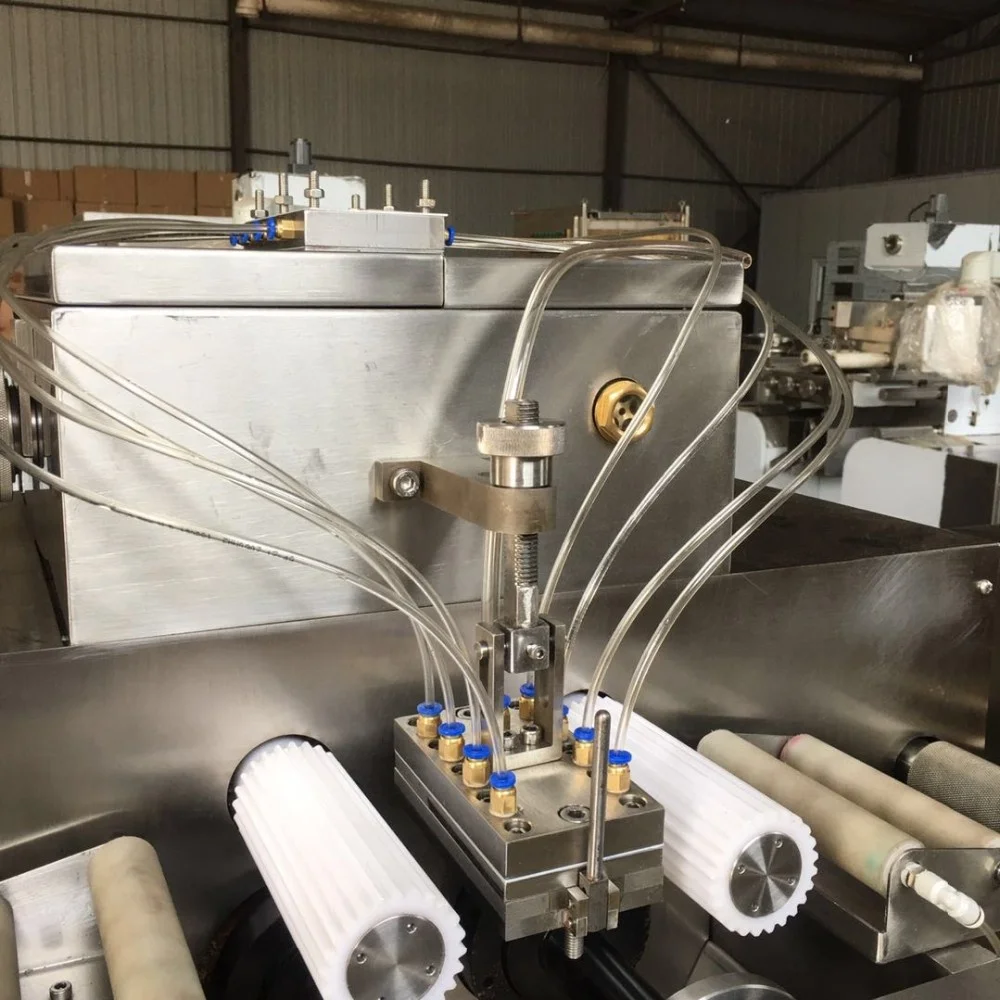

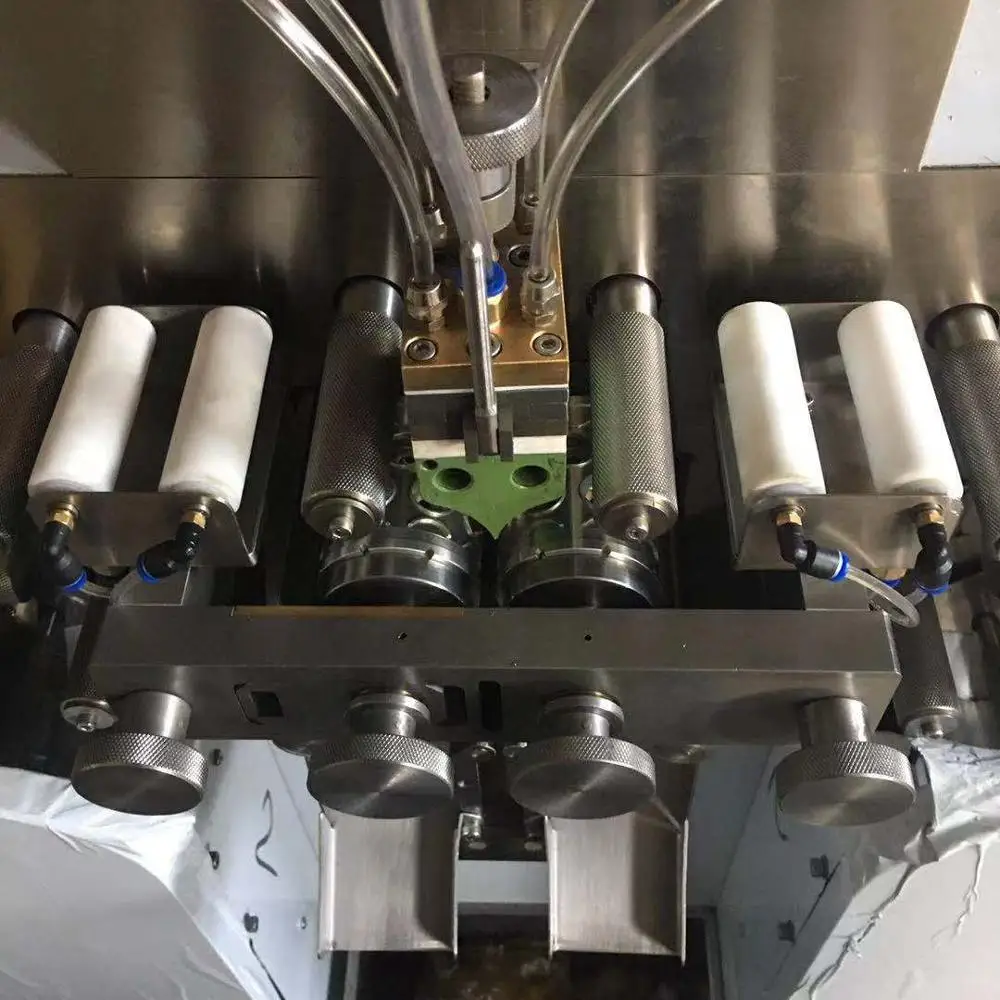

Details of Main Part

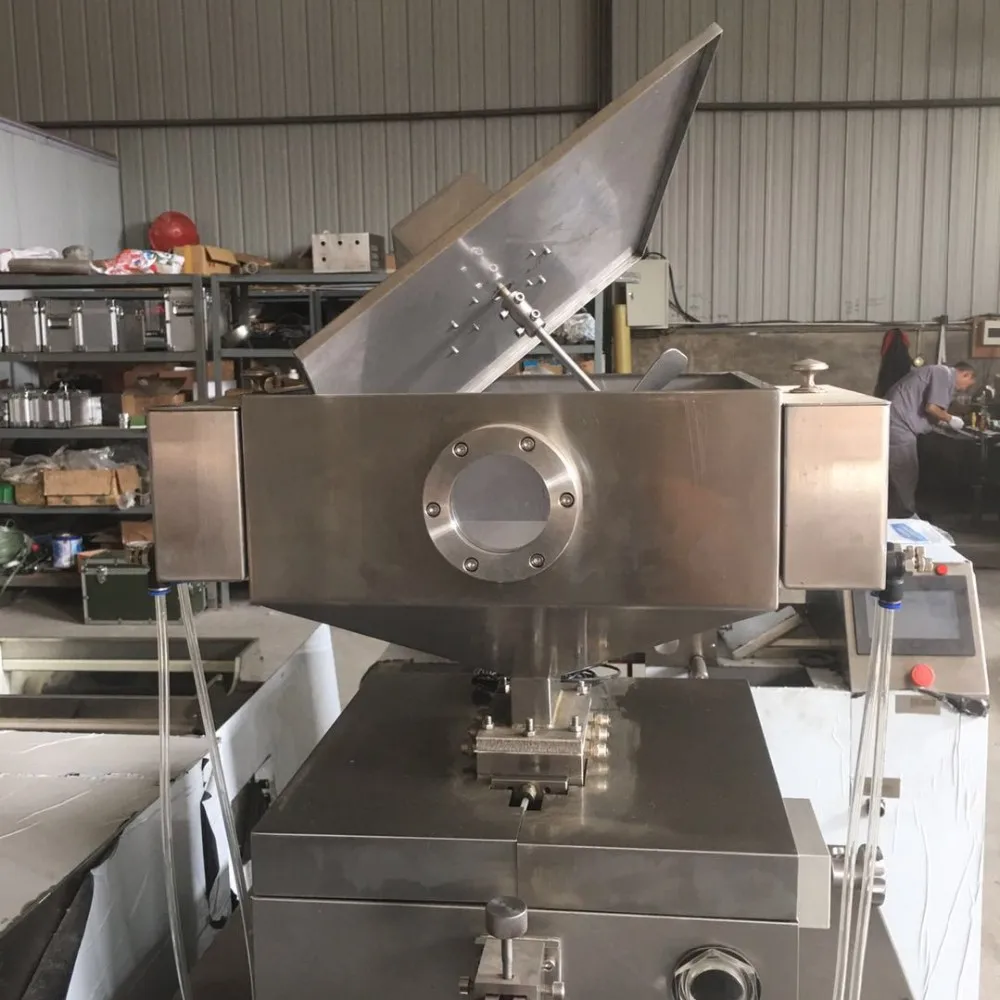

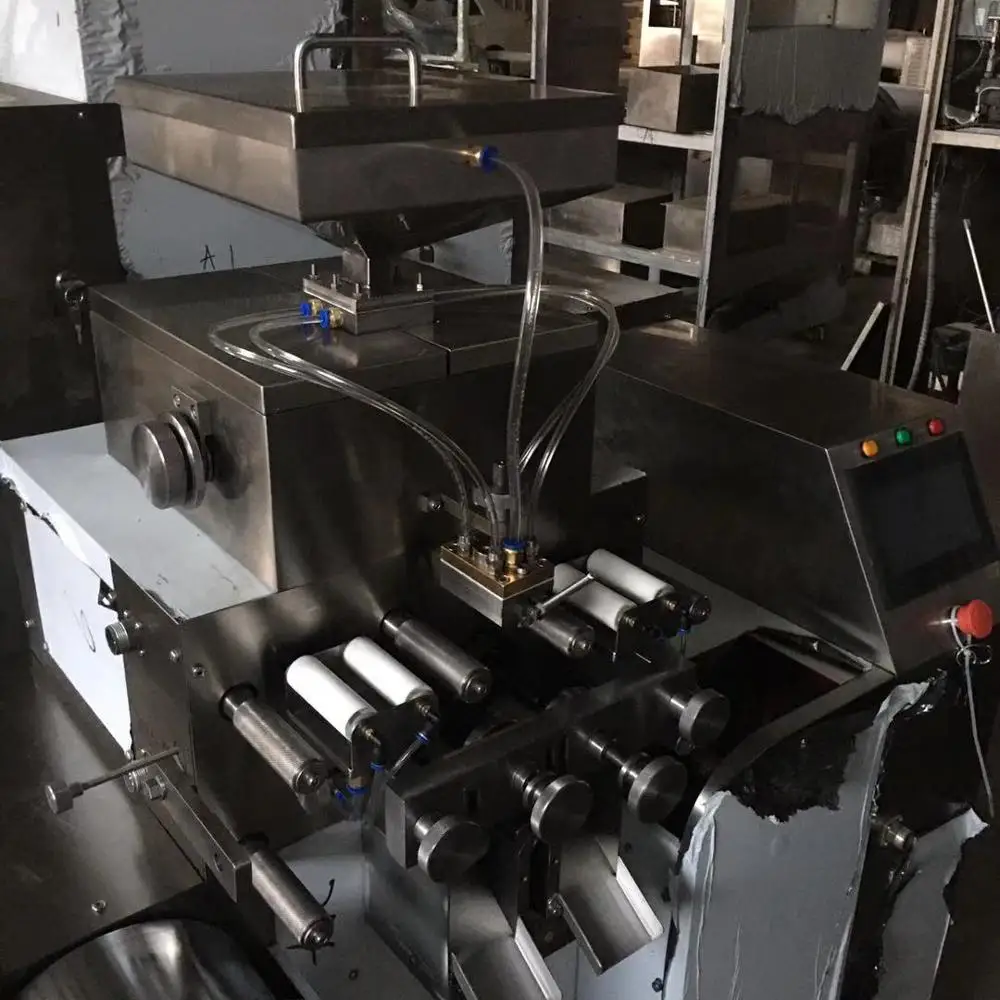

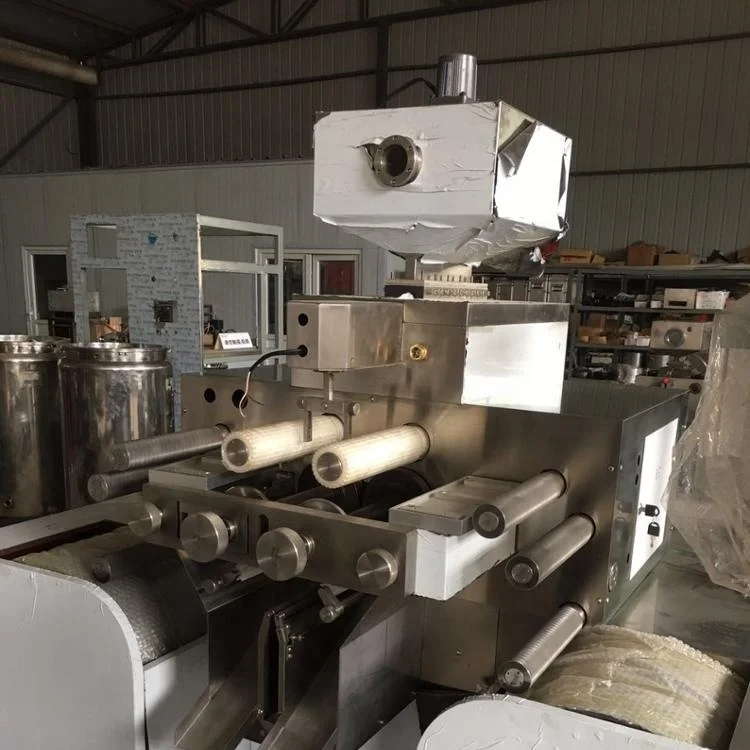

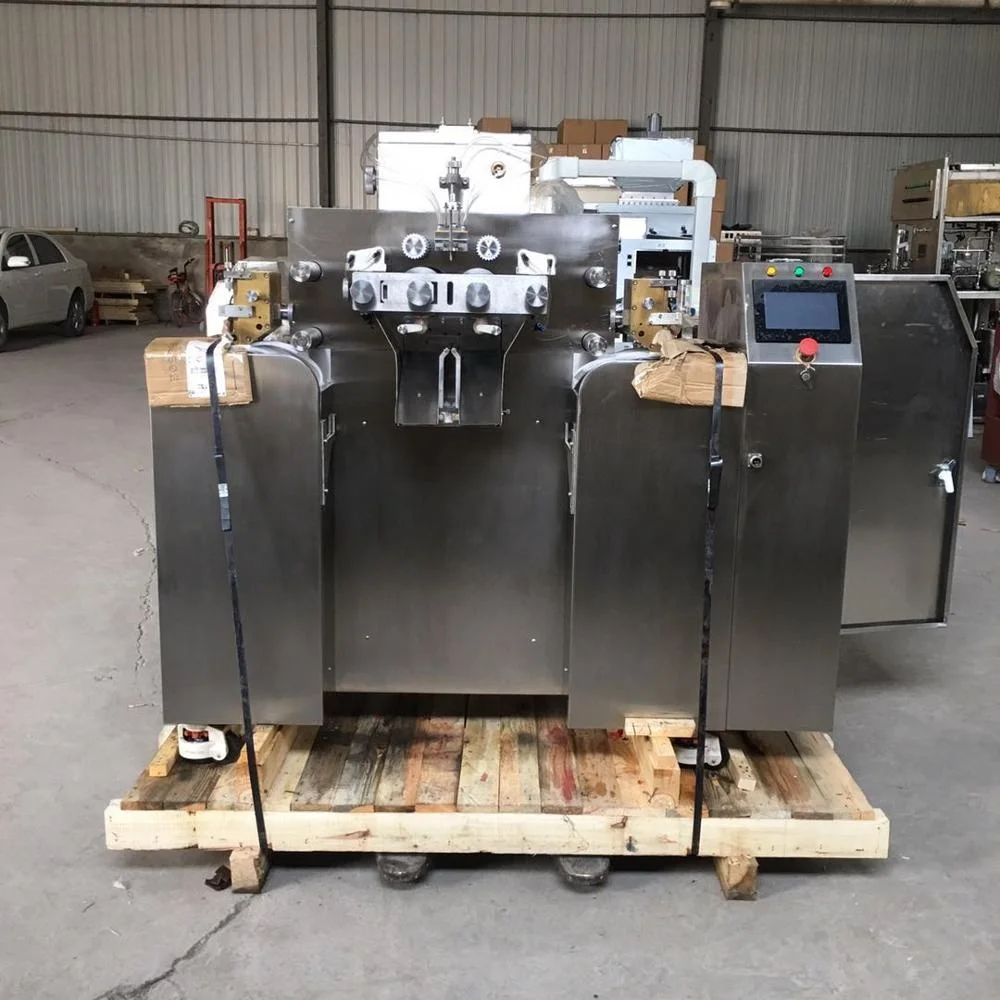

Maine Machine

If the contents need to mix, we can change the feeding funnel.
Specifications of main machine
Size of Rolling die: 64mm X 75mm
Speed of rolling die: 0-5 PRM
Piston No.: 4
Voltage: 220V or 380V
Power: 1500W
Material: SUS304
Size: 820mmX640mmX1200mm

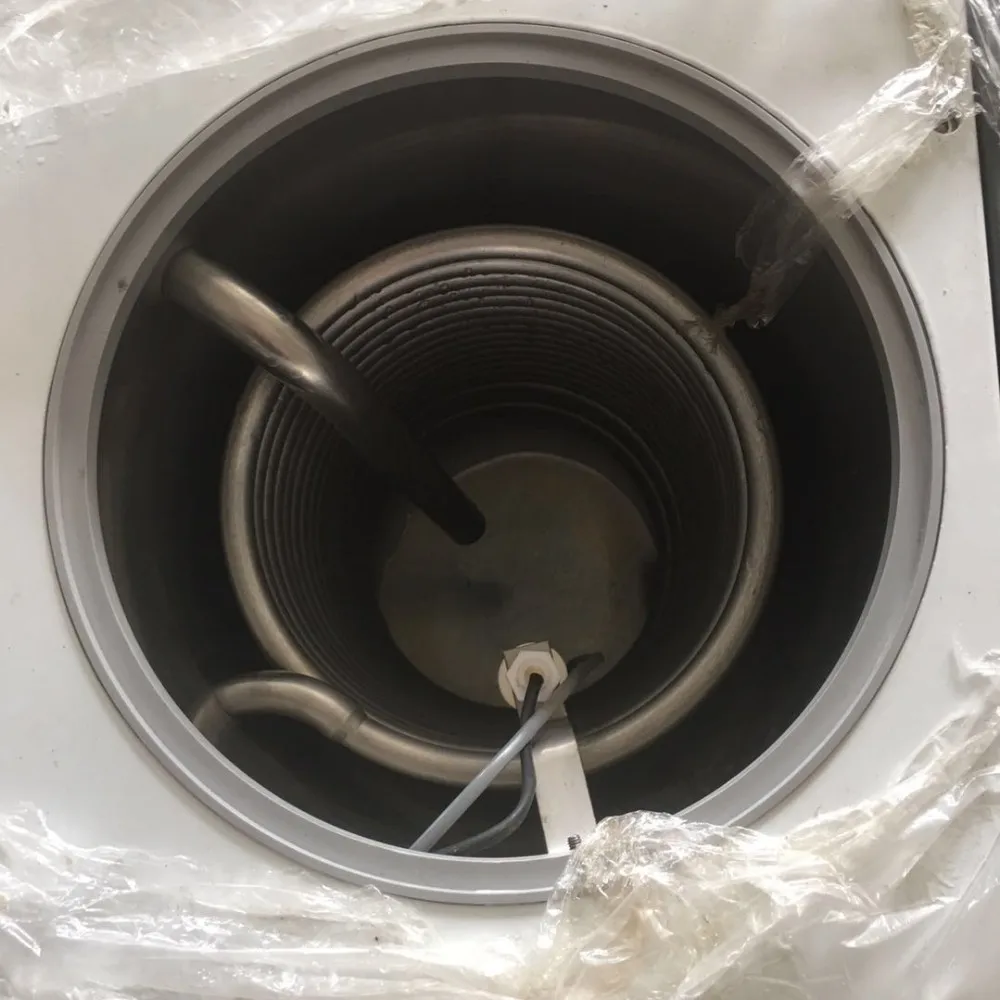

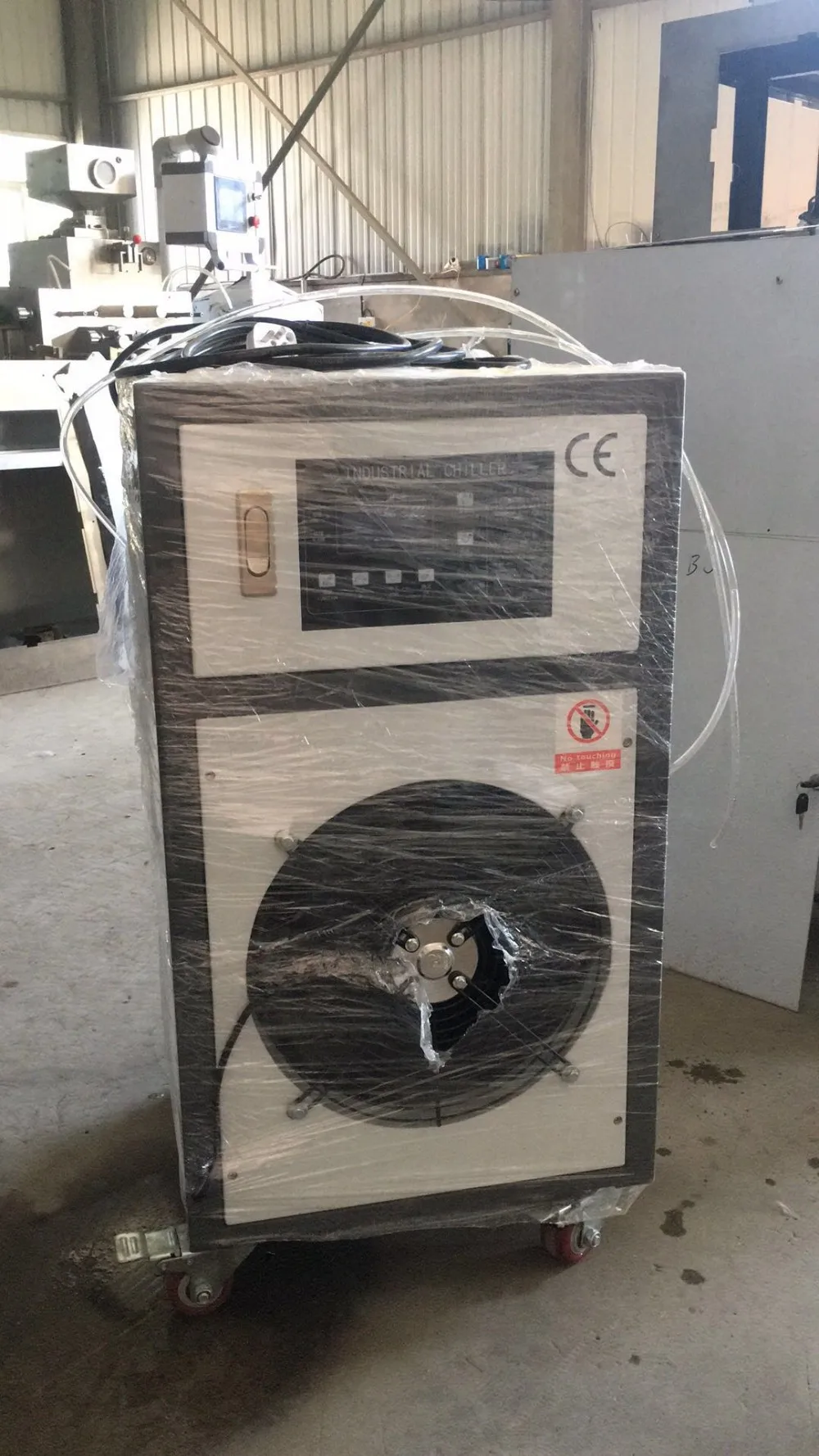

Water Chilling Machine

The water chiller machine can keep the temperature of gelatin when it pressed and filled in main machine, it be contacted with compression moulding of main machine.
Specification of Water chiller machine
Voltage: 220V or 380V 50/60Hz
Power: 1220W
Refrigerant: R22/0.75Kg
Temperature: 10-30 ℃

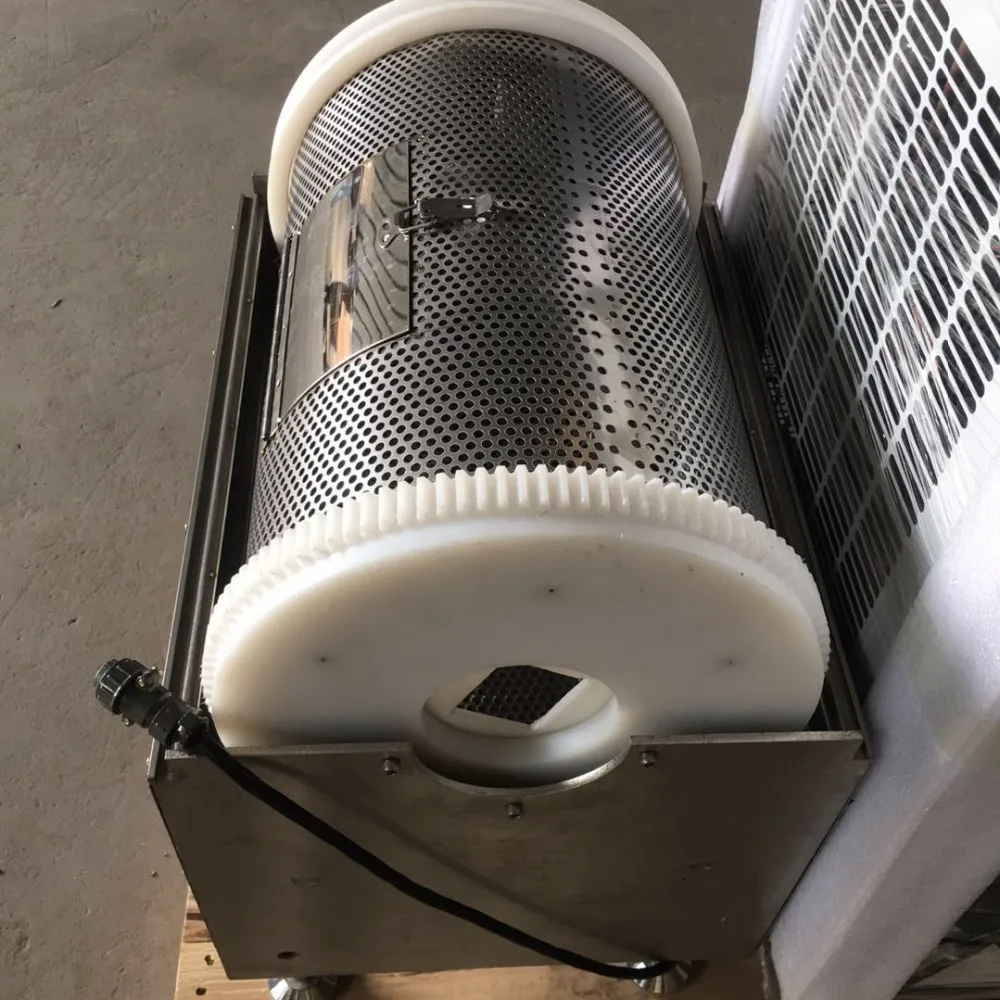

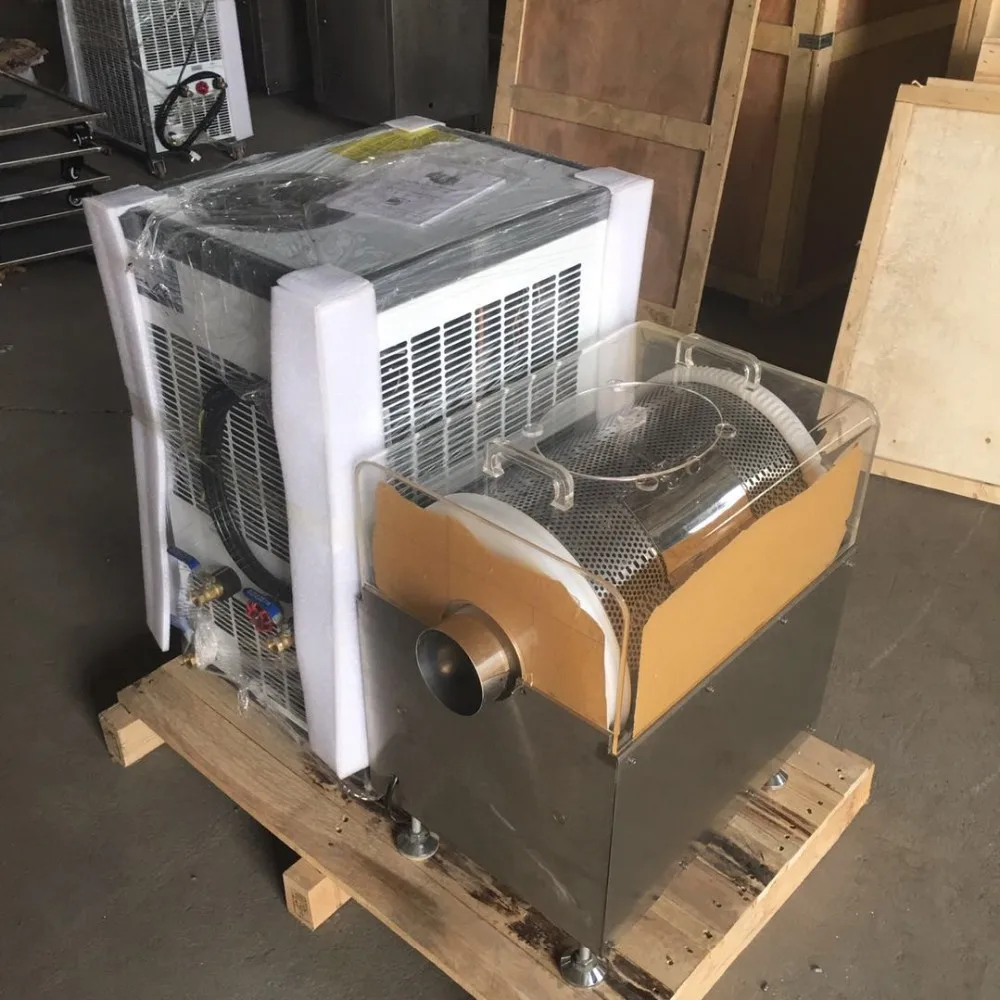

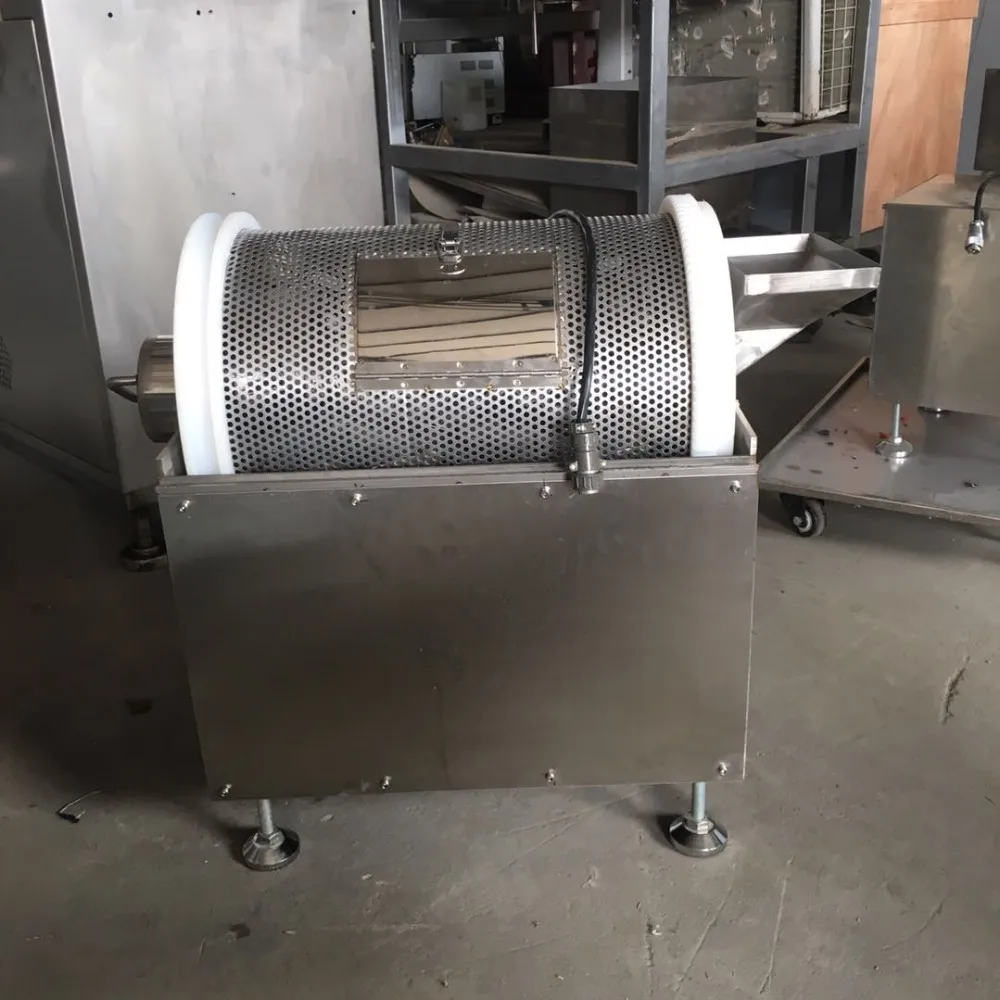

Tumble Dryer

After the capsule be produced from the main machine, they will be into the tumble dryer for drying,the cold drying in the basket.
It can accept about 10000 pieces.
Specification of Tumble Dryer:
Material: SUS304
Control: Be control in the main machine PLC
Voltage: 220V/380V
Power: 90W
Size:500mmX400mmX700mm
Weight:70Kg

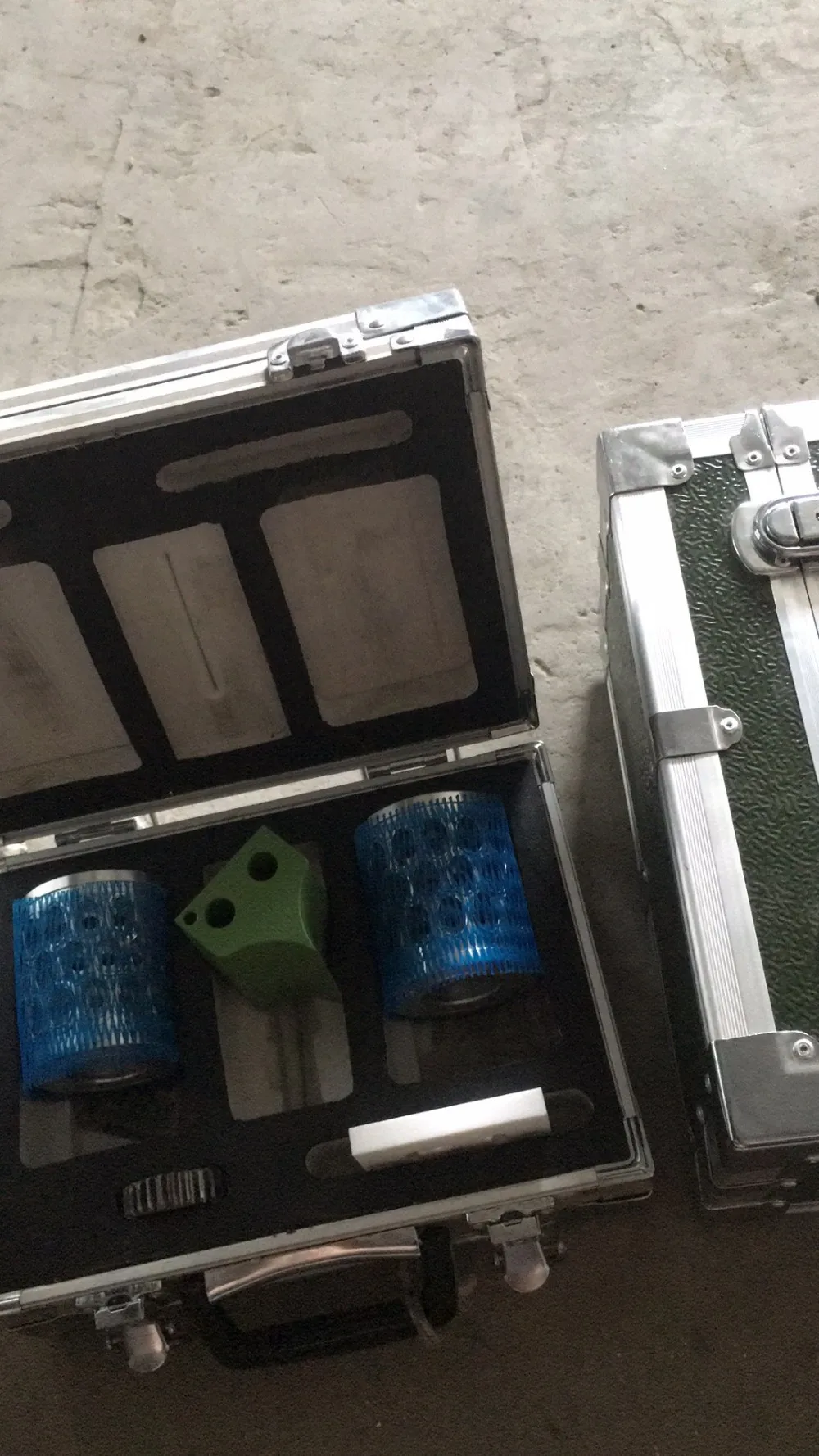

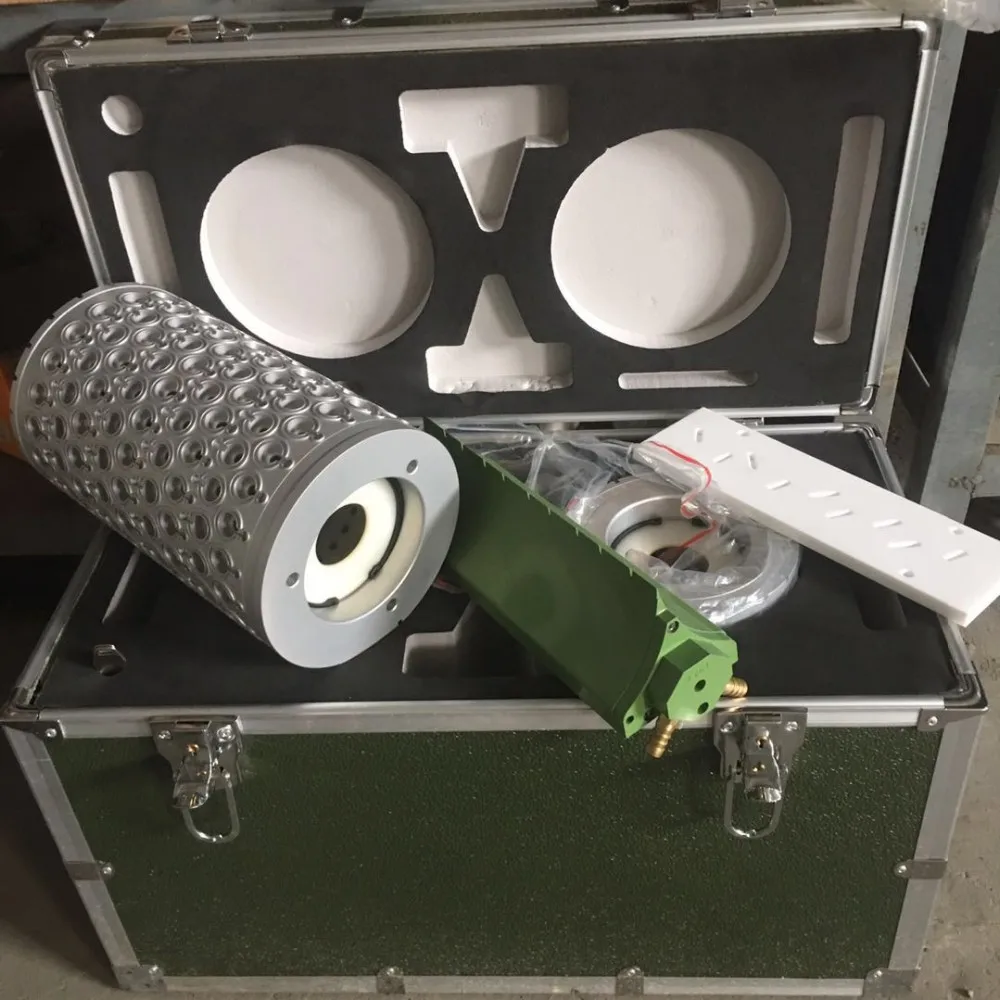

Rolling Die


Material\tAL 7075 (Duralumin
Injection segment \t1 set
Distribution plate \t1 set
Time gear\t1 set

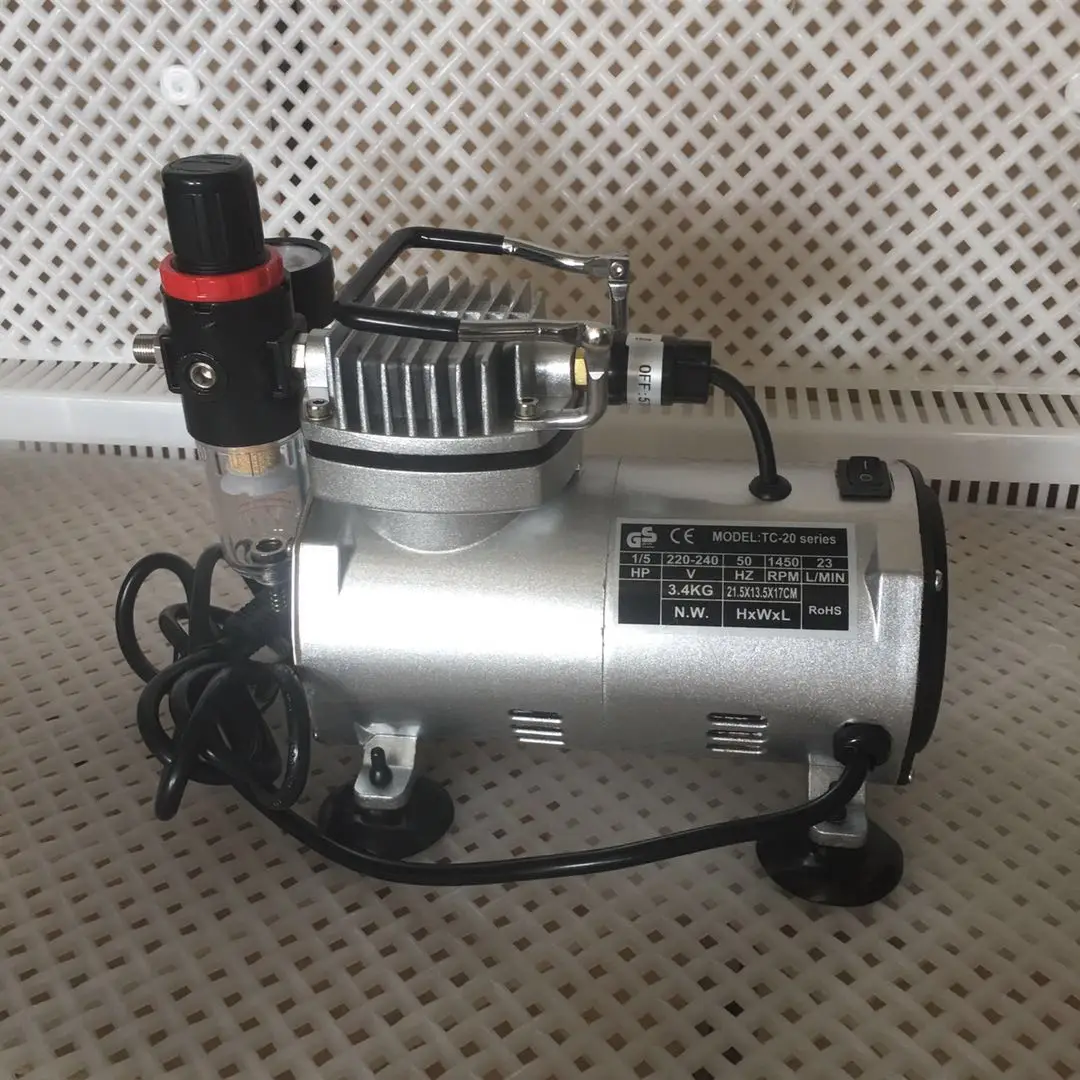

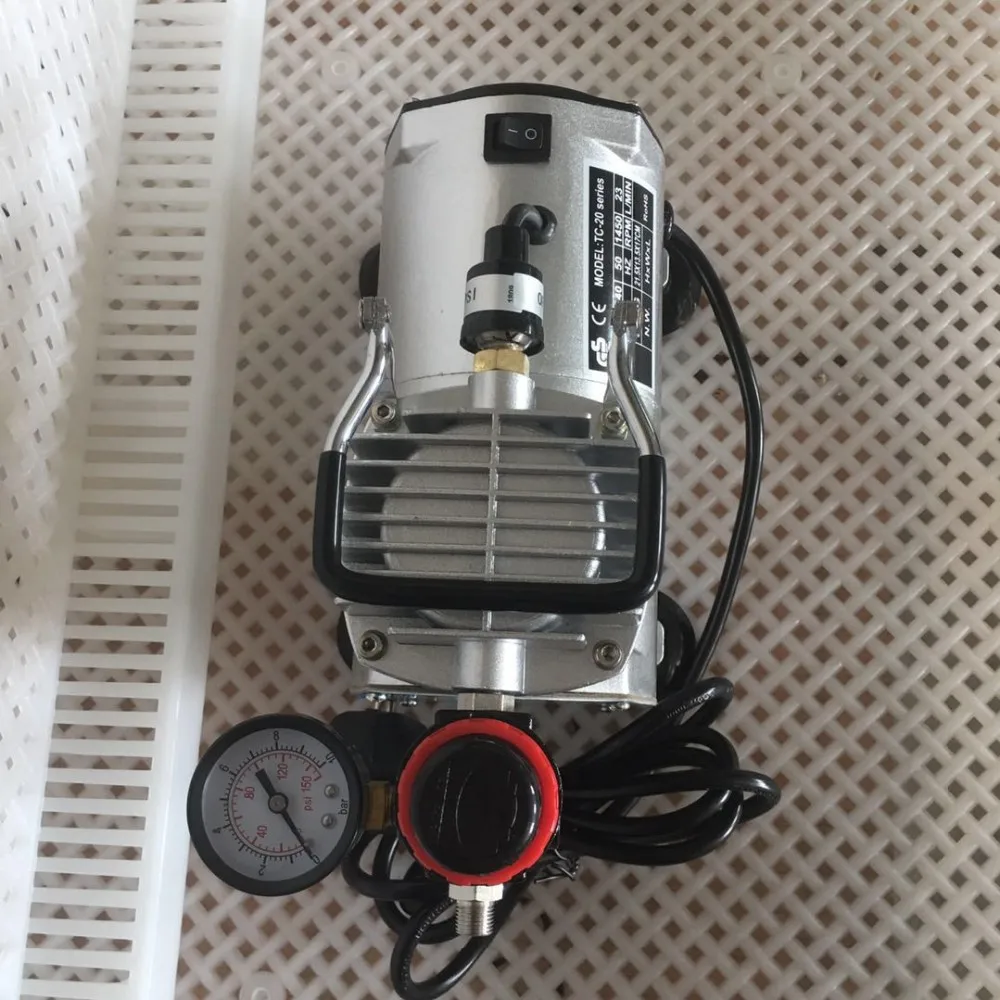

Air Compressor

This machine is contacted with gelatin melting machine and main machine,the air press make the speed of gelatin and contents at uniform.
Specification of Air compressor
Material: SUS304
Weight:2 Kg
Voltage:220V /280V
Power: 320 W
Air flow: 3.3m³/ Hour

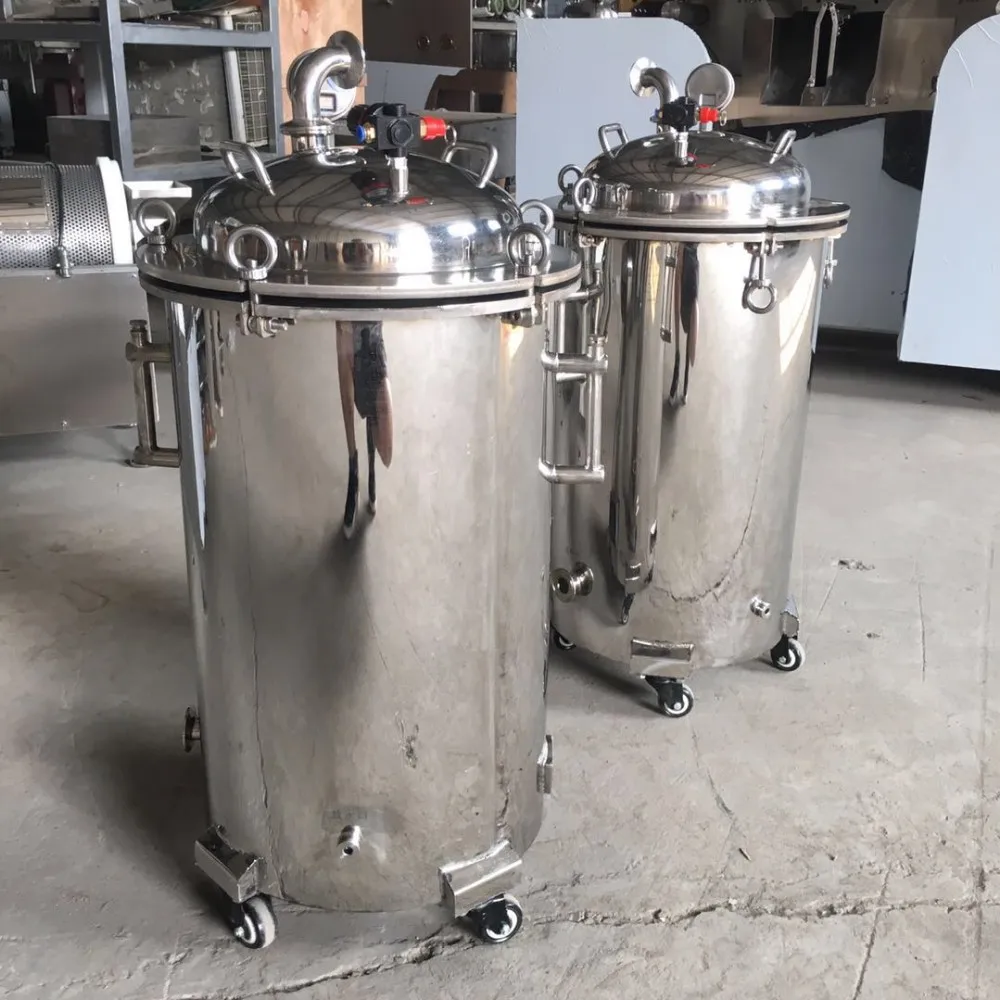

Gelatin Melting Tank

Material\tSUS 304
Dimension\tΦ400mm X 700mm
Weight\t40 Kg
Power\t1 Kw
Voltage\t220V / 2.2Kw
Frequency\t50 Hz / 60 Hz
Max rate\t16 rpm 9fixed
Max temp\t90--100℃
Max capa\t30 liter *1 tan

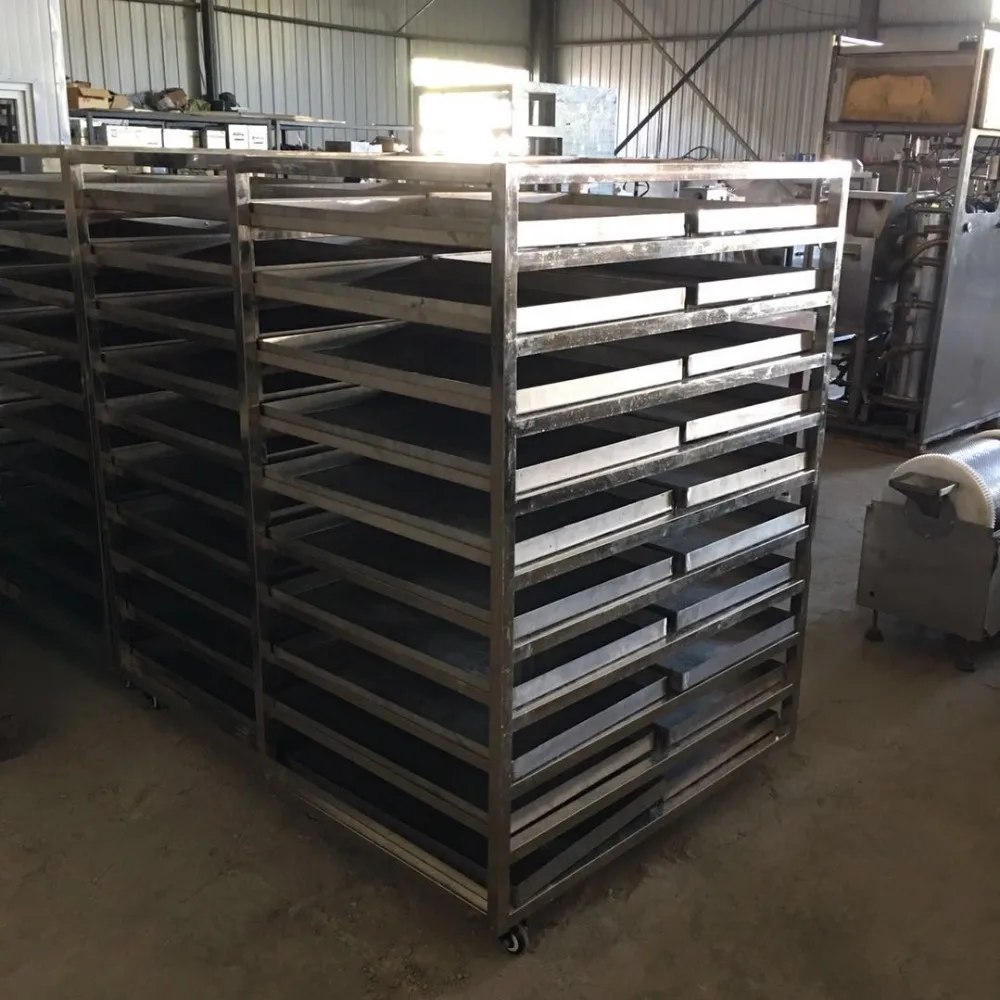

Capsule Dry and Trailer

Material\tSUS 304
Dimension\t760mm X 490mm X 55mm
Capacity\t2500 capsule
      Trailer
Material\tSUS 304
Dimension\t775mm X 510mm X 115mm
Four casters\tEquipped on the bottom




Capsule Conyer

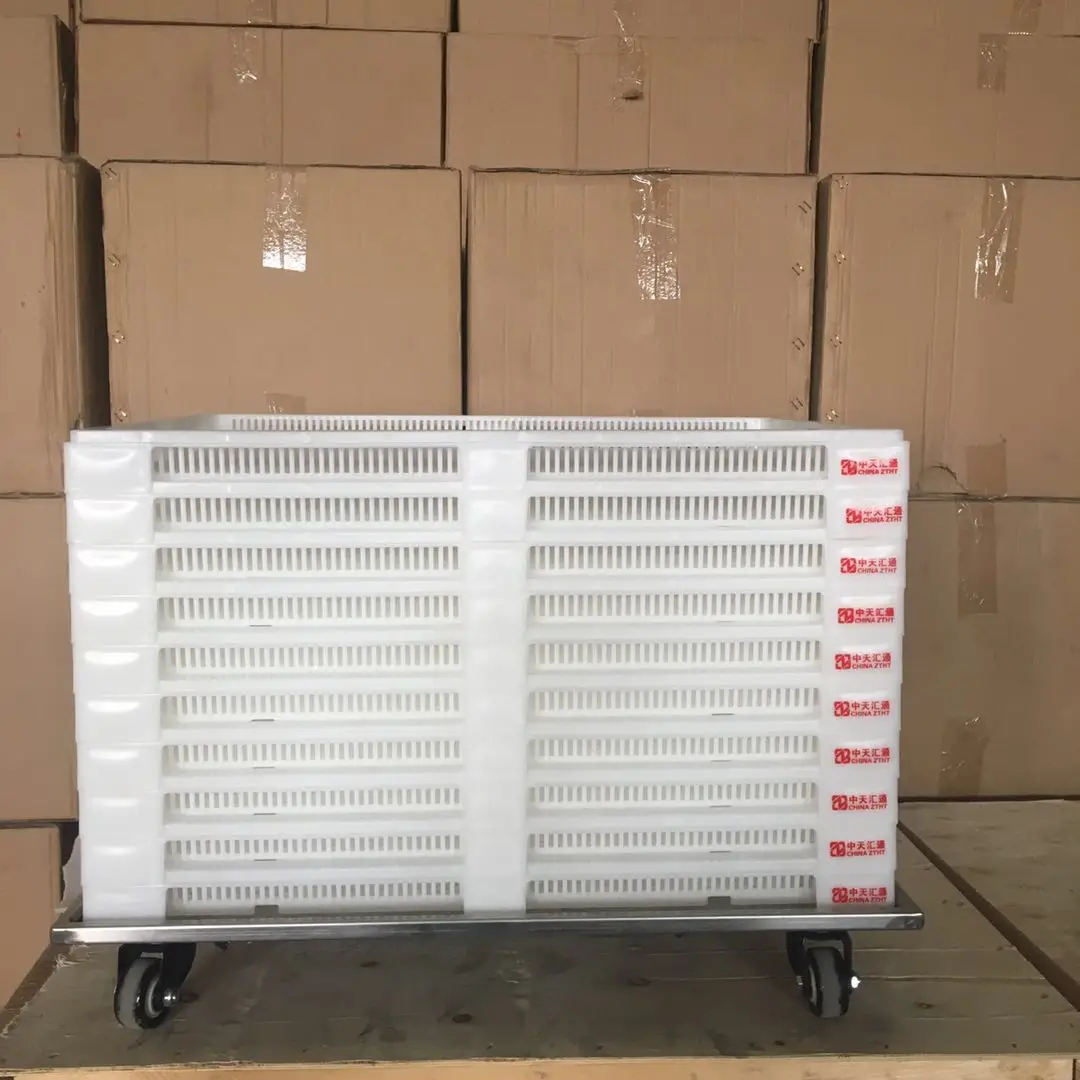

Capsule Dry Tray and Trailer
Material: PPE
Size: 760mm X 490mm X 55mm
Capacity: 2500 pieces
Trailer
Material: SUS 304
Size: 775mm X 510mm X 115mm
Four Casters
FAQ

About our Company And Machine

Q: Are you a factory or a trading company
A: We are a factory manufacturer for pharmaceutical equipment and soft capsule making machine we provide prefect OEM and after service.

Q: Where is you factory ? How can i visit your factory
A: Our factory is located in Beijing City, near the airport, we are warmly welcome you visit our factory, we can pick you up as Beijing International Airport .

Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of the transaction.

Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.

Our Service

Before Transportation

Before the transportation , we offer the training course for your technical ,if he come to our factory, and next, after the transportation, we have 12 month warranty for the machine, and if you need we can sent our technical and engineer to your factory and help you with the equipment commissioning

After Transportation

We will take video and clearer picture for you. If chance, we can take video online and show you.Online video service ,24 hour technology support by mail or online.if you need we can sent our engineer to your palace.

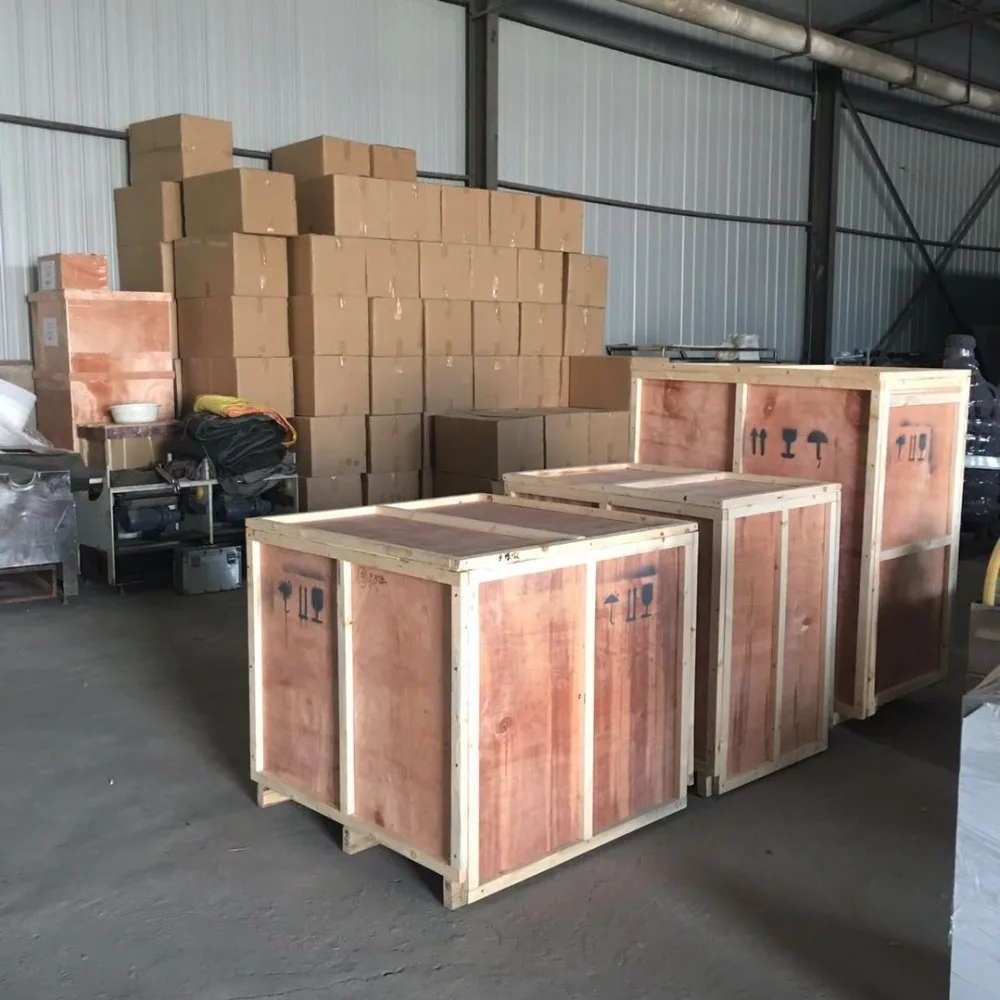

Packing & Delivery
Certifications
