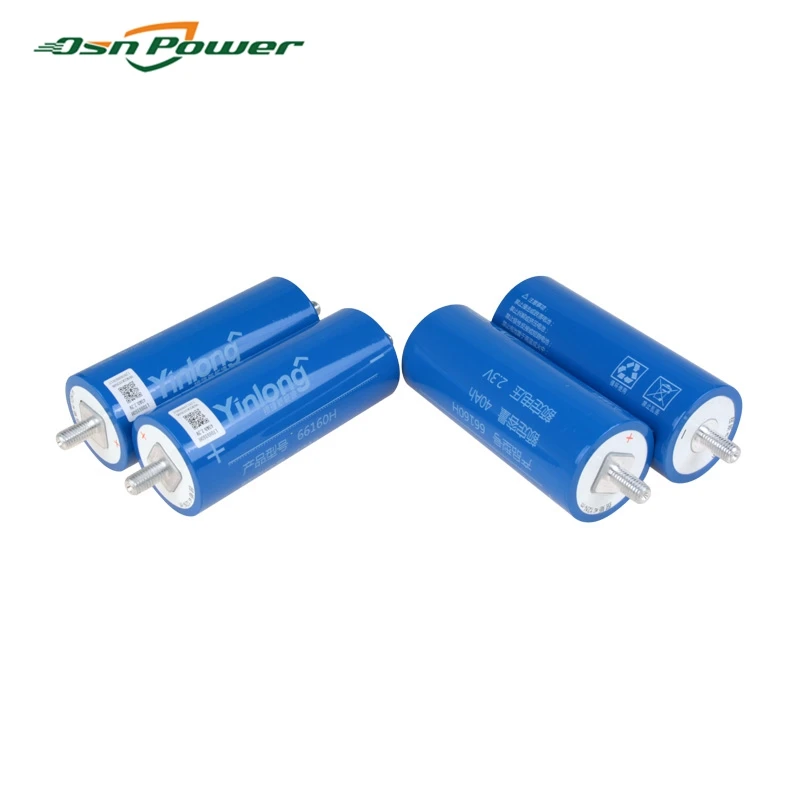

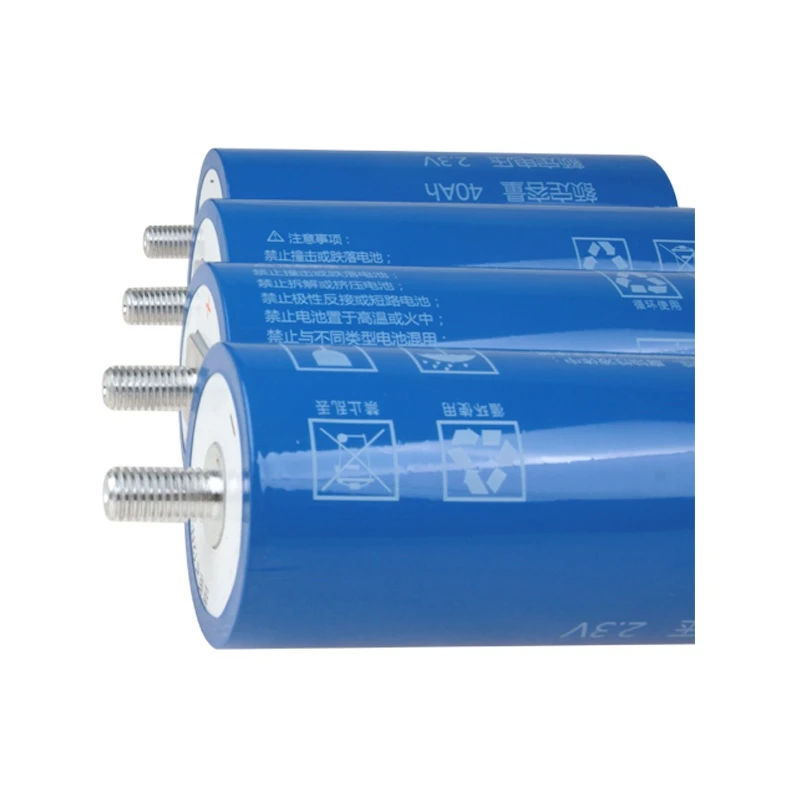

Хорошее качество низкая цена 2 3 v 40Ah LTO 66160 автомобильная аудиосистема литиевая батарея титаната

Сохранить в закладки 62487401543:


Цена:3 618,40 ₽ - 3 837,70 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

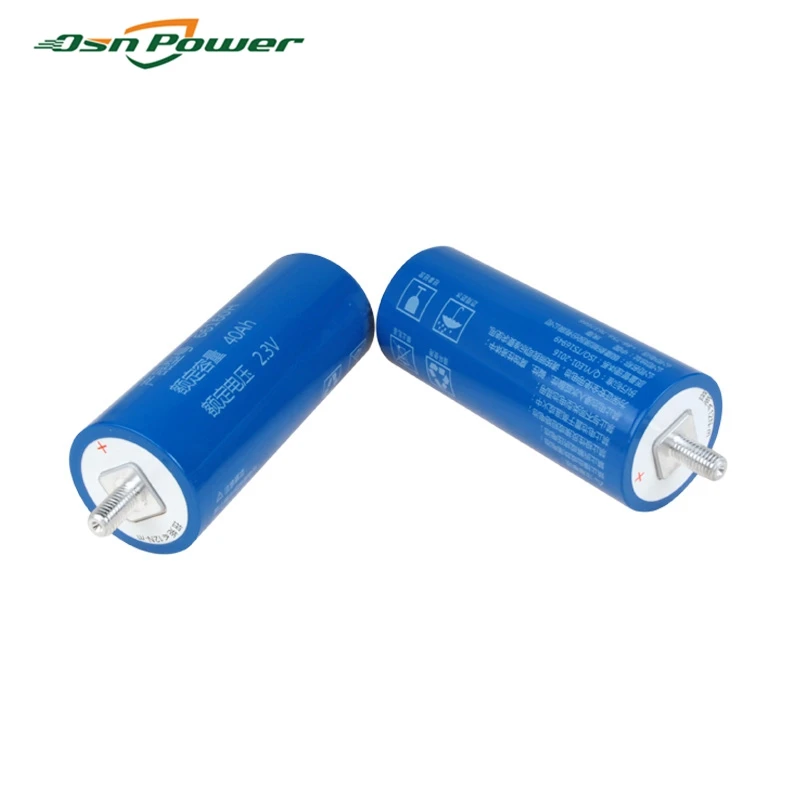

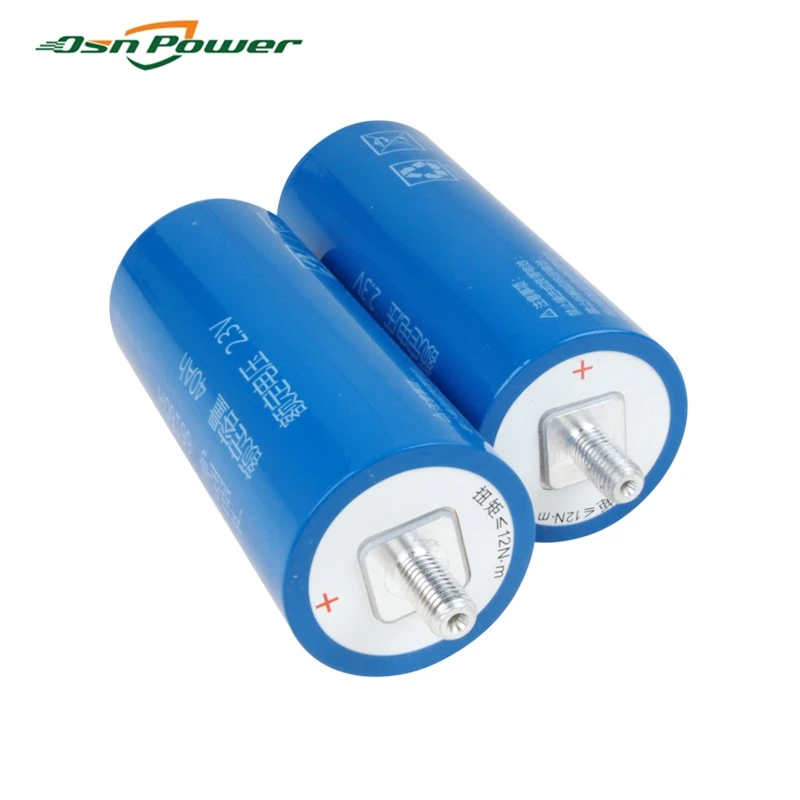

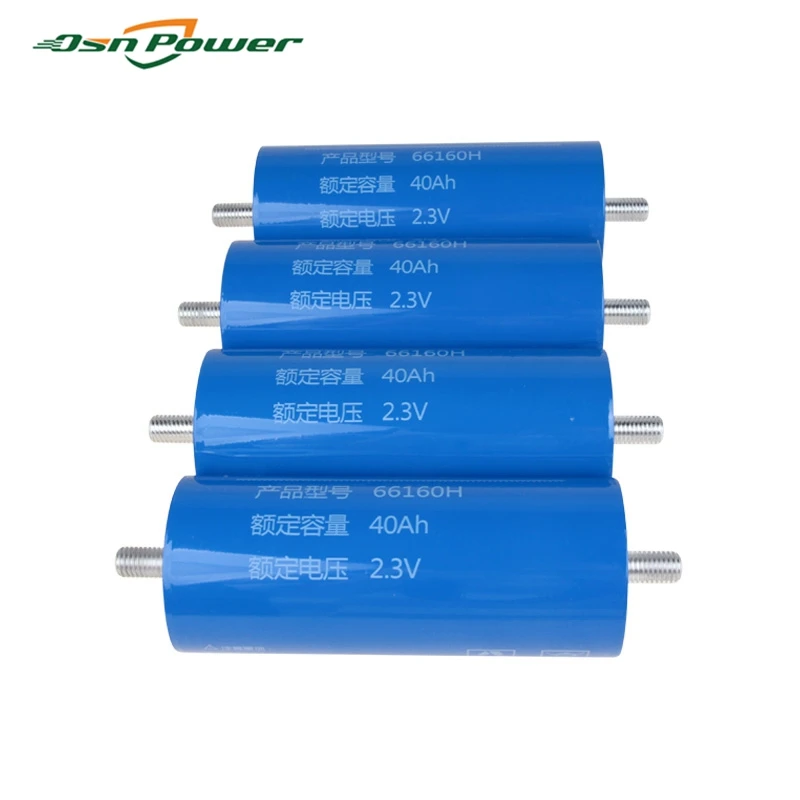

Product Description


LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. as a new type rechargeable lithium battery, LTO battery has great performances of perfect high safety, high stability,super long cycle life and strong temperature tolerance.










Specification





























































































Item



Parameters



Model



OSN-LTO-66160H



Materials



LTO



Nominal capacity



40Ah



Nominal voltage



2.3 V






Dimension






Length: 160±1.5mm



Diameter: 66±1mm



Weight



1.24±0.1kg



Internal Resistance



≤1mΩ



Operating voltage






Charge cut-off voltage



2.8 V



Discharge cut-off voltage



1.5 V



Standard charge/discharge current






Charge current



1C(40 A)



Discharge current



1C(40A)



Maximum charge current



10C



Maximum discharge current






10C



Cycle life



30000 times



Operating Thermal Ambient



Charging



-50℃~ 65℃



Discharging



-50℃~ 65℃



Storage Thermal Ambient



Short term(within 1 month)



-20℃~ 45℃



Short term(within 1 year)



-20℃~ 20℃













LTO Advantages



  • Faster charge: 10mins fully charged

  • Higher discharge rate: Up to 10C


  • Wide working temperature range: -50°C ~ 65°C




  • Super long cycle life:  over 30,000 times


    4-osn1-osn5-osn





Applications


·  Passenger and commercial plug-in hybrid electric vehicles (PHEVs)


·  Passenger and commercial battery electric vehicles (BEVs)


·  Mild and micro hybrid vehicles


·  Long-Duration (LD) grid energy storage systems


1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals


2) Solar hybrid street lighting, UPS power supply, home storage


3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations


4) Hospitals, finance, telecommunications , system critical backup power systems











Attentions:


For safety usage, please be careful on below:


Warning!


1. Do not immerse the battery in water and keep it dry when not in use;


2. Do not knock, throw or affect the battery near a fire source or under extremely hot conditions;


3. Please charge according to the charging requirements;


4. Do not reverse the positive (+) and negative (-) terminals;


5. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;


6. Do not directly weld the battery terminals.
