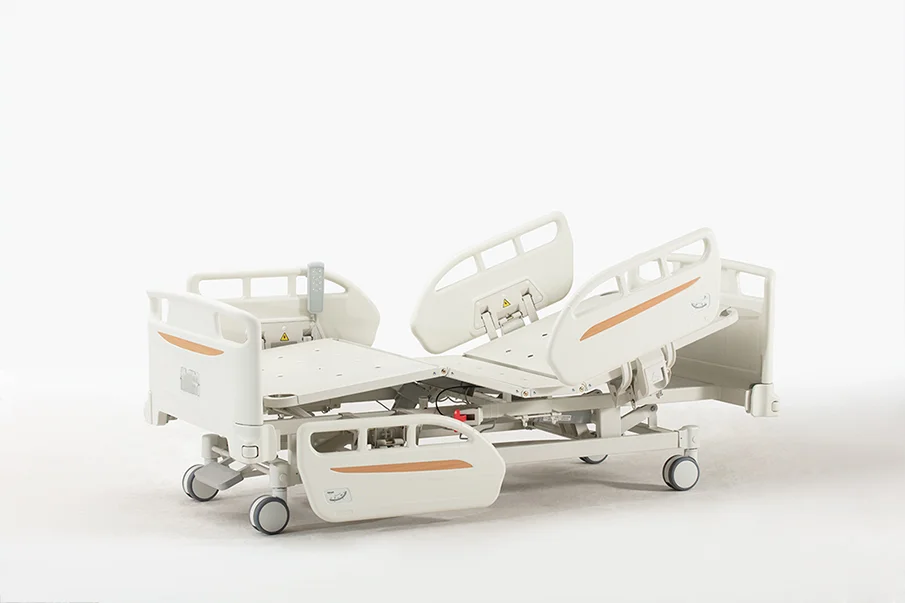

DA 3C5 три функции медицинская кровать для продажи pukang медицинский с регулировкой по высоте электрического больничной койке большими поручнями спинка

Type C5 Three-function Electric Bed

L2110×W990×H440~740mm

1, Safe working load: ≥200kg
2, Height: 500~760mm.
3, The back board folding angle: ≥ 70 °
4, The thigh board folding angle: ≥ 25°
5, The four motors automatically realize various positions. The motors are selected from internationally renowned brand Timotion, which are safe and noiseless.
6, Two control methods, operation handle control and guardrail built-in button operation(optional), control handle is clear and easy to operate; built-in buttons on the side rail near headboard, graphic display, clear at a glance. The key has lock function, which reduces the probability of misoperation and locks safely.
7, Side rail:
1),Two side rail in each side of bed.
2), It can be automatically locked when raising, and each side rail can bear more than 50KG.
3), Said rail safety switch design(optional), placed under the side rail to avoid misuse of the patient;
4),Equipped with gas spring for easy operation.
5), The steel structure of the guardrail base is welded on the bed to ensure safety.
6), The 4-pieces side rail has angle indicator that allows the caregiver to quickly and easily adjust the backrest angle and TR/ATR angle of the bed.
7), It equipped with side rail built-in button to make it easier for the patient to operate the bed.
8, Casters
1), The four casters use a 125mm center control one.
2), Braking system: Pedal-type synchronous braking arms on both sides of the bed, adopting all-metal structure, compact structure and reliable braking.
10, There are 1 hook in each side for drainage bag.
11, Shank board can be adjusted manually by simple steel support for convenience position.
12, At the 4 corners of the bed, there is an diameter HDPE anti-collision wheel which intergated on H/F board.
13, It equipped with manual CPR for emergency treatment.
