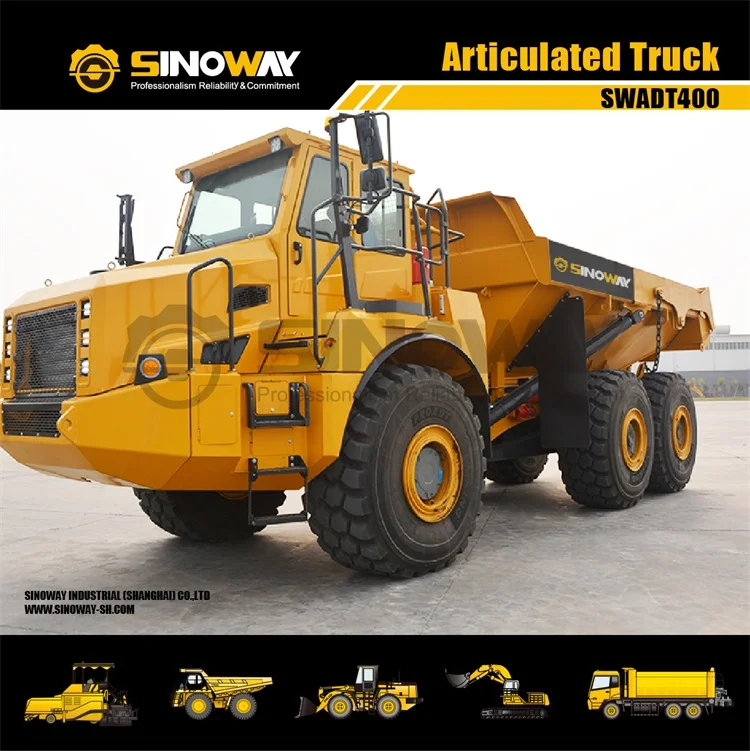

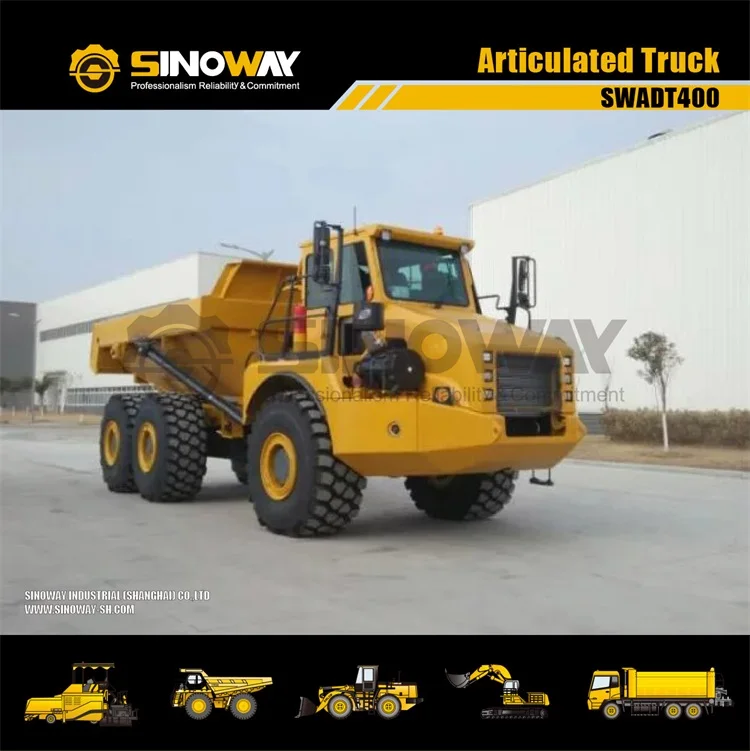

Самосвалы с шарнирным механизмом, грузоподъемность 40 тонн
37 764 230,00 ₽
Строительные внедорожники 6x6 40 тонн шарнирный самосвал для горных работ на продажу
- Категория: >>>
- Поставщик: Sinoway Industrial (Shanghai) Co. Ltd.
Сохранить в закладки 62488119156:
Описание и отзывы
Характеристики
Products Description
Power
Tier3 stage high power electronic control engine is adopted, which has stronger power.
Vehicle Frame
Vehicle frame is composed of articulated hitch, front frame and rear frame.
Articulated hitch allows the rear frame to free oscillate and rotate, relative to the front frame, ensure all of the driving
wheels shall be good contact with the ground in order to provide excellent mobility and stability of the high speed transport capacity. The articulated hitch is used of casting.
All of the frames are made of high quality high strength low alloy steel, The main parts adopts casting, improving the strength of the frame. All of Important weld is tested 100% by ultrasonic testing.
Body
Body adopts full welder structure with HB400 high strength wear-resistant steel plate. Bigger Dump angle, larger ground clearance and lower loading height make it very helpful for rapid loading and unloading of materials. Flat tail warped type, rock type, Installing rubber suspension block.
Suspension
Hydro-Pneumatic suspension combined with the A-frame to ensure that the vehicle has good vehicle stability and off-road performance. SWADT400 articulated dump truck suspension structure can lower the impact caused by harsh road, improve riding comfort and handling stability.
Steering
High quality variable plunger pump provides oil source, flow amplifying hydraulic steering, good feeling steering wheel, high precision steering response, stable steering. Equipped with second steering accumulator.
Hoisting
Hoisting is completed by a valve group to manipulate single secondary double-acting,telescopic cylinder.
Brake System
SWADT400 adopts self-oil cooled disc brakes system, ensure the vehicle highly reliable and long lifetime. Even in the muddy road, SWADT400 also function responsively. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
Safety Device
The cab equipped with rear window protection grill, The three-point seat belts, Escape hammer, emergency stop button, Rotating lamp, Reversing warning, Steering locking lever, Boxcar support bar, Assisted steering and brake accumulator, slip resistant surface, guardrail, etc.
Cab
The FOPS cab is built from high strength steel, meeting FOPS standard,without A column design, with the broad space and vision. The fully-equipped cab provided all kinds of display instrument, alarm, lighting, control switch, On-board computer, electric Windows, tilting and telescoping steering wheel, electric windshield wiper cleaners, colored glass, air conditioning.
Tier3 stage high power electronic control engine is adopted, which has stronger power.
Vehicle Frame
Vehicle frame is composed of articulated hitch, front frame and rear frame.
Articulated hitch allows the rear frame to free oscillate and rotate, relative to the front frame, ensure all of the driving
wheels shall be good contact with the ground in order to provide excellent mobility and stability of the high speed transport capacity. The articulated hitch is used of casting.
All of the frames are made of high quality high strength low alloy steel, The main parts adopts casting, improving the strength of the frame. All of Important weld is tested 100% by ultrasonic testing.
Body
Body adopts full welder structure with HB400 high strength wear-resistant steel plate. Bigger Dump angle, larger ground clearance and lower loading height make it very helpful for rapid loading and unloading of materials. Flat tail warped type, rock type, Installing rubber suspension block.
Suspension
Hydro-Pneumatic suspension combined with the A-frame to ensure that the vehicle has good vehicle stability and off-road performance. SWADT400 articulated dump truck suspension structure can lower the impact caused by harsh road, improve riding comfort and handling stability.
Steering
High quality variable plunger pump provides oil source, flow amplifying hydraulic steering, good feeling steering wheel, high precision steering response, stable steering. Equipped with second steering accumulator.
Hoisting
Hoisting is completed by a valve group to manipulate single secondary double-acting,telescopic cylinder.
Brake System
SWADT400 adopts self-oil cooled disc brakes system, ensure the vehicle highly reliable and long lifetime. Even in the muddy road, SWADT400 also function responsively. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
Safety Device
The cab equipped with rear window protection grill, The three-point seat belts, Escape hammer, emergency stop button, Rotating lamp, Reversing warning, Steering locking lever, Boxcar support bar, Assisted steering and brake accumulator, slip resistant surface, guardrail, etc.
Cab
The FOPS cab is built from high strength steel, meeting FOPS standard,without A column design, with the broad space and vision. The fully-equipped cab provided all kinds of display instrument, alarm, lighting, control switch, On-board computer, electric Windows, tilting and telescoping steering wheel, electric windshield wiper cleaners, colored glass, air conditioning.

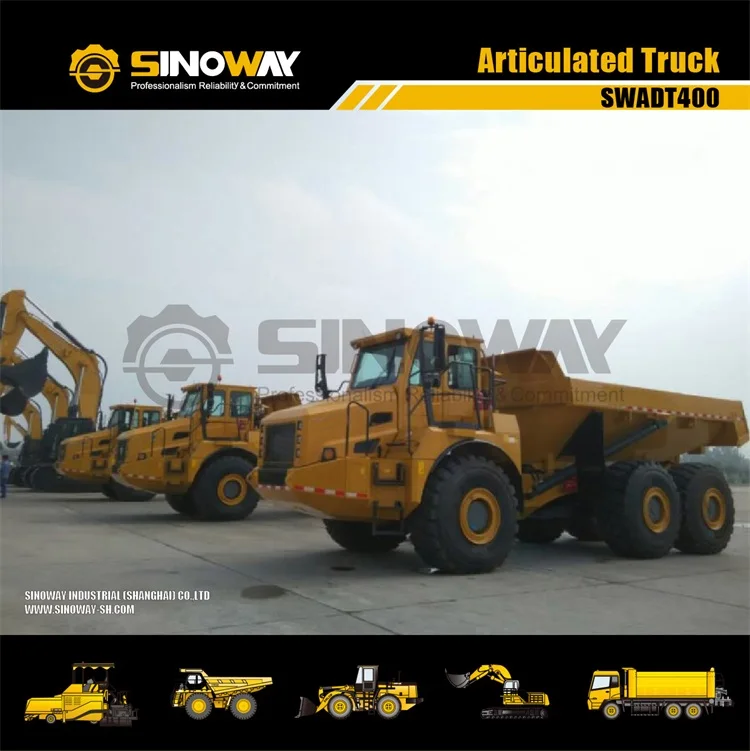

Machine Show
Product Paramenters
Overall length | 10690mm |
Overall width | 3370mm |
Overall height | 3793mm |
Wheelbase (front-mid) | 4450mm |
Wheelbase (mid-rear) | 1940mm |
Tire center distance (front/mid & rear) | 3075mm / 3075mm |
Total weight | 73000kg |
Payload capacity | 39000kg |
Curb weight | 34000kg |
Unload (front/mid & rear) | 17000kg (50%) / 17000kg(50%) |
Loaded (front/mid & rear) | 21600kg (29.4%) / 51400kg (70.6%) |
Engine | Benz OM502 |
Rated power | 350 kw /1800rpm |
Max. torque | 2300N.m / 1300rpm |
Dive mode | 6×6 |
Tire size | 29.5R25 |
Max. speed | 60km/h |
Min. turning clearance | 8865mm |
Max. gradeability | 45% |
Min. ground clearance | ±45° |
Loading height | 3180mm |
Hoist time | 12s |
Hoist angle | 70° |
Fuel | 550L |
Hydraulic oil | 300L |
Engine oil | 60L |
Cooling system | 240L |
Struck | 17.5m3 / 18.5m3 |
2:1 Heaped | 22.9m3 / 24m3 |
Why Choose us
Похожие товары

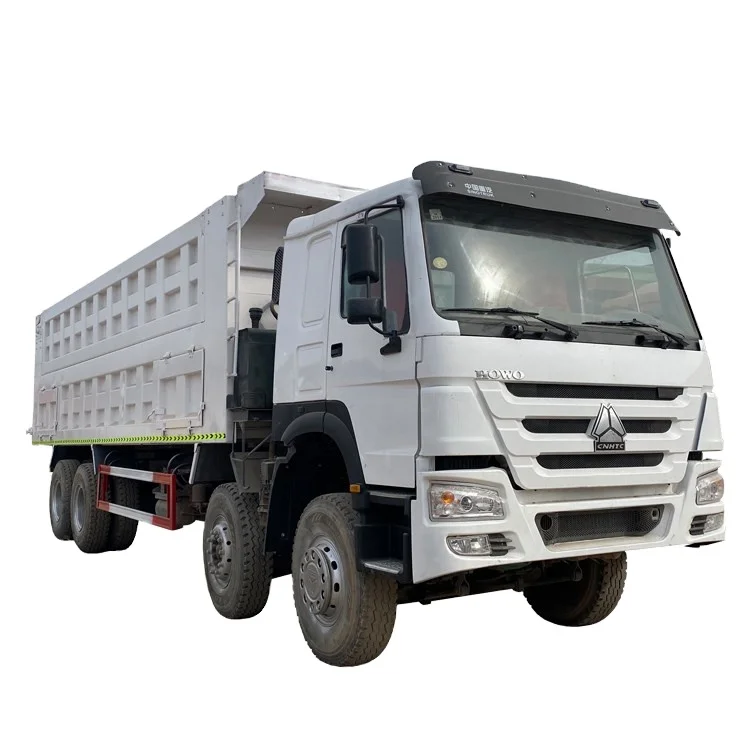

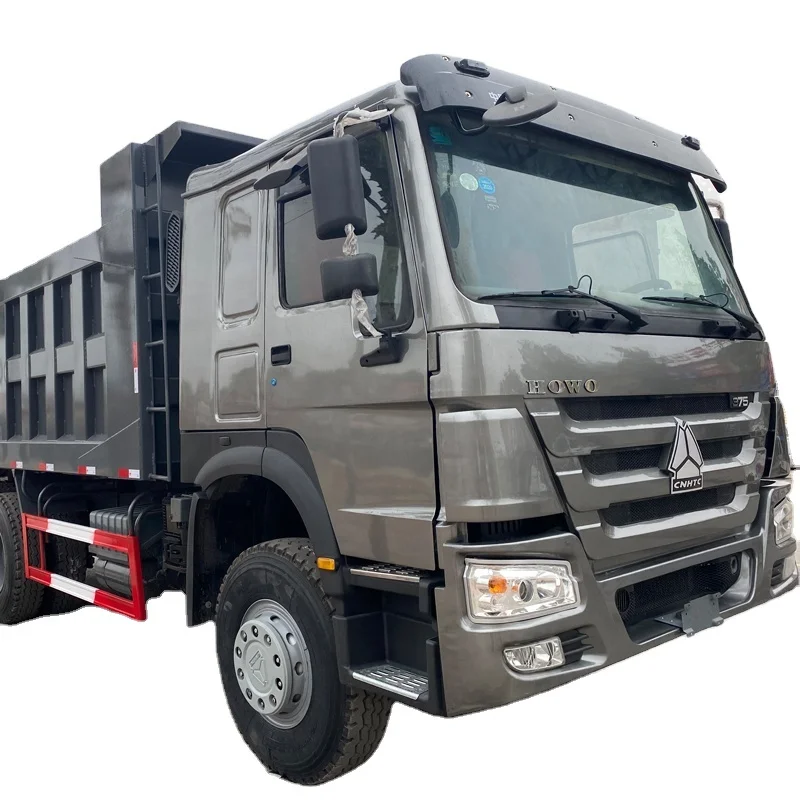

Второй ручной самосвал 8x4 б/у самосвал Howo 12 колесный самосвал для продажи
1 186 767,91 ₽ - 1 618 359,11 ₽

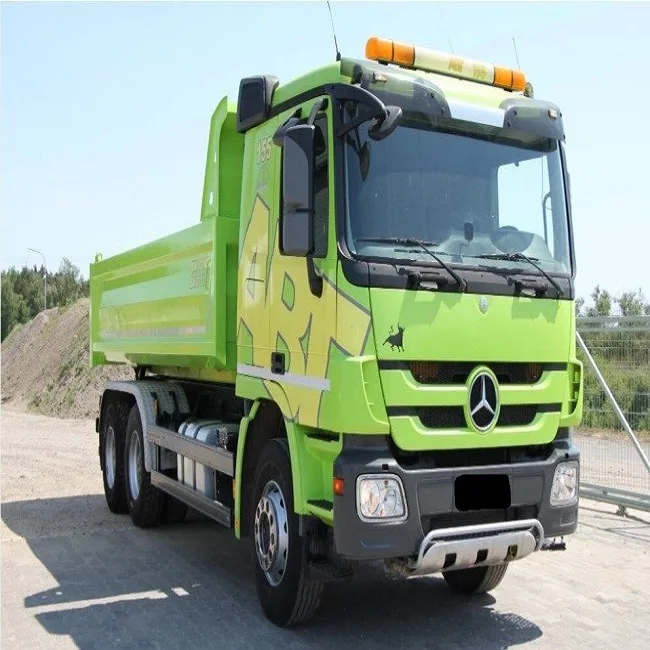

Самосвал для самосвала Mercedes-Benz ACTROS 2641 2007 самосвала 2008 2009 2010 2011 2012 2013 2014 2015 2014 2017

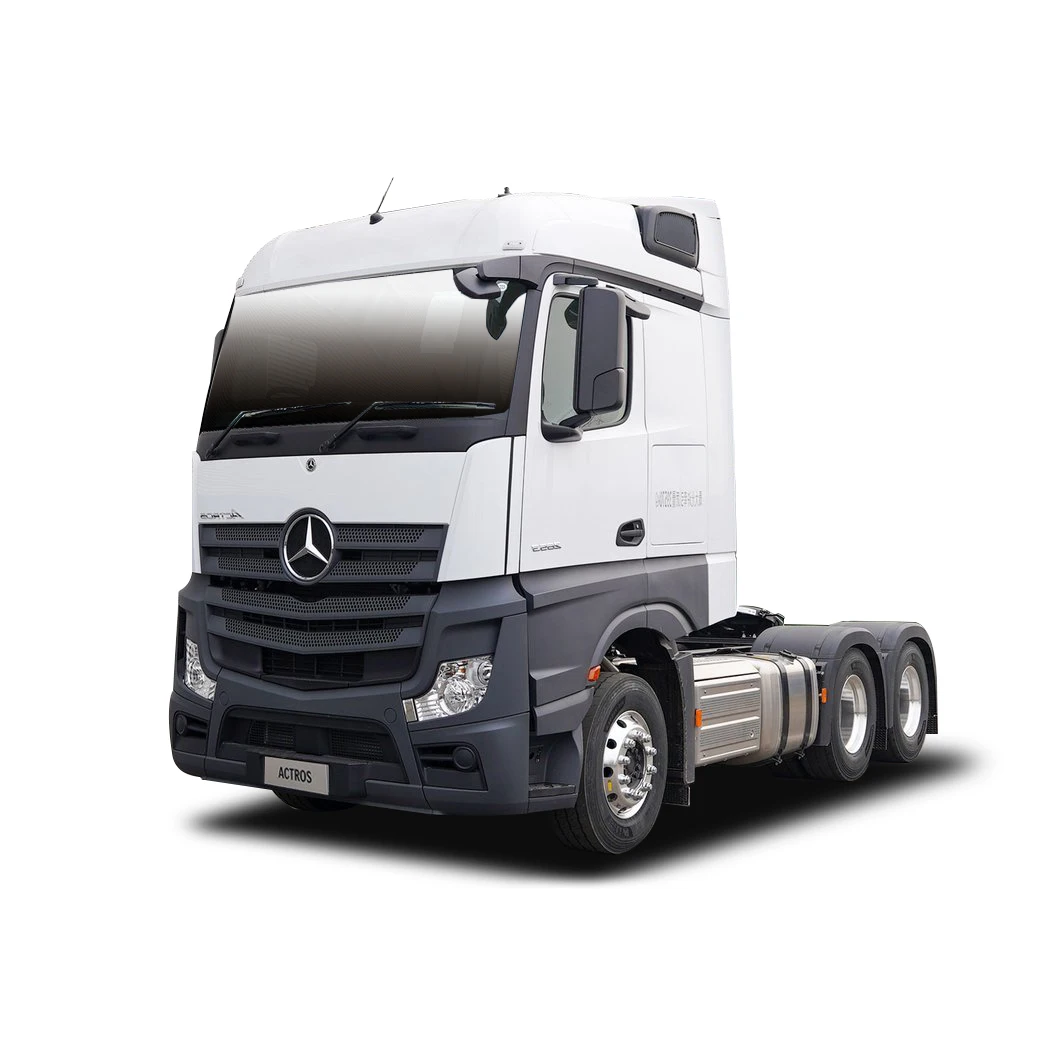

Хорошее качество, 2023 грузовик мер-седес-бенз, в наличии, новая головка трактора, головка грузовика Actros, головка 4 х2, 480 л.с., новый для продажи
2 373 751,60 ₽ - 3 129 036,20 ₽
Ben z Truck 6x4 3340 2640 V8 б/у грузовик с головкой трактора Germany Actros б/у Ben z ГРУЗОВИК для продажи
161 846,70 ₽ - 323 693,40 ₽

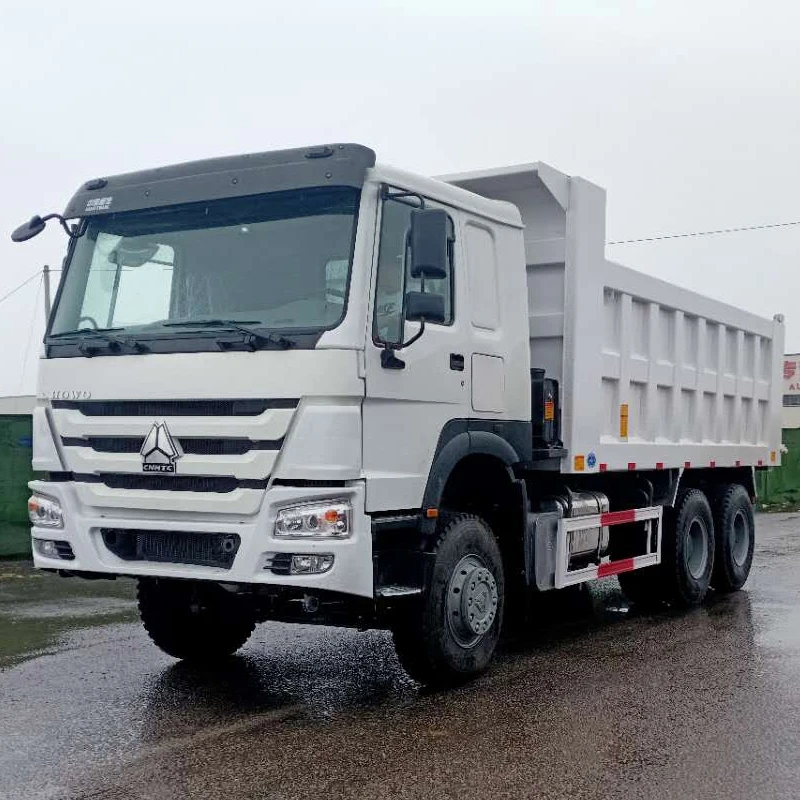

Sinotruk sitrak Sinotruk цена 336 л.с. 10 колесных грузовиков Howo 6x4 Эфиопский самосвал Sino
1 726 364,80 ₽ - 1 942 160,40 ₽

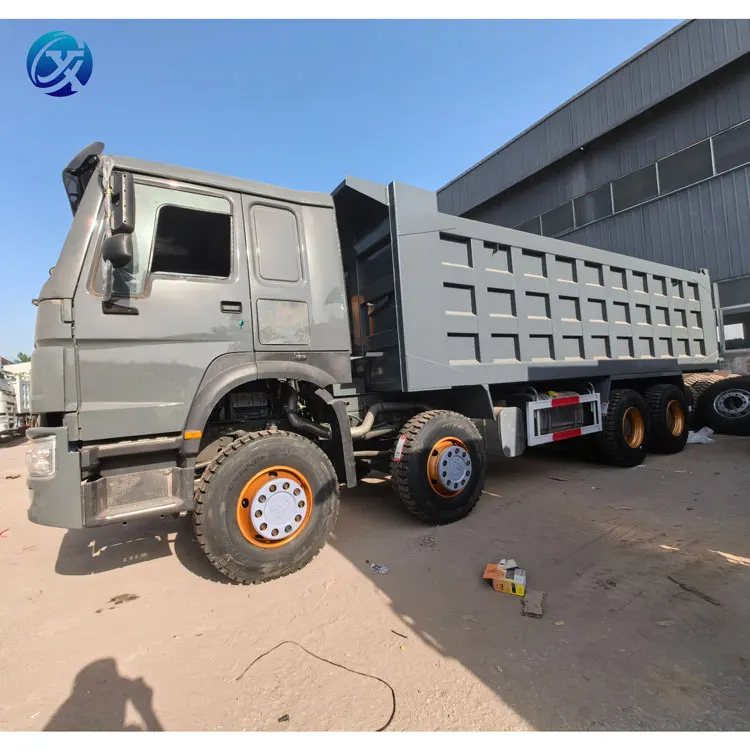

Sinotruck Second Hand 6x4 самосвал механическая коробка передач левое рулевое 371 Howo б/у самосвалы для продажи
1 348 722,50 ₽ - 1 780 313,70 ₽

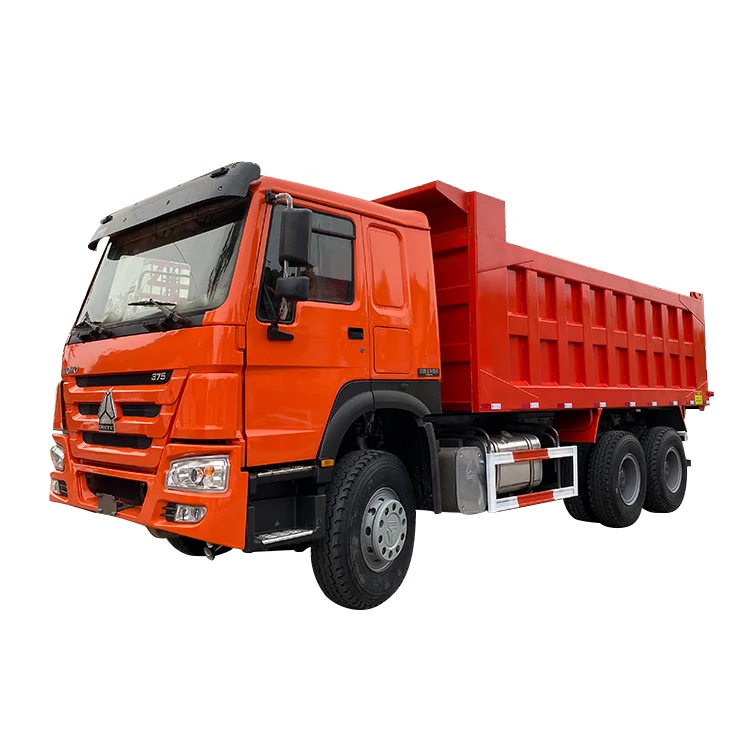

Китайский самосвал Sinotruck Howo, б/у 371, 6x4, Мини 20 кубических метров, 30 тонн, б/у самосвал
