Продвинутая конструкция, автоматическая машина для расширения/скручивания пластиковых труб
22 000,00 $ - 26 000,00 $
Машина для скручивания труб из ПВХ
- Категория: Раструбные станки >>>
- Поставщик: Zhangjiagang Xinda Plastic Machinery Co. Ltd.
Сохранить в закладки 62488197977:
Описание и отзывы
Характеристики
PRODUCT CATALOG
21 Years Experience China Top Manufacturer in Plastic Machinery.
PRODUCT DESCRIPTION
21 Years Experience China Top Manufacturer in Plastic Machinery.

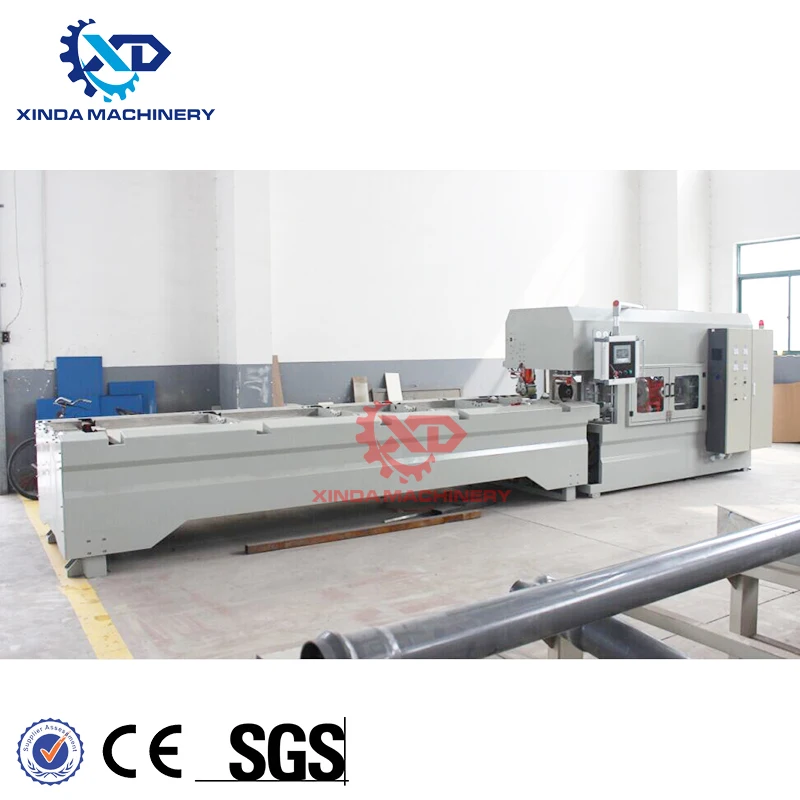

Double-oven Automatic Belling Machine
Automatic Belling Machine is a equipment for processing 50-250mm outer diameter PVC / PE plastic hard pipe flaring. The flaring method is two types of straight flaring and R-shaped flaring. After molding, the mold is vacuum shaped The pipe is externally air-cooled or water-cooled. The equipment is composed of a pneumatic headstock and a tailstock. The headstock is composed of a feeding device, a heating furnace and a flaring station. The rise and fall of the tailstock is completed by an electric mechanism, the heating furnace control system is controlled by an intelligent temperature control meter, and the cooling method is water-cooled and internal vacuum-setting. The forming methods are all adopted to shape the pipe head, and the forming size of the nozzle is accurate. This model can be used in conjunction with the extrusion production line. The whole machine is controlled by Siemens PLC to achieve full-automatic production. Our company can customize and produce various types of full-automatic flaring machines according to customer requirements.
PRODUCT PARAMETERS
21 Years Experience China Top Manufacturer in Plastic Machinery.
Main technical parameters | ||
pipe expand range（out diameter） | Φ50-250mm | |
Belling type | R type | |
Voltage | 380V/50HZ | |
Quantity of heater | 2 | |
Heating power | 1.5kw*6+0.5kw=9.5kw | |
Heating method | Heating pipe (10 pcs) | |
highest temperature in heater | 280℃ | |
Air bag | 3 pcs | |
Air pressure | 0.4~0.6Mpa | |
Cooling method | Water cooling | |
Cooling water pressure | 0.2~0.3Mpa | |
R type forming method | Vacuum pump system | |
Material of R mold | Higher Block: 3Gr13 Slider: 40Gr Nitriding Other part: 45# Steel, then electroplating | |
Material of U mold | 45# Steel, then electroplating | |
Total power/Capacity | 26kw | |
Pipe length | 3-6m | |
Center height | 1000mm±50mm | |
Machine set weight | 2.6T | |
Dimension of machine | 7390x2050x1980mm | |
Would like to know more about Xinda Machinery, contact us for more machine details! | ||
WHY CHOOSE XINDA MACHINERY
21 Years Experience China Top Manufacturer in Plastic Machinery.
XINDA MACHINERY.
Zhangjiagang Xinda Plastic Machinery Co., Ltd. is appointed to produce plastic machinery
and related products. We have been dedicated to this industry for over 15 years with strong
technology, rich experience and good after-sales service.
1 / Professional installation team who can speak fluent English can help customers
make benefits in a shortest time.
2 / We can produce different products and work out reasonable flow chart as
per customers' requirements to save space.
CERTIFICATES & PATENTS.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Xinda Machinery .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate,
Logo trademark registration, etc.
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
1 - If we can fullfill your request and you interested in our products, you may pay a visit to site
2 - The meaning of visiting supplier, because seeing is believing, Xinda Machine with own manufacture and developed & research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1 - Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy
HOW TO ENSURE THE QUALITY!
1 - In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years
2 - Each component before assembly needs strictly control by inspecting personnel.
3 - Each assembly is in charged by a master who has working experience for more than 5 years
4 - After all the eguipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE!
1 - After ninish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2 - After the commissioning, we will package the equipment by standard export package for shipment.
3 - According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4 - Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
1 - If we can fullfill your request and you interested in our products, you may pay a visit to site
2 - The meaning of visiting supplier, because seeing is believing, Xinda Machine with own manufacture and developed & research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1 - Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy
2 - By letter of credit, you can lock the delivery time easily.
3 - After the factory visit, You can ensure the facticity of our bank account.
HOW TO ENSURE THE QUALITY!
1 - In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years
2 - Each component before assembly needs strictly control by inspecting personnel.
3 - Each assembly is in charged by a master who has working experience for more than 5 years
4 - After all the eguipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE!
1 - After ninish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2 - After the commissioning, we will package the equipment by standard export package for shipment.
3 - According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4 - Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
