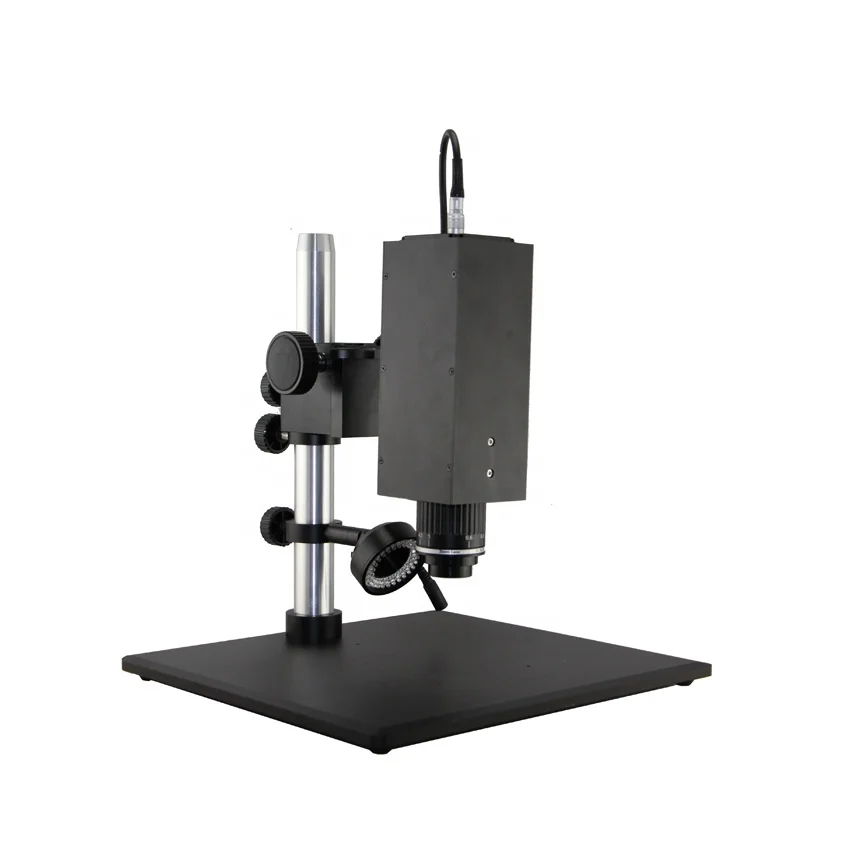

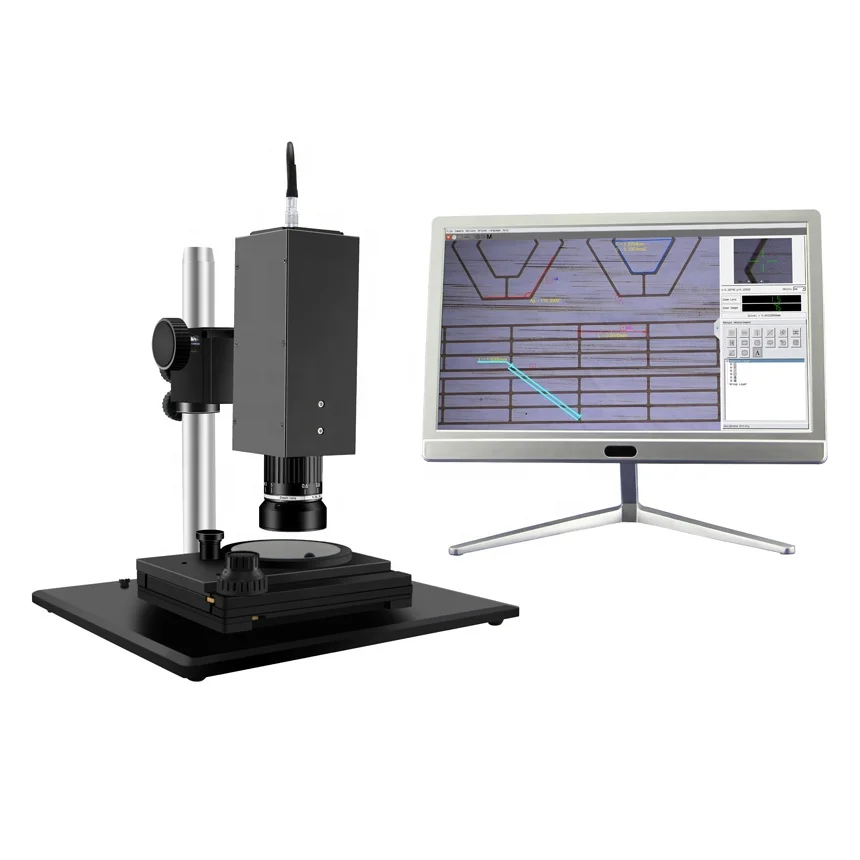

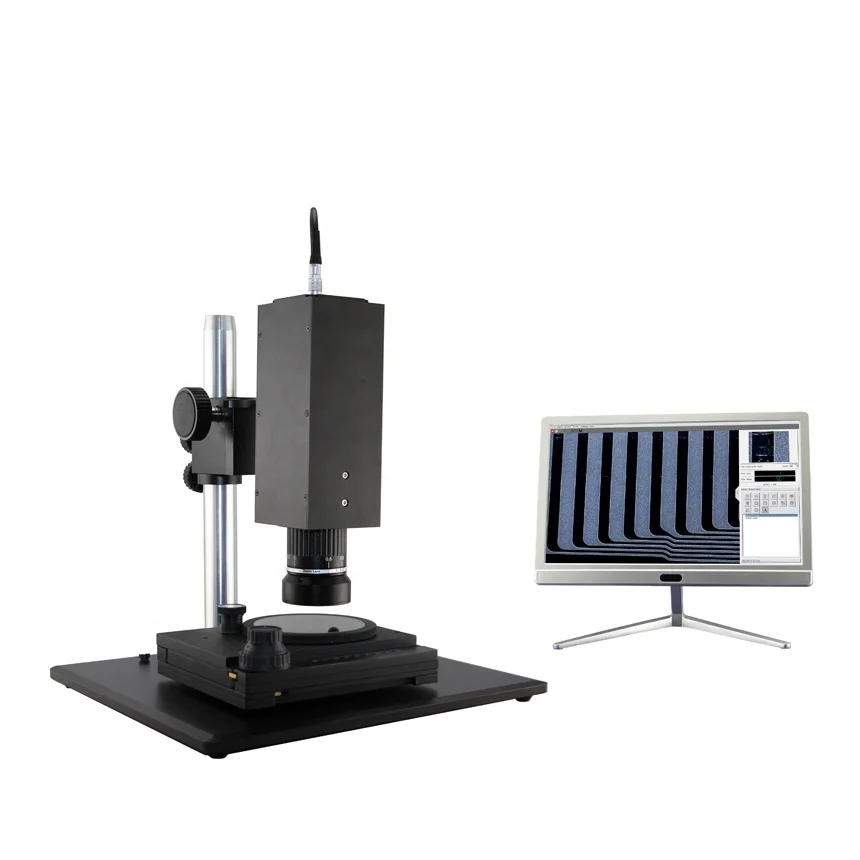

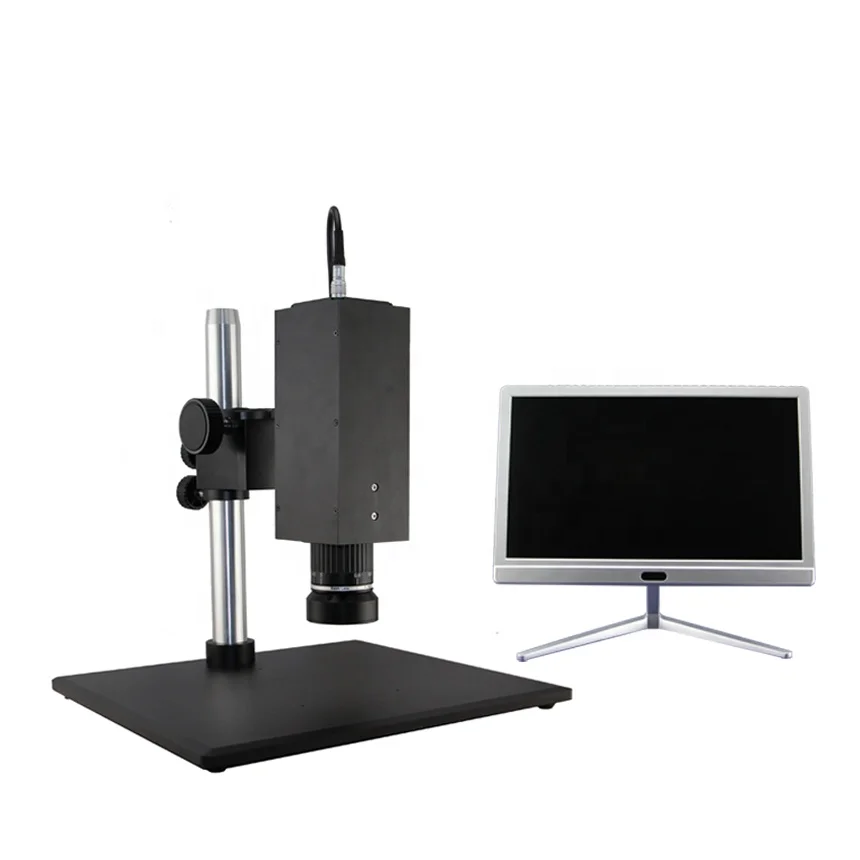

Цифровой видеомикроскоп FM325MP с ЖК экраном для ремонта мобильных телефонов
- Категория: >>>
- Поставщик: Guilin FT-Opto Co. Ltd.
Сохранить в закладки 62489678838:
Описание и отзывы
Характеристики
Product Feature
★ FM325MP monocular video zoom digital microscope computer-Free, Calibration-Free ,60fps, Full HDMI display, high precision measurement, measurement precision: 1um
★ This video microscope own the function of Auto edge of the image searching . reduce the error of measurement. When zoom to any Magnification, measure without select calibration data. Support line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon measuring , etc.
★ Measurement data can be saved ,can also be generated by EXCEL, you can import or export. Numerical units are free to select (mm, um), can select size and color of the Mark data.
>> Click here to get our latest catalogue
Drawing screen printing
★ For Special irregular parts, FM325MP monocular video zoom digital microscope can draw the part drawing , then save the drawing to be Screen printing, it can measure or compare part size by the drawing.
Protractor screen printing menu.
★ FM325MP monocular video zoom digital microscope also can draw any drawing by your design data too. The software have protractor screen printing menu, can measure or compare line and angle data.
Real-time display optical magnification
★ 1:8.3 zoom rate, real-time display the actual Optical Magnification and total magnification.
Windows operation interface
★ Windows software interface, complete the menu icon operation by the wireless mouse, it is very simple
Online viewing images.

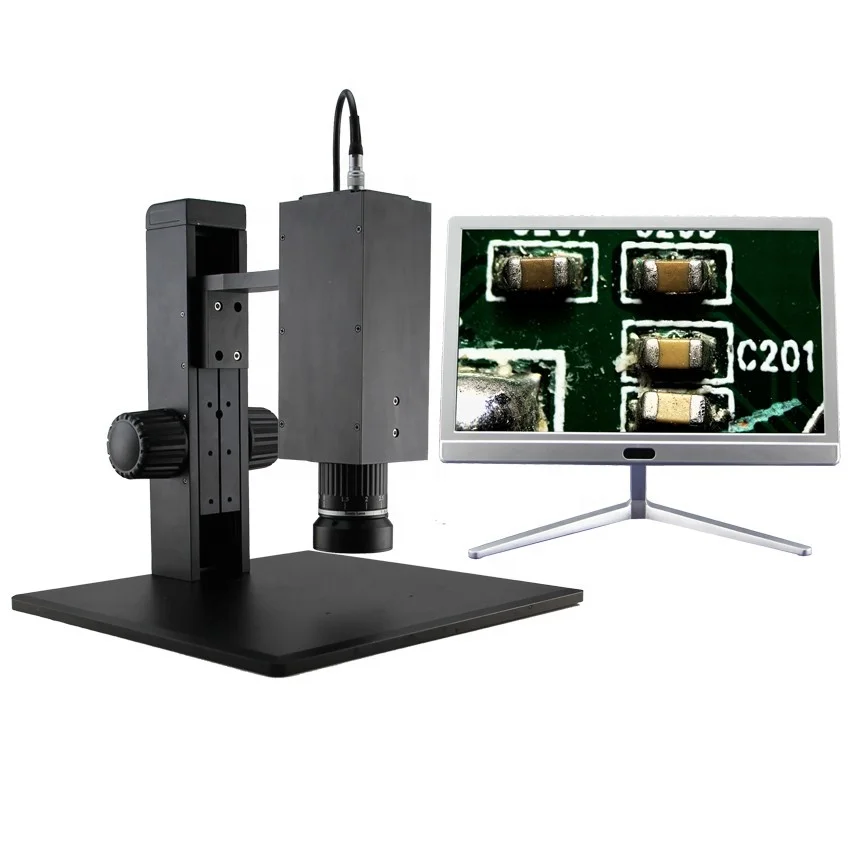

★ FM325MP pcb inspection digital microscoe online viewing images, and storage the images by BMP or JPGE format
Specification
Model | FM325MP monocular video zoom digital microscope for mobile repair soldering with lcd screen | |||||
Smart platform | EPGA+ARM architecture embedded System, Dual-core A9 Precessor | |||||
Resolution | 1920*1080 | |||||
Output format | Full HDMI | |||||
Sensor | 1/2 Sony sensor | |||||
Frame | 60 fps | |||||
Free Calibrate | Built in free calibration software | |||||
Measurement function | Auto edge of image searching, Can measure lines, parallel lines, circles, arcs, angles, concentric circles, center distance of circles, rectangles, polygons and other plane graphics ( support customized measurement mode ) | |||||
Storage | Photo storage ( with measurement data or pure photo storage ) , excel data storage | |||||
Monitor | 15.6 inch Full HD monitor | |||||
Stand | Post Stand with Coarse Adjustment focus holder | |||||
Light Source | LED Ring Light | |||||
Zoom Body | Standard body B325 ( B650 for optional) | |||||
Optical zoom range | Standard 0.3X ~ 2.5X ( 0.6X ~ 5.0X for optional ) | |||||
Total magnification | 15X ~ 125X | |||||
FOV (mm) | 24mm x 13.7mm ~ 2.88mm x 1.64mm | |||||
Working distance (mm) | 86 mm | |||||
Remark: You can select the objective and auxiliary objective to change total magnification and working distance for your requirements, collocate the different accessories to get different magnification range: min 2.7 X, Max 10000 X. If select the hipower objecitve, Suggest you to select the B0650 body for best image. | ||||||
Aluminum case packing is for optional
Optional Accessory
Item | Model | Description |
B325 | standard body 0.3X ~ 2.5X | |
B650 | optional body 0.6X ~ 5.0X | |
Coaxial Device | LC6511 | 3W Coaxial light source |
LC6511P | 3W Polarized light source | |
LR65 | 12V 5W ring LED light source | |
LR65P | 12V 5W Polarized ring LED light source | |
LR65-R | 12V 5W ring LED light source for Circular column of stand, the installation diameter is 32mm | |
LL65 | Bar LED illumination, large lighting, suitable for low range, good uniformity | |
AW6503 | 0.3X auxiliary objective WD.=270 mm | |
AW6504 | 0.4X auxiliary objective WD.=170 mm | |
AW6505 | 0.5X auxiliary objective WD.=160 mm | |
AW6506 | 0.6X auxiliary objective WD.=130 mm | |
AW6515 | 1.5X auxiliary objective WD.=52 mm | |
AW6520 | 2.0X auxiliary objective WD.=39 mm | |
W6540 | 4X objecitve , use for B650 body, NA=0.18 WD.10.1 mm | |
Stage | FQ02302B | Stage Dimension 180×155×26mm,Travel Distance Horizontal 75mm,vertical 55mm |
Monitor | FK156 | 15.6 inch full HDMI LCD IPS monitor 1920X1080 |
FK116 | 11.6 inch full HDMI LCD IPS monitor 1920X1080 with base stand | |
FK116-A | 11.6 inch full HDMI LCD IPS monitor 1920X1080 with arm stand | |
FW23 Series | Infinity plan bjective , use for B325/B650 body, 5X 10X 20X 40X 60X 80x 100X for optional | |
FW52 Series | APO long working distance objective , use for B325/B650 body, 2X 3.5X 5X 10X 20X 50X for optional | |
FH65 | Post Stand with Coarse Adjustment foucs | |
FH65L | Post Stand with Coarse Adjustment foucs , 12V5W Transmitted illumination | |
FH65A | Post Stand with Coaxial Coarse & Fine Adjustment focus | |
FH65AL | Post Stand with Coaxial Coarse & Fine Adjustment focus,12V5W Transmitted illumination | |
FH65Q | Track Stand with Coarse Adjustment foucs | |
FH65QL | Track Stand with Coarse Adjustment foucs 12V5W Transmitted illumination | |
FH65QA | Track Stand with Coaxial Coarse & Fine Adjustment focus | |
FH65QAL | Track Stand with Coaxial Coarse & Fine Adjustment focus 12V5W Transmitted illumination |
Related Products
FM3D03025A Auto focusing 3D video microscope
FM0010 Metallurgical lens video microscope .
Company Profile
Guilin FT-OPTO Co.,Ltd is a new high-tech enterprise which is specialized in high resolution zoom lens, machine vision lens, HDMI camera, LCD monitor, monocular digital microscope, measuring & tools microscope and stereo microscope. Our products are extensively used in the industry of electronic and precise industry dectection , education , laboratory and measuring instrument.
Through years of effort, our company gathered a group of professional sales and technology development personnel. Our products are widely sold in Southeast Asia, Europe and the United States countries, .
We promise to give you the most advanced technology , best products , lower operation cost and most convenient service
Exhibition
FAQ
Q1. Can I have a sample order for microscope?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. Do you have any MOQ limit for microscope order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new one with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Похожие товары

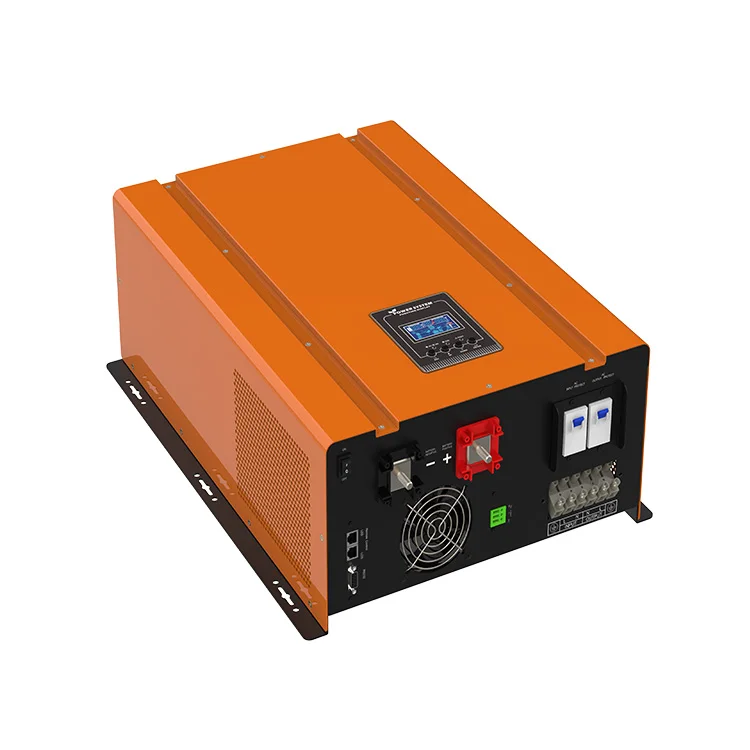

Хорошее качество, инвертор мощности с зарядным устройством, 5 кВт, 6 кВт, 8 кВт, 10 кВт, 12 кВт, система постоянного тока в переменный ток, автономный инвертор немодулированного синусоидальной волны
945,00 $ - 955,00 $
10kVA AC инверторная система 220VDC-230VAC

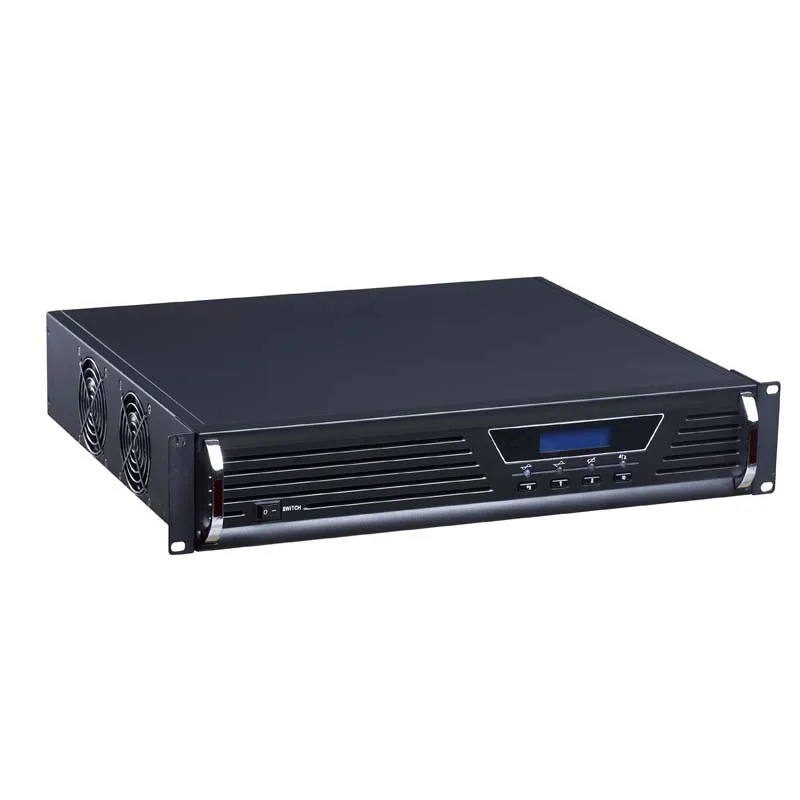

Top quality 4U pure sine wave inverter 8kw 10kva 10kw inverter charger
1 396,58 $ - 1 406,58 $
Water Drop Shaped Rattan Swing Chair Wicker Hanging Chair for Sale
29,90 $ - 30,90 $

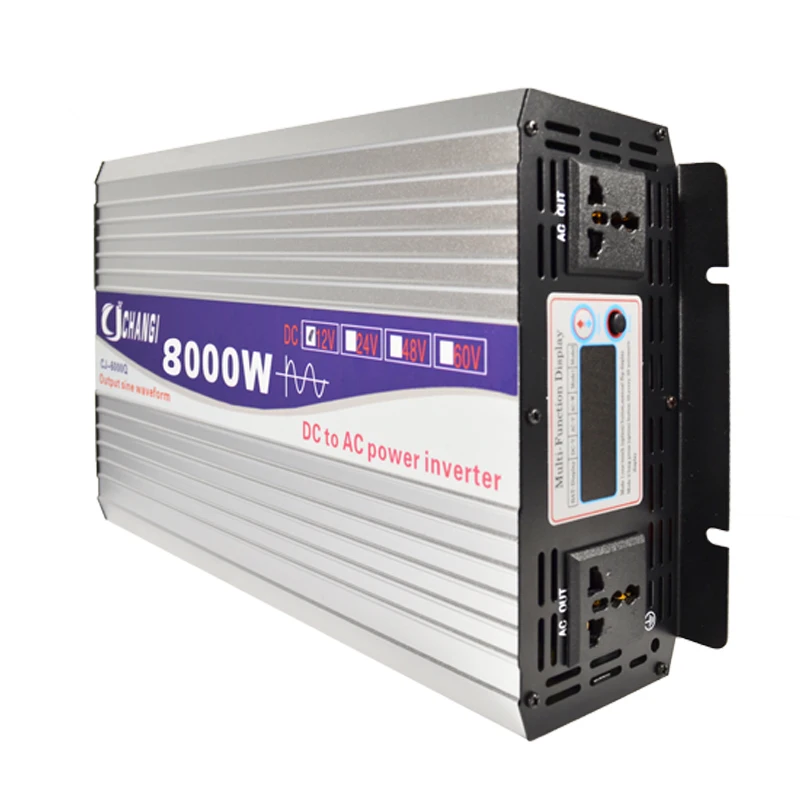

5000 Вт DC 12 В 24 В AC 110 В 220 В инвертор 10 ква чистый синусоидальный инвертор 10 кВт завод Shenzhen инвертор 10 кВт

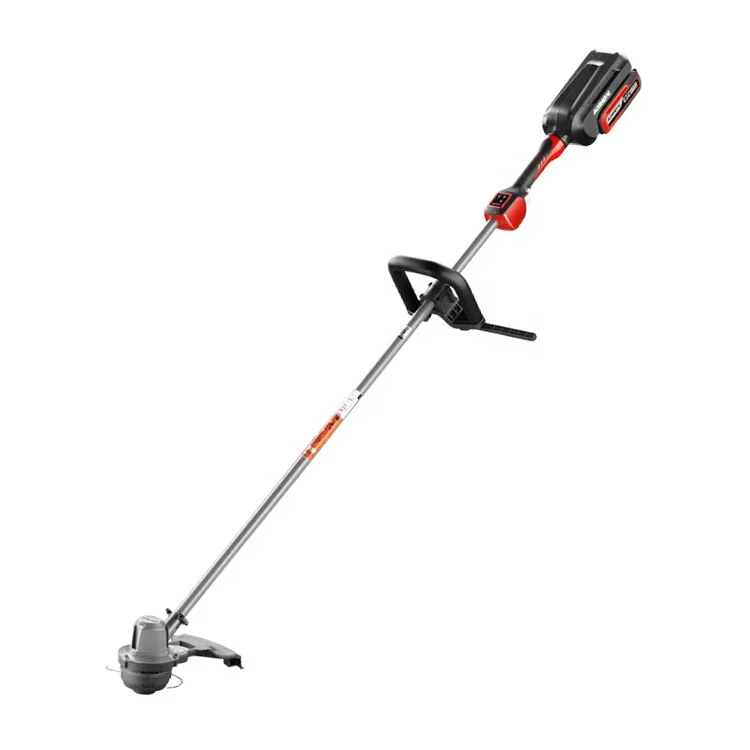

40V литиевая батарея кусторез сад бесщеточный мотор беспроводные триммер газонокосилка триммер
