Самый продаваемый комнатный испаритель R404 для хранения овощей
- Категория: Холодильная камера >>>
- Поставщик: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Сохранить в закладки 62489769825:
Описание и отзывы
Характеристики
Discount/Promotion !!!
Q:
or Merchandise voucher ?
A:
1. Contact us in Alibaba website
2. Send us an inquiry
We can't wait to send you a gift !!!
Please kindly contact us!!!
Thank you!!!
Product Description
Application
Low Temperature Blast Freezing
Blast Freezing Tunnels and Rooms
Low Temperature Test Chambers
Low Temperature Refrigerated Ships Holds (Marine)
Low temperature blast freezing
Blast chilling
Cold chain
Carcass cooling
Carcass chilling room
Cold Rooms
Walk in Freezer & Walk in Chiller
Air Blast Freezer & Air Blast Chiller
Commercial Refrigeration
Frozen & Chilled Food Display Cases
High quality raw materials
Name: Tube
• Material:
stainless steel, copper, aluminum, Cu-Ni, brass, titanium
• Diameter:
5mm, 7 mm, 7.94mm, 9.52mm, 11.5mm, 12mm, 12.7mm, 15mm, 15.8mm 20mm, 25mm
• Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
• Connection to several circuits available
stainless steel, copper, aluminum, Cu-Ni, brass, titanium
• Diameter:
5mm, 7 mm, 7.94mm, 9.52mm, 11.5mm, 12mm, 12.7mm, 15mm, 15.8mm 20mm, 25mm
• Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
• Connection to several circuits available
Name: Fin
• Material:
Aluminum, Copper Stainless steel, Titanium
Hot deep carbon steel, golded
•Coating:
E-coating> Al epoxy>hydrophilic
• Thickness:
0.1-2mm
• Type:
wave fin, flat fin , window fin
Name: Frame and casing
• Material:
Galvanized steel, Aluminum, Stainless steel
Copper, Brass
• Thickness:
1-5 mm
• End plates with or without collets
• Various design of side plates
How we design for you?
We promise we use the design software sold by a well-known European HAVC software company.
Through 8 years of cooperation with them, we have designed, processed and exported coils and unit coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Through 8 years of cooperation with them, we have designed, processed and exported coils and unit coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
We will send you the 3D model drawing, data sheet together with the quotation list as you required.
Case study
Project name: air cooler for Vietnam cold room
My client needs 12units of 50 kw air cooler that made of all stainless steel for cold room to storage fruit.
At the begining we were difficult to going on because my client knowed little about what he need.
Then I tried to ask him step by step: (It only took 5 days to conclude a transaction. )
Me: May I know what medium will you use for the unit cooler?
Client: What is medium ? Sorry I don't undestand.
Me: Thats's ok. Medium is something to cool the temperature. It maybe water, glycol, CO2, ammonia, refrigerant and etc.
Client: Thanks. The medium for my air cooler should be 25% glycol.
Me:OK we have solved one problem. Next, what is the room temperature and the glycol inlet temperature?
Client: room: +5 ℃, glycol: -5℃. Totoro, I am a little worried becasue I can't sure if those datas are reasonable.
Me: Don't worry about it. I will send you the sketch and data sheet that calculated by professional software to check all specifications.
Me: There is last thing need to confirm: Defrost type? Water defrost, air defrost or electrical defrost?
Client: Electrical defrost.
Me: Please kindly confirm the data sheet, sketch and the quotation list.
Client: Perfect! My engineer has checked that. Everything is ok. Please directly send me the PI.
In summary, to design a glycol air cooler, thoses information are needed:
1.How much percent glycol you use? Like 20%.
2.Cooling capacity?
3.Glycol pumped inlet temperature?
4.Room temperature?
5.Material you need? Stainless steel tube aluminum fin galvanized steel frame or not?
6.Defrost type? Water defrost, air defrost or electrical defrost?
2.Cooling capacity?
3.Glycol pumped inlet temperature?
4.Room temperature?
5.Material you need? Stainless steel tube aluminum fin galvanized steel frame or not?
6.Defrost type? Water defrost, air defrost or electrical defrost?
Data sheet
To protect my clients's business secret, we only display small prats of the datas with his consent.
Sketch
To protect my clients's business secret, we only display small prats of the sketch with his consent.
Client feedback:
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Japan spiral freezer cooler
Netherlands project for cold room (stainless steel)

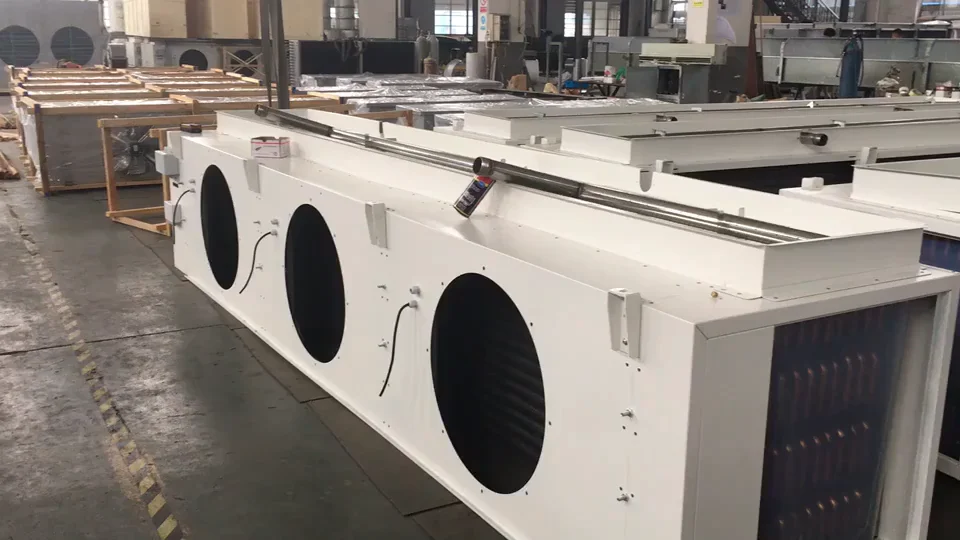

Our Factory
VRCOOLERTECH CST Company
We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.
When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.
Our main products:
Commercial heat exchangerIndustrial heat exchanger
Dry cooler
Unit cooler
Charge air cooler
Charge air cooler
Compressor cooler(intercooler, aftercooler, oil cooler)
Our equipments
How to contact and visit us?
Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: totoro@cstheatexchanger.com
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: totoro@cstheatexchanger.com
Packing & Delivery
Water pressure test
Before package, we will do the pressure test in the pool to check if the product leak. (Process: Connect the inlet/outlet of the product to the tube s then put nitrogen in it, and put the product in water. If there is no bubbling, there is no leak.)
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use PE film for packing or pack it according to customers special request.
We will delivery on time by sea or bt air according to your requiremnts.
Certifications
Where our customers come from？
We serve for buyers from all over the world.
We have export our product to moran than 60 countries.
