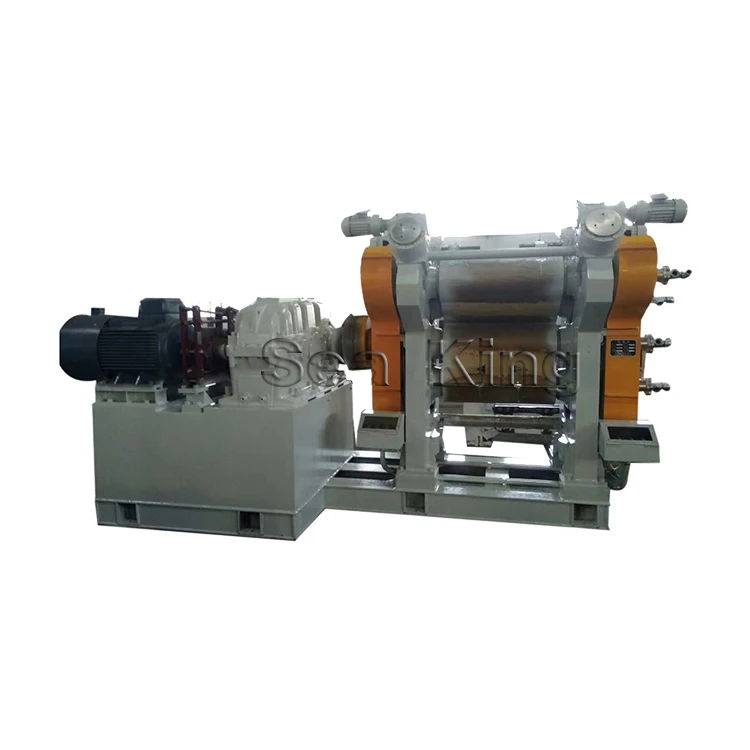

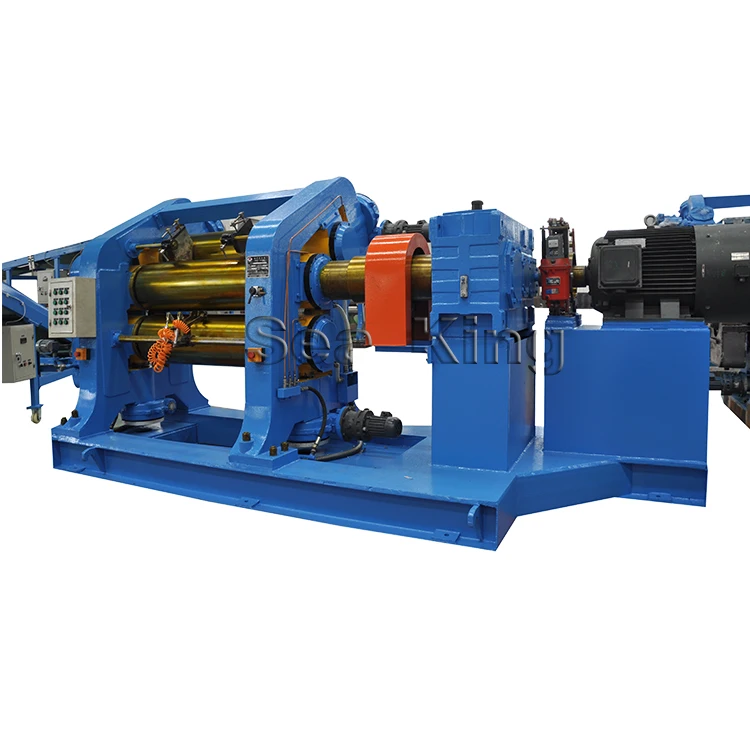

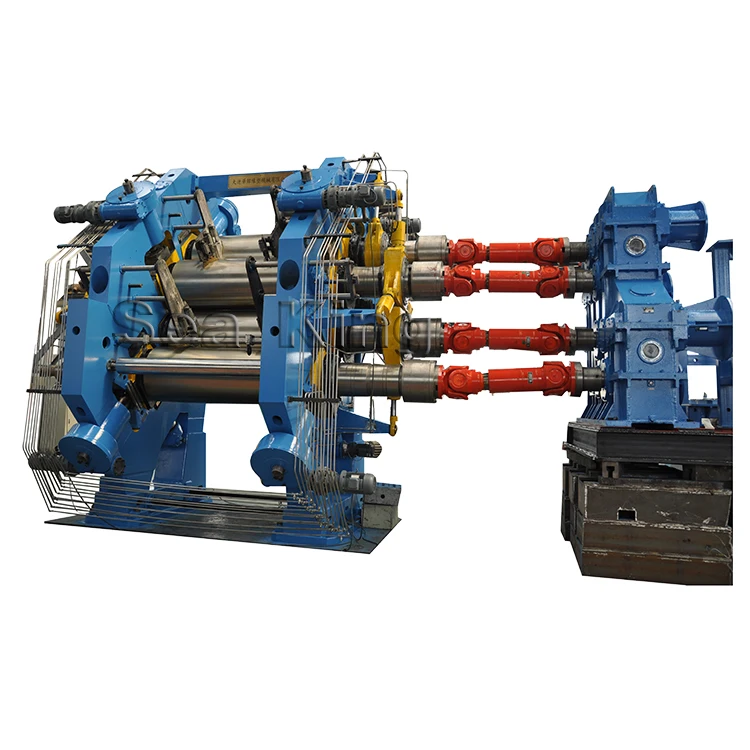

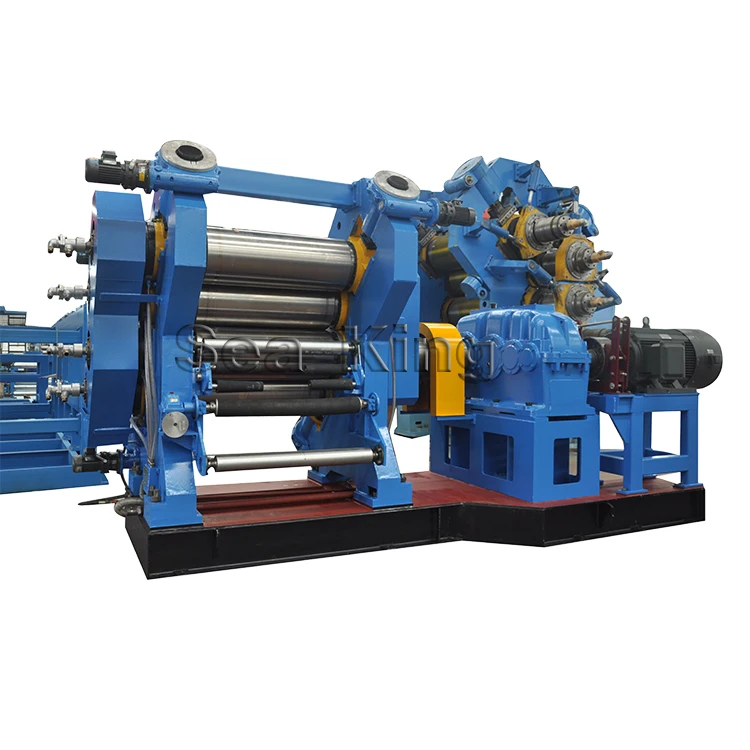

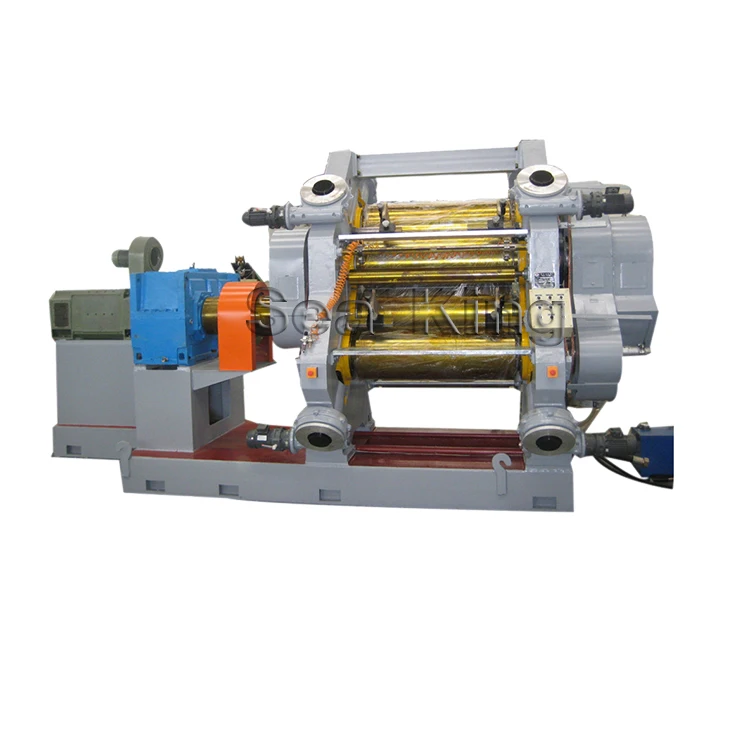

Автоматическая машина для производства резины оборудование два рулона три

Сохранить в закладки 62490170929:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Automatic Two Roll Three Roll Calender Machine Equipment For Rubber Production Line-SEA-KING_01_01.jpg

Product Description




ModelXY-3I 630XY-3I 1120A
XY-3 1120A
XY-3l1120A
XY-3I 1400XY-3I 1200
XY-3I 1500
XY-3I 1730XY-3I 2130
Roll diameter (mm)230360400450610710
Roll working length (mm)630112014001200(1500)17302130
Roll speed ratio1:01:01
1:1.42:1
1:01:01
0.733:1:1
0.733:1:0.733
1:01:01
1:1.383:1.383
1:1.383:1
1:01:01
1:1.5:1
1:01:01
1:1.4:1
1:01:01
1:1.48:1
Middle-roll linear speed (m/min)7.977.0-21.068.8-26.398.36-25.085.4-548-50
Adjusting nip range (mm)0-70-100-100-60-200-20
Min.Calendering product thickness (mm)0.20.20.20.150.150.15
Calendering product width (mm)100-500500-92012001100(1400)15001900
Motor power (kw)7.540/13.355/18.375/25132185
Overall dimensions (mm)

2570×740×

1500

5550×1640×

2120

6500×1500×

2440

7120(7420)×2200×

2900

7010×3950×

3730

7650×4560×

4080

Weight (kg)~4200~12750~26000~27000~52000~67000
Features

1: The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.

2: The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.

3: The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.

Product Display

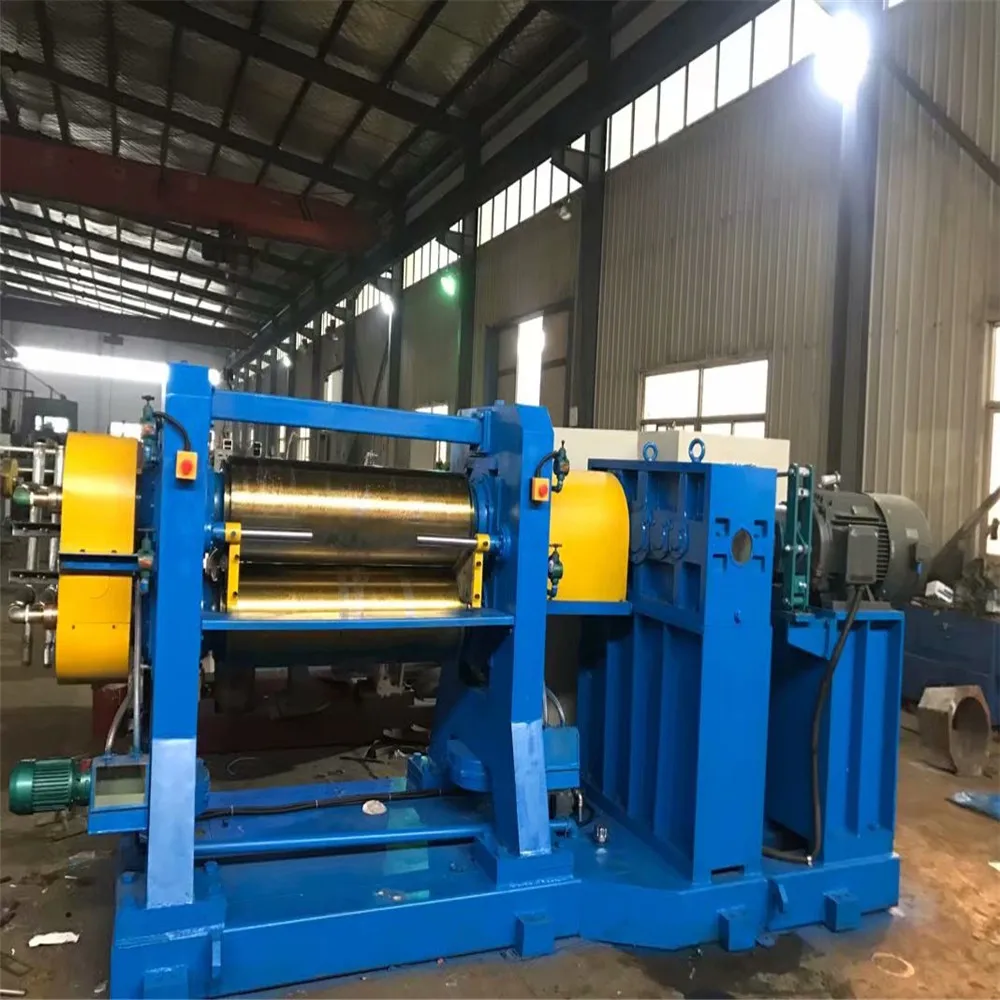

Workshop


Packing & Delivery


Our Services


Company Information

 _14.jpgQingdao Sea King Machinery Co., Ltd. is located in the west coast of qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years. The company has passed ISO9001:2008 certification,ce certification,sgs certification,france bv certification. The main product of our company: internal mixer, two roll mixing mill ,extruding equipments,calendar equipments,cutting machine,cooling equipment,vulcanizing equipment,and reclaimed rubber production line,rubber sheet extrusion line,motorcycle&bicycle tube &tires production line,conveyor belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery. With the rapid development of our company, qingdao sea king industrial limited was founded. The company has established good commercial relationship with many companies in china by joint venture holding. Products include rubber machine ,raw rubber material rubber products and so on. Our company has import-export rights. the products have been exported to many countries and districts around the world, such as america, france, canada, dubai,australia,peru,brazil,ecuador ,southamerican,southeast asia, and the middle east. By the advanced quality and service, our products have gained the praise of domestic and foreign customers. We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service"._10_02.jpg

FAQ

Q: Are you Factory or Trading company?

A: We are a factory with over than 30 years of experience in Rubber Machine.

  Factory Add:No,210 Tieshan Road, Jiaonan , Qingdao , China.

  Welcome you come to visit our factory,we will arrange schedule and book hotel for you.



Q: Why customer choose SeaKing Machinery?

A: 3-5 Years warranty; Brand of strength; 30 years experience; Perfect Quality Management System,All prats Self-producing,No middlemen in the production process.



Q: What's your delivery times?

A: The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.



Q: What's your After-sale Service?

A: 3-5 Years warranty, 30 peoples After-sales team keep working in 24 hours,Provide overseas service.



Q: What's your Payment terms?

A: 30% T/T deposit in advance, then balance the rest 70% before loading.
