one-click type quick 500 plus materials thin films thickness gauge
Product Description

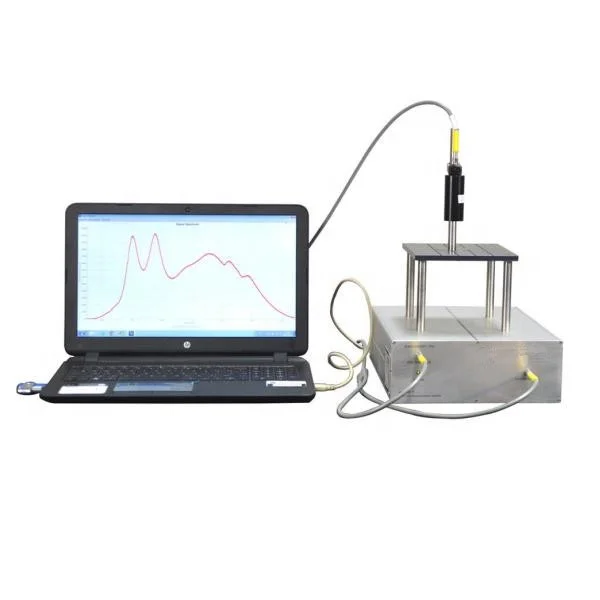

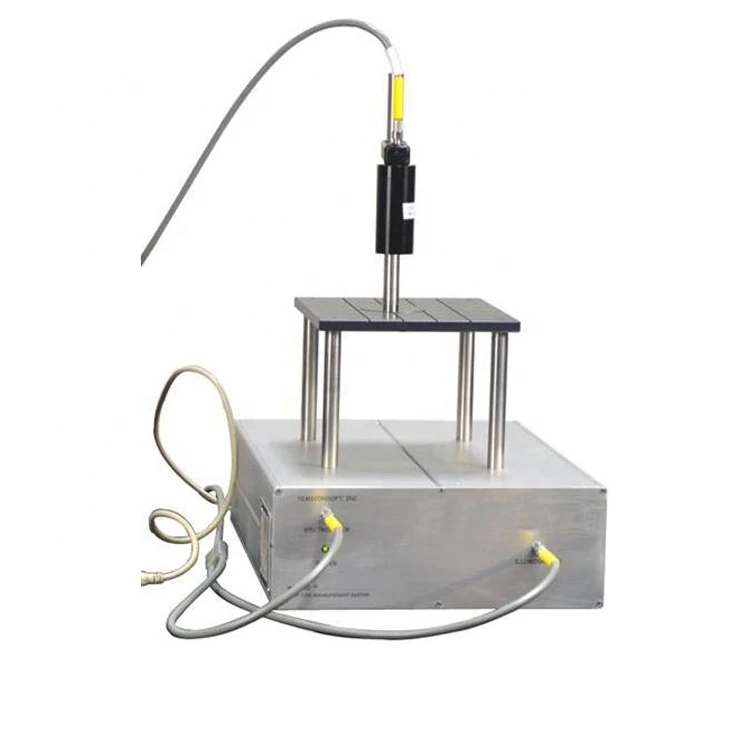

EQ-TFMS-LD is the thin film thickness measurement that provides a quick and reliable solution for measuring the thickness of Translucent or Low Absorbing thin films from 15 nm to 50 um with 400 nm - 1100 nm spectral range. The measurement is based on specular reflectance and uses fiber optics reflectance probe. The compact system is easy to setup and user-friendly.
Features
Real time measurement and analysis: Multi-layer, thin, thick, freestanding and nonuniform layers
Extensive material library: 500+ materials
Support of parameterized materials: Cauchy, Tauc-Lorentz, Cody-Lorentz, EMA
Flexible: Desktop or in-situ, R&D or inline.
Measurement: Thickness, optical constants, surface roughness
User-friendly and powerful: One-click measurement and analysis
Technical Parameters of Thin Film Thickness meter
| Majority of Translucent or Low Absorbing Films | Real time measurement and analysis: Multi-layer, thin, thick, freestanding and nonuniform layers Extensive material library: 500+ materials Support of parameterized materials: Cauchy, Tauc-Lorentz, Cody-Lorentz, EMA Flexible: Desktop or in-situ, R&D or inline. Measurement: Thickness, optical constants, surface roughness User-friendly and powerful: One-click measurement and analysis |
| Thickness Range | 15 nm - 50 um for non-metallic, translucent materials as listed above Note: metallic films can only be measured up to 50 nm reliably; X-Ray measurements are needed for thicker films |
| Spectral Range | 400 nm - 1100 nm |
| Precision | 0.01 nm or 0.01% |
| Accuracy | 0.2% or 1 nm |
| Stability | 0.02 nm or 0.03% |
| Spot Size | 3 mm minimum |
| Sample Size Requirement | Minimum 5 mm x 5 mm for reliable measurement |

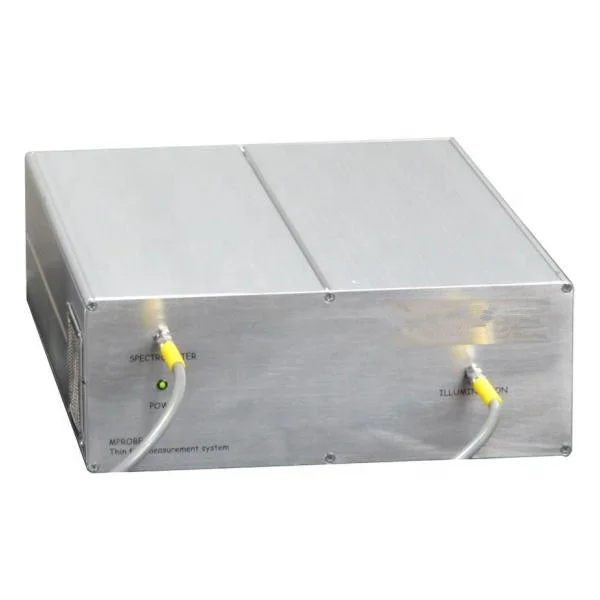

| Spectrometer/Detctor | 3600 pixels Si CCD 16 bit ADC 400 - 1100 nm wavelength range Spectral resolution: < 1 nm Power 100 -240 VAC, 50/60 Hz, 20 W power |
| Light Source | 5 W Tungsten-halogen lamp CT 2800 degree Lifetime: 10000 hours |

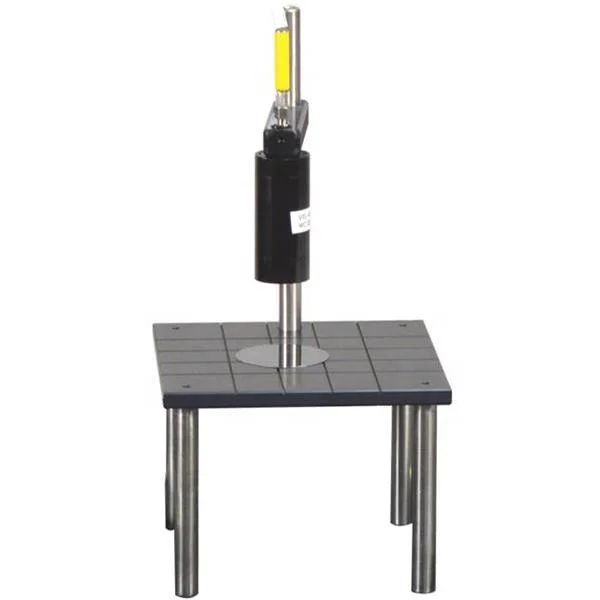

| Reflectance Probe | Fiberoptics, 400 um fiber core with spectrometer leg and Illumination leg |
| Face-Up Measurement | The film sample faces up with probe and light source pointing down |
| Communication Interface and Laptop Computer | USB connector to communicate with PC One brand new Laptop with software installed is included for immediate use |
| Software: TFCompanion | Large library of refractive index (n) and extinction coefficient (k) values for the most common metallic, dielectric, amorphous and crystalline substrate materials Capability for analyzing simple and the most complex film stacks Error estimation and simulation tools allow for factoring in the effects of changing conditions Support for parameterized materials with approximations representing optical dispersion in a desired spectral range using few coefficients that can be adjusted |
| Software Option | Remote control (TCP) based on Modbus protocol at extra cost |
| Measurement Standard (Included) | Bare Si Reference and 200 nm thickness silicon oxide test wafer are included as thin film standards for thickness measurement verification |
| Dimensions | 205 mm L x 250 mm W x 105 mm H (8" L x10" W x4" H) |
| Net Weight | 4.5 kg (10 lbs) |
online service
Company Introduction
Founded in 2005, Zhengzhou Tainuo Film Materials Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Package
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
Похожие товары
Linshang LS132 измеритель УФ-света УФ-энергии

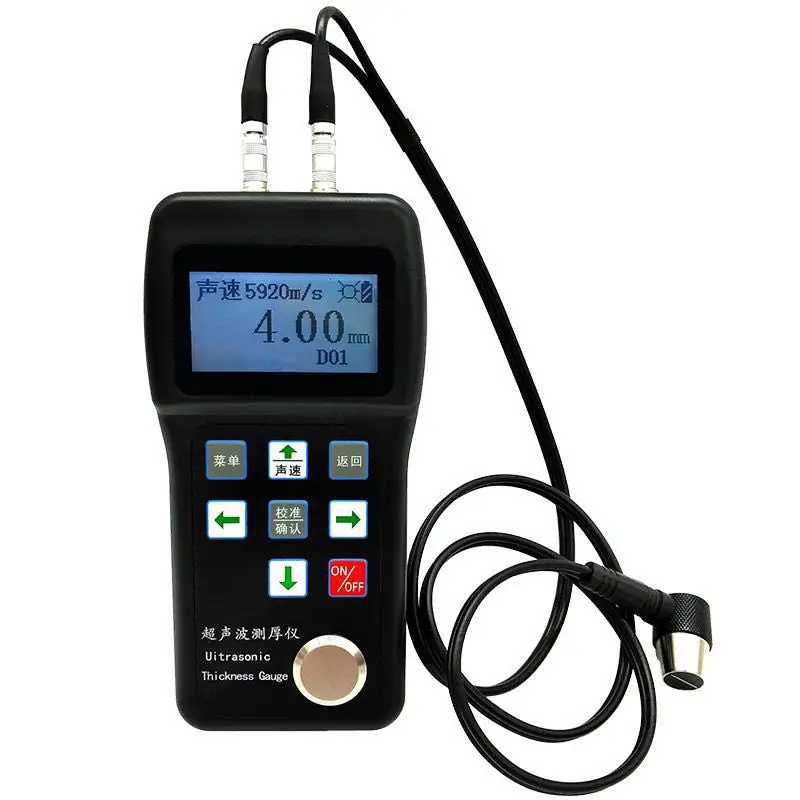

Ультразвуковой толщиномер
140,00 $ - 160,00 $

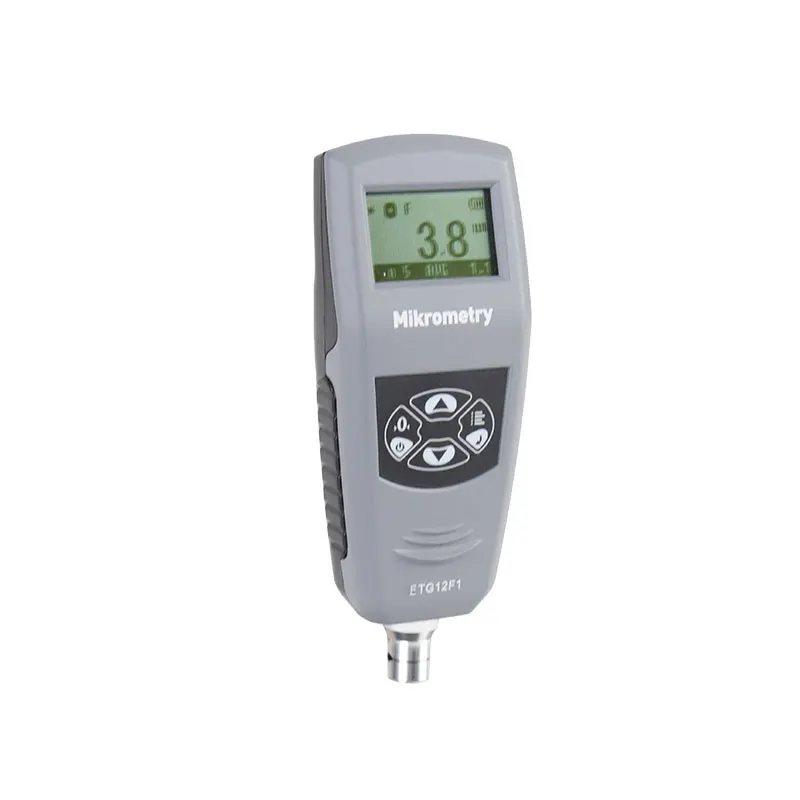

Толщиномер для лакокрасочного покрытия автомобиля измеритель толщины тестирование железных баз и стали с помощью микрометрии
75,50 $ - 80,00 $
ZBH-4 цифровой измеритель
Измеритель толщины покрытия для измерения полупрозрачной или низкопоглощающей тонкой

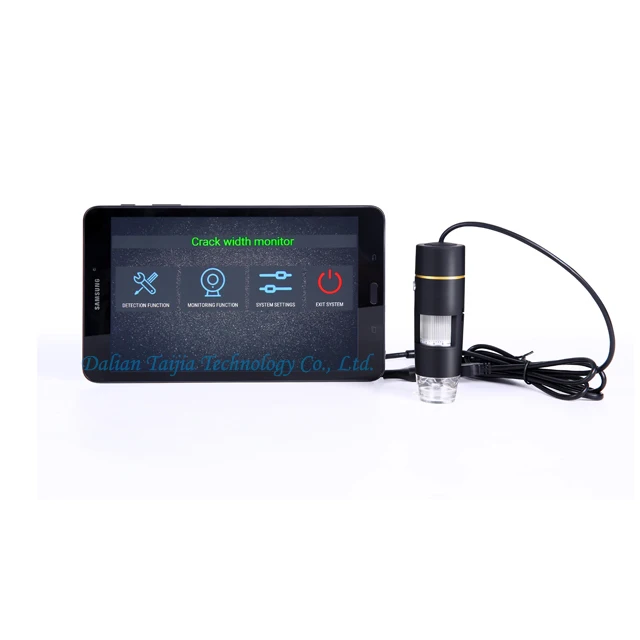

Многофункциональный измеритель ширины трещин Taijia антистатическое Обнаружение
850,00 $

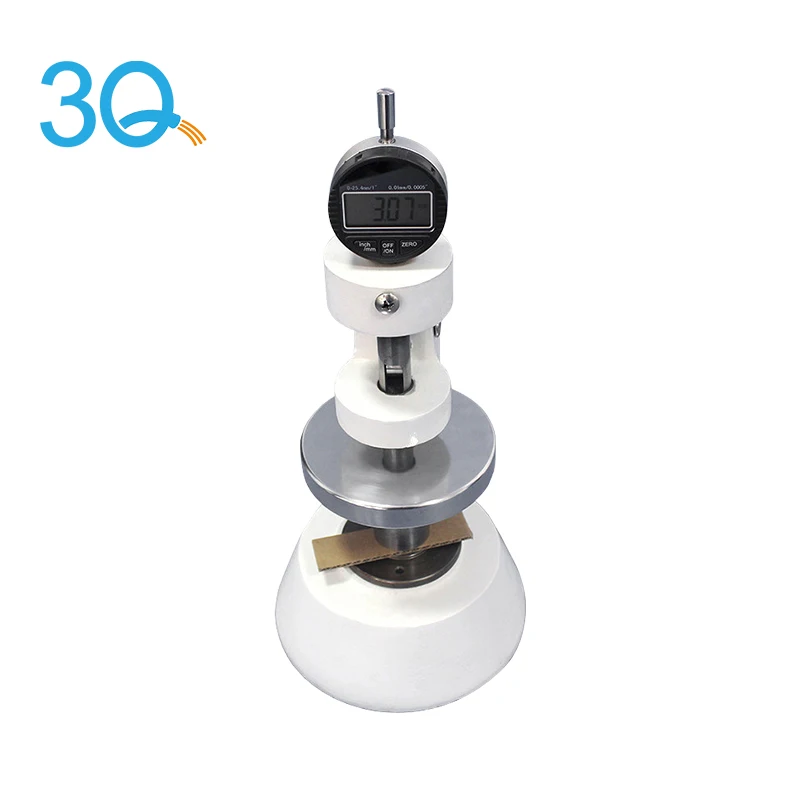

Цифровой толщиномер 3Q микрометр для измерения толщины
