Konica512i низкая стоимость широкоформатный принтер с konica 512i 4 жильный кабель flex печатная машины 3200 мм Китай (материк)
- Категория: >>>
- Поставщик: Iconway International Technology Co. Ltd.
Сохранить в закладки 62495273567:
Описание и отзывы
Характеристики
Product Description

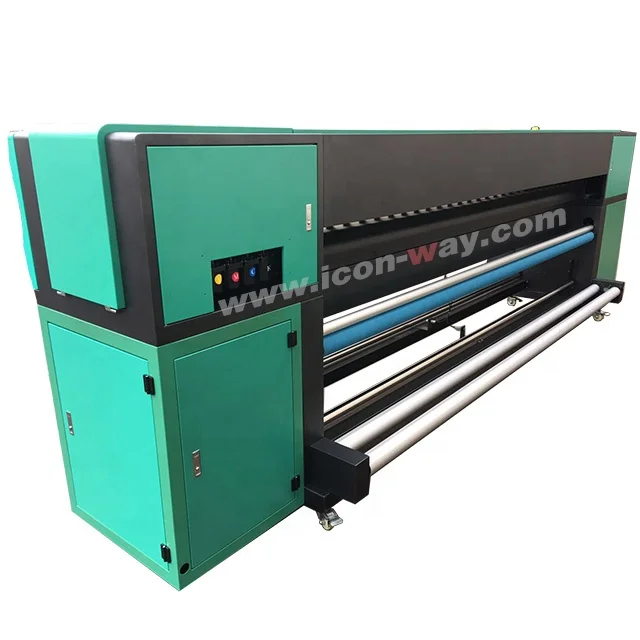

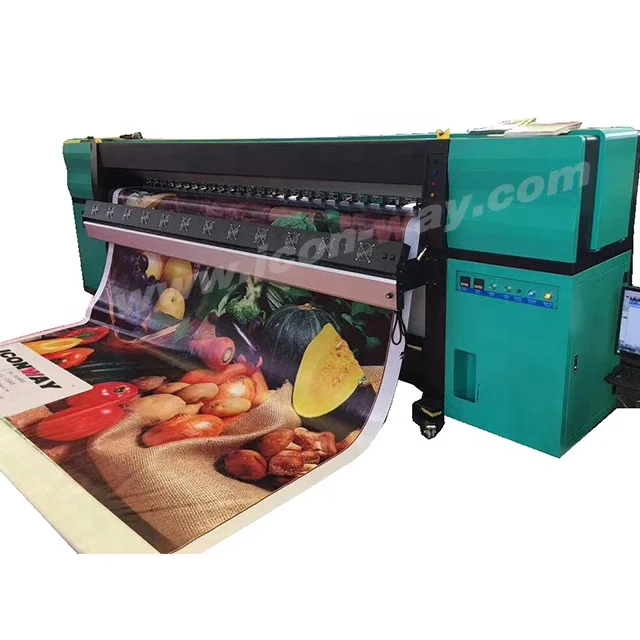

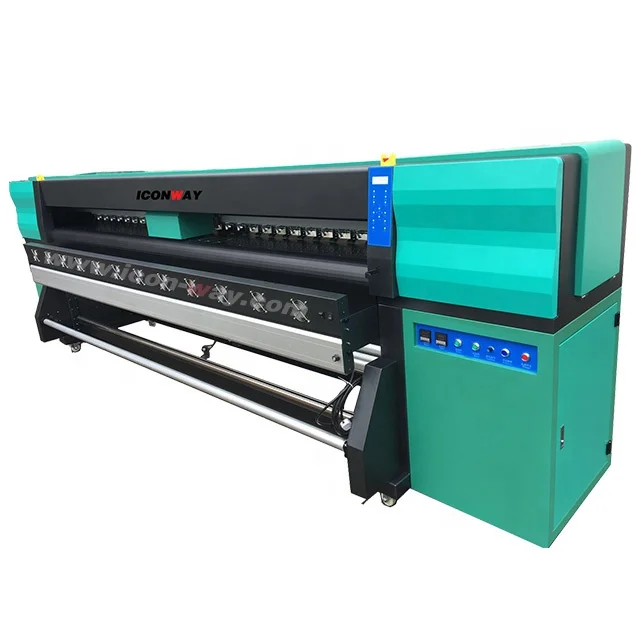

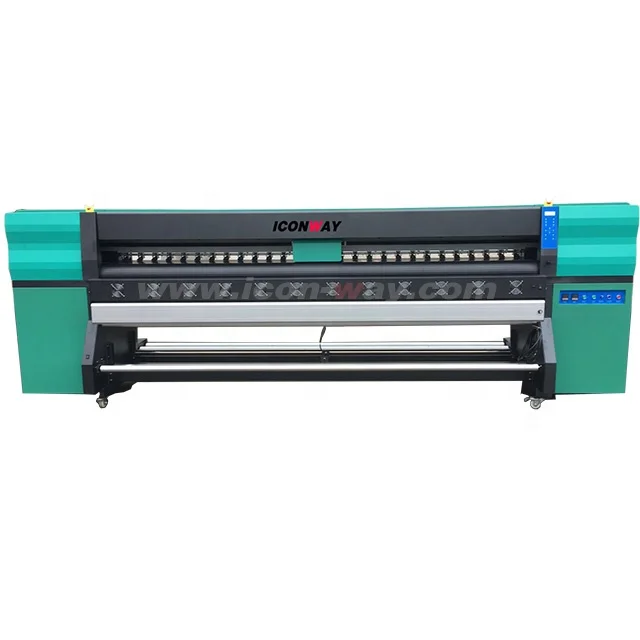

low cost large format with konica 512i 4 core cable flex printing printer machines 3200mm
1. platform: the media three times to ensure that the picture that is printed that dry. Reasonable adsorption design to ensure that the print media does not highlight the impact of print quality
2. heating control panel: automatic temperature controller can be automatically, three parts heats
3. motherboard/nozzle version: two intelligent board control machine all the operation and reduce the incidence of failure and reduce the troubleshooting time
4. ink Road: the overall / color ink can be arbitrarily selected according to customer demand.
5. Sports system: X\\Y movement system, composed of double-drive dual-drive NVS. X/Y use the same motor, drive to facilitate customer troubleshooting.
Iconway Solvent Printer with Konica Head | ||||||||
Model | IW3208KA / IW3204KA | |||||||
Printing width | 3.2 m | |||||||
Print heads | Model | Konica 512i | ||||||
Quantity | 4or 8 printheads | |||||||
Height | 1.5mm-4mm | |||||||
Skill | Piezoelectric inkjet | |||||||
Control | The software automatic adjusts the temperature and voltage | |||||||
Ink | Type | Solvent | ||||||
Color | C M Y K | |||||||
Color gamut | ICC or density curve | |||||||
Catridge capacity | 2000ml or 5000ml | |||||||
Ink supply system | Automatic ink supply | |||||||
Precision and Speed | Konica 512i/30pl(4heads) | 480*360dpi | 2pass | 140sqm/h | ||||
480*540dpi | 3pass | 100sqm/h | ||||||
480*720dpi | 4pass | 70sqm/h | ||||||
Konica 512i/30pl(8heads) | 480*360dpi | 2pss | 280sqm/h | |||||
480*540dpi | 3pass | 200sqm/h | ||||||
480*720dpi | 4pass | 140sqm/h | ||||||
Printing materials | All kinds of flex banner,mesh,self adhesive vinyl,cotton,canvas,banner cloth,PVC cold laminating film, PP film, PP paper, Photo paper, etc | |||||||
Image fIle format | TIFF, JPG, PSD, PDF, etc. | |||||||
Auto cleaning system | Positive pressure cleaning, Amto-clogged flash function&capping system | |||||||
Heating system | Front, middle and back heating system | |||||||
Ink inspection system | Insuffecient ink detector | |||||||
Media feeding system | Auto feeding system, weight max 120kg(take-up system is optional) | |||||||
Printer information | Interface | USB 2.0 | ||||||
Rip Software | Ultraprint/Maintop/Photoprint | |||||||
Computer system | Windows 7/ XP/vista | |||||||
Workstation configuration | CPU | Pentium 4 1500MH or higher | ||||||
Memory | 512MB or higher | |||||||
Free HD | 40GB minimum | |||||||
Environment | Humidity | 40-70% RH | ||||||
Temperature | 20-30℃ | |||||||
Other information | Electrical power | 50/60HZ, 220V(30%)>30A | ||||||
Machine size | 4800*1100*1450mm | |||||||
Packing size | 5000*1300*1550mm | |||||||
Gross weight | 1250KGS | |||||||
Detailed Images
Manufactore Scale
Location: Shanghai
Brand: ICONWAY
Employee: 100-129
Capacity: 3000-5000sets
Original: China
Production Line
Workers: 95-110
Working Group: 10
Assembling line: 5
Pack line: 3
Testing & QC
Engineer: 12-16
Electronic Componets Testing
Electronic Boards Testing
Driver Control Testing
Printing Testing
Material Feeding Testing
Material Take up Testing
Package & Warehouse
Plywood Case Package
Thick Wooden Box
Carton Pallet
Printhead &Mainboard
Whole New Konica512i heads
Four/ Eight pieces available
King of Speed 280sqm per hour
Top Quality Mainboard, zero repair rate
Stable Printing Quality
Roller & Platform
Heaviest take-up and feeding roller
Stable machine body
Platform flatness ≤0.2mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packing Details : Thick wooden box to protect the goods
Delivery Day: 3-10 working days depends on model
1. Multiple foam/PE film pack
2. Special logistics package
3. Thick wooden box
4. Perfect loading
5. Safe transportation
6. Fast delivery by sea/air/etc
Our Factory Photos
Certifications
FAQ
1. Are you trading company or manufacturer ?
We are factory for 9 years manufacture experience. Warmly welcome to visit us any time!
2. How long is your delivery time?
Generally it is 3-4 working days if the goods are in stock. or it is 7-10 working days if the goods are not in stock, it is according to quantity.
3. How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
4. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but the courier cost should be paid by clients.
5. What is your terms of payment ?
Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance ,balance before shipment.
If you have another question, feel free to contact us as below:
Contact: Sunny ICONWAY
WhatsApp/Viber/Wechat: +86 15312162527
Add: No.299, Jingao Road, Pudong New District, Shanghai, China
