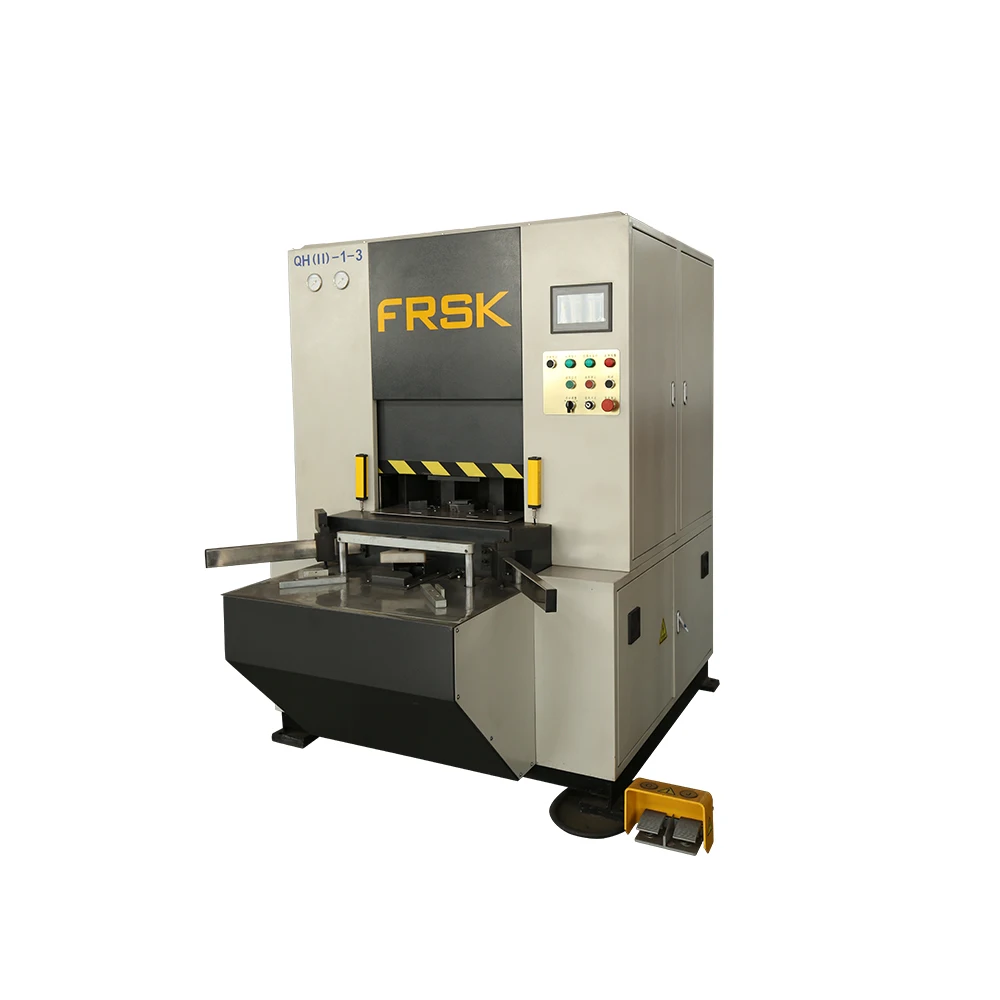

Специальная холоднокатаная пластина с ЧПУ угловая формовочная машина без сварки и шлифования
- Категория: >>>
- Поставщик: Yantai Ruisike CNC Machine Co. Ltd.
Сохранить в закладки 62496259324:
Описание и отзывы
Характеристики
Products Description
Application Area

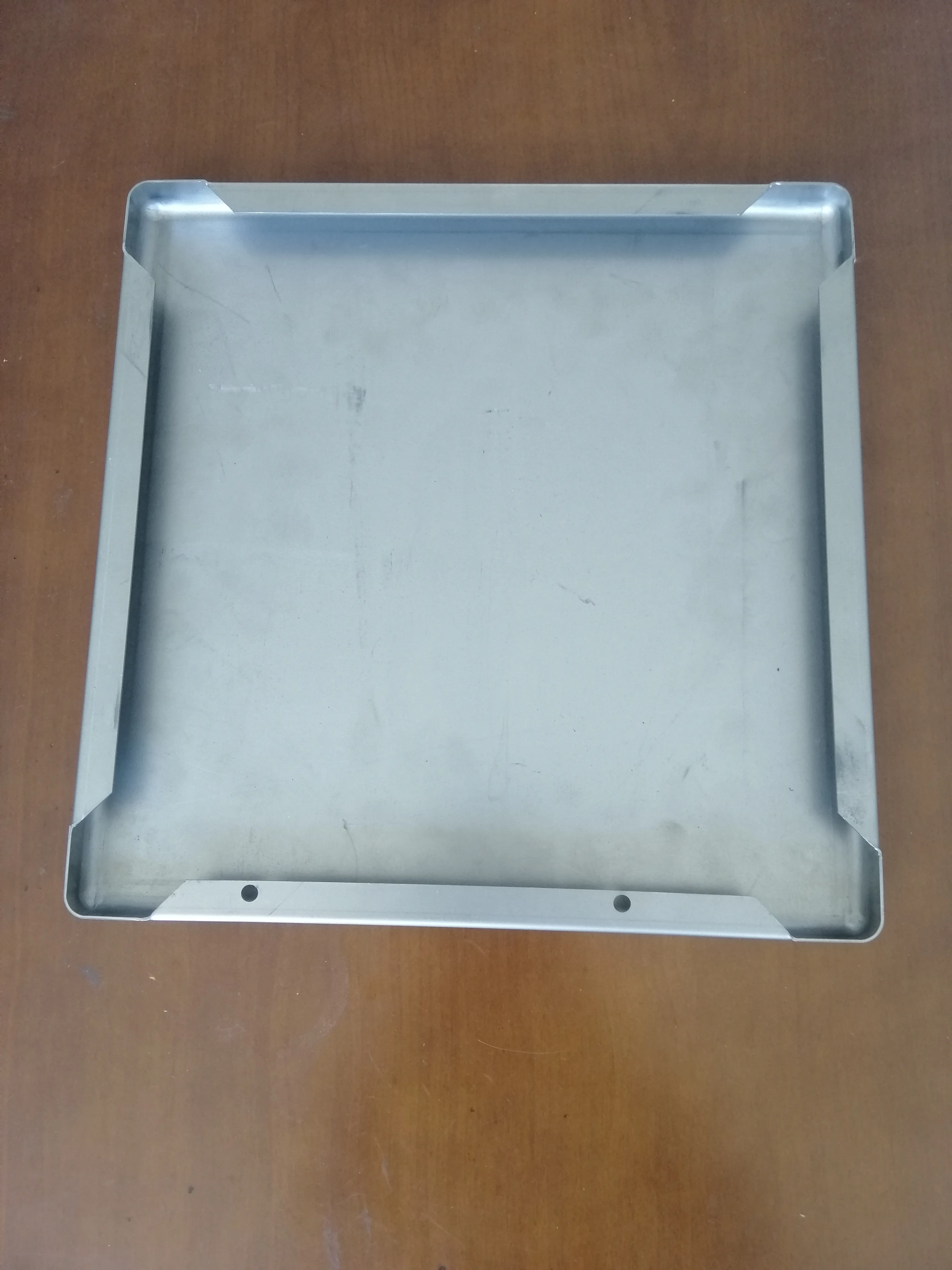

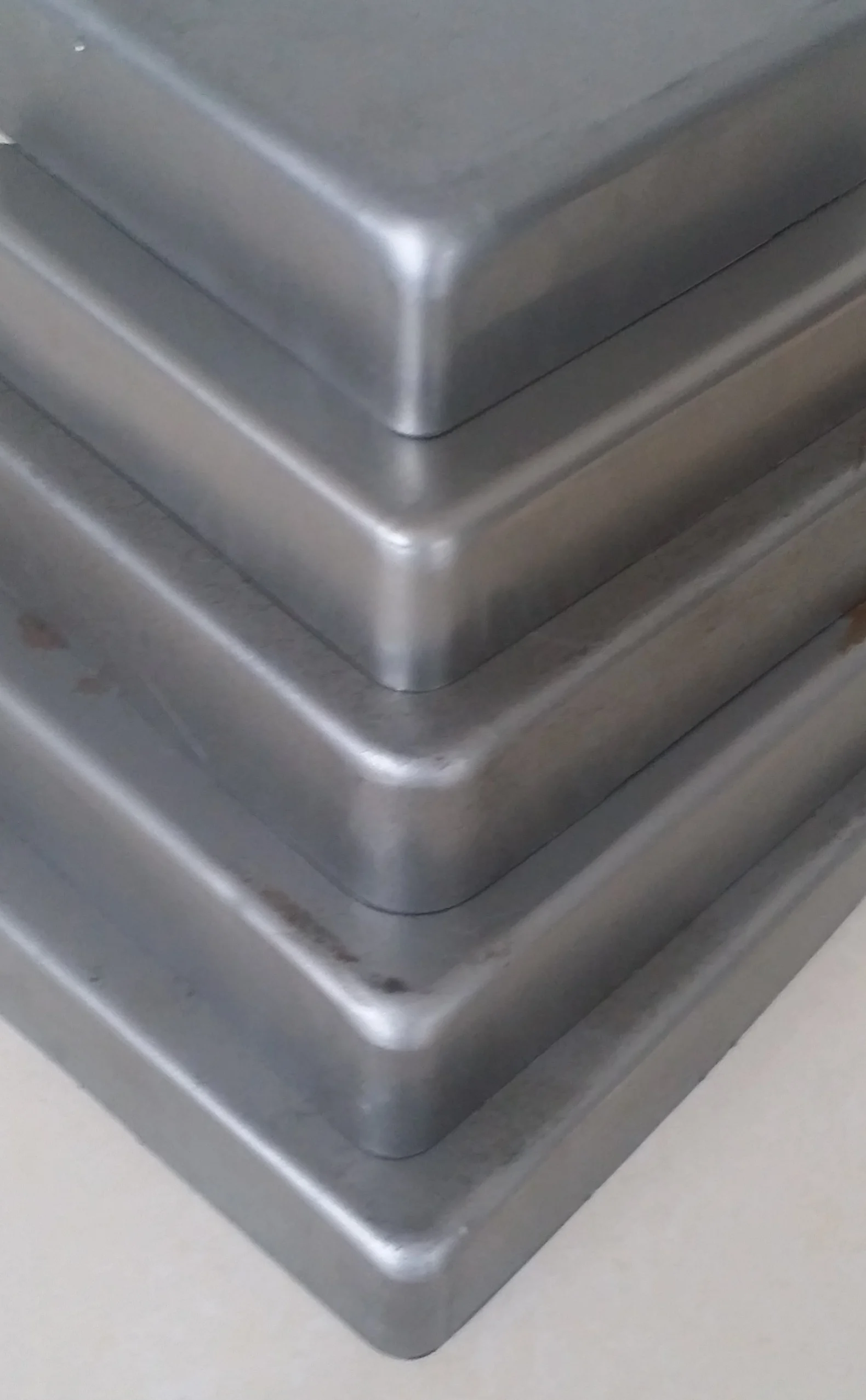

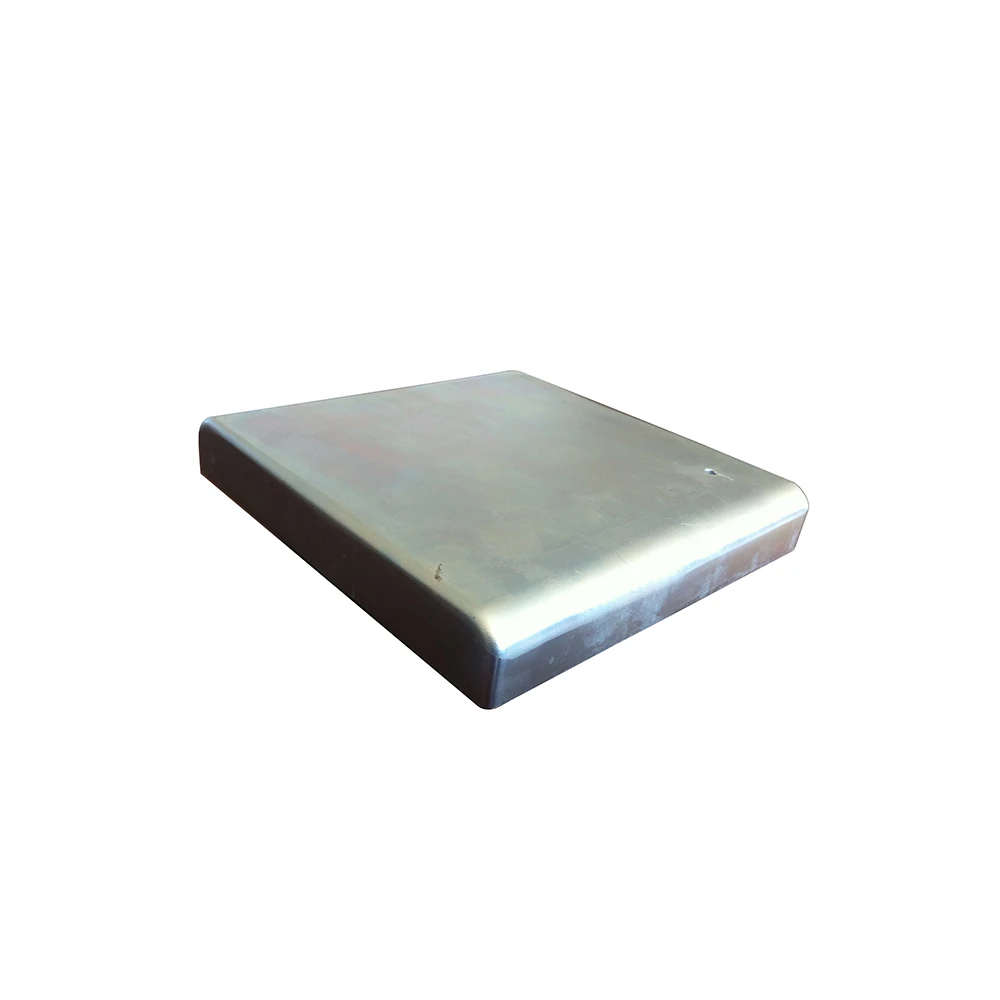

This machine is used in the processing of sheet metal corner moulding such as cold-rolled plate ,aluminum plate ,stainless steel plate ,copper plate etc.
Widely used in the switching door ,cover plate ,aluminum single panel curtain wall , switchboard ,container cover, household appliances ,instruments and other fields
Technical Features
*The machine owns twin shear function，the integrated shearing and forming function can be chosen in mass production ,the corner can be formed and sheared without changing shearing position ,saving physical capability .when the production is of great variety ,in small batch ,the separated forming and shearing function can be chosen . when the flange height is below 30mm, the flange height can be flexible and changeable ,the workpiece can be finished directly just change the station to shear after the corner isformed. This machine is one of the most advanced models in the world recently.
*Install safety light curtain protection to make the production process more safe and humanistic .
*Adopt the imported first-class brand components as our key electrical components to ensure the reliability and stability of the system.
*The PLC controller with 68 points can store and save lots of sheet metal corner moulding technologies, gap compensation coefficients .At the same time ,it can save and rewrite the coefficients of special materials and even the complex bimetal at any time
*This machine improves shearing efficiency more than six times by changing the tedious process of open-angle welding ,grinding etc into rolling forming directly .it saves labor ,electricity ,gas ,grinding material and other accessories for enterprises, therefore ,it is both environmentally friendly and greatly reduces the production cost , could be regarded as the enterprise save-money expert.
*Install safety light curtain protection to make the production process more safe and humanistic .
*Adopt the imported first-class brand components as our key electrical components to ensure the reliability and stability of the system.
*The PLC controller with 68 points can store and save lots of sheet metal corner moulding technologies, gap compensation coefficients .At the same time ,it can save and rewrite the coefficients of special materials and even the complex bimetal at any time
*This machine improves shearing efficiency more than six times by changing the tedious process of open-angle welding ,grinding etc into rolling forming directly .it saves labor ,electricity ,gas ,grinding material and other accessories for enterprises, therefore ,it is both environmentally friendly and greatly reduces the production cost , could be regarded as the enterprise save-money expert.
technical parameters | Content | ||||||
Model | JCX-QH2-1-3 | ||||||
Processing Range (mm) | Material | Thickness | Flange height (mm) | Corner radius | |||
Cold-rolled plate | 0.6 | <10 | 1.5-50 | ||||
0.8-1.2 | <20 | 1.5-50 | |||||
1.5 | <25 | 1.5-50 | |||||
2.0-3.0 | <30 | 1.5-50 | |||||
304(higher level included)Stainless steel plate | 0.5-3.0 | 1-2mm lower than the flange height of the cold rolled plate | 1.5-50 | ||||
Aluminum plate | 1-3 | Same as the flange height of cold rolled plate | 1.5-50 | ||||
Processing time moulding one corner | About 7 sec. | ||||||
Processing time moulding fours corners | About 32 sec. | ||||||
Mould configuration | Rolling mould ,square mould ,shear knife | ||||||
AC servo motor | Fuji/Japan | ||||||
Pneumatic System | Airtac/Taiwan | ||||||
PLC | FATEK/Taiwan | ||||||
Low voltage electrical appliance | Schneider /France | ||||||
hydraulic valve | Duplomatic/Italy | ||||||
Main motor power(KW) | 4 | ||||||
Dimensions(Length×Width×height) (mm) | 1280×1930×1890 | ||||||
Weight(KGS) | 1650 | ||||||
Company Profile
Yantai Ruisike CNC Machine Co ., Ltd.is a company engaged in developing ,designing,producing and saling sheet metal cnc mechanical machinery .the main products include:cnc corner forming machine ,cnc bending machine ,angle cutter ,riveting machine etc.cnc corner forming machine as our leading product ,its technical performance has reached international advanced level.
Yantai Ruisike CNC Machine Co.,Ltd.is located in Yantai ,a beautiful coastal city in the east of Shandong Peninsula ,owns branches in Guangzhou ,Beijing ,Shanghai etc,our machine has covered all major cities in China and exported to Canada ,USA ,Poland
,Singapore,Malaysia ,India, Dubai ,Turkey ,South Africa etc.With the tenet of "people-oriented, leading science and technology, honest operation and creating well-known brand", the company adheres to the management concept of "base on sincerity, win by excellence", and the quality policy of "seeking development with science and technology, seeking survival with quality", let's join hands to create brilliance for the development of sheet metal machinery industry.
Our Factory
Payment&Delivery
Sales Markrt
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
Похожие товары

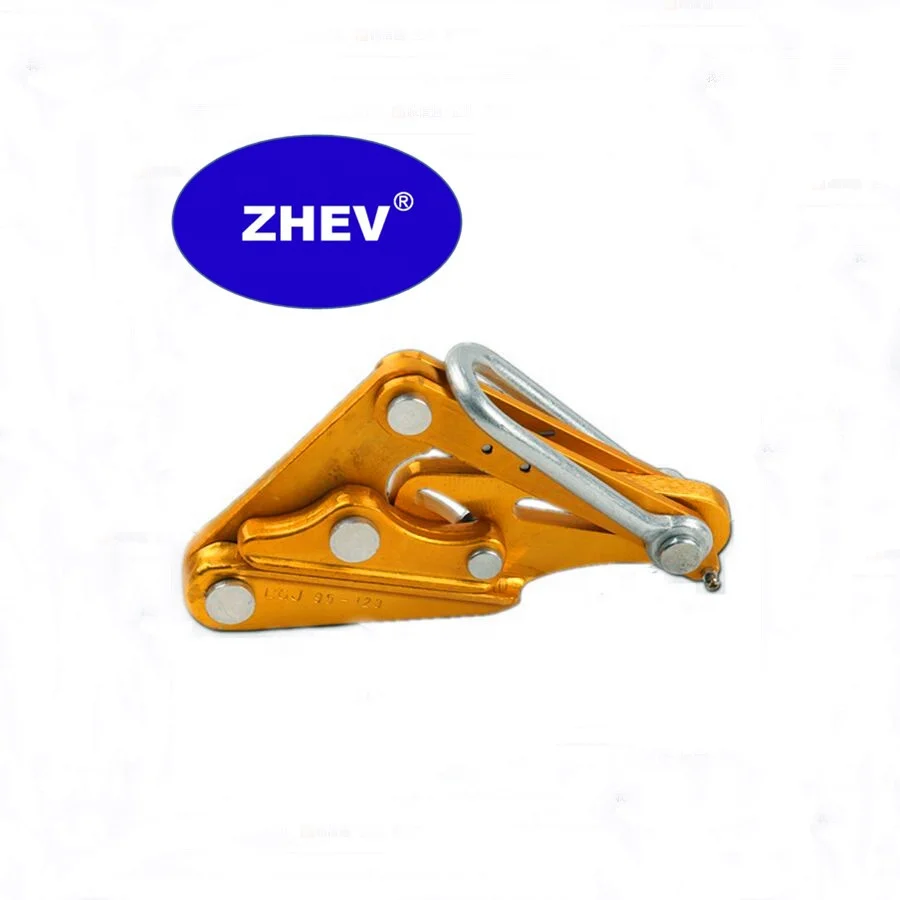

Алюминиевая проволока для неизолированных проводов SKL 40KN Power Clamp

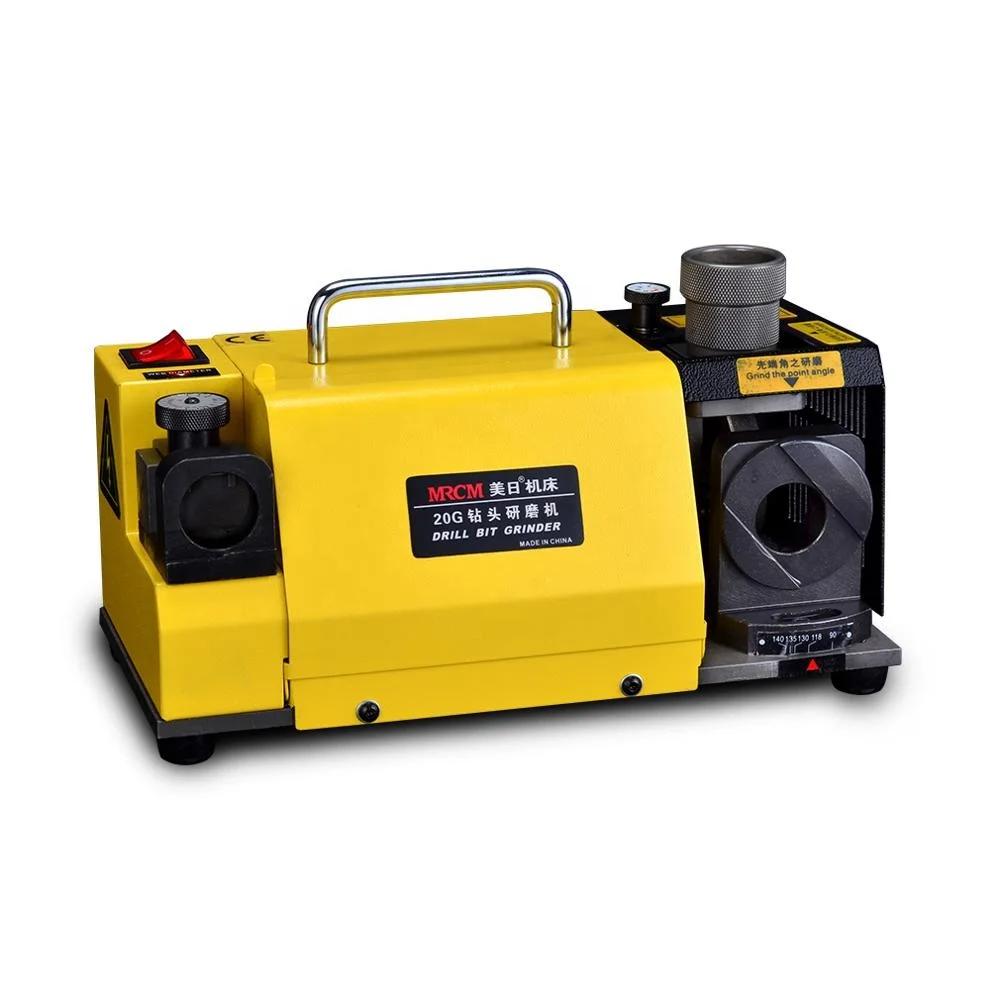

MR-20G шлифовальный станок с ЧПУ 3D Re-sharp сверла для 3 мм-20 мм дрель, угловая шлифовальная машина повысить эффективность буровая установка
330,00 $ - 460,00 $

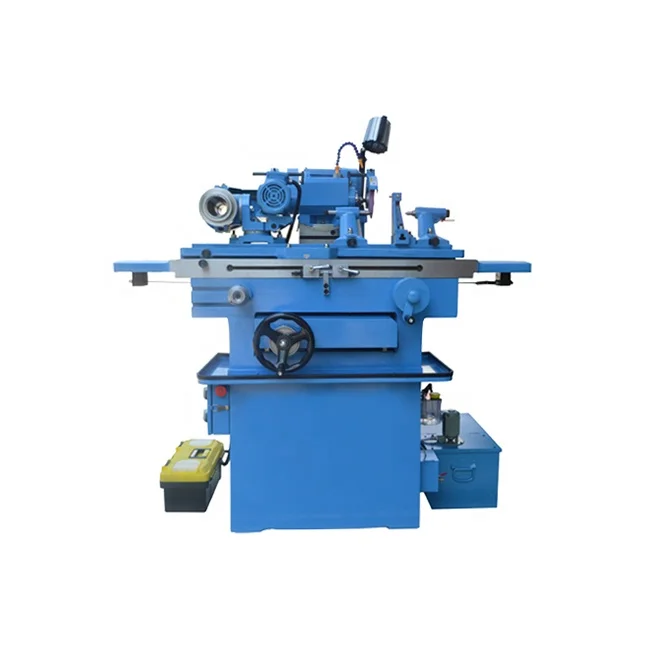

Высококачественный точильный станок с ЧПУ MQ6025A инструмент резак точильный станок с ЧПУ шлифовальный станок
Автоматическая шлифовальная машина для поверхностного шлифования зубных щеток с 6 дисками
Новые продукты 2-в-1 аромат бамбуковый уксус патчи для ног здравоохранения Очищающая Детокс подушечки
0,07 $ - 0,12 $
automatic surface trimming machine for toothbrush grinding

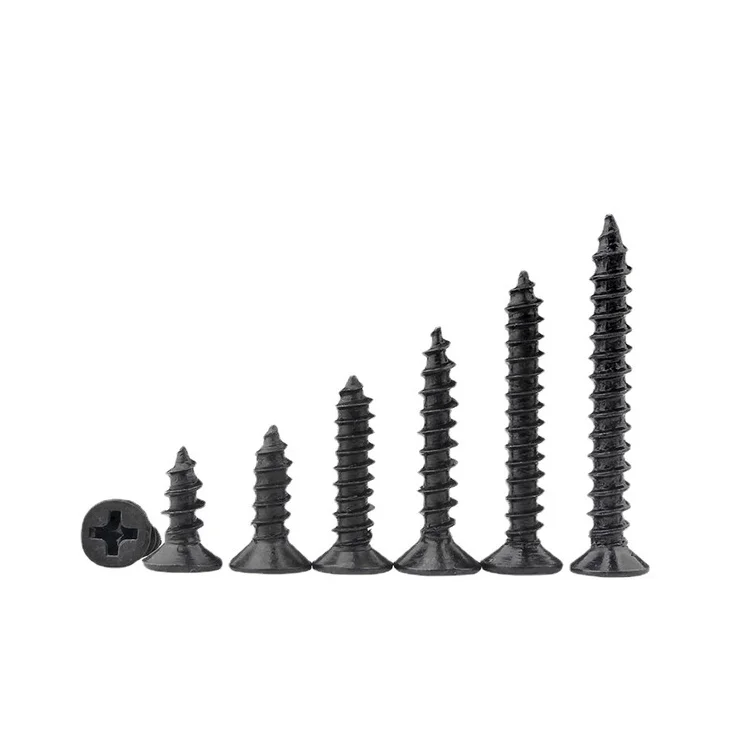

Низкая цена, черные фосфатные и оцинкованные винты для гипсокартона, бугельная головка/грубая резьба
