Промышленный пылесборник всасывающий Рычаг/вытяжной шланг с вентилятором выхлопного двигателя
17 891,93 ₽ - 18 976,29 ₽
Электростатический осадитель воздушный фильтр дымовой скруббер промышленный Газоочиститель кухонный масляный туман
- Категория: >>>
- Поставщик: Qingdao DEER Environmental Protection Technology Co. Ltd
Сохранить в закладки 62496487545:
Описание и отзывы
Характеристики
Product Description
DER-KE series Oil mist purifier
Scope of application
Purification principle of Oil Mist Collector
Oil mist enters the filter chamber from the inlet and is adsorbed on the gas-liquid sintering mesh.
After aggregation and combination, it slips and sinks the bottom under the action of gravity. And the oil mist is collected and drained to the oil tank through the drain pipe. The remaining small part of the oil mist is completely absorbed by the special primary filter felt at the outlet of the filter chamber, and is same collected into the oil tank. The odorous air discharged from the outlet is adsorbed by the activated carbon in the muffler to eliminate it, and the clean air discharge to the workshop to be recycling.
This product is designed for three-stage filtration. The first stage of filtration is gas-liquid sintering mesh covered with PTFE membrane (polytetrafluoroethylene), smooth surface, strong oil absorption and washable.
The second stage is a special primary filter felt, and the third stage is a high-efficiency activated carbon layer to remove odors. The whole machine with beautiful appearance, easy installation and use and obvious effect of oil fume removal.
In the field of modern mechanical processing, emulsion or cooling oil is usually used as coolant, which produces a large amount of oil mist and fume, and 0.3-3.5 micron particles will be inhaled to Human and it's going to be a health risk. If the oil mist deposits to the working area, easy to cause accidents such as industrial injuries, harmful to the physical and mental health of employees. At the same time, the workplace is full of oil and mist, the production efficiency will be reduced.
If the oil mist deposits on the wall, then the equipment has potential fire hazards, and may become the cause of machine tool internal and electrical system failure. If the oil mist discharges outdoors can destroy the environment.
After aggregation and combination, it slips and sinks the bottom under the action of gravity. And the oil mist is collected and drained to the oil tank through the drain pipe. The remaining small part of the oil mist is completely absorbed by the special primary filter felt at the outlet of the filter chamber, and is same collected into the oil tank. The odorous air discharged from the outlet is adsorbed by the activated carbon in the muffler to eliminate it, and the clean air discharge to the workshop to be recycling.
This product is designed for three-stage filtration. The first stage of filtration is gas-liquid sintering mesh covered with PTFE membrane (polytetrafluoroethylene), smooth surface, strong oil absorption and washable.
The second stage is a special primary filter felt, and the third stage is a high-efficiency activated carbon layer to remove odors. The whole machine with beautiful appearance, easy installation and use and obvious effect of oil fume removal.
In the field of modern mechanical processing, emulsion or cooling oil is usually used as coolant, which produces a large amount of oil mist and fume, and 0.3-3.5 micron particles will be inhaled to Human and it's going to be a health risk. If the oil mist deposits to the working area, easy to cause accidents such as industrial injuries, harmful to the physical and mental health of employees. At the same time, the workplace is full of oil and mist, the production efficiency will be reduced.
If the oil mist deposits on the wall, then the equipment has potential fire hazards, and may become the cause of machine tool internal and electrical system failure. If the oil mist discharges outdoors can destroy the environment.
Model | Exhaust volume (m3/h) | Power (kw) | Outline size (mm) | Filter efficiency % | Voltage V/Hz |
DER-KE1500 | 1500 | 1.5 | 850*600*600 | 99.9 | custom made |
DER-KE2400 | 2400 | 2.2 | 1100*650*800 | 99.9 | custom made |

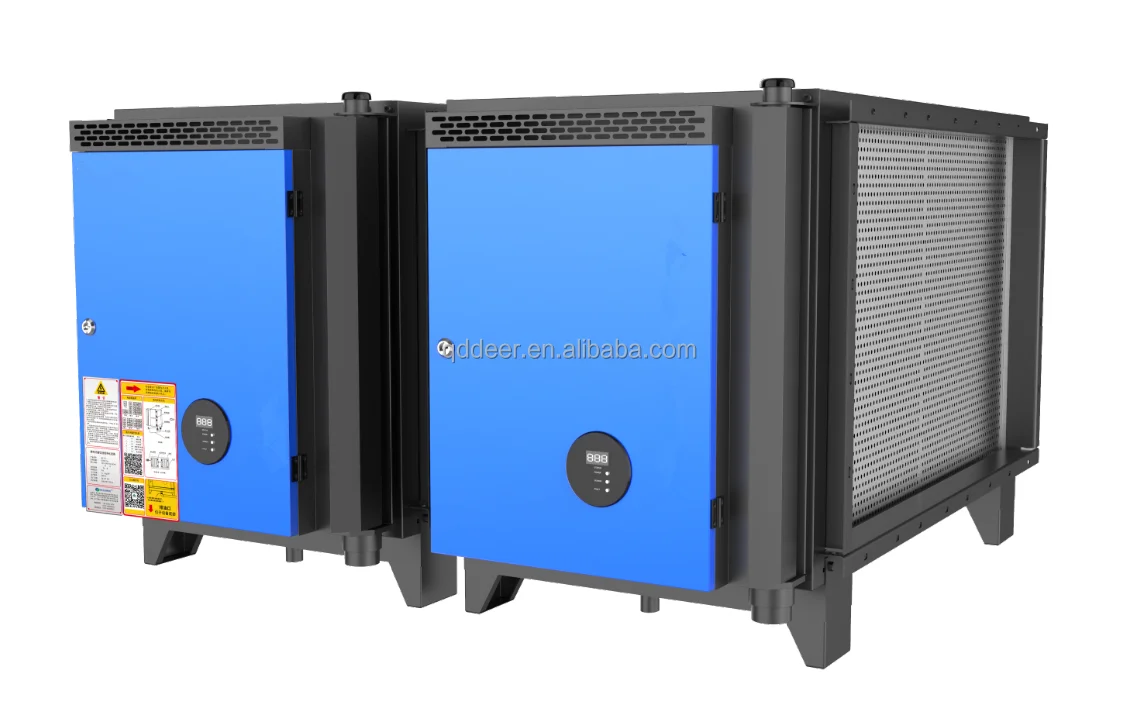

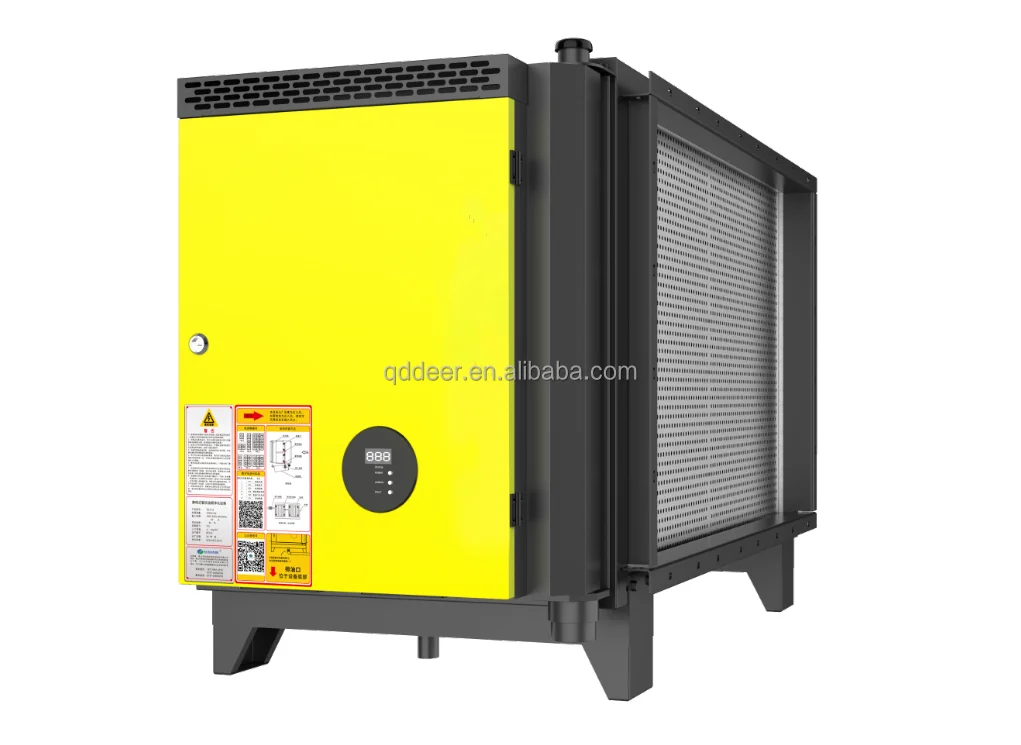

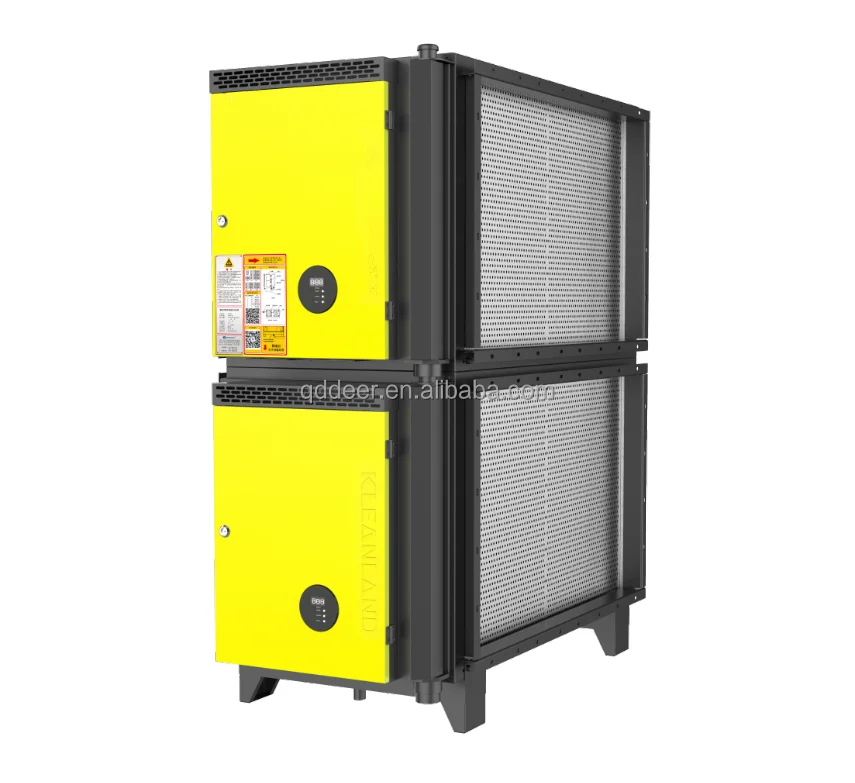

DER-QE oil smoke purifier
Characteristics of the oil mist collector
■ Low noise-The noise produced by the fume purifier in operation can be neglected.
■ Low resistance-Adopting the plasma control can reduce resistance and save operation cost.
■ Drawer type-Electric field drawer type design at plasma location, easy maintenance and cleaning.
■ Three-way sealing-The machine uses three-way sealing means to prevent oil leakage.
Production Introduction

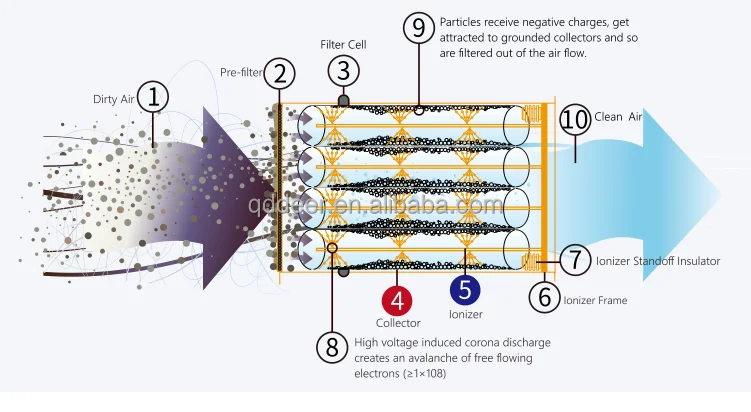

The QE oil smoke purifier uses the combination type of DC superposition pulse plasma power supply and electric field of the truss plate structure to generate corona discharge, so as to obtain high energy plasma.
Under the action of plasma electric field, the oil fume makes small oil droplets condense instantaneously into large oil droplets, which are collected on the oil collecting plate and settled into the oil collecting tank under the action of the plasma bombardment.
At the same time, most um grade oil mist particles, VOC, organism, oil smell, pungent taste in the fume exhaust gas odor and other odors are degraded by plasma, which ensures the higher purifying rate of the fume purifier, odor degrading rate and longer cleaning.
Under the action of plasma electric field, the oil fume makes small oil droplets condense instantaneously into large oil droplets, which are collected on the oil collecting plate and settled into the oil collecting tank under the action of the plasma bombardment.
At the same time, most um grade oil mist particles, VOC, organism, oil smell, pungent taste in the fume exhaust gas odor and other odors are degraded by plasma, which ensures the higher purifying rate of the fume purifier, odor degrading rate and longer cleaning.
Model | Exhaust volume (m3/h) | Outline size (L*W*H)mm | Tuyere size (Width*Height) mm | Weight (kg) |
DER-QE-2000 | 2000 | 480*605*600 | 400*400 | 30 |
DER-QE-4000 | 4000 | 630*605*600 | 400*400 | 50 |
DER-QE-6000 | 6000 | 630*705*700 | 500*500 | 70 |
DER-QE-8000 | 8000 | 810*705*700 | 500*500 | 80 |
DER-QE-10000 | 10000 | 800*880*740 | 690*560 | 95 |
DER-QE-12000 | 12000 | 800*970*740 | 780*560 | 110 |
DER-QE-14000 | 14000 | 800*1000*860 | 790*560 | 140 |
DER-QE-16000 | 16000 | 800*1000*960 | 790*750 | 150 |
DER-QE-18000 | 18000 | 900*900*1200 | 700*1000 | 165 |
DER-QE-20000 | 20000 | 900*1000*1200 | 790*1000 | 200 |
Похожие товары
MF-16 фильтр для воздухозаборника, детали для воздуходувки, скорость 100 микрон, высокоэффективный воздушный фильтр для твердых частиц

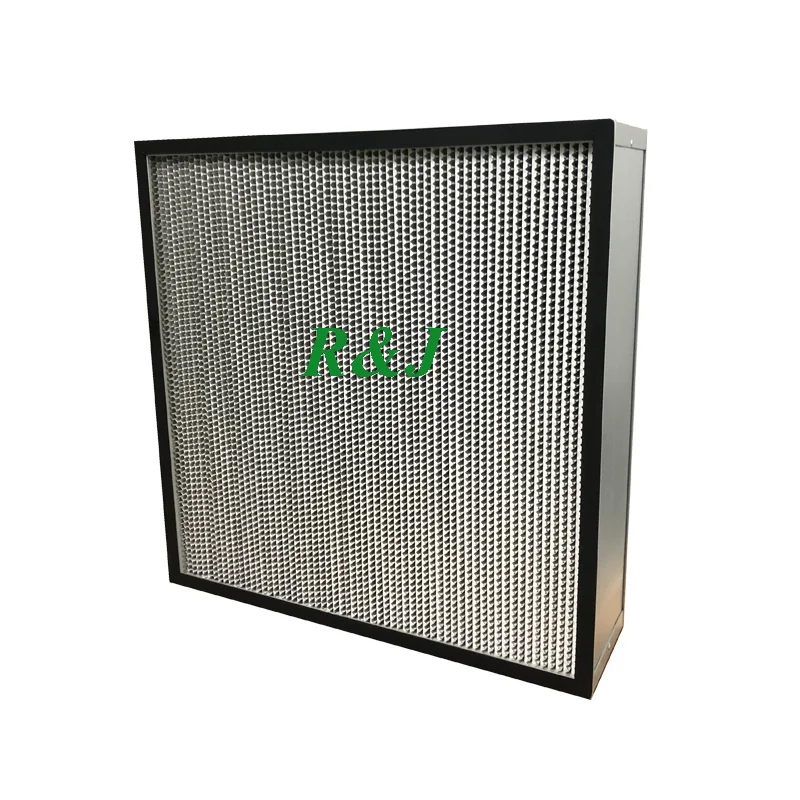

Фильтрующий фильтр Hepa 2x4 с HEPA H14, 0,3 мкм, 110 В, 220 В, 50 Гц, 16-25 кг, 1000-2000, M3h, двигатель CNGUA
195,19 ₽ - 271,09 ₽

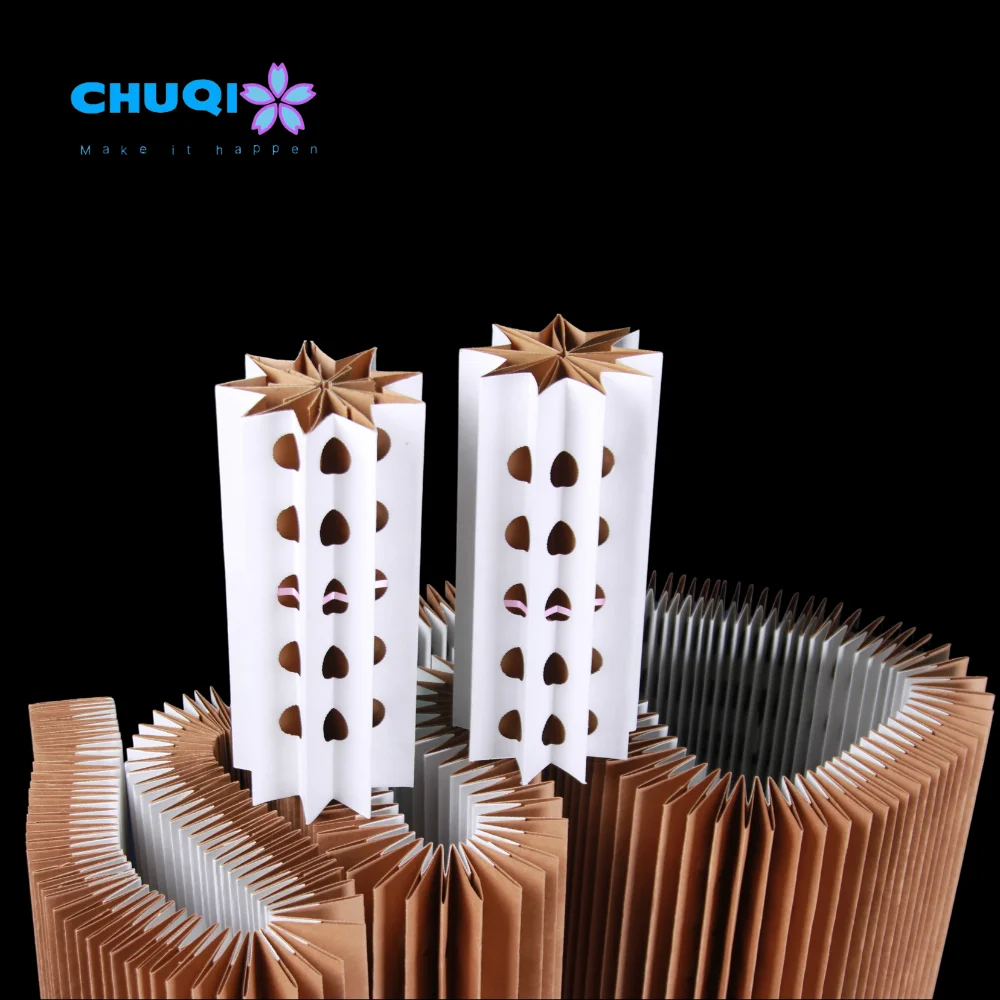

Предварительно средняя фильтровальная бумага для краскораспылительной камеры, картонная хлопчатобумажная конструкция для промышленных предприятий с сердечником из стекловолокна
2 168,72 ₽ - 3 795,26 ₽
Substituir
Конкурентоспособная цена, хорошее качество, оригинальные дизельные фильтры, элемент масляного фильтра двигателя 1R0762 1R0751 8193841 20998367
347,00 ₽ - 390,37 ₽

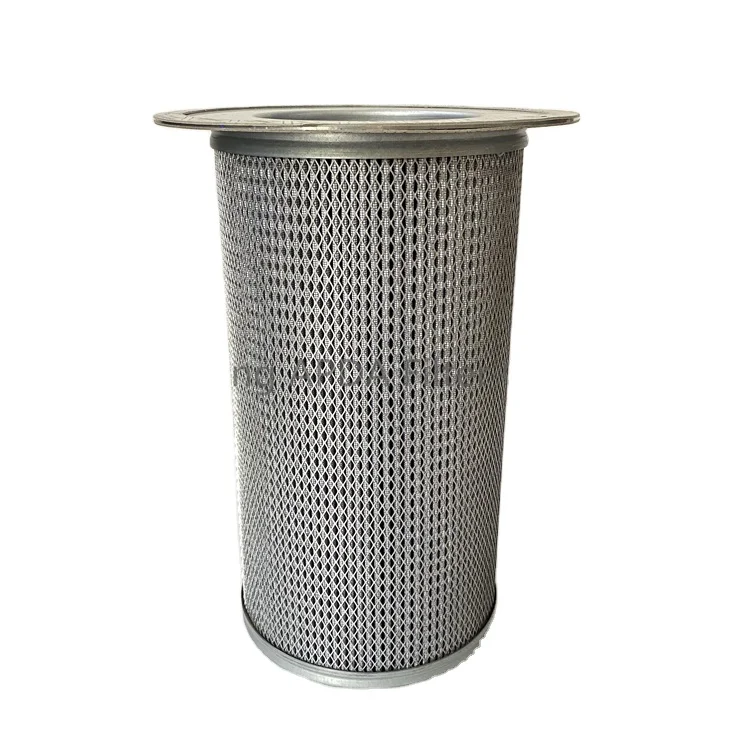

Высококачественный сепаратор масла компрессора воздуха 250034-086
23 313,72 ₽ - 24 398,08 ₽

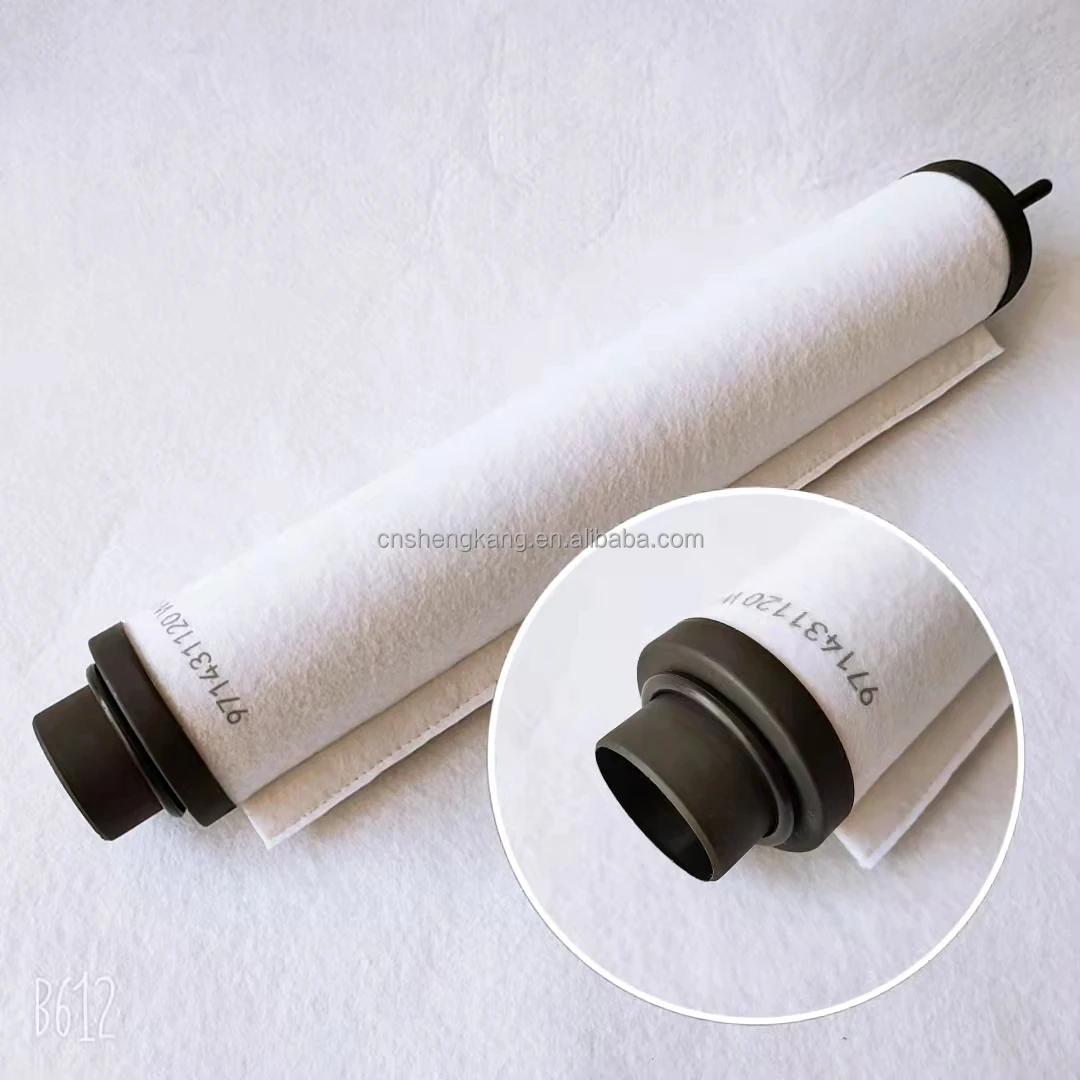

Shengkang оптовая продажа заменяет фильтр выхлопных газов и глушителя 971431120
